12v 24v flexible tape rope light flex white dotless luces flip chip fob cob led strip lights
- Category: LED Strip Lights >>>
- Supplier: Shenzhen Ledyi Lighting Co. Ltd.
Share on (62553336253):
Product Overview
Description

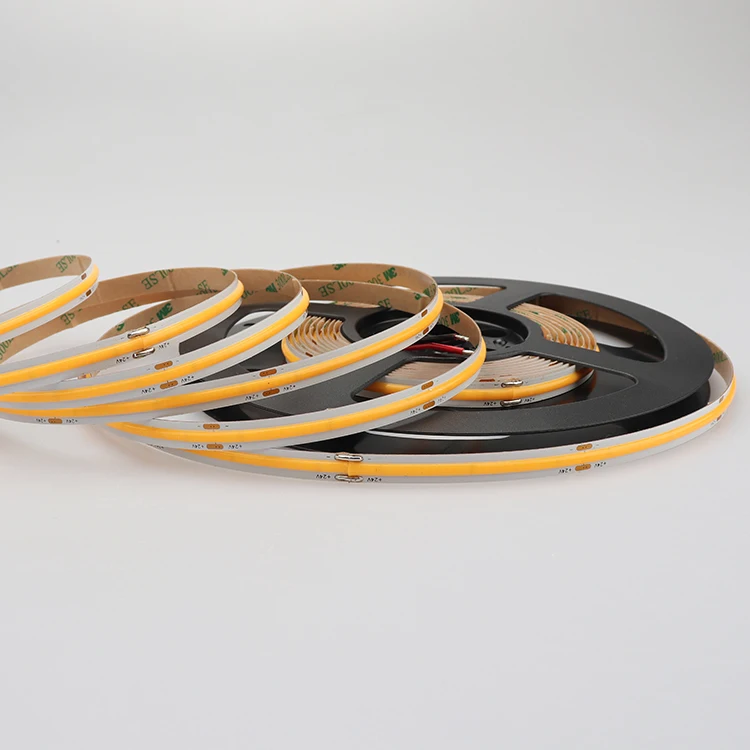

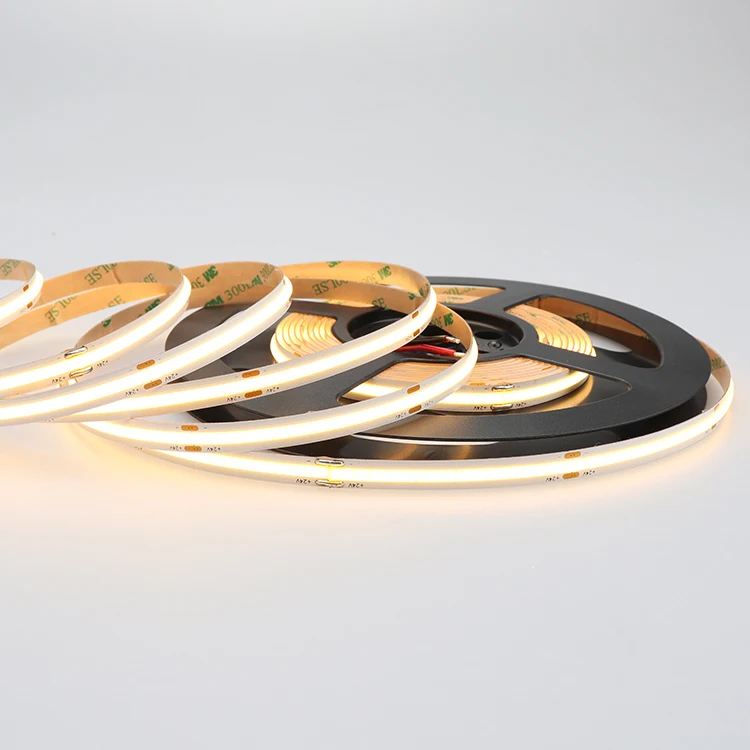

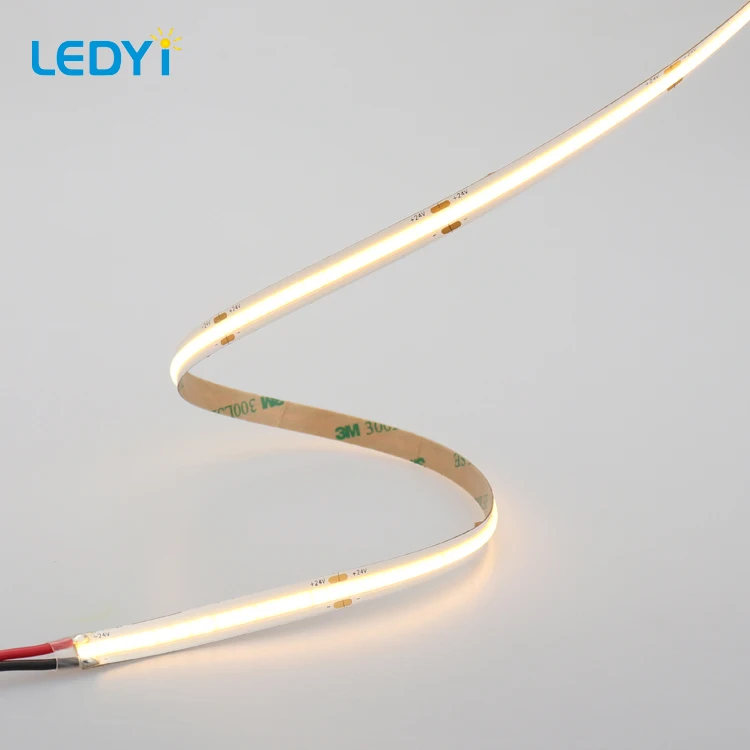

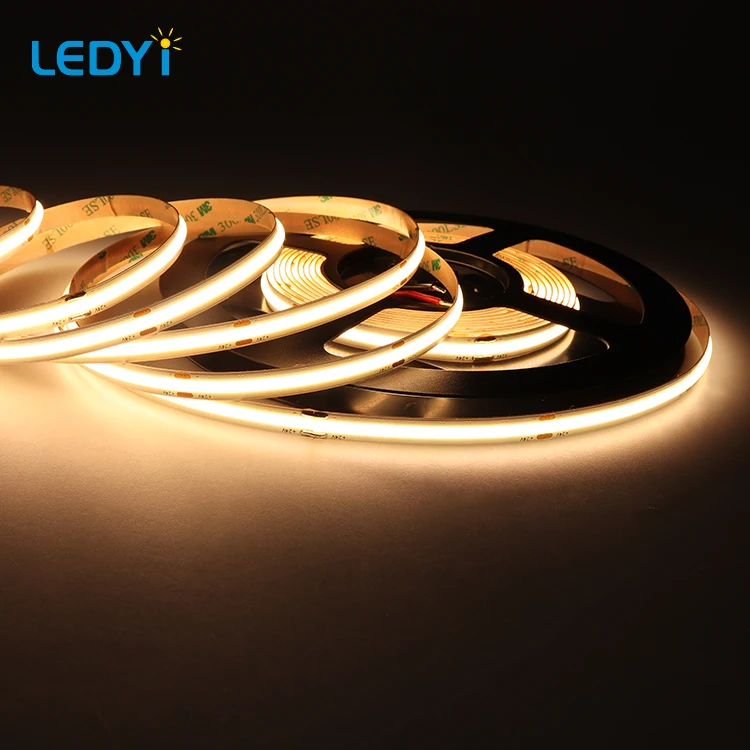

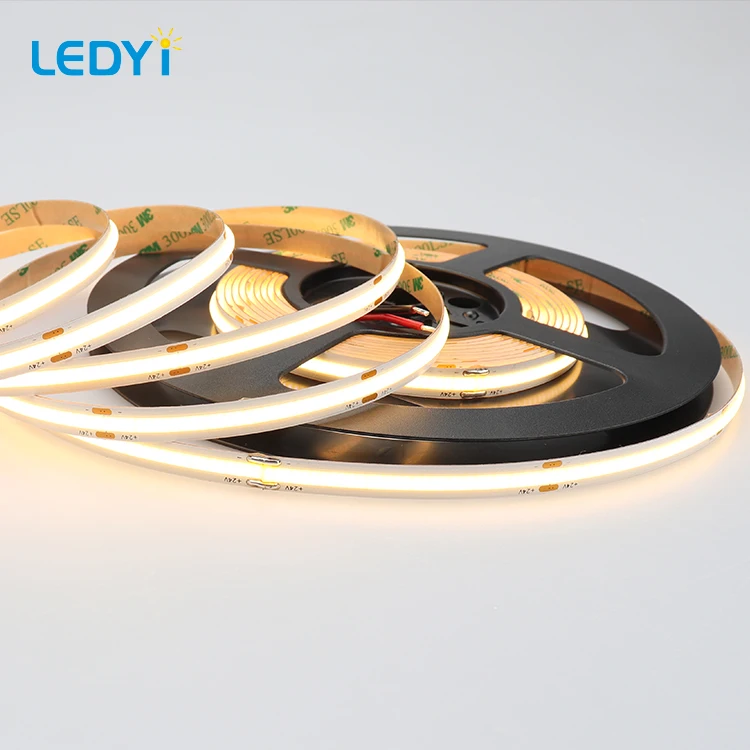

8MM 480Chips flexible dotless cob led strip
Dimension: 5000mm x 8mm x 2mm
Chip density: 480chips
CRI: Ra>85
Power(W): 9W/meter
Voltage(V): DC12V/24V
Ambient temperature: -20°C~+50°C
Product Paramenters
Description:
What is COB Led Strip?
The Full Name of the COB Led Strip is: Chip on Board, Which is a Method of Directly Binding the Led Chips to the PCB Board.
The Ordinary Light Strip is Made of Chip on the frame, and Made Into SMD. Then Put the Smd on the PCB. COB led strip Saves a Lot of Space on PCB and Cost.
Because It Saves Space, More LED Can Be Added. Generally, The 2835 Strip Light Can Hold a Maximum of 240 SMD Per Meter, and the COB Can Hold 640 Chips or More.
And Because the Cost of Mounting the Chip on the frame is Saved, the Price of the COB Led Strip is Much Cheaper Than the Same Number of Led Strips.
The Full Name of the COB Led Strip is: Chip on Board, Which is a Method of Directly Binding the Led Chips to the PCB Board.
The Ordinary Light Strip is Made of Chip on the frame, and Made Into SMD. Then Put the Smd on the PCB. COB led strip Saves a Lot of Space on PCB and Cost.
Because It Saves Space, More LED Can Be Added. Generally, The 2835 Strip Light Can Hold a Maximum of 240 SMD Per Meter, and the COB Can Hold 640 Chips or More.
And Because the Cost of Mounting the Chip on the frame is Saved, the Price of the COB Led Strip is Much Cheaper Than the Same Number of Led Strips.
COB Led Strip Advantages:
1. The Price is Cheaper and Easy to Use.
2. Electrical Stability, Circuit Design, Optical Design, and Heat Dissipation Design Are Scientific and Reasonable.
2. Electrical Stability, Circuit Design, Optical Design, and Heat Dissipation Design Are Scientific and Reasonable.
3. Good solution for linear light. It perfect achieve the Dot-Free lighting effect even if without any profile or PC cover.
4. Continuous and uniform linear illumination, with soft and elegant light, no glare.
5. Adopt Flip-Chip technology, no dead light risk.
6. More flexible and bendable than the traditional led strip, it has a bending radius of only 5mm, so it can be any shape you want.
7. It's your new best choice for Lighting Market.
4. Continuous and uniform linear illumination, with soft and elegant light, no glare.
5. Adopt Flip-Chip technology, no dead light risk.
6. More flexible and bendable than the traditional led strip, it has a bending radius of only 5mm, so it can be any shape you want.
7. It's your new best choice for Lighting Market.
Product Specification | ||
Dimension: | 5000x8x2mm | |
Voltage(V): | DC12V/DC24V | |
Chip Type: | COB | |
Chips/m: | 480pcs | |
CRI: | Ra>85 | |
Power(W/m): | 9w | |
Step Chips: | 12pcs(12V)/24pcs(24V) | |
Beam Angle: | 180° | |
Step Length: | 25mm(12V)/50mm(24V) | |
Operation Temperature: | -20℃-50℃ | |
CCT | Lumen (lm/m) | Efficacy (lm/w) |
2700±100 | 900 | 100 |
3000±100 | 945 | 105 |
4000±200 | 990 | 110 |
6000±300 | 1035 | 115 |
Packing&Shipping
Certificate
Our products are approved with ETL, TUV-CE, SGS-ROHS and REACH certifications. Thanks to the strict quality control
processing, on-time delivery and best after-sale service, strictly followed to UL, EU safety standards, our products have
been hot sold to Europe, North and South America, Russia, Southeast Asia, such as Germany, France, Italy, Spain, UK,
Australia, USA, Argentina, Chile, Venezuela, Brazil etc.
Company Introduction
LEDYi Lighting, founded in 2011, a specialized LED Strip manufacturer, with over 5000 square meters of standard workshop and over 150 employees.
Our company have LED encapsulation line, auto SMT machines, reflow soldering machine, and professional test equipment, such as IP68 waterproof level test machine, integrating spheres, AOI tester, etc. We also have a professional trained QC team to ensure the quality of all the products.
We go through QMS certification ISO9001:2015, EMS certification ISO14001, OHS certification OHSAS18001.
Our R&D team have abundant experience in industrial design, electronic driver, heat simulation analysis, optical lens design, light control system. We adopt the high-grade raw materials, from our own led SMD encapsulation, auto soldering , SMT assembly, multiple strict QC, aging testing, to product package, we cater to every detail to make the perfect product for our clients.
Our products are approved with ETL, TUV-CE, SGS-ROHS and REACH certifications.
We go through QMS certification ISO9001:2015, EMS certification ISO14001, OHS certification OHSAS18001.
Our R&D team have abundant experience in industrial design, electronic driver, heat simulation analysis, optical lens design, light control system. We adopt the high-grade raw materials, from our own led SMD encapsulation, auto soldering , SMT assembly, multiple strict QC, aging testing, to product package, we cater to every detail to make the perfect product for our clients.
Our products are approved with ETL, TUV-CE, SGS-ROHS and REACH certifications.
Related Products
FAQ
1. Do you have certificate for your products ?
R: Yes, our products have CE (EMC+LVD), Rohs(SGS) and ETL certification.
2. Do you have warranty for products?
R: Yes, we have 3 and 5 years waranty for different kinds of products. During the period, if customers have the proof showing product quality issue and certified by LEDYi engineers, we will request customers to ship back the failure
parts and replace new items with free shipping cost.
3. Do you offer free sample and what's the MOQ?
R: Yes, we offer free sample and no MOQ for standard products, have MOQ for customized products.
4. What is the lead time of Ledyi Lighting?
R: Usually we ship orders in 2 weeks. But it will take a little longer if we have heavy burden of production task. It also takes more time for customized products.
5. Can Ledyi Lighting accept customized assembly or offer OEM products?
R: Yes, Ledyi lighting has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
6. What is the main market of Ledyi Lighting?
R: We are selling more to EU and North America because the markets have high quality standard for LED products. The rate accounts for 70-80% of our turnover. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
