DY 50SM automatic double end chamfering machine (62553451656)

Share on (62553451656):


Price:RUB 369,155.71
Price in USD:Details

Quantity:


Product Overview

Description

Product Description

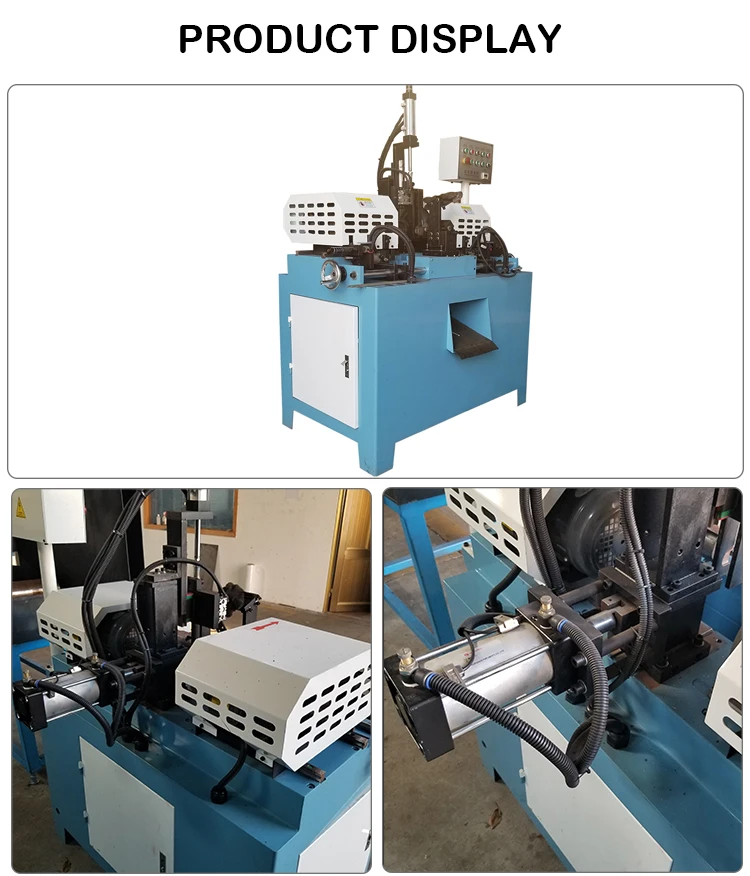

DY-50SM automatic double end chamfering machine

Model DY-50SM 50 double-head short material chamfering machine-pneumatic
Main motor power 1.5KW * 380V * 50HZ (2 sets)
Main motor brand Guanshun / export
Origin of main motor Haian
Bearing brand NTN
Cylinder specifications Deyu Custom
Electrical brand Chint
Origin of touch screen Shenzhen
Working pressure MPA6-8KG
Applicable outer diameter Φ8-Φ20mm / Φ20-Φ50mm
Processing length Standard 100-600mm (can be extended)
Precision ± 0.1mm
Processing speed 3-5 seconds / piece
Applicable material Steel pipe, iron pipe, stainless steel pipe, aluminum pipe, copper pipe, plastic pipe, nylon pipe, round rod
Machine dimensions Length Width Height 1800x1000x1100mm


Product introduction

1. Automatic feeding, automatic clamping, automatic feeding and retracting, fast speed.

2. The clamping mold and cutter head have been exquisitely designed to ensure that the centerline of the processed object and the cutter head is exactly the same. The outer angle, inner angle and end face of the pipe end can be evenly processed at one time.

3. For workpieces of different sizes, it is only necessary to make simple adjustments of the cutter head and the clamping die.

4.Using the change of the pulley can change a variety of speeds to adapt to a variety of metal materials and achieve the longest tool life.

5. The two-stage feed speed saves man-hours, and the slow speed is easy to adjust, and the processing is perfect.


double end chamfering machinedouble end chamfering machine

If you want to know more product details, please click here contact us》》
Related Products

Hot sales

1

DW38NC tube bending stainless steel machine hydraulic pipe bender

2

DW38CNC*3A1S Automatic steel pipe bending machine price for pipe and tube

3

DY450CNC automatic metal tube circular saw pipe cutting machine price

Our Factory

Zhangjiagang Deyu Machinery Co., Ltd is known as  specializing in tubular product processing, equipment research and development and production. Our company has independently developed products, such as full-automatic chamfering machine, CNC numerical control pipe bender, large-scale hydraulic pipe bender, CNC metal circular saw machine, full-automatic pipe end forming machine, etc. In addition, it has also developed various pipe processing assembly line projects.

double end chamfering machine

double end chamfering machine

Service

double end chamfering machine

Packing & Shipping

double end chamfering machine

FAQ

Q:Could you do design for us?

A:Yes, we can do artwork including printing, logo etc. for you, if you provide us the contentand tell us where to put.

Q:What's your payment term?

A:T/T, Credit Card, L/C paid before sending goods.
Small amount payment can through Paypal
please confrm everything clearly before you make payment.

Q:What's your delivery time?

A:Within 5 working days after payment confrmed, customized products need 10~15

working days

Q:How to solve the problem of your equipment?

A:Please send us email of the problem, pictures or a small video will be much better,we will find the problem

and tell you how to solve it.

If there is a broken, we will send you a new part, and it is free in the warranty period.

Q:Do you still provide service beyond the warranty?

A:Yes. Our warranty is one year from the delivery date, we also provide service

beyond thewarranty period, but it will not free for the broken parts.

Q:How to transport the product?

A:By sea: More than 60kg or big quantity;Safe,cheap but slow; By air to airport: Suit for big product or quantity

but urgent a lot.Usually 7-10 days arrive. Some direct flight can arrive at 3-5 days.

By Express delivery such as DHL,FedEx,TNT: Suit for small or not too heavy and very urgent product.

Generally 5-7 days arrive

Q:What's your products' advantages ?

A: A. Good quality and competitive prices.
B. Strictly quality control when producing.

C. Professional team work, from design, development, producing,assemble,packing

and shipping.

D. After-sale services, if there is quality problem, we will offer you replacement for
defective quantity.

Q:Which brands you already cooperated with in the past ?

A:We have already cooperated with so many chemical plants, pharmaceutical factories andso on in our country 、for more than 2 years.

In the foreign markets, we have cooperated withmore than 50 wholesalers, also the ultimate users. They are all satisfied with our products'quality.
