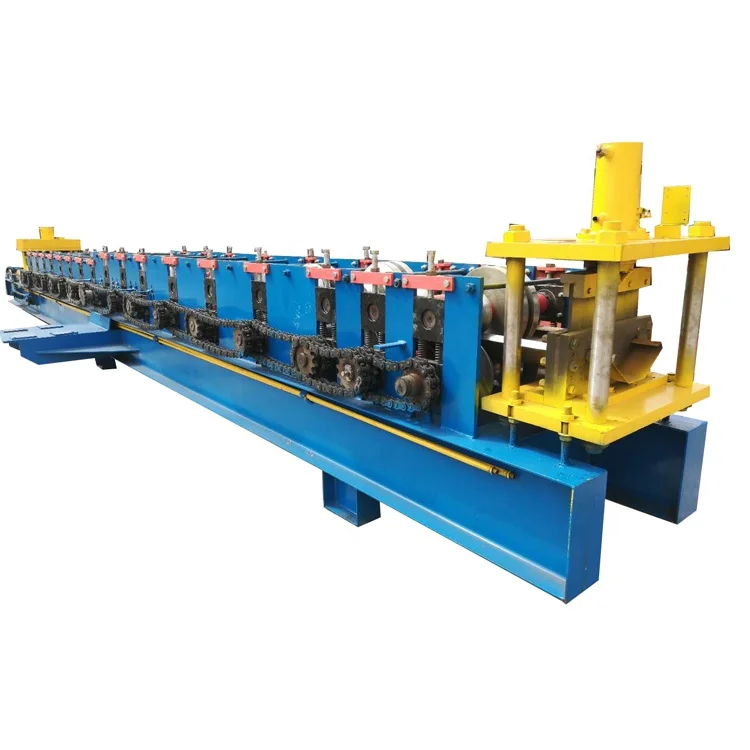

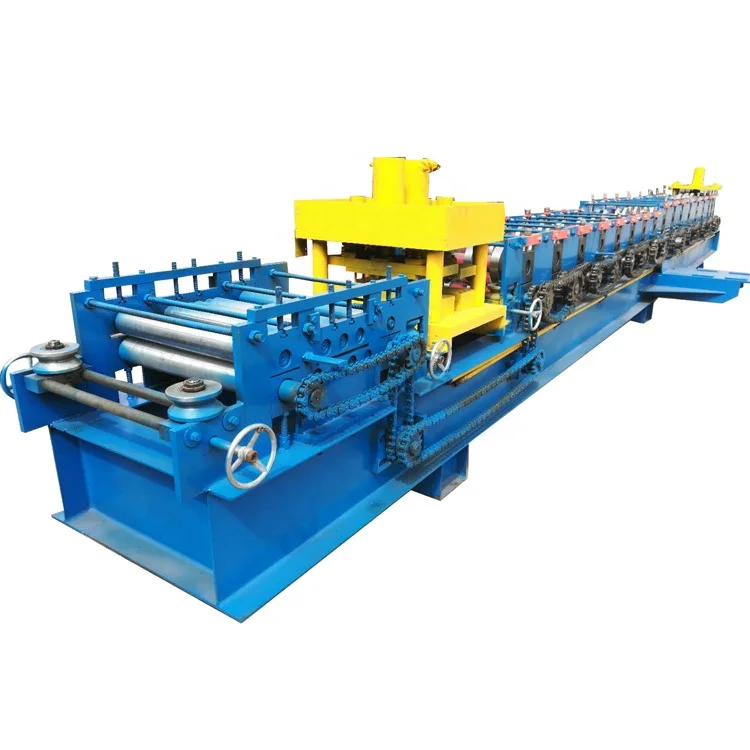

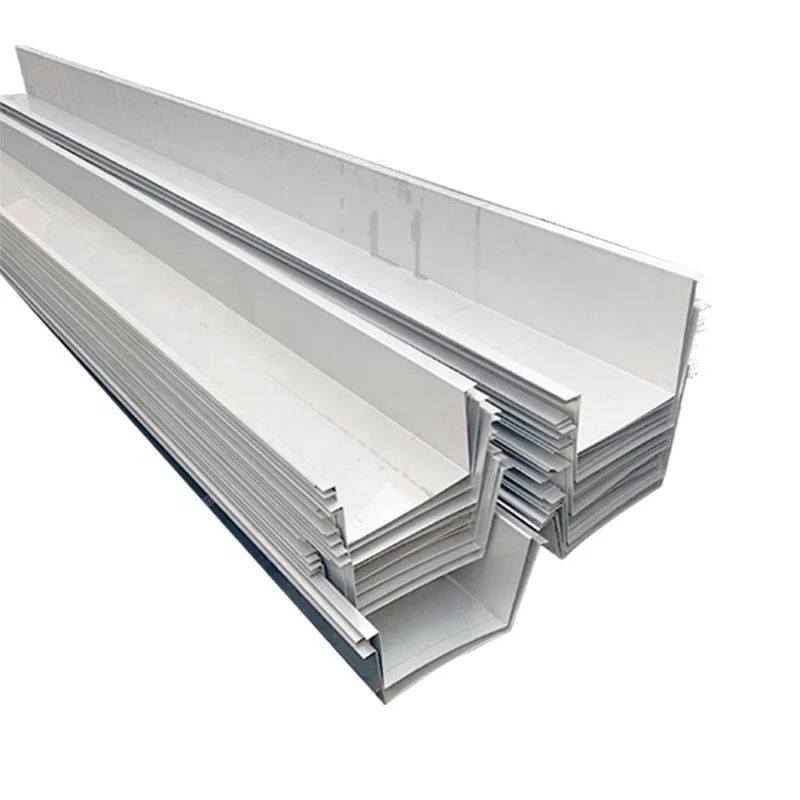

Green house gutter color steel roll forming machine with best service
- Category: Greenhouses >>>
- Supplier: Botou Kefa Roll Forming Machine Co. Ltd.
Share on (62553489619):
Product Overview
Description
Greenhouse gutter roll forming machine
Products Parameter
Feeding rack | Manual tightening, passive feeding |
Loading rack load | 5T |
frame | 350H steel welding |
Stand thickness | 18MM |
Feed rack guide form | Side roller |
transfer method | Wall plate chain drive |
Shaft diameter | ￠ 80㎜ |
Chain | 1.5 inch |
Forming speed | 7-10m / min |
Forming rows | 12-row molding, 7-roller leveling |
Punching method | Hydraulic forward punch |
Roll material | Bearing steel |
Roll heat treatment | HRC58 ° -60 |
Hydraulic station motor | 4kw |
Hydraulic station oil pump | Gear pump |
Cut off method | Twisted punching |
Motor Power | 11kw |
Rolling thickness | 1.0-3.0mm |
Expanded width | 378mm |
Length accuracy | ± 2mm |
Control System | PLC |

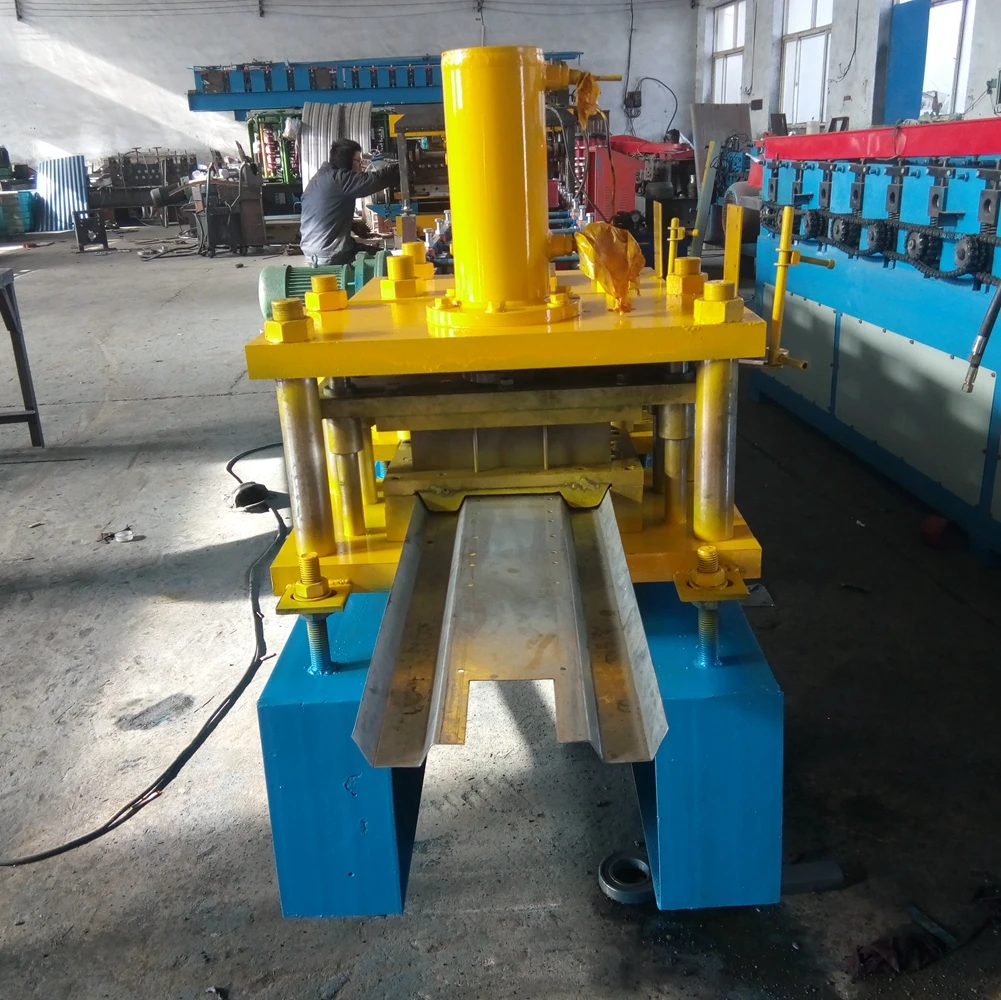

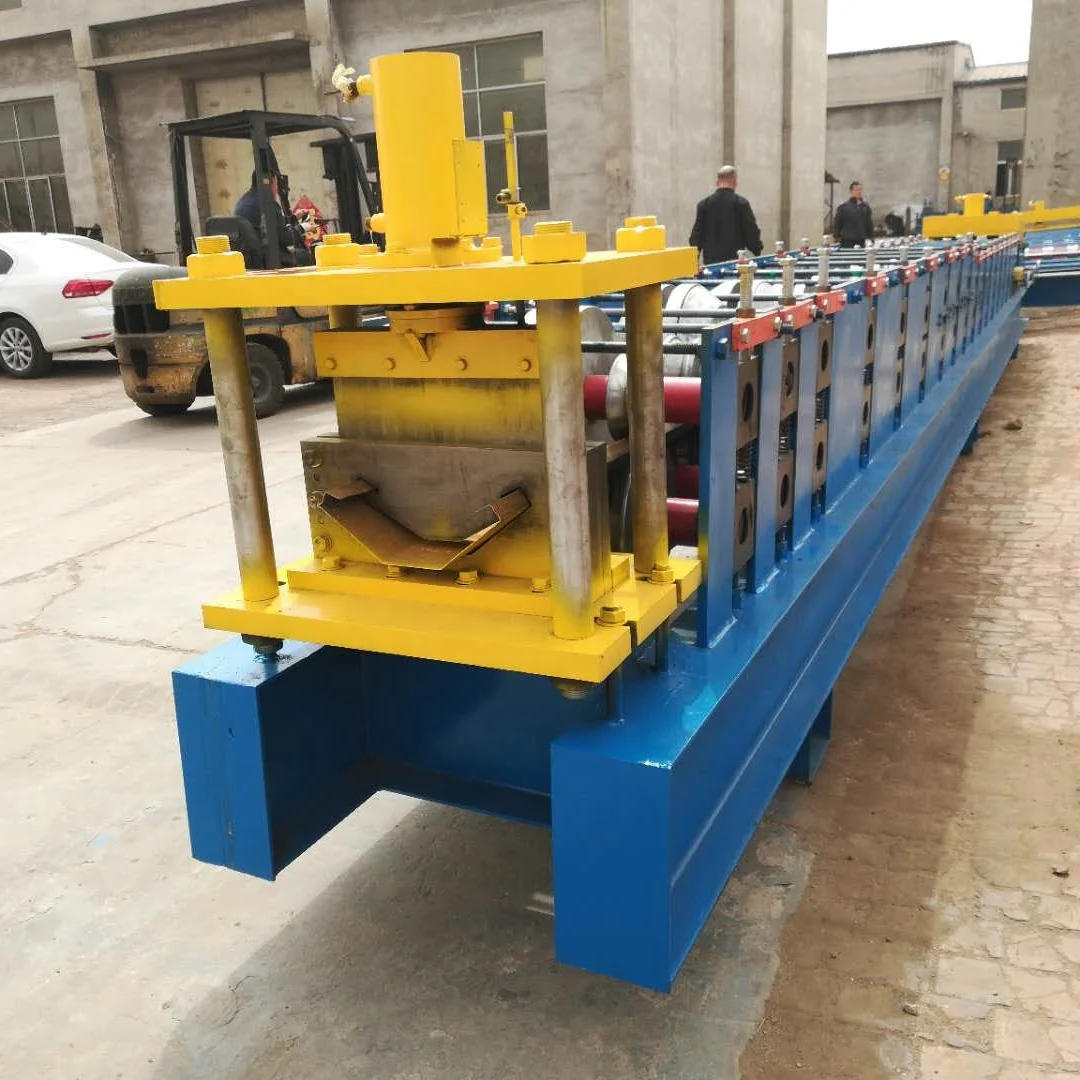

Product Picture

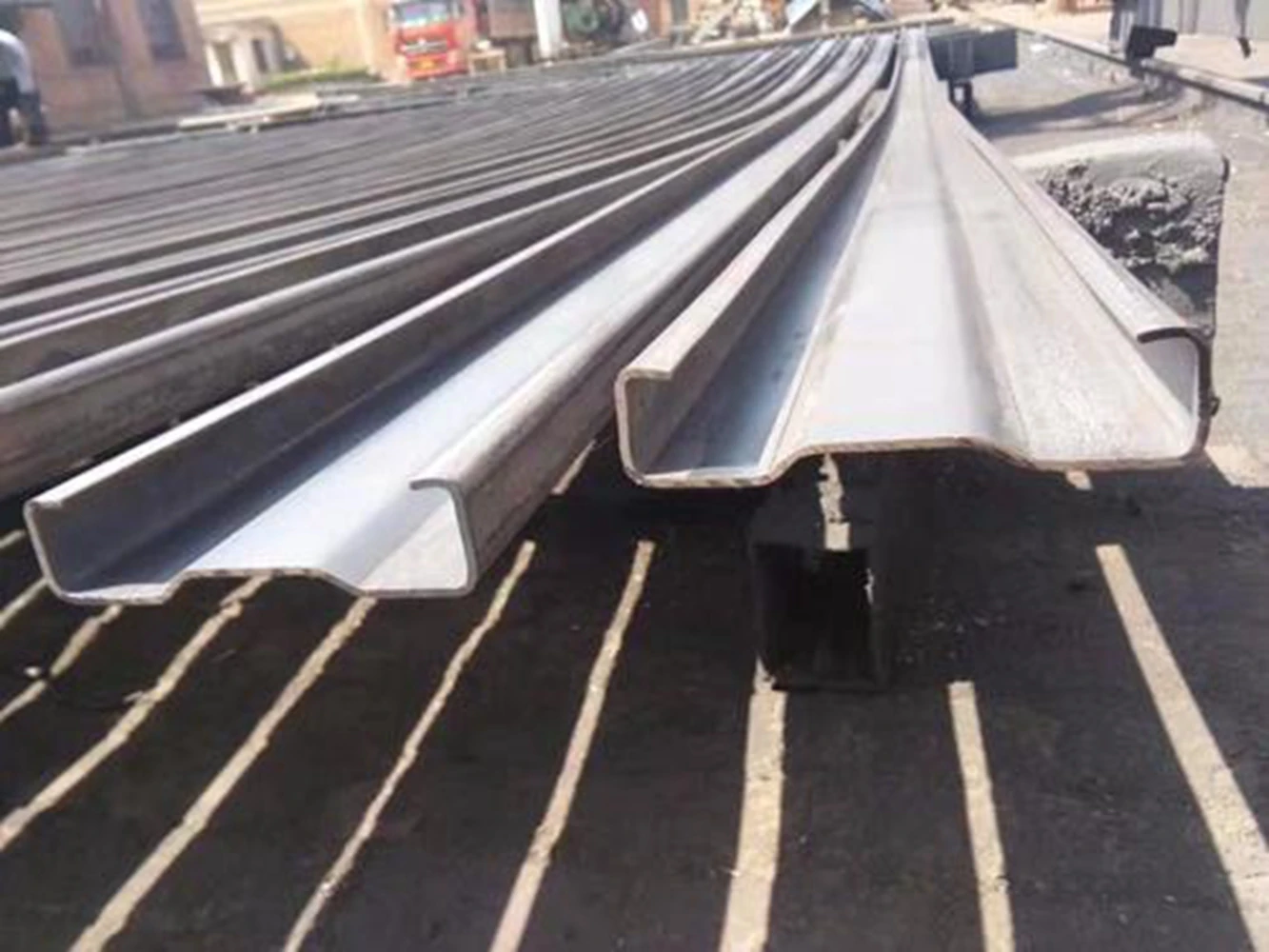

Rolled Curved or Straight, Punched or Slotted
Product Details

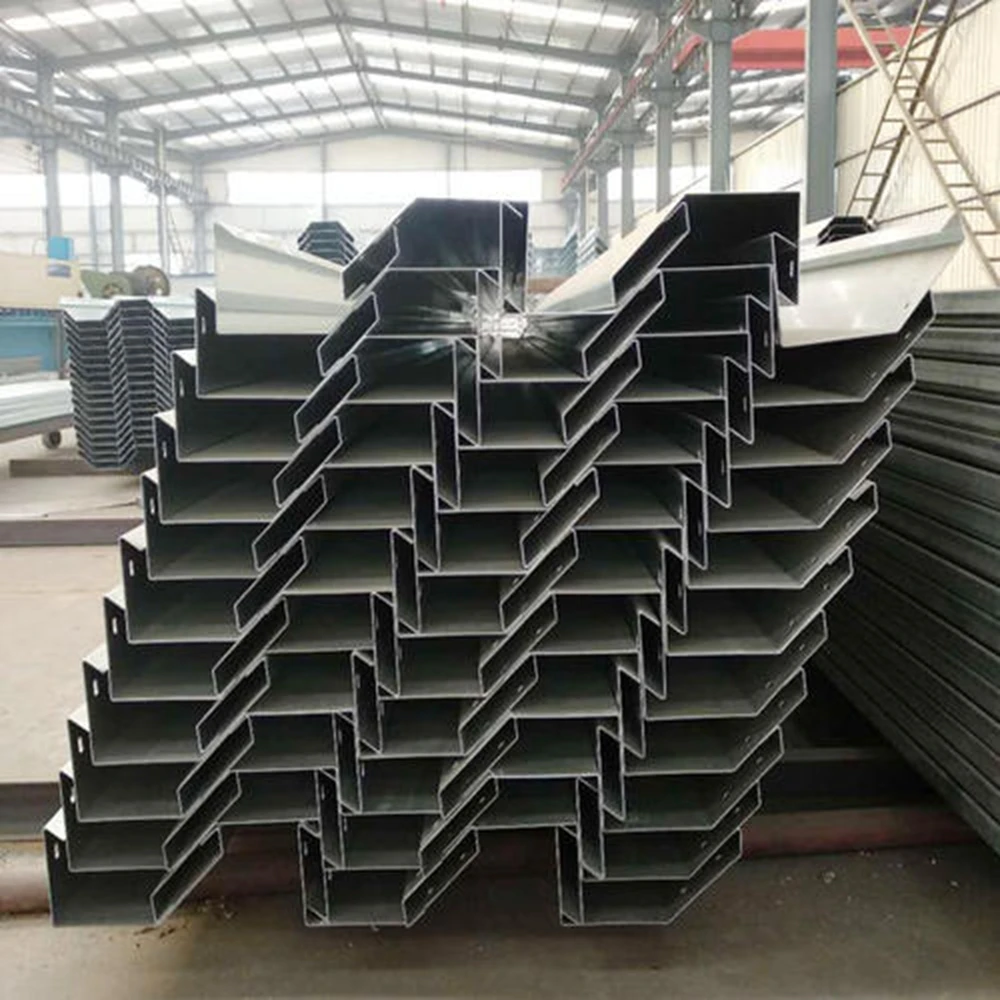

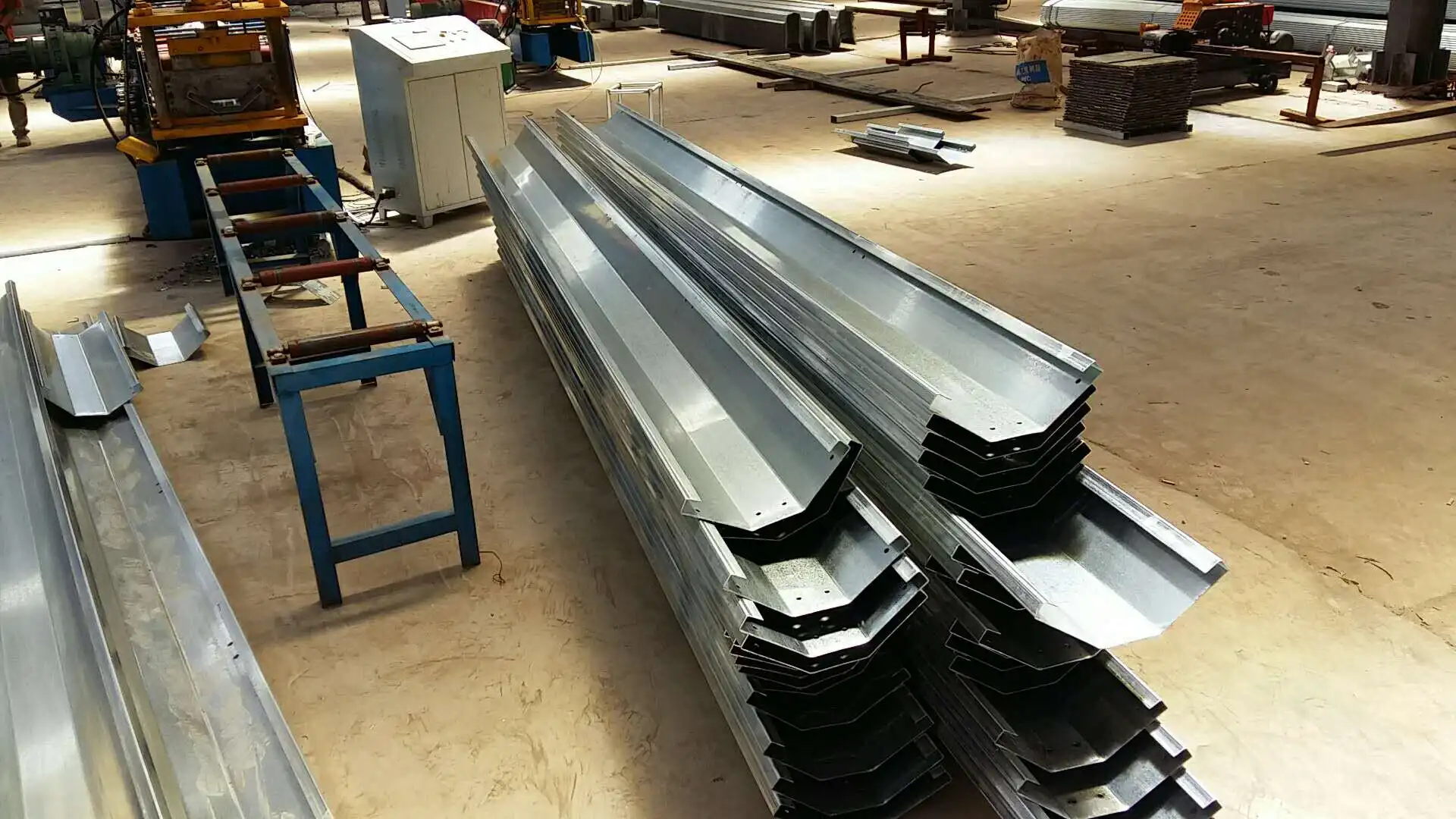

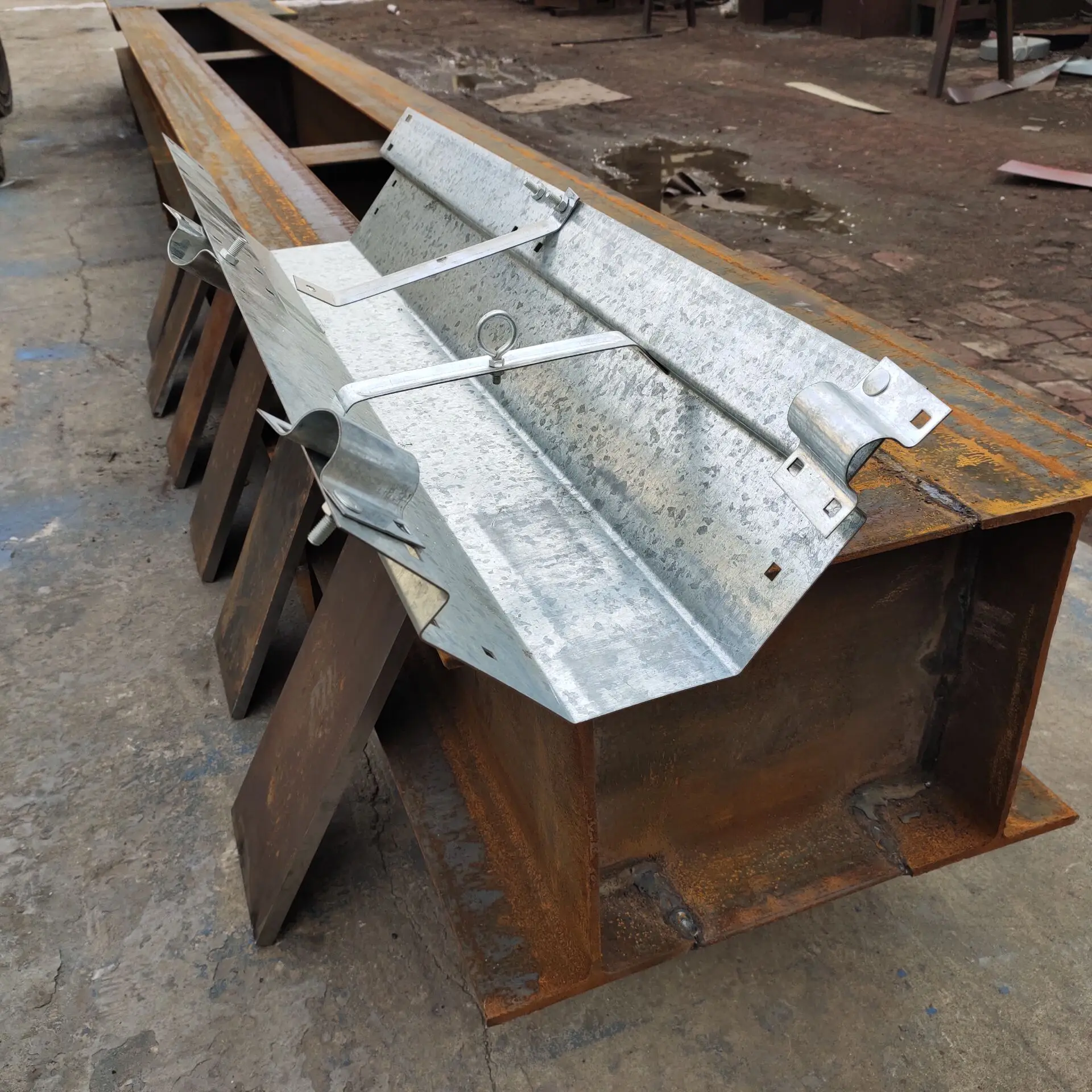

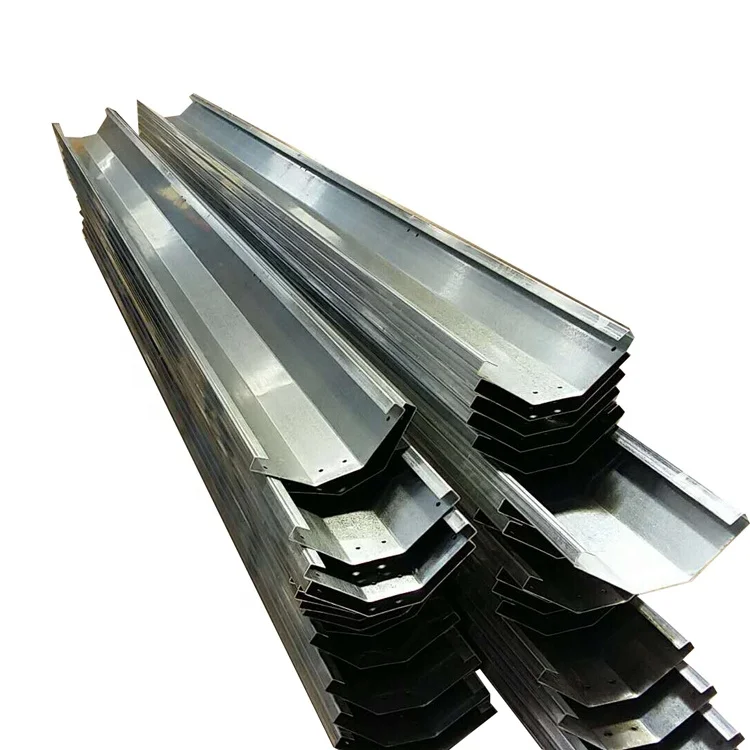

Rolled Curved or Straight, Punched or Slotted

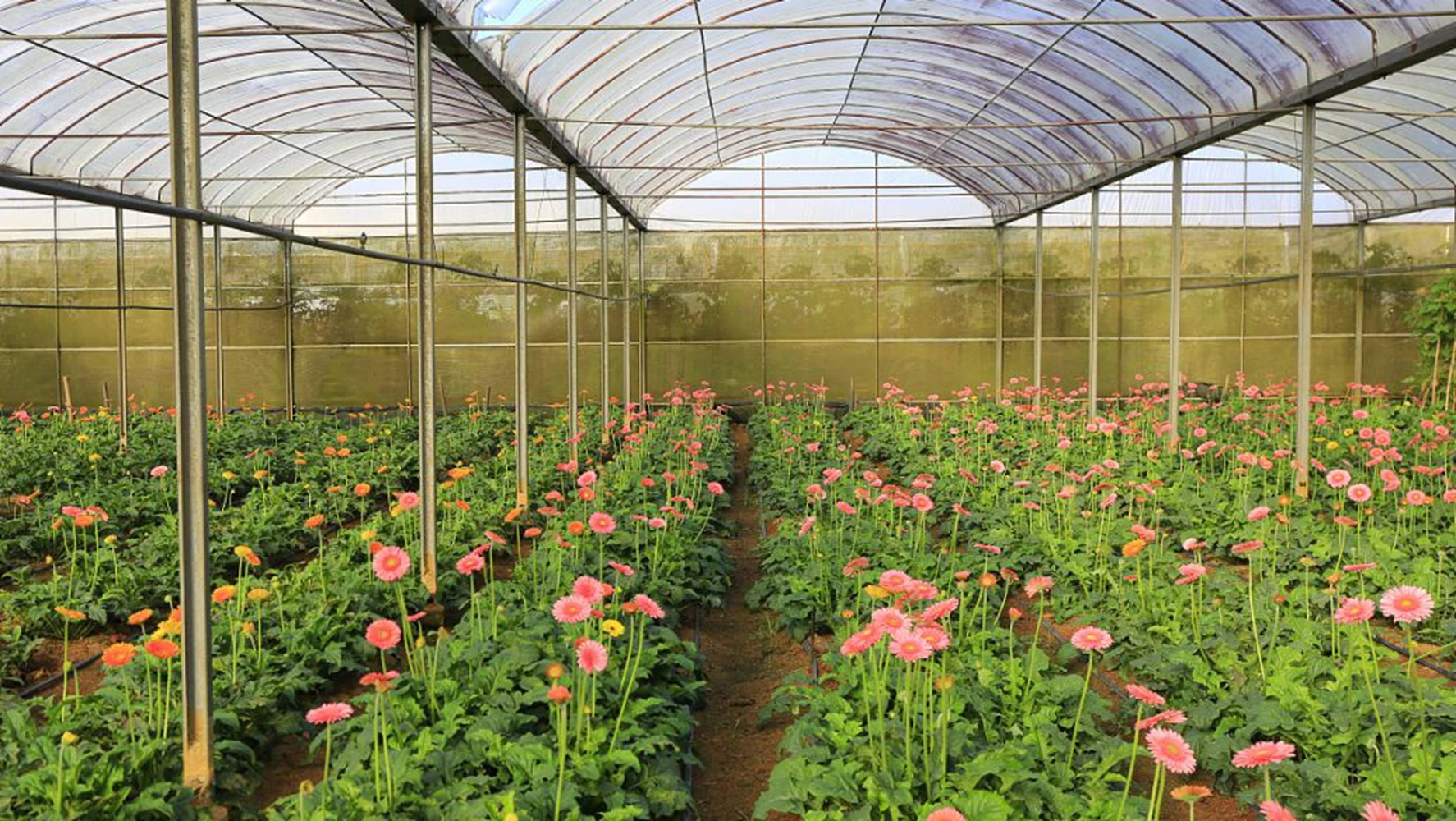

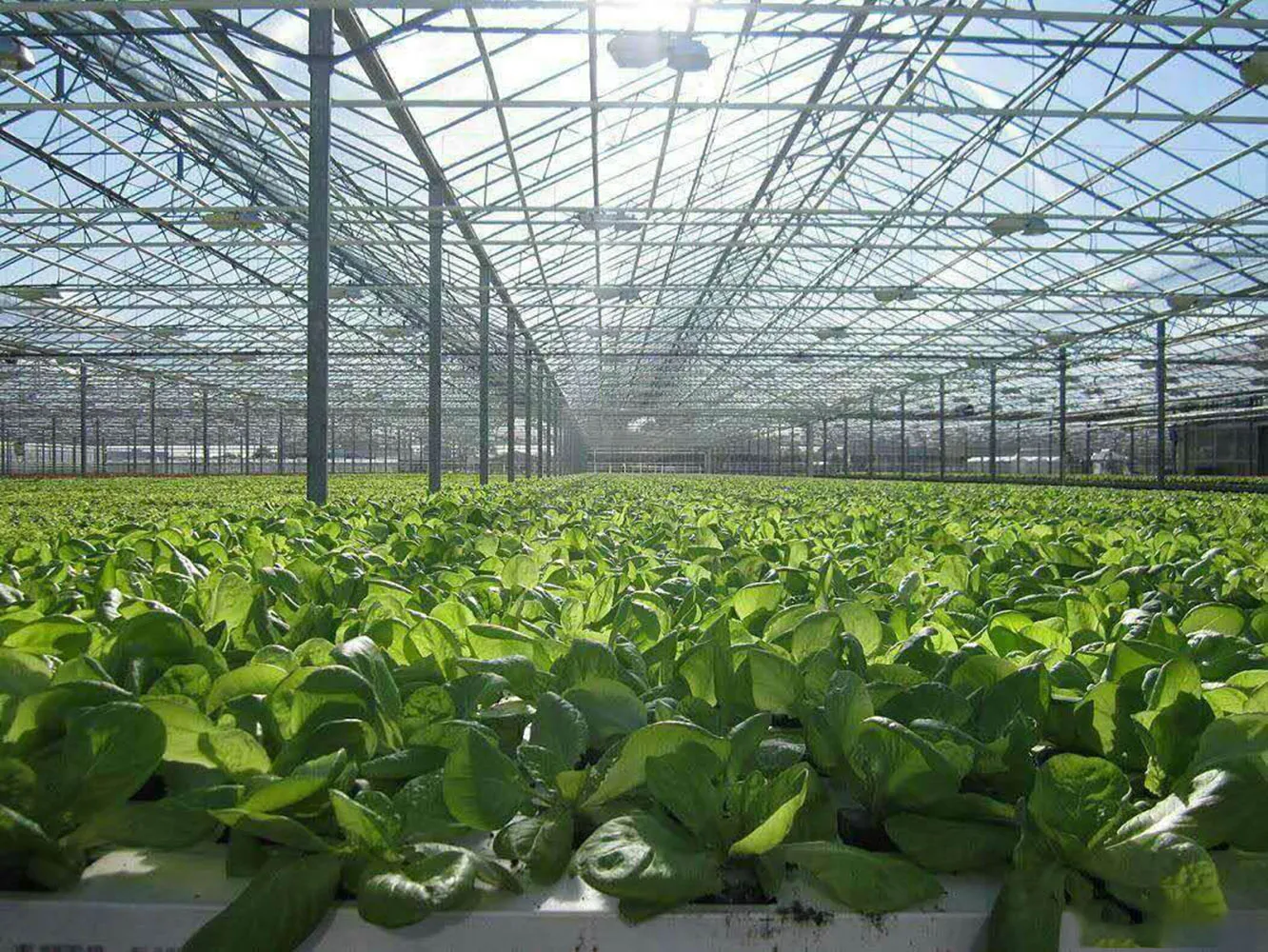

Applications

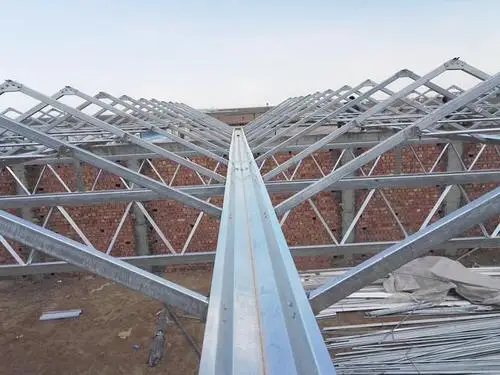

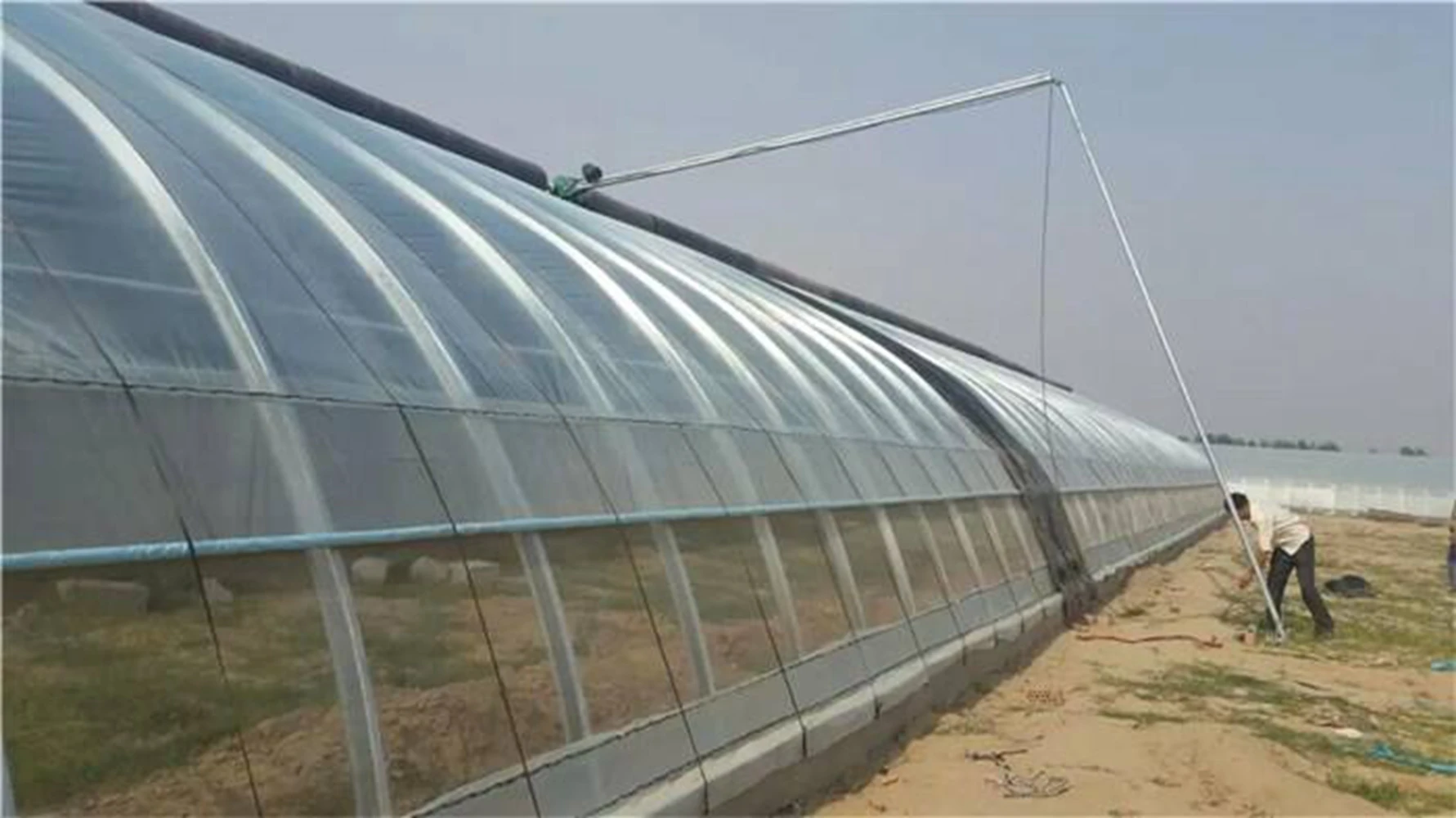

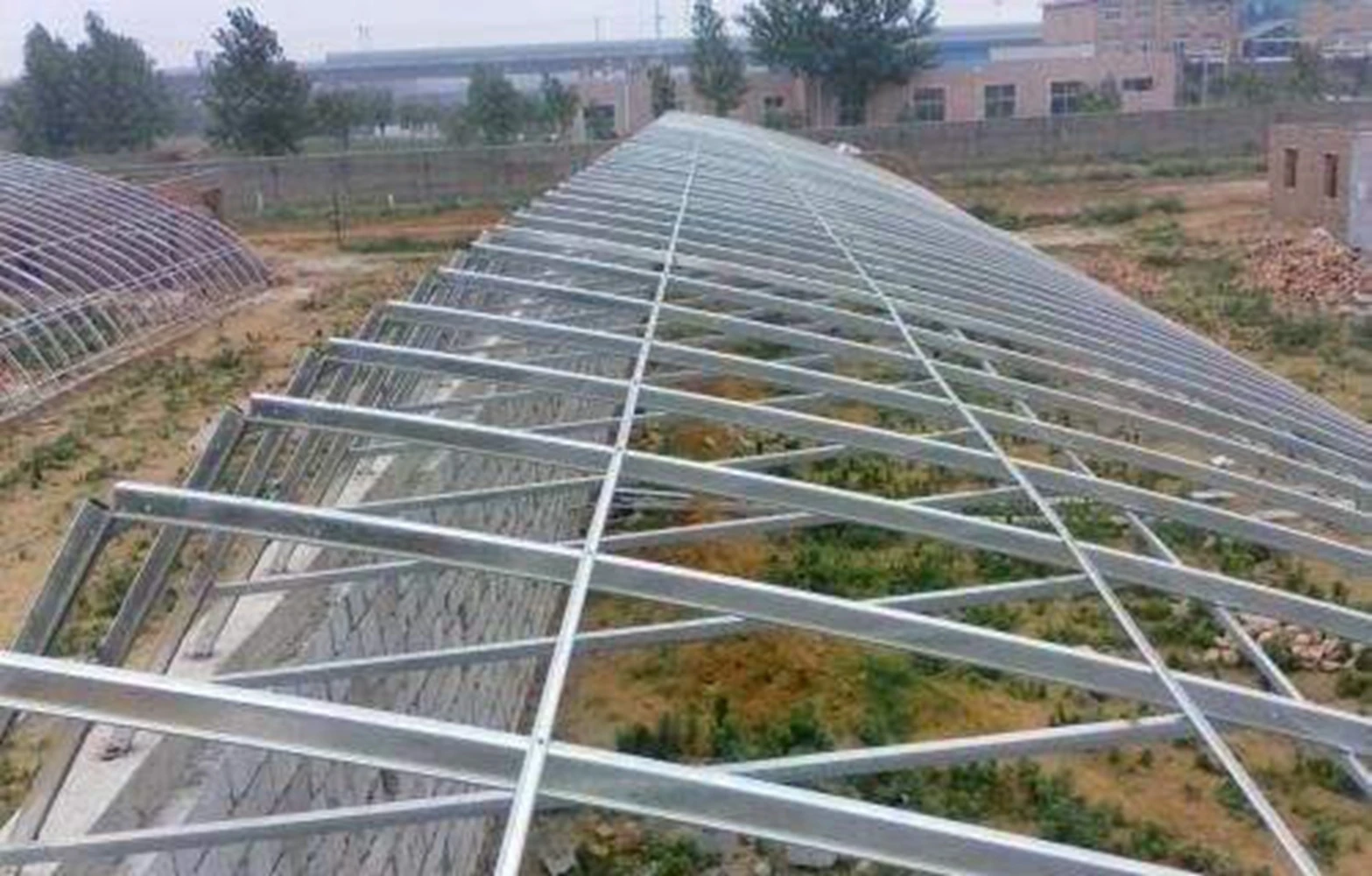

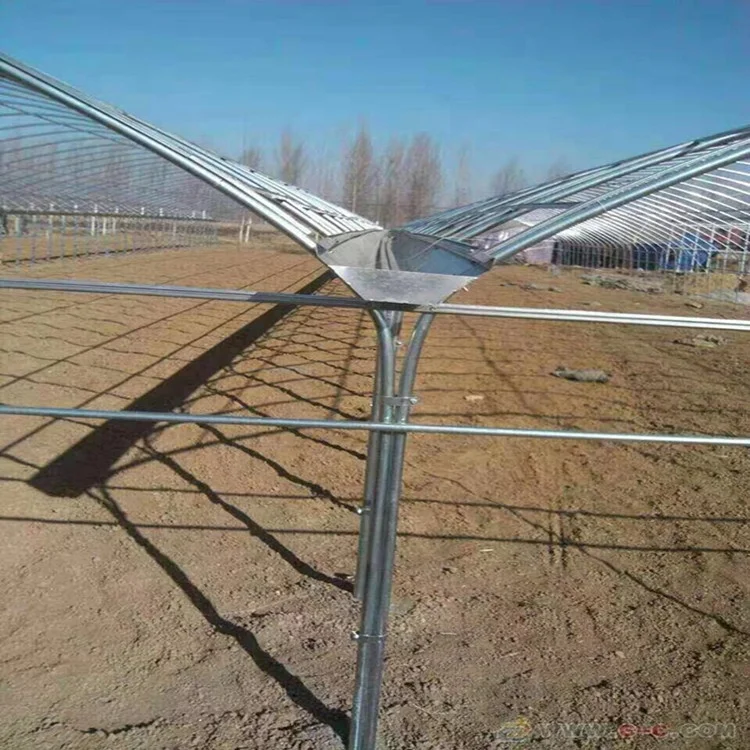

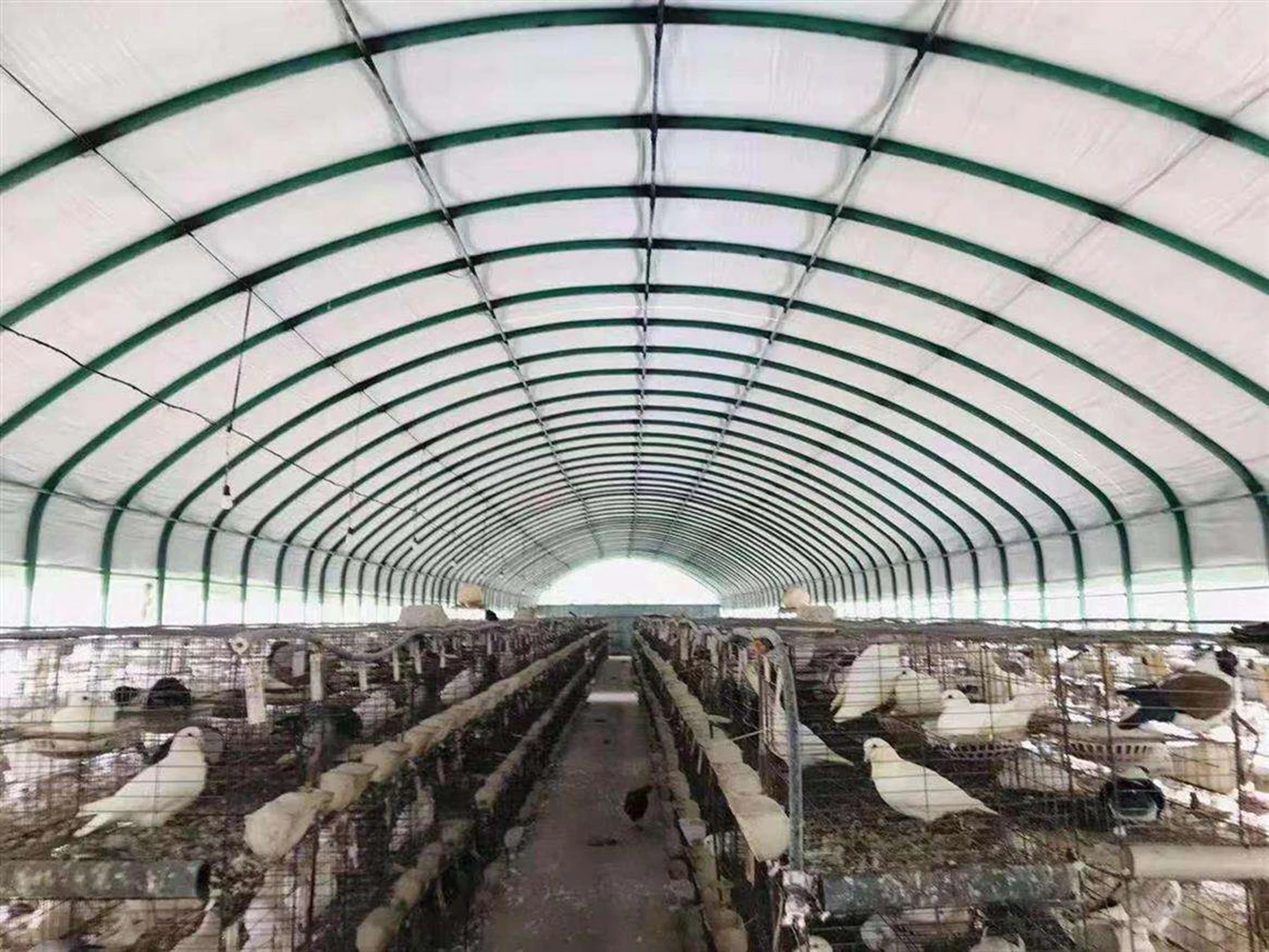

Rolled Curved or Straight, Punched or Slotted
Recommend Products
Steel Silos Making Machine | Stone-coated roof tile production line |
Pallet rack rollformed machine | Scaffold board rollformed machine |
Layer cage frame rollformed machine | Pipe Arch Machine |
Cable tray rollformed machine | K type Arch Span Roof Machine |
Ceiling Furring rollformed machine | Sheet Crimping Machine |
Container House Profile making machine | Shutter door rollformed machine |
Standing seam panel rollformed machine | Mudguard/Fender machine |
Drywall stud and track partition machine | Wheel Rim rollformed machine |
Floor deck rollformed machine | Leveling/slit & cut to length line |
Gutter & downspout rollformed machine | Vineyard post rollformed machine |
Wall panle rollformed machine | |
About Us
Contact Information
Packaging and Shipping
Q: How to maintain the machine?
A: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
Q:How many workers to operate the machine?
A:Only 1-2 workers.
Q: How to visit your company?
A:a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
Q: What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
Q:How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
A: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
Q:How many workers to operate the machine?
A:Only 1-2 workers.
Q: How to visit your company?
A:a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
Q: What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
Q:How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
