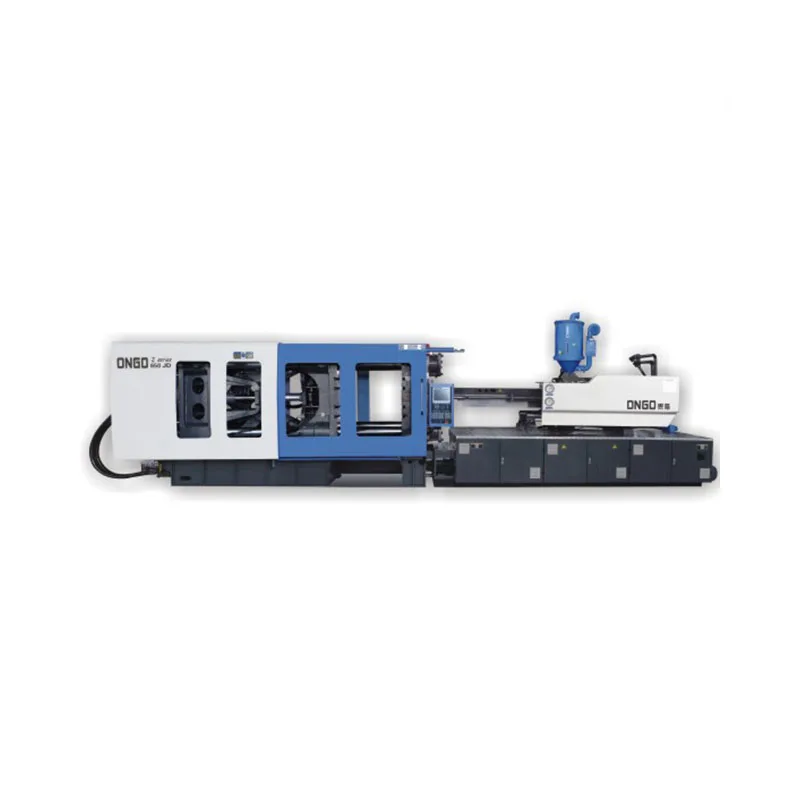

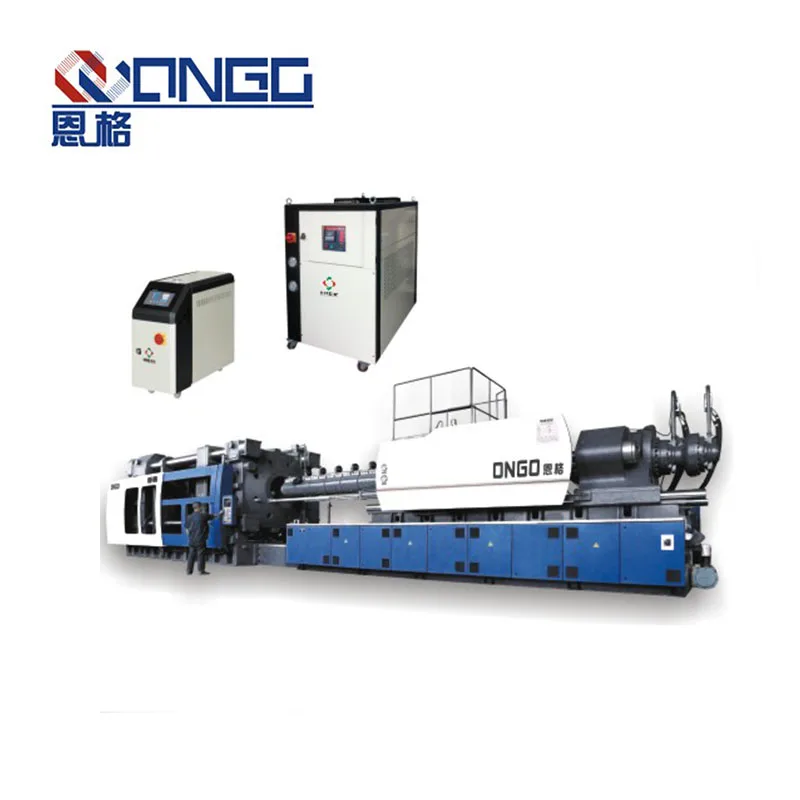

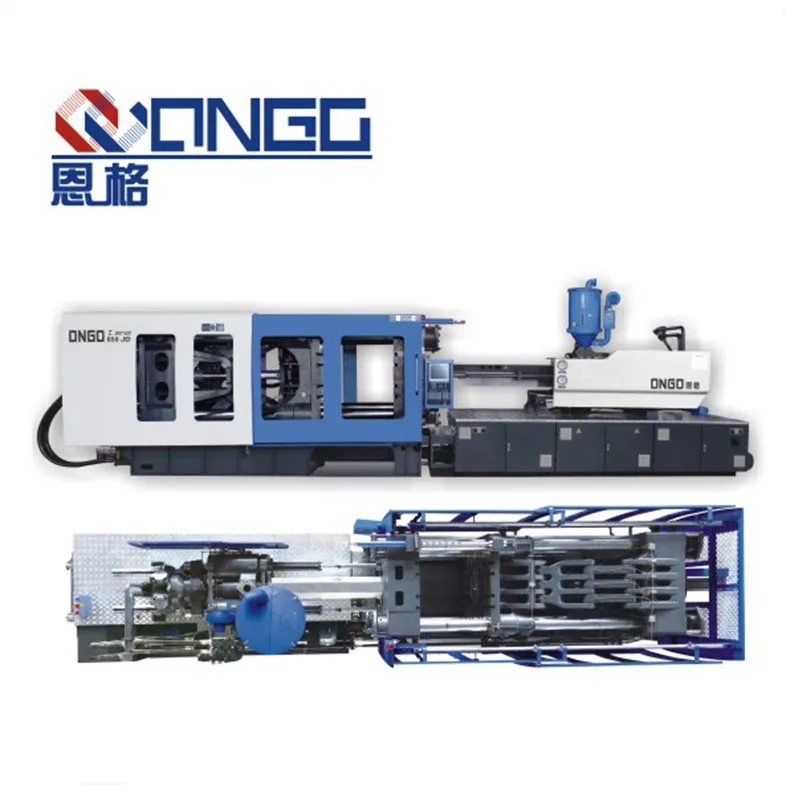

Ongo 110 tons made in china standard size Hydraulic desktop small plastic pallet products servo making machine

Product Overview

Description

Ongo 110 T servo high grade plastic machine for disposable cup

Z110 TECHINICAL PARAMETERS
INJECTION UNIT		A	B	C	D
screw diameter	mm	32	35	38	42
shot volume(theoretical)	cm3	137	163	192	235
injection weight(ps)	g	125	148	175	213
injection rate	g/s	74	89	105	128.1
injection pressure	Mpa	260	219	186	152
screw speed	rpm	210
CLAMPING UNIT
clamping force	kN	1100
open stroke	mm	350
space between tie bars(WxH)	mm	370x370
max mould height	mm	380
min mould height	mm	150
ejector stroke	mm	100
ejector force	kN	38
OTHERS
max pump pressure	Mpa	16
pump motor power	kW	13
heating power	kW	7.5
machine dimension(LxWxH)	m	4.32x1.27x1.90
oiltank cubage	L	230
machine weight	t	3.4





Q1: Are you trading company or manufacturer?
A: We are factory which has over 15 years' manufacturing experience and 80% engineer work have more than 10 years.
Q2: How long is your delivery time?
A: 5 - 20 days after order confirmed. Based on the item and quantity.
Q3: What's the MOQ?
A: 1 set.
Q4: What is your terms of payment?
A: If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
Q5: Where's your general loading port?
A: Ningbo port and Shanghai Port
Q6: Can you do OEM?
A: Yes, we can do OEM.
Q7: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in one warranty year.
Secondly, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.
Q9: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check with Freight Forwarder for your reference.
