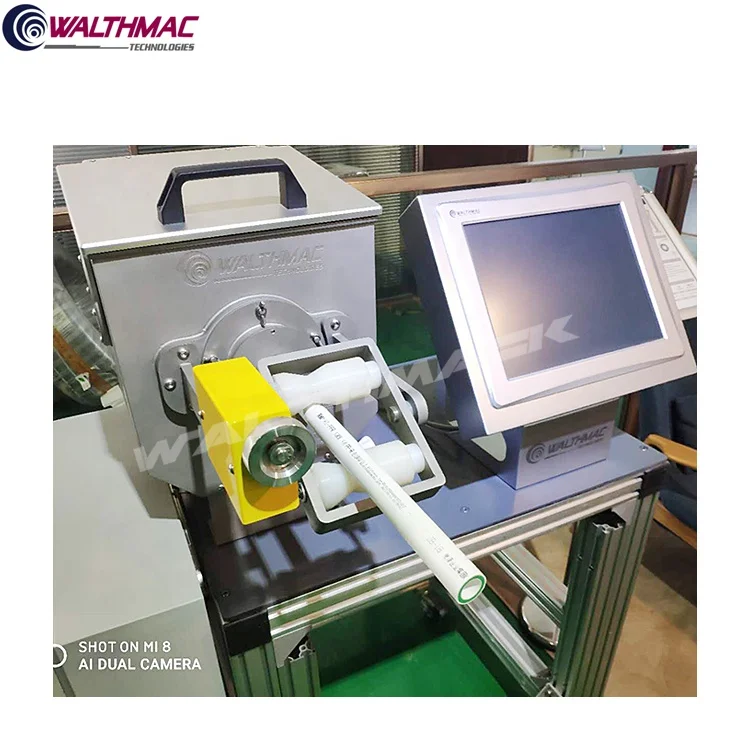

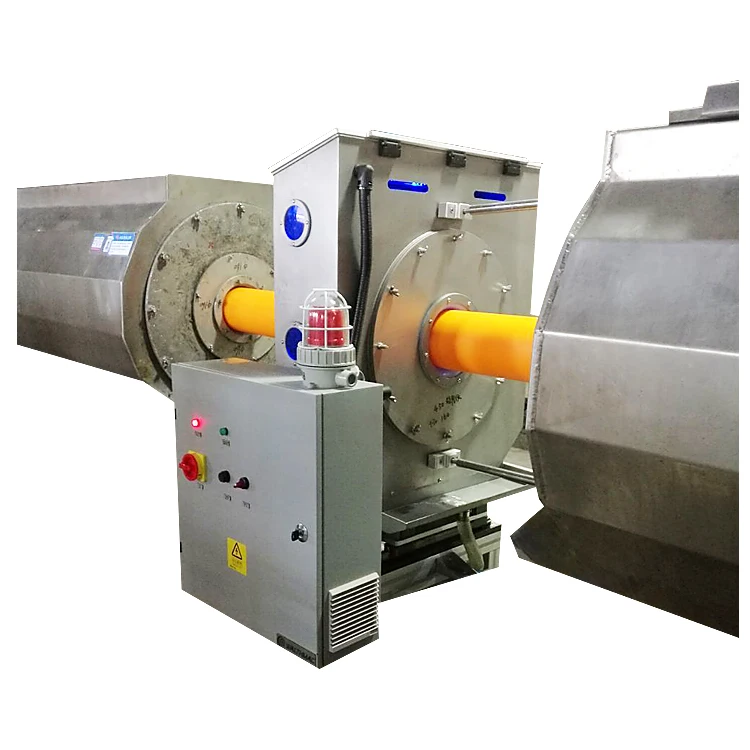

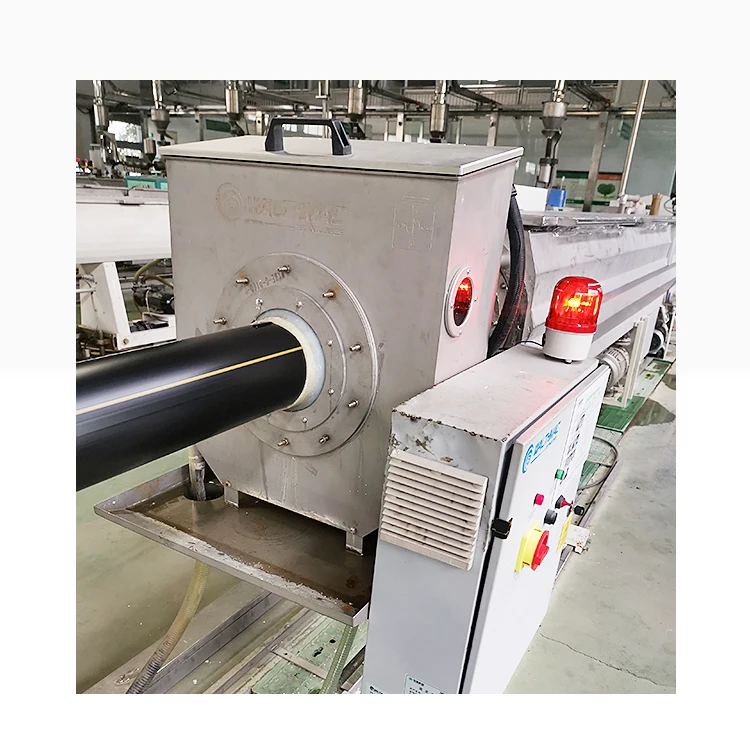

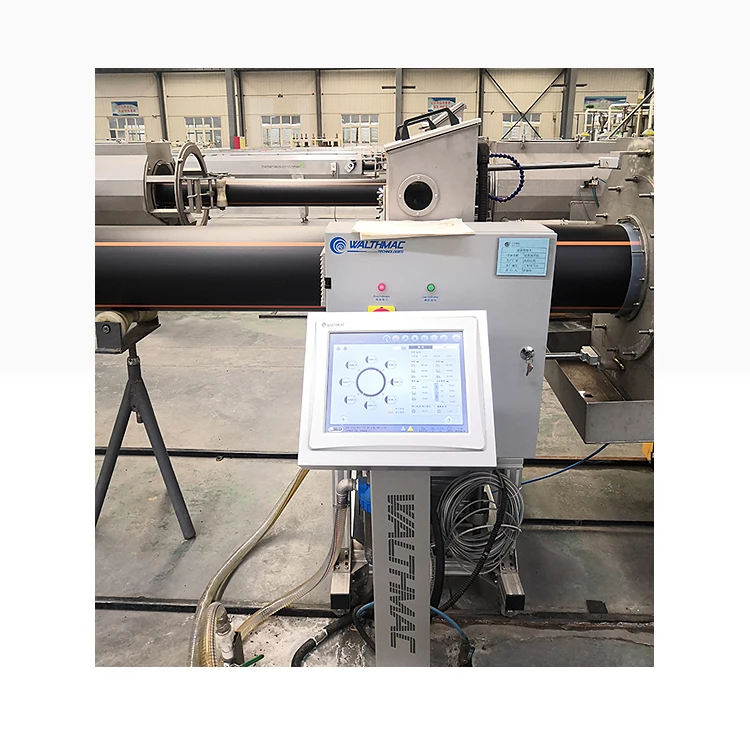

32mm 160mm hdpe pipe tube thickness measurement system pipe wall thickness measurement machine Ultrasonic thickness gauge

Product Overview

Description





Ultrasonic Online Wall Thickness Diameter Plastic Pipe Measuring Machine



-----Model: ULTRAMAC Series------



The scope of application:

gas pipe, water supply pipe, catheter and medical catheter.



Function:

This system is used for the uninterrupted measuring and monitoring the change of the wall thickness, outer diameter, eccentricity and out-of-roundness. Therefore the quality risks can be completely eliminated before deliveried to customer.







Benefits:

• completely eliminate the quality risks and improve product quality.


• Easy use, shorten the start-up time, reduce the rejection ratio.


• Full history record of production data.


• production data and quality issues being traceability.







Core components of the thickness-measuring system:

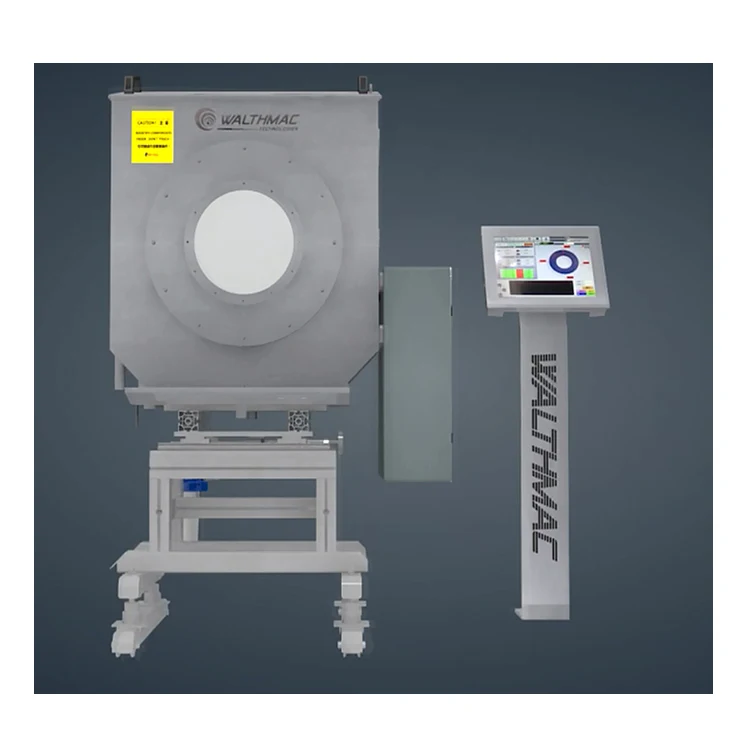

The measurement system is formed by hardware components such as a scanning box, a DSP signal processor and an industrial personal computer (IPC), like the following figure:



          Scanning box                                  DSP processors                                                     Man-machine interface
