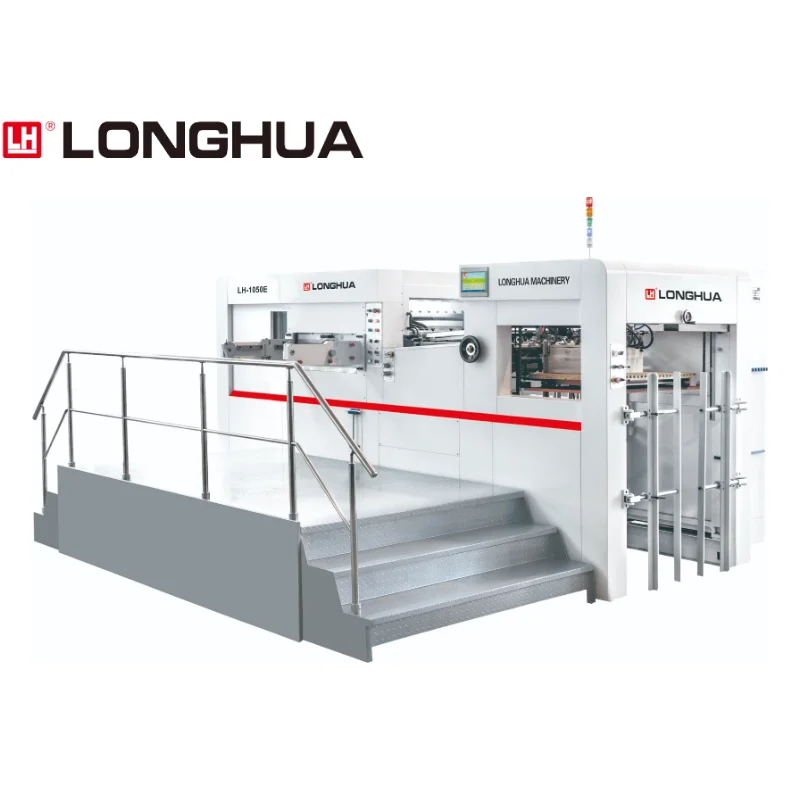

China Lead Manufacturer High Quality New Model Automatic Die Cutting Creasing Machine For Cardboard
- Category: >>>
- Supplier: Wenzhou Longhua Machinery Co. Ltd.
Share on (62553555017):
Product Overview
Description
Detail Product Description
______________________________________

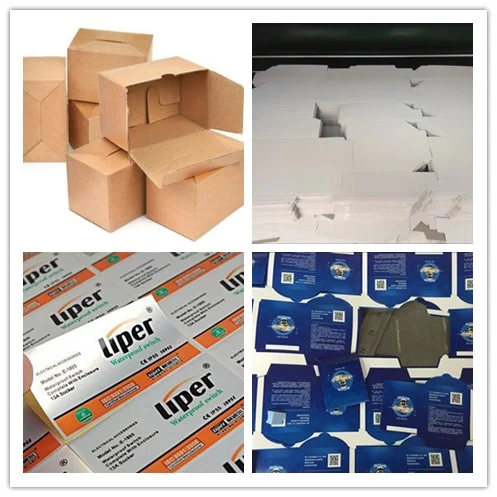

1. Automatic Die Cutting Machine is designed for die cutting specially. It suits for more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.
2. The machine includes 4 parts: Feeder, paper feed section, main motor and delivery section. And it can finish feeding, die cutting, and collecting work cycle automatically.
3. The feeder is made inTaiwan, it has excellent flexibility, that realize to make a change in the breadth frequently, last and easily.
4. The machine is equipped with automatic lubrication system. And the swing rod and copper tile are all reworked by hand. We scrap the surface and make it full of criss-cross scrath. The groove hold more oil that can ensure smooth going of the operation, and the precision of the pattern.
Machine Parameters
__________________________________
| Model | 1050E |
| Name | Automatic Platen Die Cutting Machine |
| Max. Sheet Size | 1050×750mm |
| Min. Sheet Size | 400×360mm |
| Max. Cutting Range | 1040×720mm |
| Inner Chase Size | 1080×745mm |
| Die Cutting Steel Plate Size | 1080×736mm |
| Paper Thickness | 80-2000 g/m2 Cardboard Corrugated paper≤4mm |
| Plastic Range | 0.1-2.0mm |
| Min. Grabbing-sheet Width | 9mm |
| Max. Mechanical Speed | 7500 sheets/h |
| Max. Die Cutting Pressure | 300T |
| Max. Feeding Pile Height | 1350mm |
| Max. Delivery Pile Height | 1200mm |
| Total Weight | 16T |
| Dimensions | 6300×4200×2100mm |
| Total Power | 40kw |
| Heating System | 12 heating areas, 40°C-180°C adjustable |
| Full Load Power | 42kw |
| Voltage Requirements | 380V 50Hz |
| Air compressor | 0.8Mpa, 0.36m3/min, 3kw |
Product Description
_________________________________
More Products
_________________________________
Company Information
_________________________________
Packaging & Shipping
_________________________________
Why choice us
______________________________________
1.About the company
Wenzhou Longhua Machinery Co.,Ltd has a excellent reputation domestic and oversea, has exported to Europe,Africa ,America and Southeast Asia ,and so on, due to our high level quality and intimate service.
The staffes of Longhua are creative,innovate,goodness,laborious,and capable,all of these excellent personalities make Longhua develop and expend maket rapidly.
2.About the machine
Die cutting machine,foil stamping machine and embossing machine ,the classics of Longhua,which are in the industry leading level .
we have product these machines for tens of thousands times,so we have a skillful technology ,and 100% ensure the quality of machines.
3.About the sevice
We provide one year after-sales sevice, including install,debug and the training. We are alway ready whenever customers need us,and so pleasant to make friends with our clients.
FAQ
______________________________________
Q1: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.
Q2: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to
purchaser's factory, all travel cost paid by purchaser.
Q3: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or
accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, please
contact us and we will reply you through product's photos and videos to make every detail clear.
______________________________________
Q1: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.
Q2: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to
purchaser's factory, all travel cost paid by purchaser.
Q3: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or
accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, please
contact us and we will reply you through product's photos and videos to make every detail clear.
Q4:What is your payment?
T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.
