Product Overview
Description

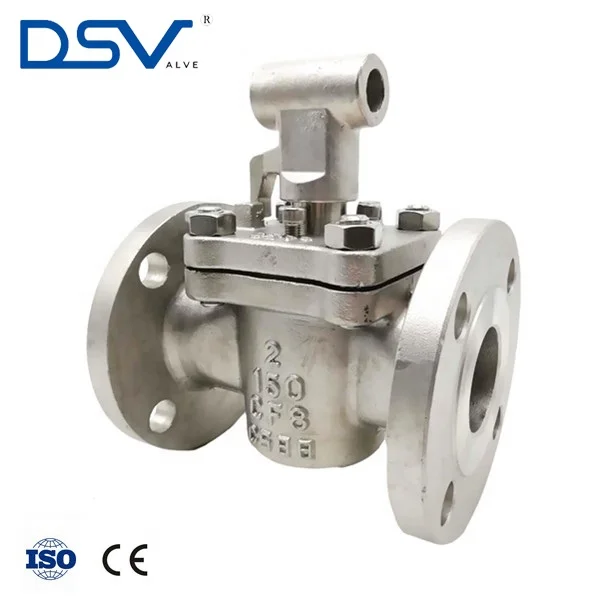

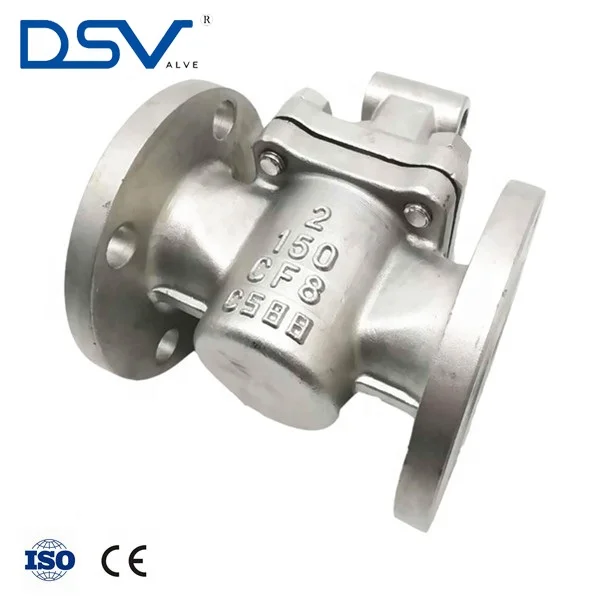

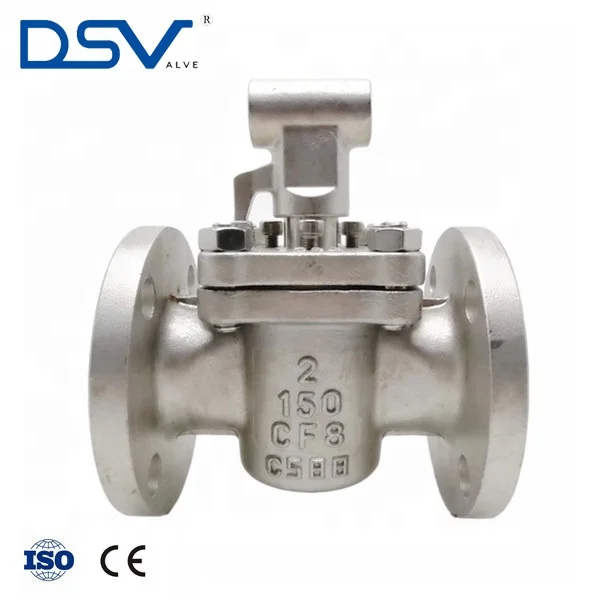

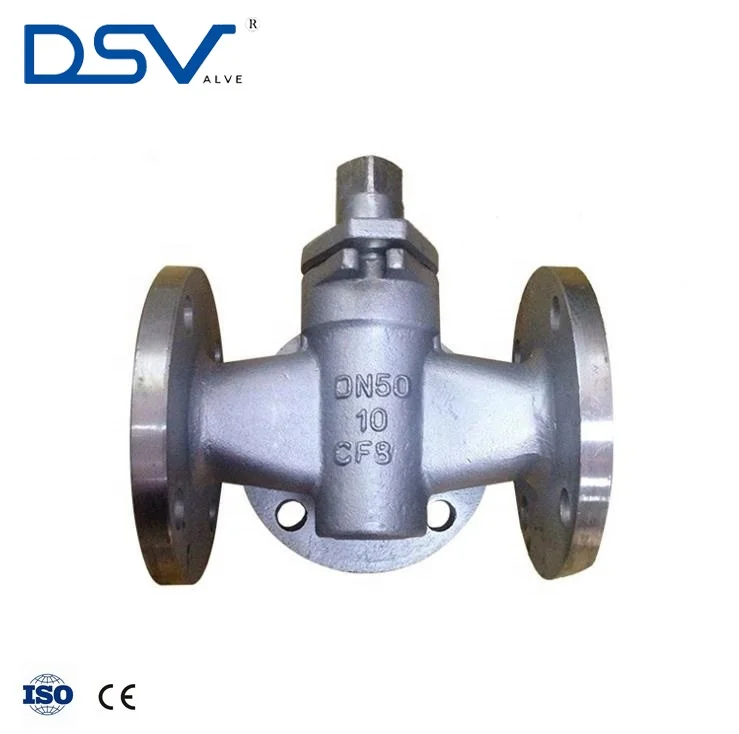

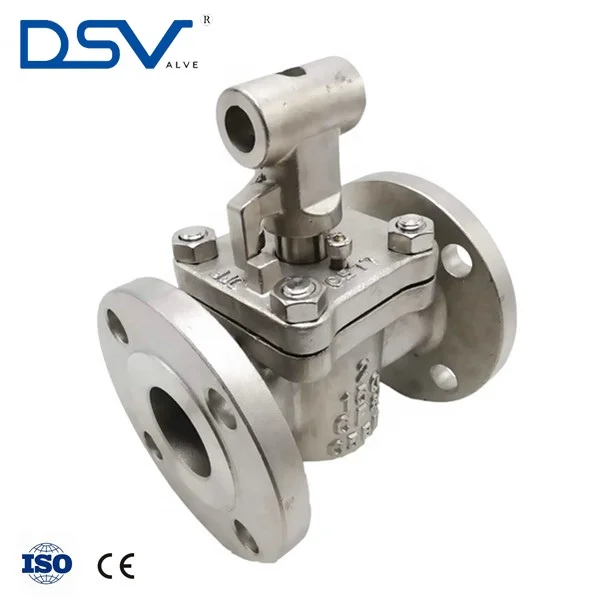

DSV Accept Custom CF8 CF8M CF3M 304LStainless Steel Rising Plug Valve
Product Description
DESCRIPTION
2. Flange connection as per ASME B16.5
3. Face to face as per ASME B16.10
4. Valve test as per API598
5. Wide range of materials are avaliable
NO. | PART NAME | MATERIAL |
1 | Body | CF8/CF8M/CF3/CF3M |
2 | Disc | CF8/CF8M/CF3/CF3M |
3 | Seat | PTFE |
4 | Packing | PTFE |
5 | Gasket | CF8/CF8M/CF3/CF3M |
6 | Bolt | A193-B8 |
6 | Nut | A193-B8 |
6 | Bolt | A193-B8 |
6 | Cover | CF8/CF8M/CF3/CF3M |
DN15-DN80
DN100-DN300
DN | NPS | L(mm) | D | D1 | D2 | Z-Φd | b | f |
15 | 1/2" | 140 | 95 | 66.5 | 35 | 4-16 | 14.5 | 1.6 |
20 | 3/4" | 152 | 117 | 82.5 | 43 | 4-19 | 16 | 1.6 |
25 | 1" | 165 | 124 | 89 | 51 | 4-19 | 17.5 | 1.6 |
32 | 1-1/4" | 178 | 133 | 99 | 64 | 4-19 | 19 | 1.6 |
40 | 1-1/2" | 190 | 155 | 114.5 | 73 | 4-22 | 21 | 1.6 |
50 | 2" | 216 | 165 | 127 | 92 | 8-19 | 22.5 | 1.6 |
65 | 2-1/2" | 241 | 190.5 | 149.4 | 105 | 8-22 | 25.5 | 1.6 |
80 | 3" | 283 | 210 | 168.5 | 127 | 8-22 | 28.5 | 1.6 |
100 | 4" | 305 | 254 | 200 | 157 | 8-22 | 32 | 1.6 |
125 | 5" | 381 | 279 | 235 | 186 | 8-22 | 35 | 1.6 |
150 | 6" | 403 | 318 | 270 | 216 | 12-22 | 37 | 1.6 |
200 | 8" | 419 | 381 | 330 | 270 | 12-26 | 41.5 | 1.6 |
250 | 10" | 457 | 444.5 | 387.5 | 324 | 16-28 | 48 | 1.6 |
300 | 12" | 502 | 521 | 451 | 381 | 16-32 | 51 | 1.6 |
Product Show
Processing Equipment
①Casting ②Machine work ③Shot blasting ④Hot spray
⑤Accessories producing ⑥Assemble ⑦Testing one by one ⑧Package
*Laizhou Dongsheng Valve are the factory focused on valves since 2002.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
Testing Equipment
CHEMICAL ANALYSIS
SPECTROMETER TEST
PRESSURE TEST ONE BY ONE
ZINC THICKNESS TEST
TENSILE FORCE TEST
DIMENTION TEST
*PRESSURE TESTING BASED ON API598 ONE BY ONE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
