Price:$1,232.25 - $1,258.68

Quantity:


Product Overview

Description




Tips:

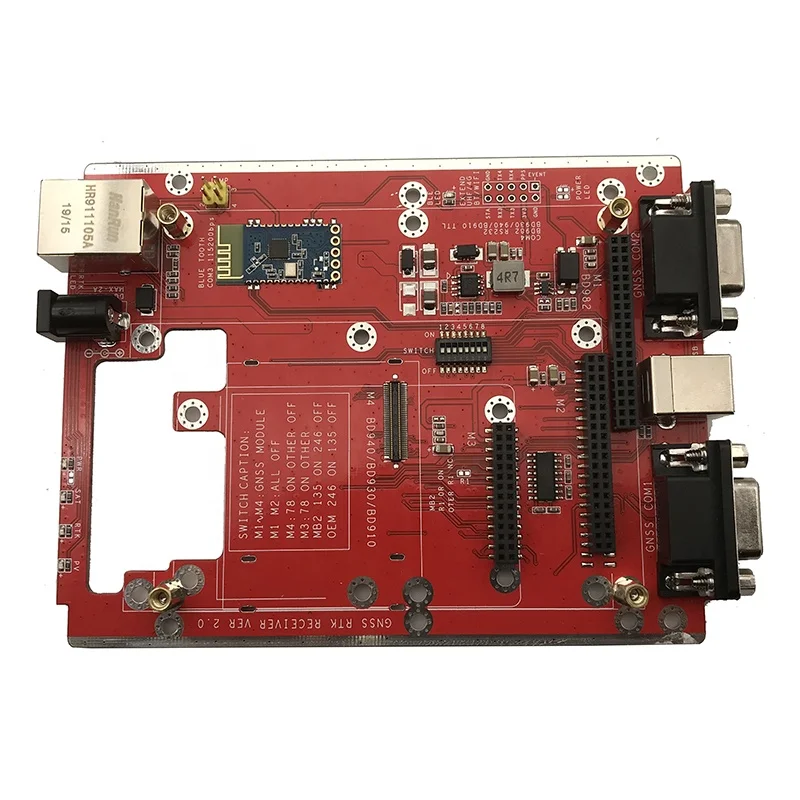

This development board (with bluetooth) compatible with all Trimble board: BD910/BD930/BD970/BD982/MB2/BD990 etc.

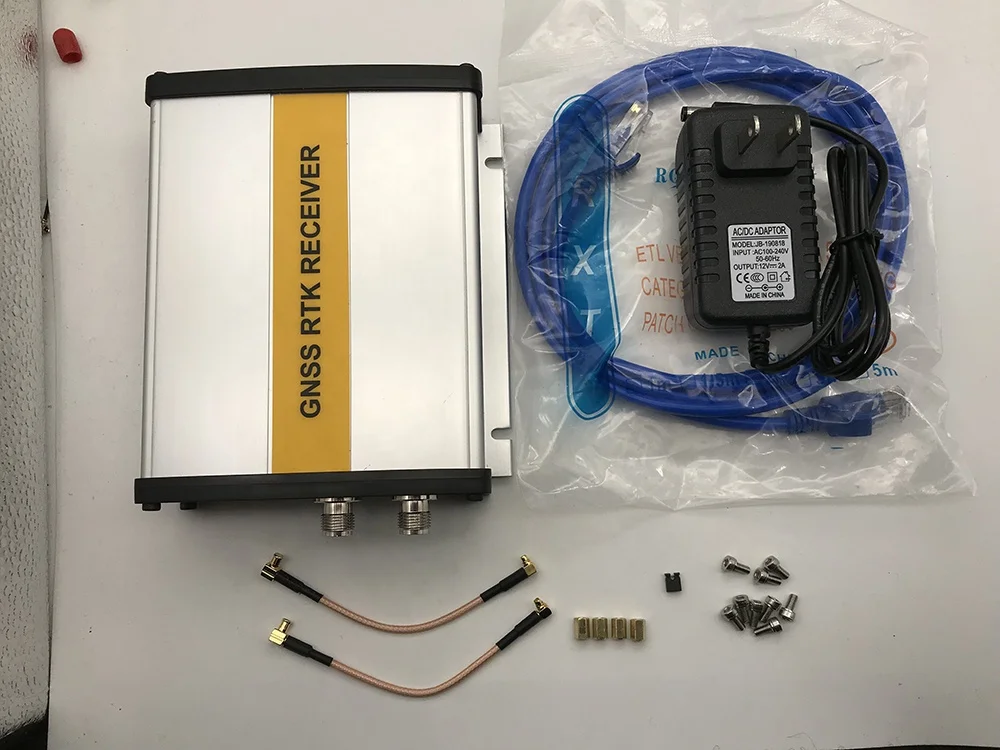

Package list:










BD970 four-satellite multi-frequency high-precision board UAV virtual reality precision agricultural monitoring

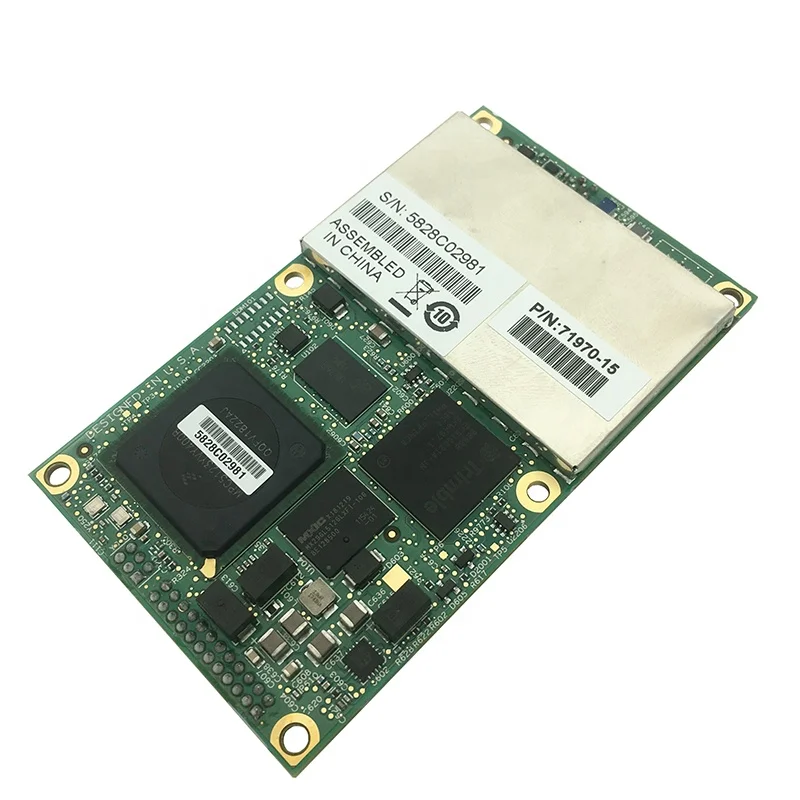

Original BD970 board, compact, low power consumption, the global leader in the positioning of GNSS receiver applications, interface and configuration convenience, BD970 design easy integration, robustness and reliability. Users will benefit from Ethernet, allowing high-speed data transfer and configuration through standard web browsers. Board type dual-function, can do base stations and mobile stations, can output raw data, Samsung 50HZ RTK output.

Features
1. Support multi-system satellite signal 2. Low power consumption

Technical specifications
  220 channels:
   GPS: L1 / L2 / L5
   GLONASS: L1 / L2
   SBAS: L1, L5
   Compass: B1 / B2
   GALILEO: Capturing

Initialization time <10 seconds
Initialization reliability> 99 .9%
Warm start: <30s

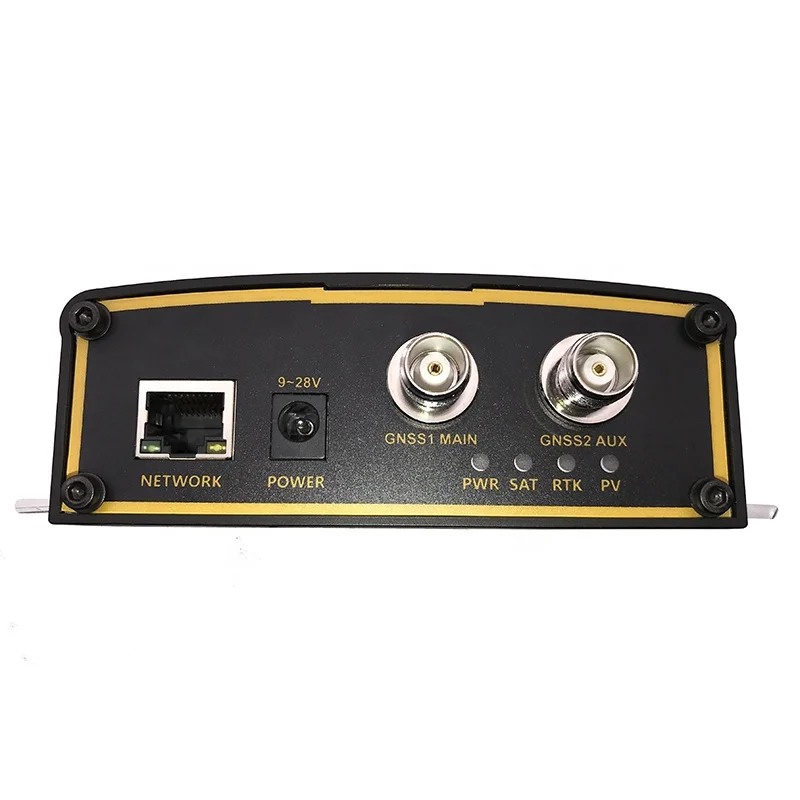

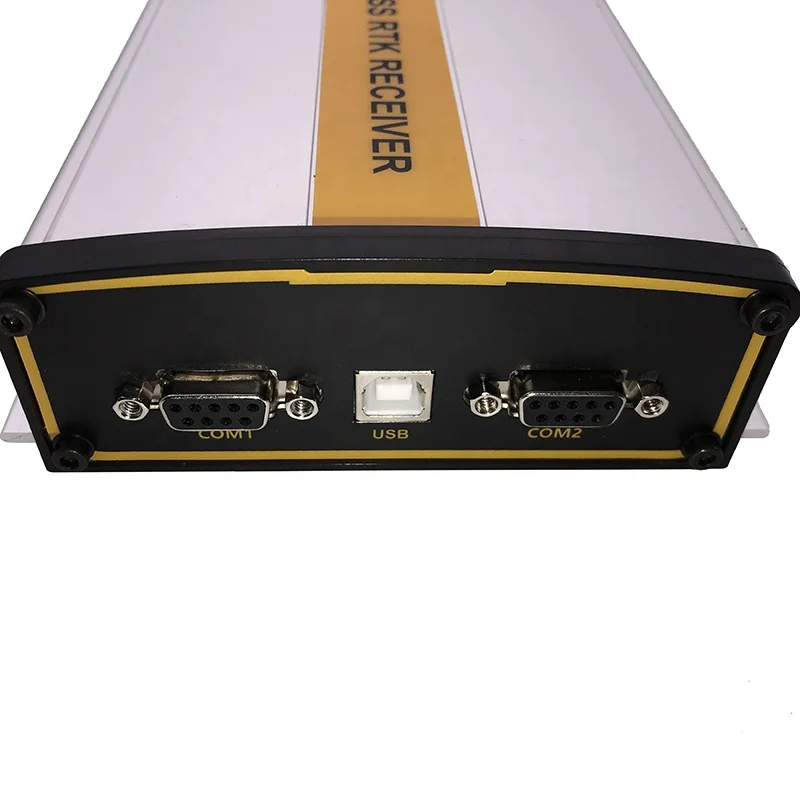

interface:
   USB port * 1
   CAN port * 1
   Ethernet port * 1
   RS232 * 3
   PPS * 1
   EVENT * 1

Output frequency
1 Hz, 2Hz, 5Hz, 10Hz, 20Hz, 50Hz Positioning output
Base station output format: CMR, CMR +, RTCM 2.1, 2.2, 2.3, 3.0, 3.1 3.2
Navigation information output format: ASCII: NMEA-0183


positioning accuracy

mode

Accuracy

Reaction time

The maximum rate

RTK(<30KM)

   8mm+1ppm level

  15mm+1ppm vertical

<20ms

 50Hz

DGPS

   0.25m+1ppm  level

   0.5m+1ppm vertical

 <20ms

 50Hz

SBAS5

   0.5m level

   085M vertical

<20ms

 50Hz
