Low temperature Large-Scale Drying Line

Low temperature Lage scale drying line design ,high temperature drying, efficient dehumidification and conveyor belt material transport mode, not only can batch uninterrupted material transport to the drying line, achieve mass production, multi-layer conveyor belt and back transport mode, but also can play the role of turning over materials in the transportation process, greatly increasing the contact area and contact time between materials and hot air. The drying speed is fast, and drying and dehumidification effect are good. The whole system is enclosed in circulation, free of dust and particulate matter pollution to the atmosphere. covering a small area, suitable for large and medium-sized industrial dryer treatment.rature Large-Scale Drying Line

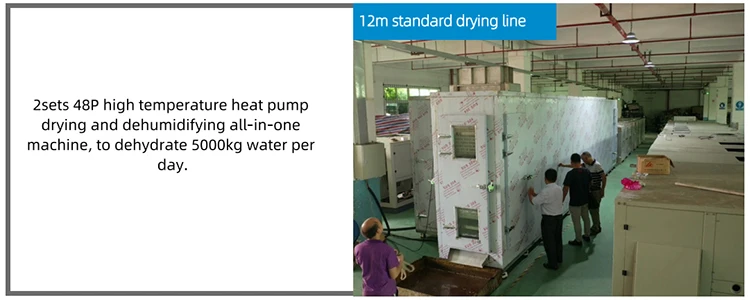

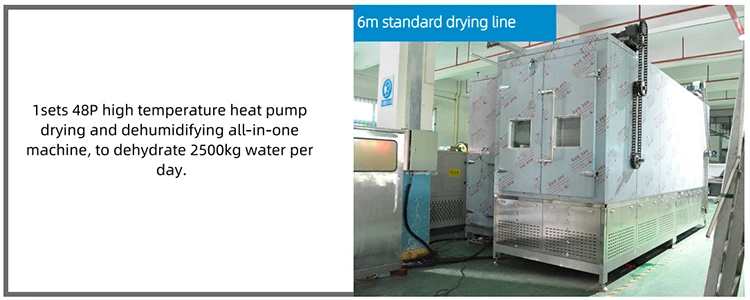

The standard drying line is 6 meters. Now we take a example of 24 meters modular system design, high temperature drying, efficient dehumidification and conveyor belt material transport mode, not only can batch uninterrupted material transport to the drying line, achieve mass production, multi-layer conveyor belt and back transport mode, but also can play the role of turning over materials in the transportation process, greatly increasing the contact area and contact time between materials and hot air. The drying speed is fast, and drying and dehumidification effect are good. The whole system is enclosed in circulation, free of dust and particulate matter pollution to the atmosphere. The system is equipped with high-voltage electric field sterilization. The daily sludge treatment is about 13 tons (according to different requirements for sludge dewatering), covering a small area, suitable for large and medium-sized industrial sludge treatment.

 Technical parameter:

 Product features:

1. Closed cycle drying, no pollution to the atmosphere and surrounding environment, in line with the requirements of environmental protection.

2. Conveyor belt material transportation can realize bulk sludge drying.

3. Quick drying, good effect and significant energy saving

4. High pressure electric field sterilization, the non-heavy metal sludge can be directly used for agricultural cultivation after drying.

5. Fully automatic operation, no need for manual supervision.

6. Batch continuous and automatic drying

7. Sludge with water content above 80% can be quickly dried to water content below 30%.

8. Modular unit, small occupation area, easy to adjust equipment operation position.

9. No infrastructure required.

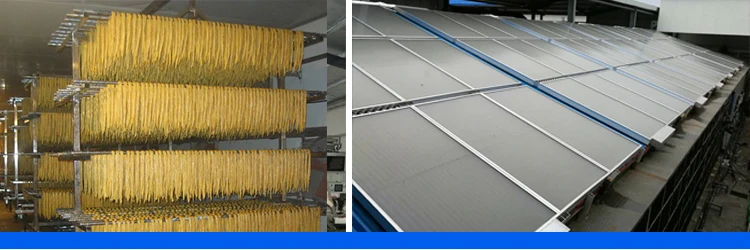

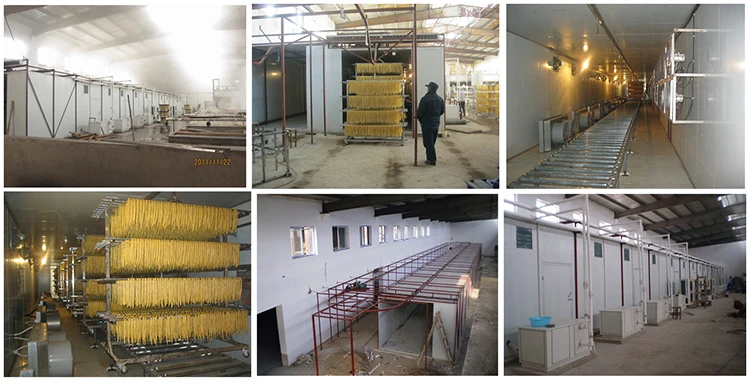

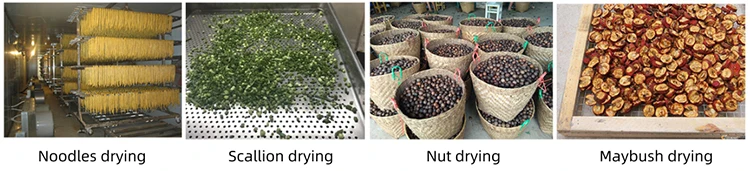

---- petrochemical noodles drying in HUNAN

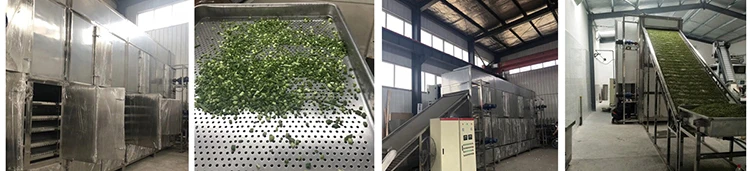

---- petrochemical scallion drying in india

 ENVIRONMENTAL

1. Choosing closed drying mode, without odor overflow, and no need to install complex deodorant device.

2. Using low temperature drying process, the amount of H₂S and NH₃ precipitation is greatly reduced.

3. Suitable for installation in urban sewage plant.

4. Condensed water (sludge moisture) treatment is simple (or direct discharge), saving the cost of condensed water treatment in the drying process.

 SAFE

1. Below 80 ℃ low temperature drying process

2. Static amortization, no mechanical static friction with the contact surface

3. No "sticky phase" stage of municipal sludge drying process (about 60%)

4. Dry material is granular without dust hazard.

5. Discharging temperature is low (< 50 ℃); no need for cooling, can be stored directly.
