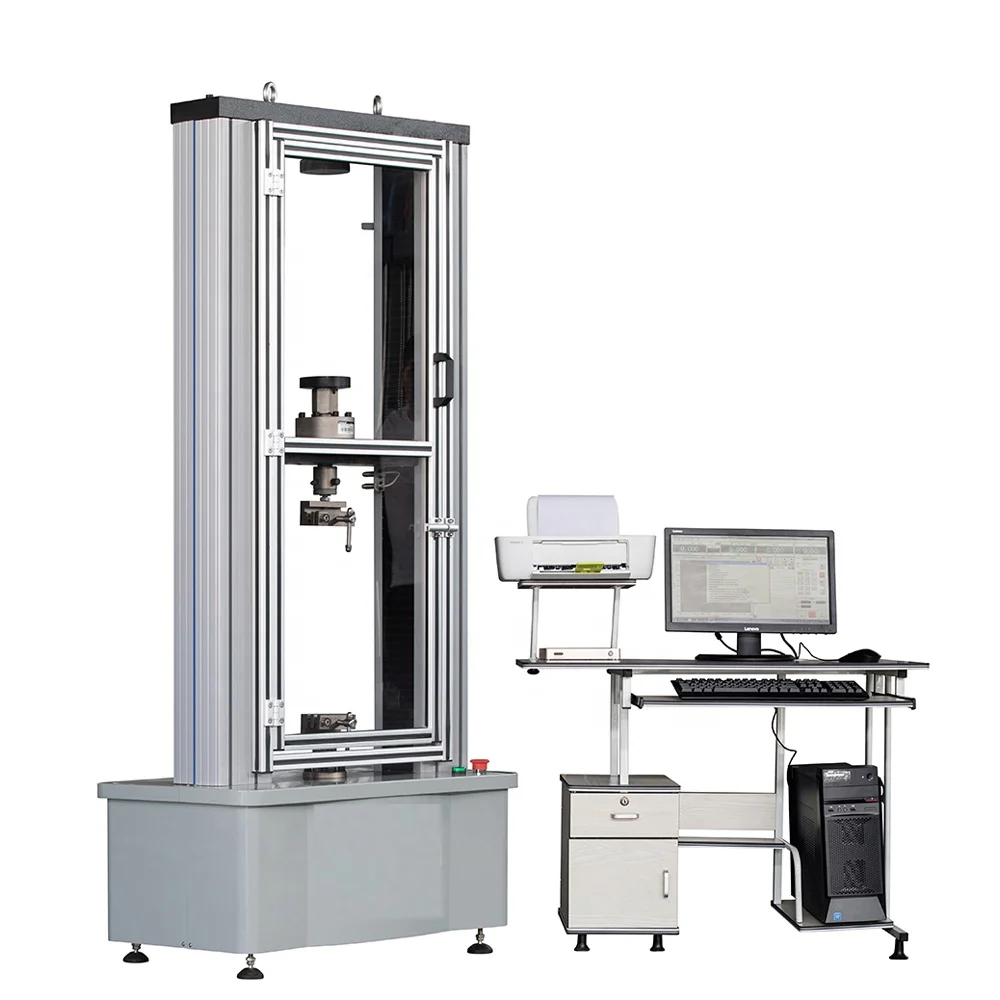

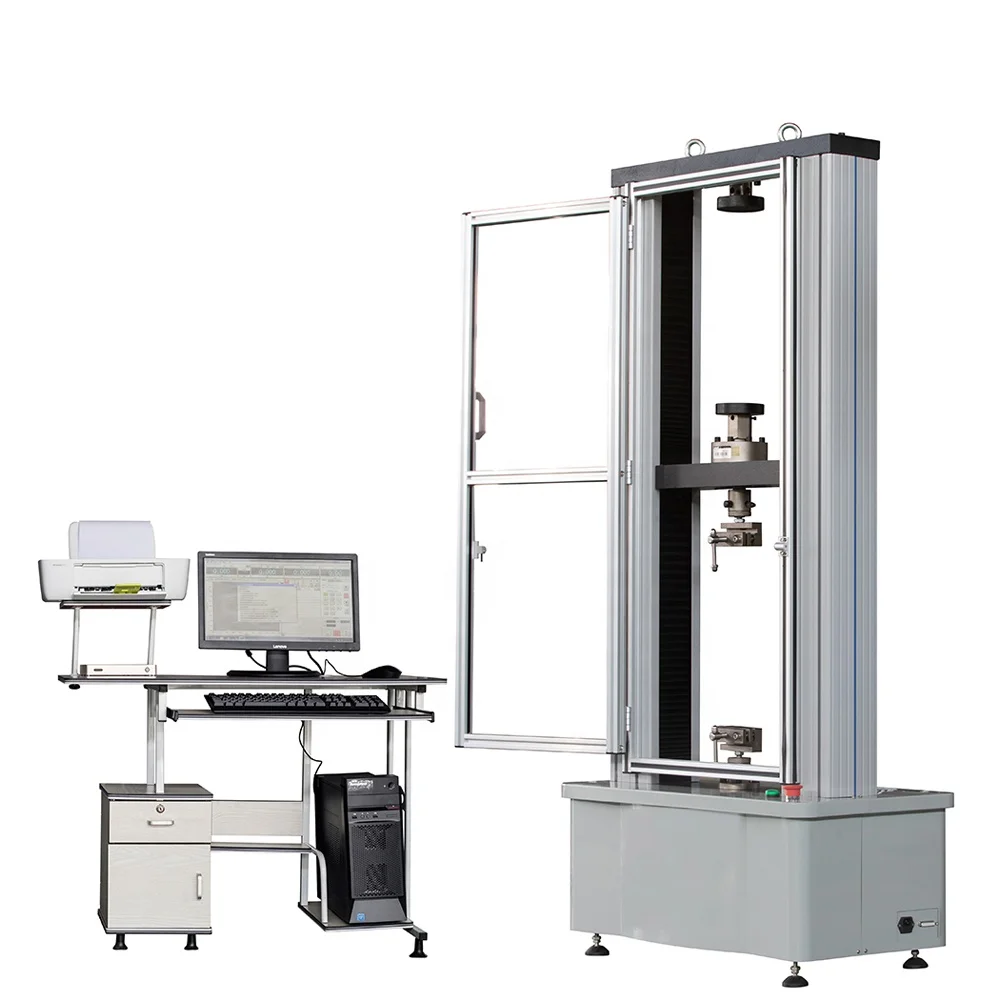

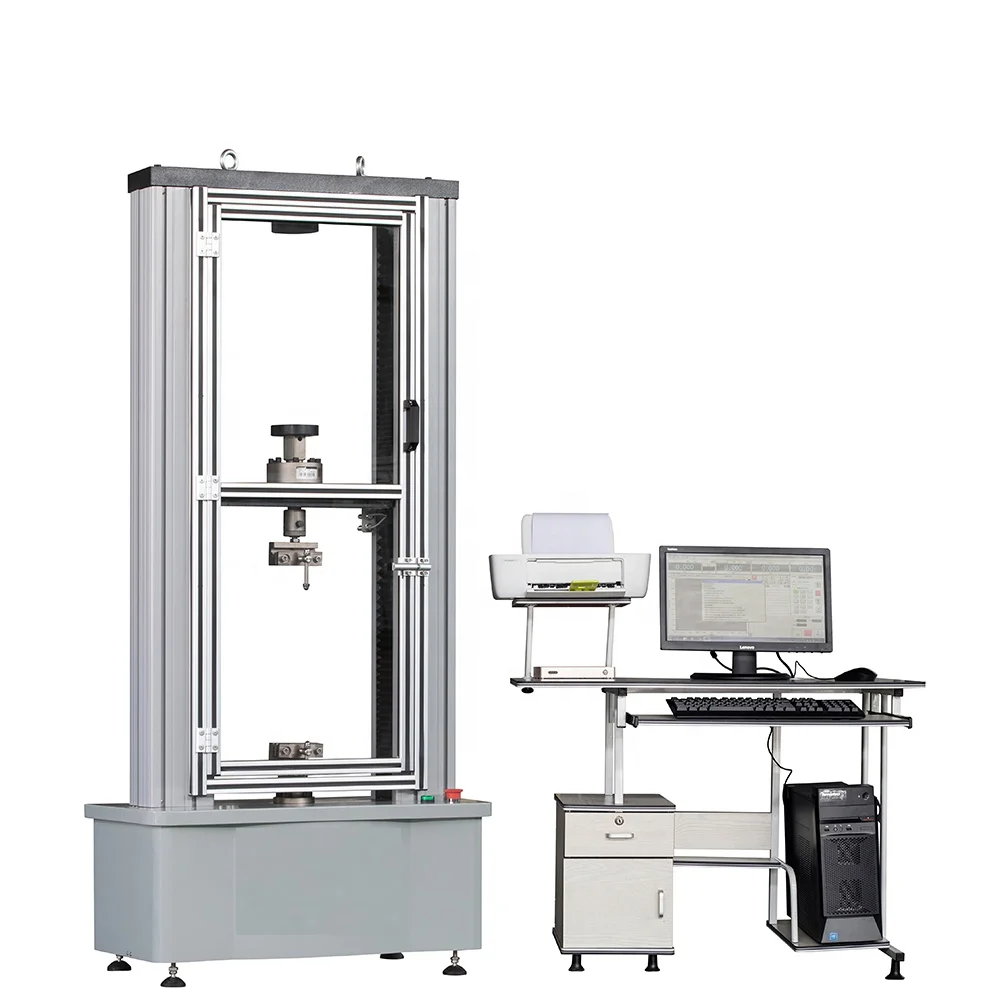

WDW 50kN Electronic Universal Tester Price
For Tensile Compression Pulling Strength Testing
1.Application
Microcomputer-controlled universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling , tearing and other mechanical properties.
Microcomputer-controlled universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling , tearing and other mechanical properties.
2.Features
1) Computer + Software control and display 6 kinds test curves:
Force-displacement, force-deformation, stress-displacement,
stress-deformation,force-time,displacement-time
2) Can be installed extensometer to test deformation of rubber or metal material
3) Can do high temperature test by high temperature oven and furnace

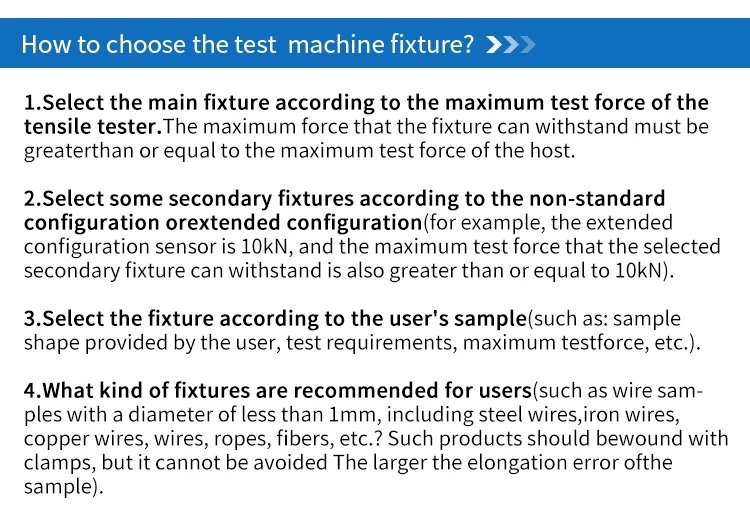

4) Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures
5) Can be customized height, width, and follow any test standard or customer request
6) Also have Digital Display Type.
1) Computer + Software control and display 6 kinds test curves:
Force-displacement, force-deformation, stress-displacement,
stress-deformation,force-time,displacement-time
2) Can be installed extensometer to test deformation of rubber or metal material
3) Can do high temperature test by high temperature oven and furnace
4) Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures
5) Can be customized height, width, and follow any test standard or customer request
6) Also have Digital Display Type.
7) WDW 50kN Electronic Universal Tester Price For Tensile Compression Pulling Strength Testing
3.Technical Parameters
3.Technical Parameters
Model | WDW-30/50 |
Max. load force | 30KN 50KN |
Crosshead Travel(mm) | 1000 |
Effective tensile space (mm) | 700 |
Effective Test width (mm) | 450 |
Crossbeam travel speed(mm/min) | 0.001-500 |
Load accuracy | Class 1 (class 0.5 optional) |
Load range | 1%-100%FS (0.4%-100%FS optional) |
Load resolution | 1/300000 |
Round specimen clamping range(mm) | 4-9, 9-14 |
Flat specimen clamping range(mm) | 0-7, 7-14 |
Tensile grip | Customized |
Compression Plate(mm) | Φ100x100 mm |
Electronic Extensometer for metal material | YUU10/50 (optional) |
Large deformation extensometer for rubber | DBX-800 (optional) |

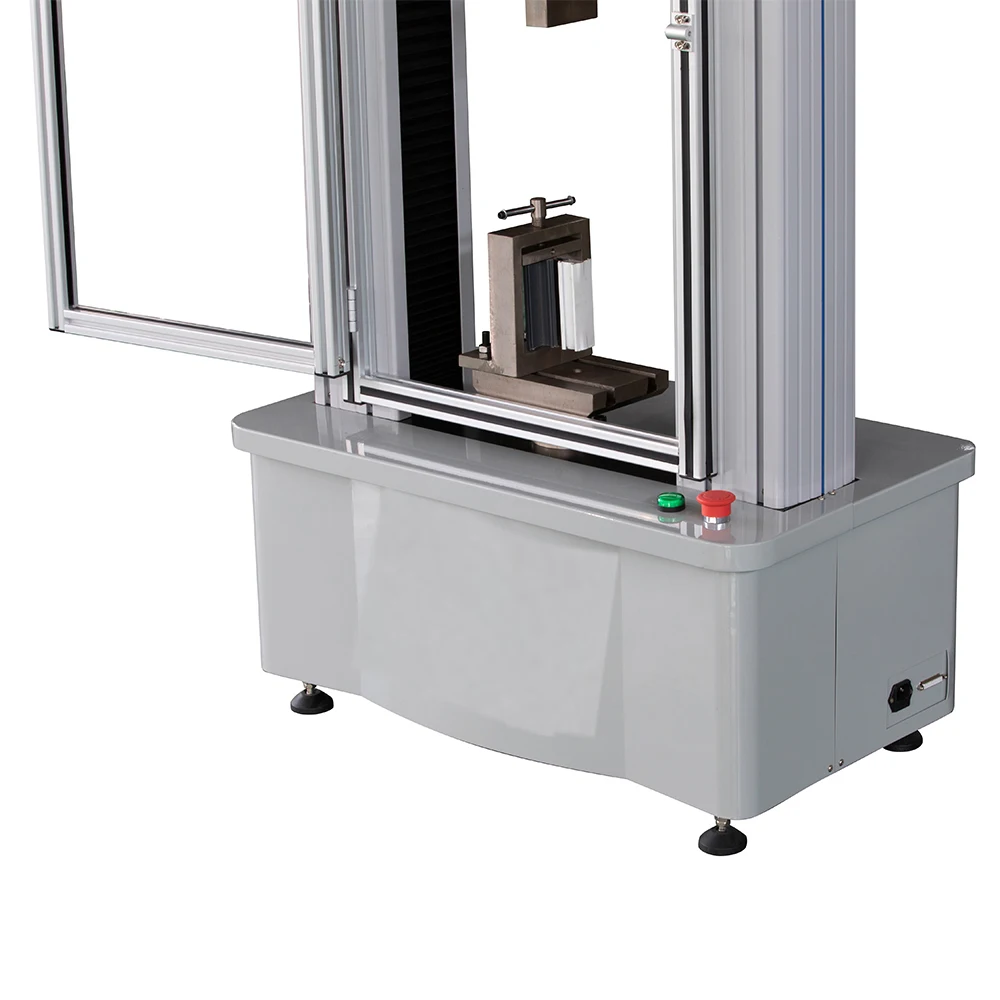

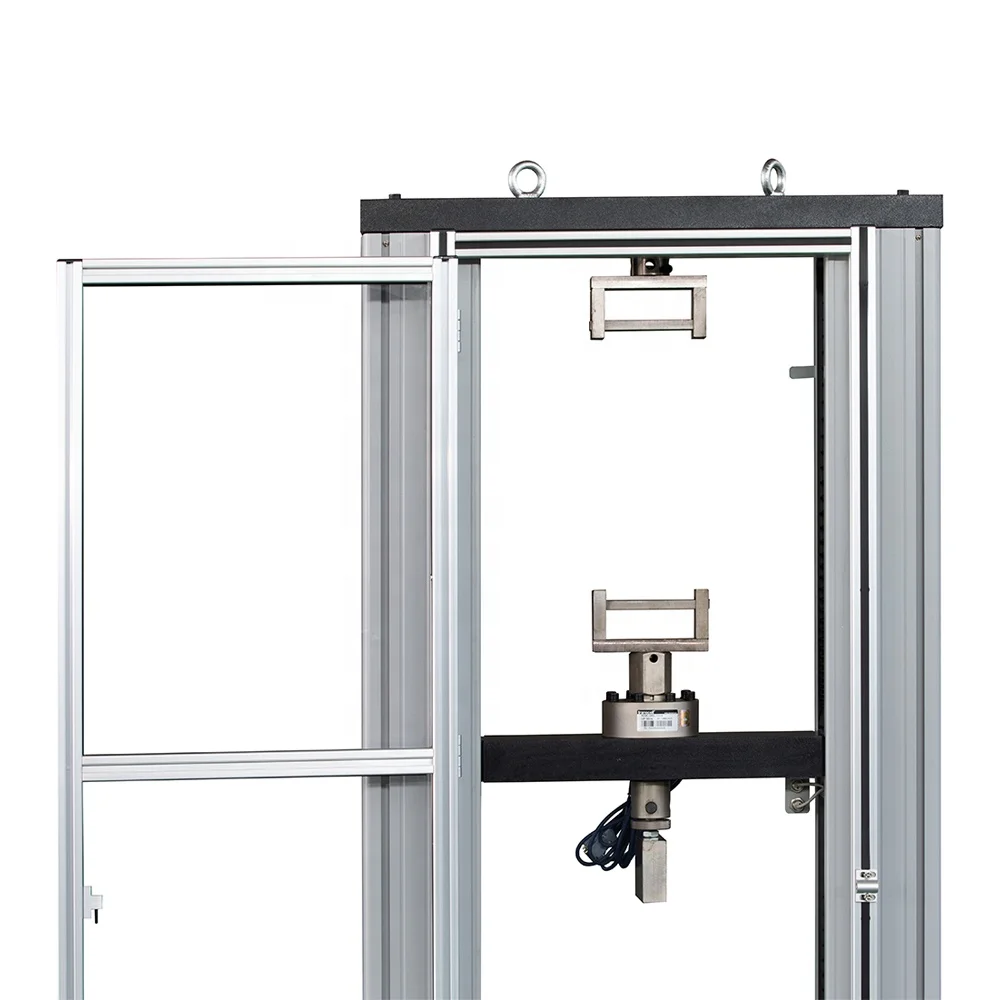

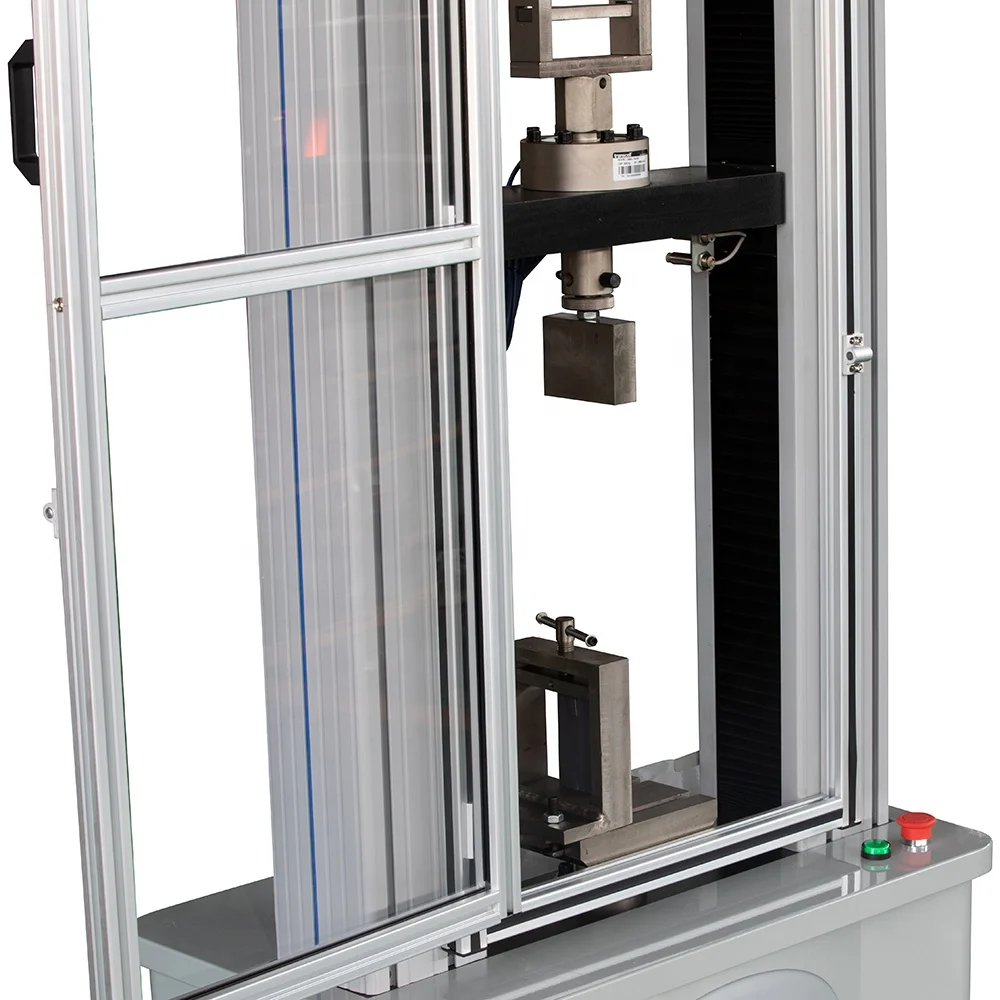

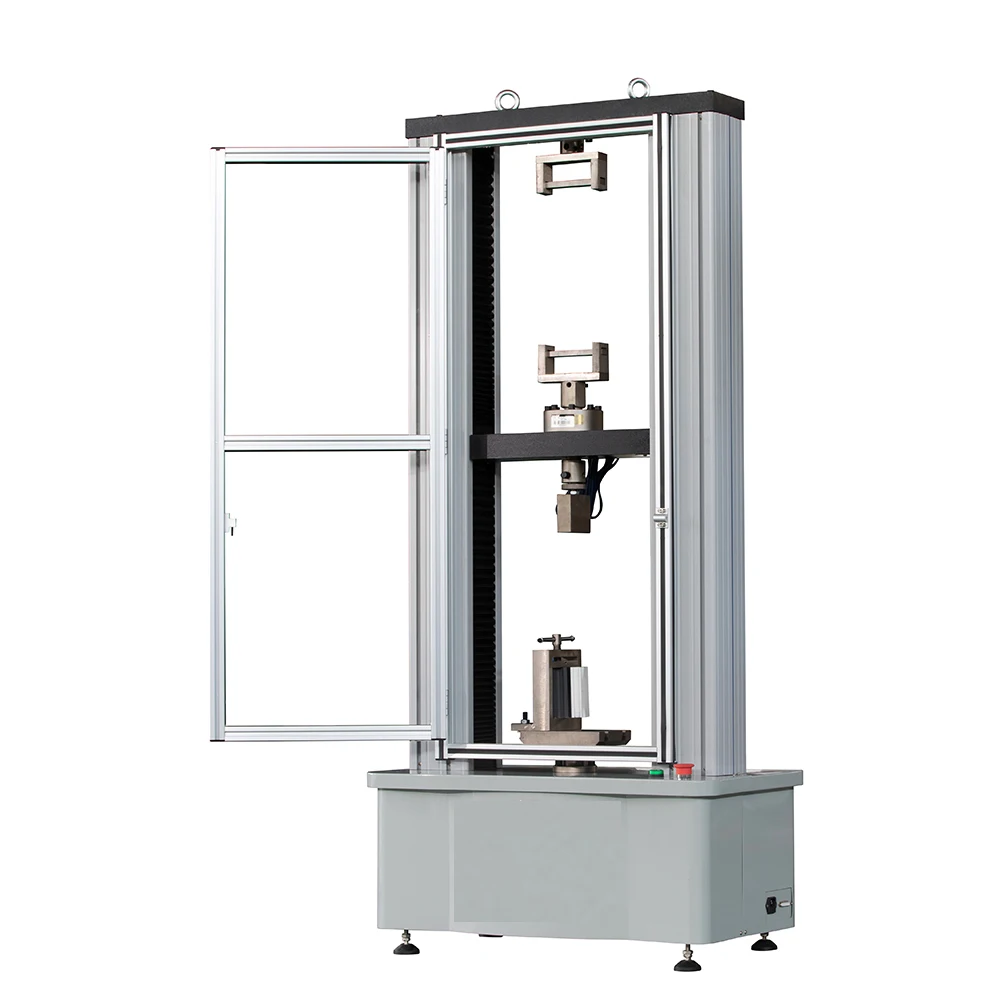

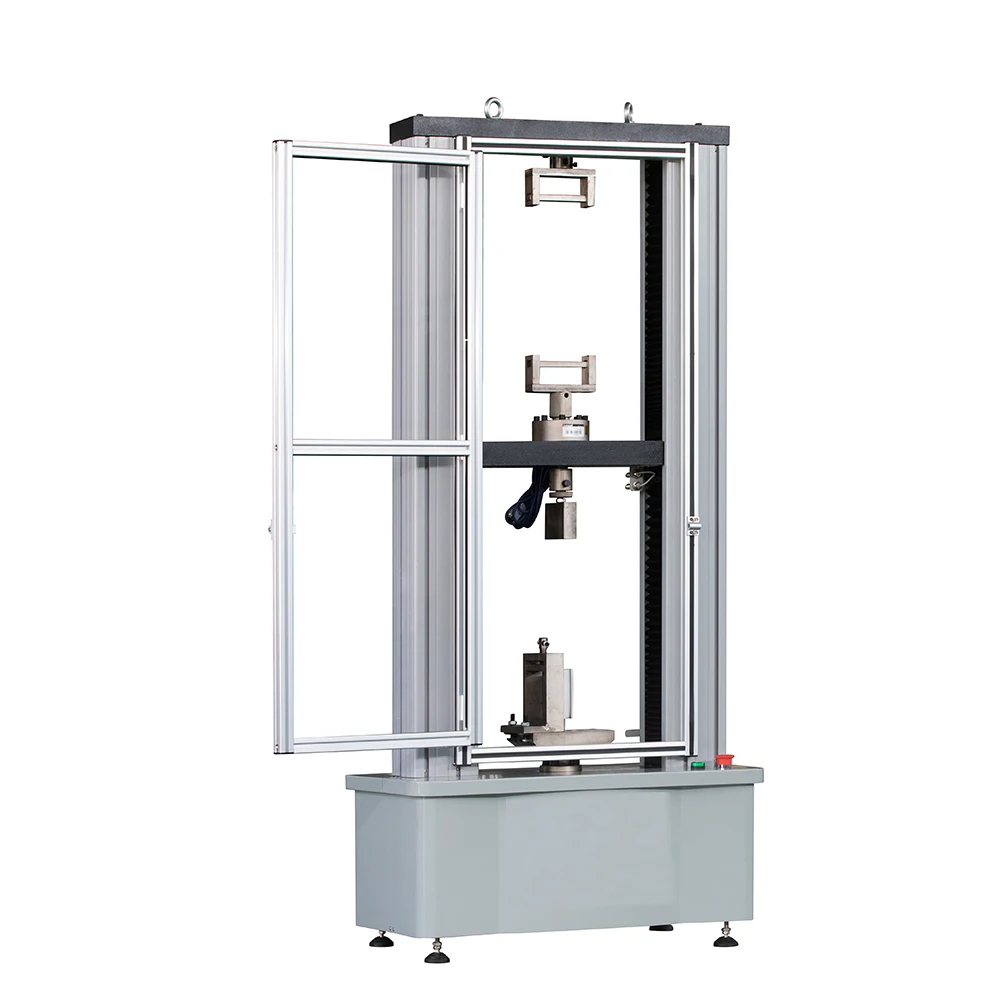

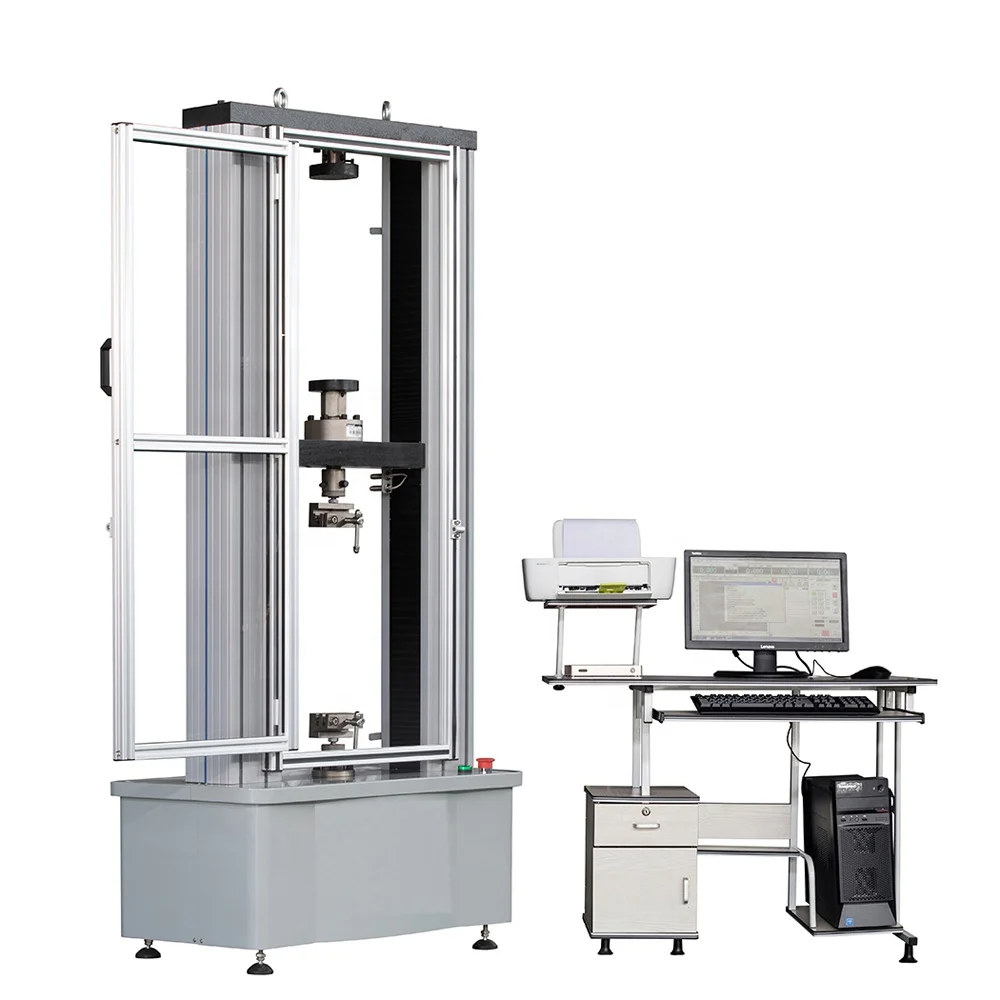

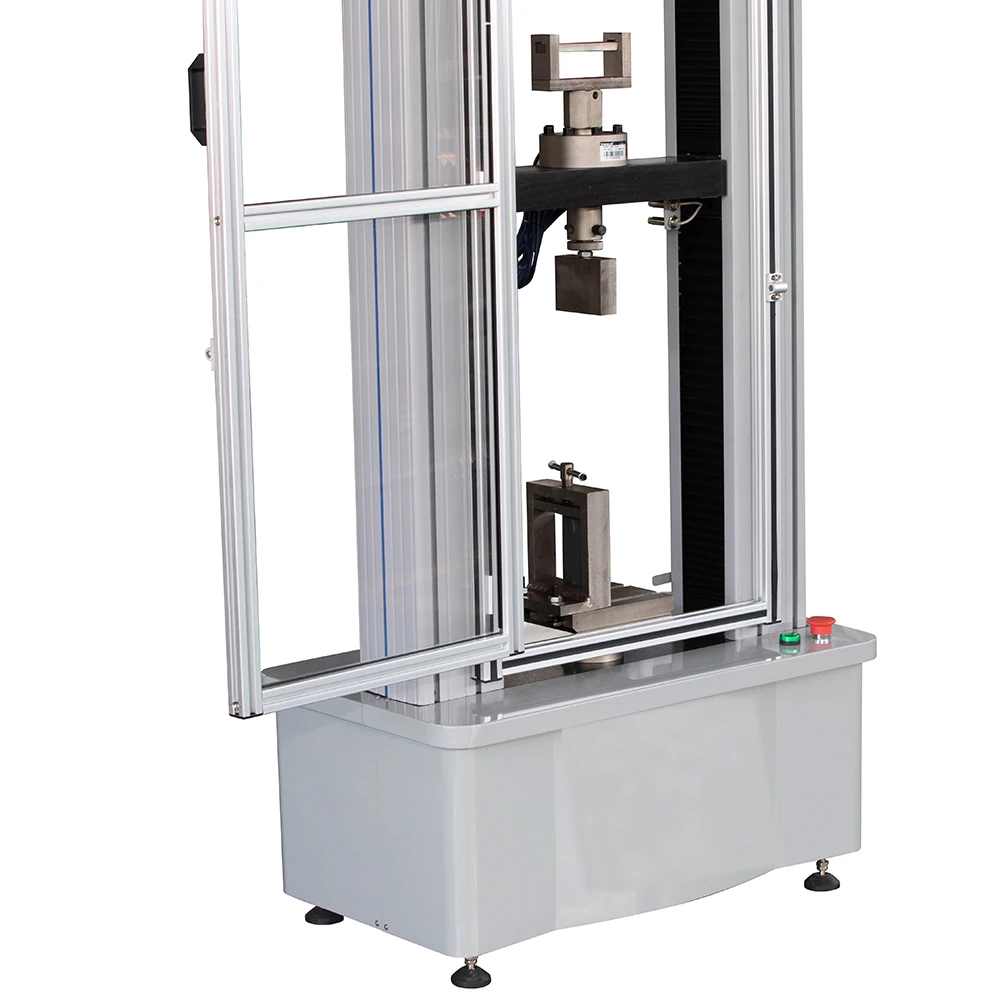

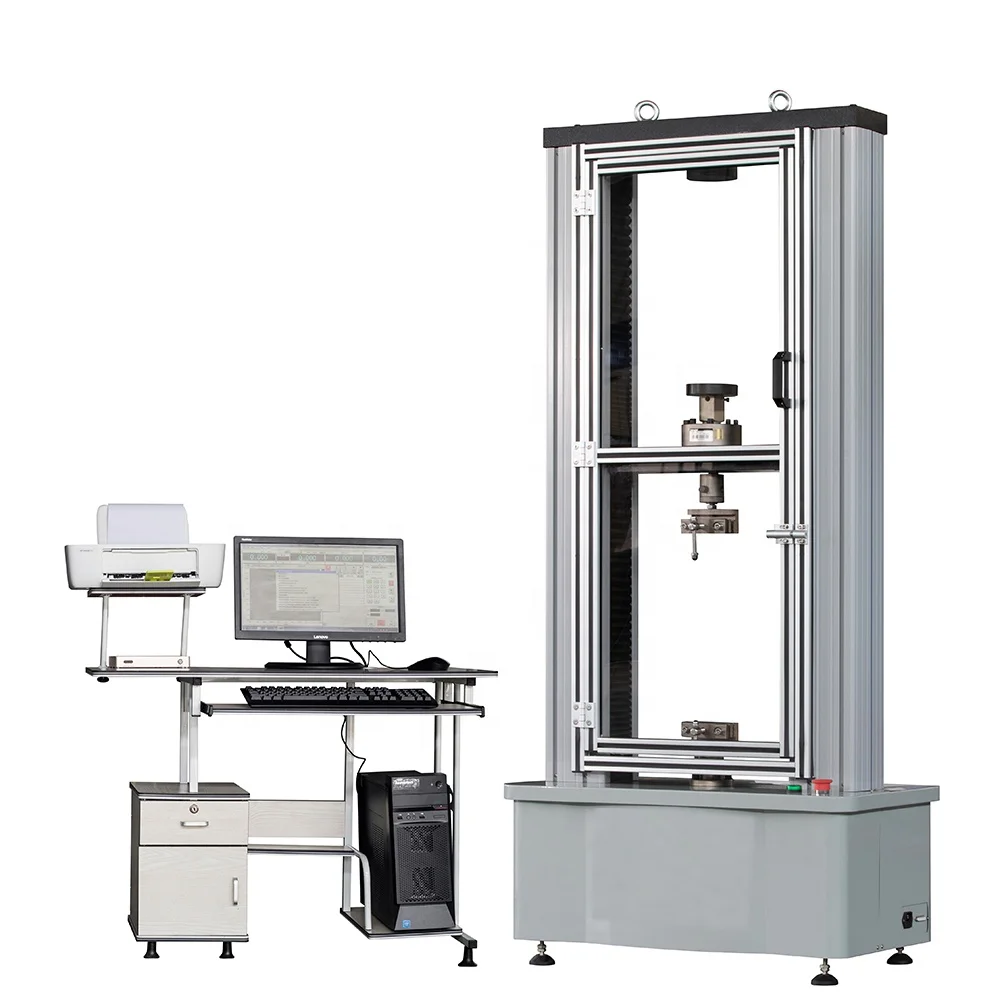

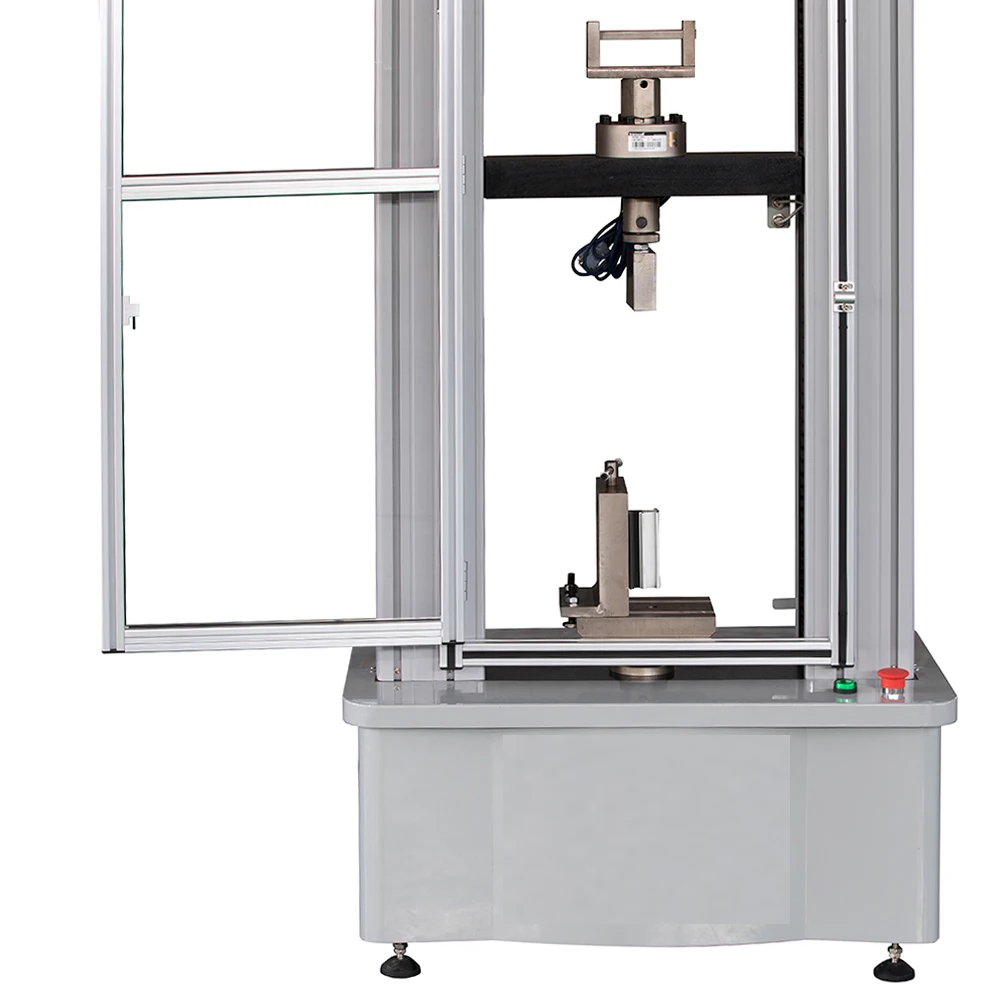

Details Images
