Product Overview

Description


Product Description

Product Application

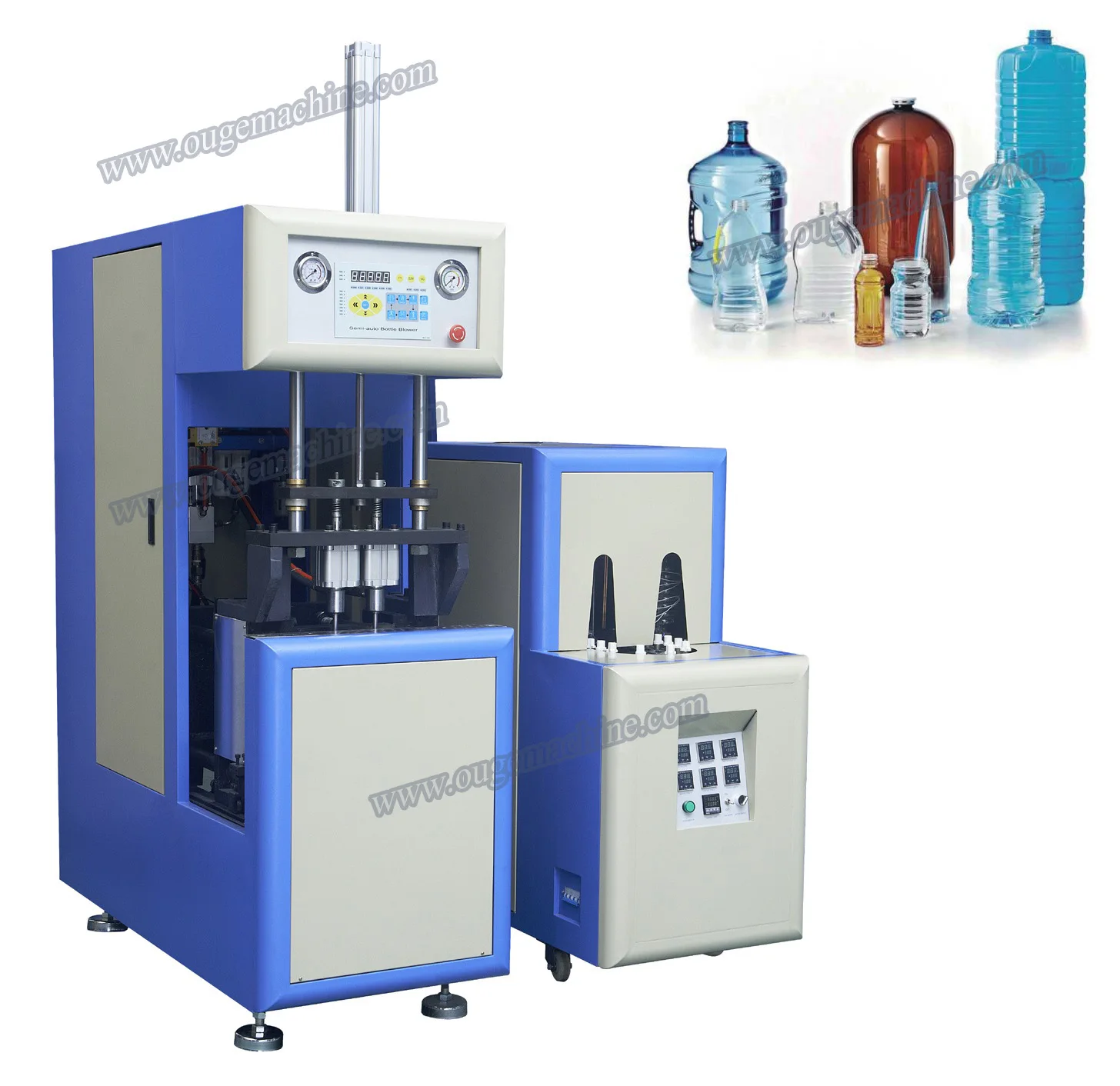

Semi-automatic Moulding Machine is suitable for producing PET bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, cosmetic bottle,pesticide bottle,oil bottle, hot fill bottle etc. Beverage bottle,dairy products,jar bottle, medicine bottle etc.

SPECIFICATIONS FOR OGS-2 BLOW MOULDING MACHINE


Product
Theoretical output
pcs/h
900
Volume
L
3
Max height
mm
360
Max diameter
mm
105


Mould
Number of cavities
piece
2
Mould plate dimension(LxH)
mm
490X405
Mould thickness
mm
220
Mould opening stroke
mm
160


Electrical
Power
V/Hz
220-380V/50-60Hz
Total power
KW
11
Heating power
KW
10


Machine Specification
Main body dimension(LxWxH)
M
1.5x0.65x2.0
Main body weight
KG
550
Pre-heater dimension(LxWxH)
M
1.4x0.60x1.4
Pre-heater weight
KG
300

Main Features

1)Adopt special electronic controlling circuit for heating; high efficiency in simultaneous controlling one lamp or more; lower power consumption.
2)Adopt the theory of heat transfer and feedback while designing the shape and thikness of preform.
3)The preform will be heated evenly, not be influenced by outside environment.
4)Cooling system with cold air cycle ensures same heat exposure of internal and external surface of the bottles.
5)The air exhaust system designed by CAD can guarantee the deviation of heating furance temperature +/-1 degree.
6)Air circuit system consists of movement and blowing so as to meet the needs of different air pressure, also to provide stable high pressure for blowing different shapes of big capacity bottles.
7)The system is equipped with silencer, connecting rod and articulated refueling devices.
8)Two modes of operation: semi-automatic mode and automatic mode.
9)Small size, low investment. one person enough to operate, simple and safe.

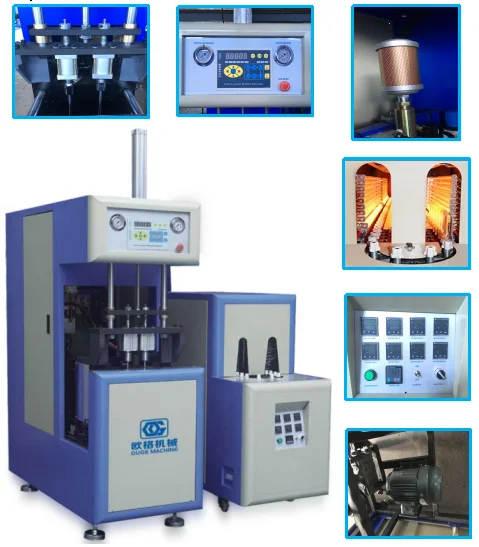

Machine Details
About Us

About OUGE

Ouge company is located in the East China Sea coast, the famous "mould hometown"---- Huangyan Taizhou,Zhejiang. Specializes in the production of PET automatic and semi-automatic blowing machines, preform moulds and bottle moulds. It consists of many professional engineers with rich experience in the PET industry and high-quality staff. The main products include: PET automatic and semi-automatic blowing machines, all kinds of moulds for carbonated beverage bottles, juice bottles, alcohol drinks bottles, and cosmetic containers, PMMA lamps, PP infusion bottles, edible oil bottles, etc. Over the past several years, Ouge has always been devoting its utmost efforts to improving the technology, researching the market and developing new products to suit for all customer needs.

Ouge company has always been adhering to the advanced design concept and good production technology. Due to superior products, advanced technology,favorable price and high-reputation after-sales service, it wins the trust of users.We firmly believe that Ouge machine you can trust, and is most worthy of your cooperation partner, dedicated to your factory work together to build a better tomorrow!


Exhibition

The 125th Canton Fair

2019 Chinaplas

2019 VietnamPlas

Certifications
Our Service

1.Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

2.Installation&debug

*After equipment reached the workshop of customer, place the equipment according to the plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production.

*The buyer needs to supply the round tickets and accommodation of our engineer, and USD50 daily salary for one engineer.

3.Training

*Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. *Seasoned technician will guide and establish training outline.

*After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

* Engineers available to service machinery overseas.

4.After-Sales Service

* After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price, in quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.

* If you could not solve the problems, we will guide you by phone; if the problems are still cannot solve, we will arrange technician to your factory solving the problems.

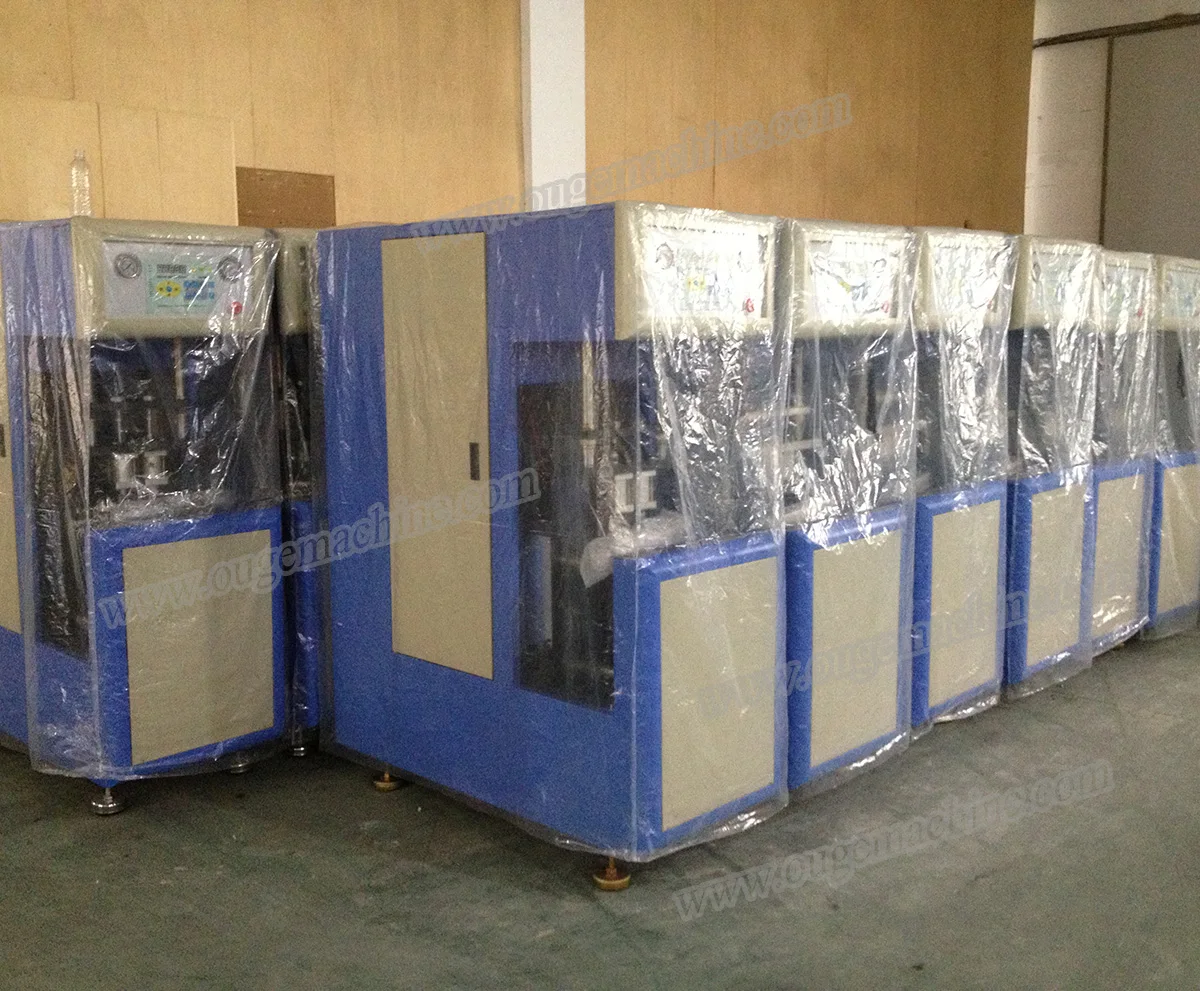

Packing & Delivery
Why Choose Us
1.Oversea engineer service
There're more than 10 people team of oversea service engineers who can do debug in oversea customers' factory.
2.Different types of blow machine cover all your needs
Ouge have more than 50 types of the machine design for your choosing.Capacity from 90BPH-12000BPH.Some design can according to your own idea as customized.
3.Free Mould Design
Ouge machine provide free design serive,we could help you to design your own bottles.
4.Good quality of blow machine and the spare parts
All of ouge machine using the top brand parts.Spare parts free change within one year.
5.Competitive Price
Ouge provide competitive price of machine and blow mould for customers.
6.Service on line 24hours/365days
We have sales team working all days for you.
The reply within 12 hours.
