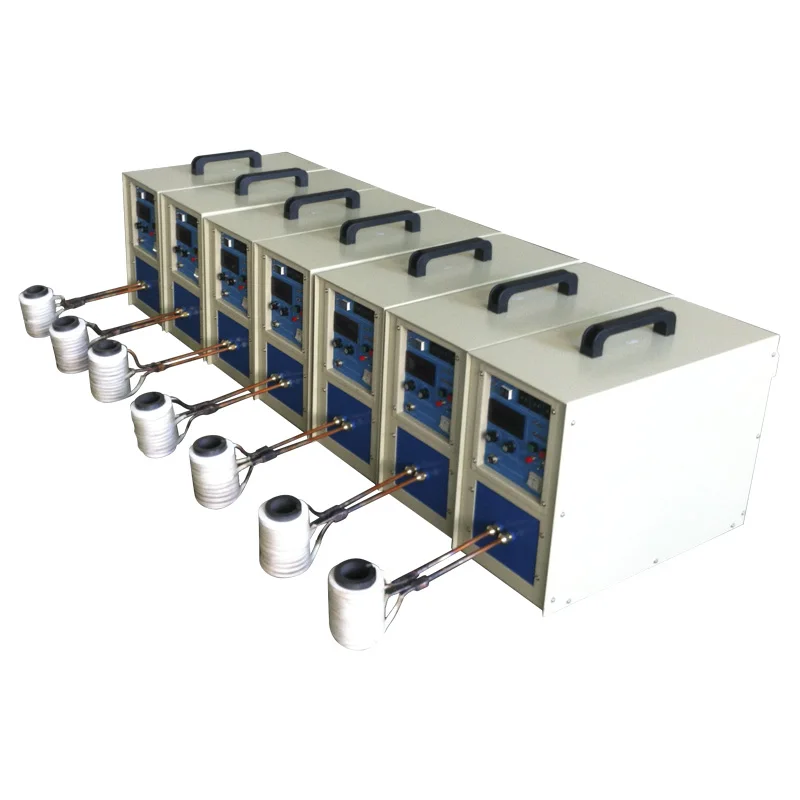

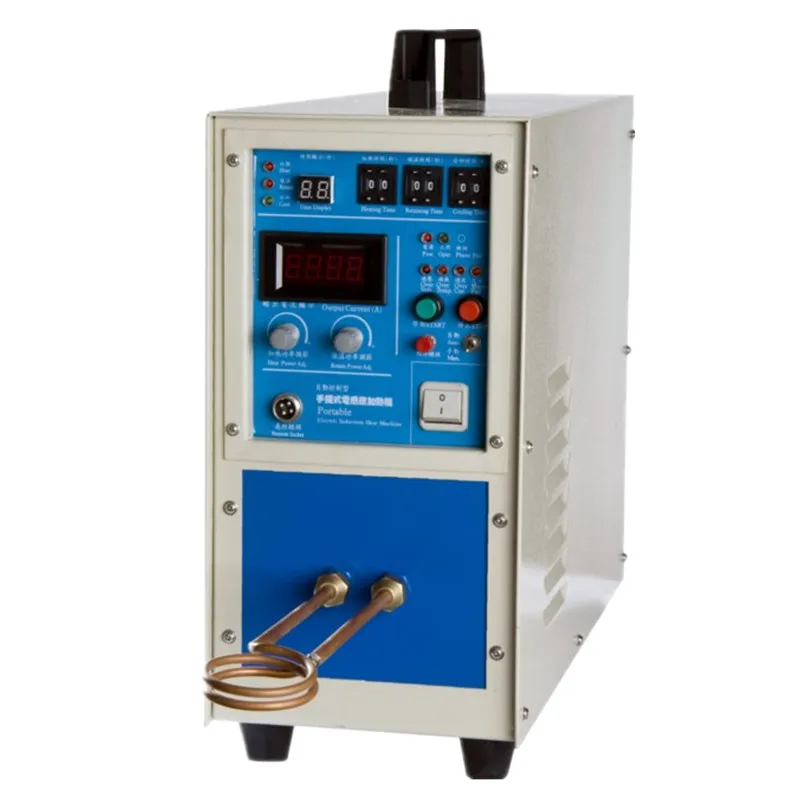

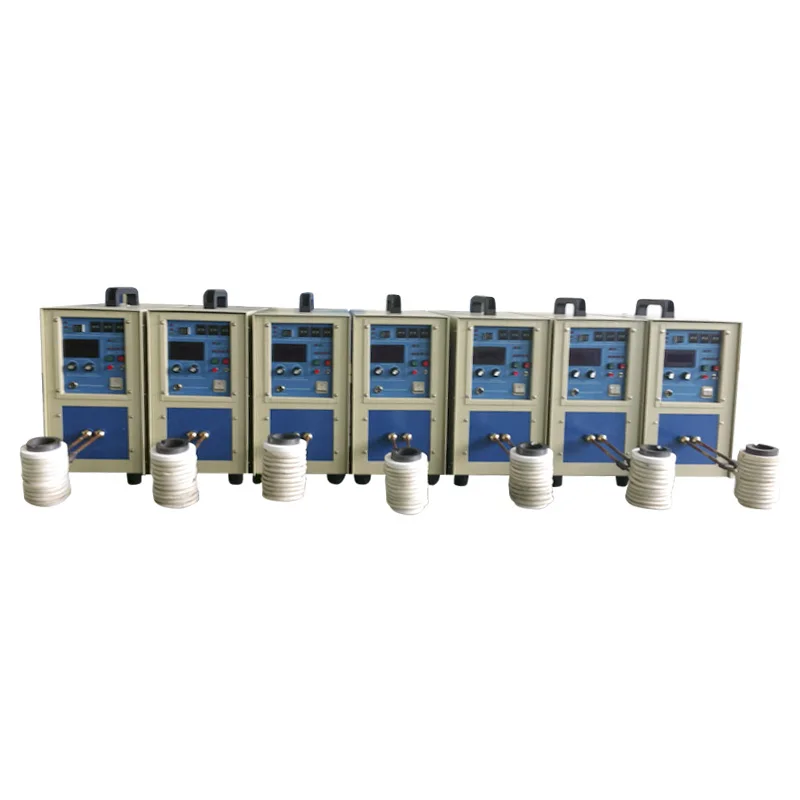

High Frequency Small Electric Induction Furnace For Gold

Product Overview

Description

High Frequency Small Electric  Induction  Furnace For Gold

Major features:

 1. Medium frequency induction heating machine adopts solid state IGBT frequency conversion control technologies, it has all kinds of protection control, giving signal under conditions of overcurrent, water shortage, overheating, overvoltage, short circuit, and phase missing, as a result, the reliability is greatly enhanced.

2. It has the function display of current, voltage, and timing, making the working condition easily perceived, and giving guidance to induction coil design, capacitance control.

3. Small size, light weight, requires no more than 1 sqm, and movable.

4. Continuously heating ability for 24 hours.

5. Low power consumption, with electromagnetic grinding capability, providing uniform smelting.

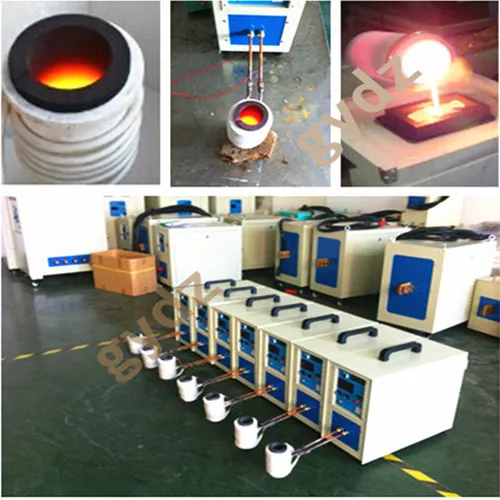

The Induction furnace apply to iron and steel, copper, Ceruse, aluminum, zinc, nickel, gold and silver and other metal melting, heating, insulation, and forging, sintering, hot rolling, bending forming pre-heat treatment. Is mainly used in melting foundry industry.

Induction Heater Furnace Parameter:

Model	GY-15A  (Single phase)
work power	180V-250V
input current	35A
Fluctuating output power	15KW
fluctuating frequency	30-100KHZ
output current	200-600A
the flow rate of cooling water	0.06-0.12Mpa 7.5L/Min
water temperature protection point	40C
product size	570x230x450mm
net weight	27.5kgs

Delivery Time: within 3 workdays.
Shipping Term:By sea,By air,by express.

Extra accessories accept choose,
1.Chiller or Water pump.

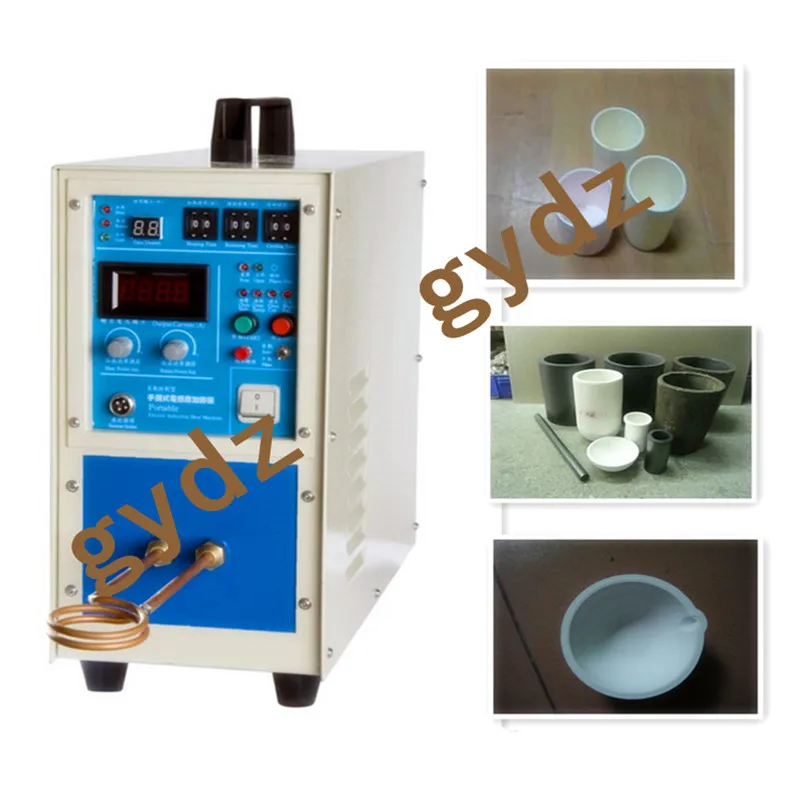

2.Graphite Crucible.
3.Customs design coil.
4.Infrared Thermometer.



Induction Heating After service

Q: Why choose GuangYuan Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,

price,service,delivery time,we all have large advantage.

Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,

pass me workpiece material & size,Temperature requirement and heating time requirement.

Then we will recommend fit machine for you reference.

Q:How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery

time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,

CIF and so on.

Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.
