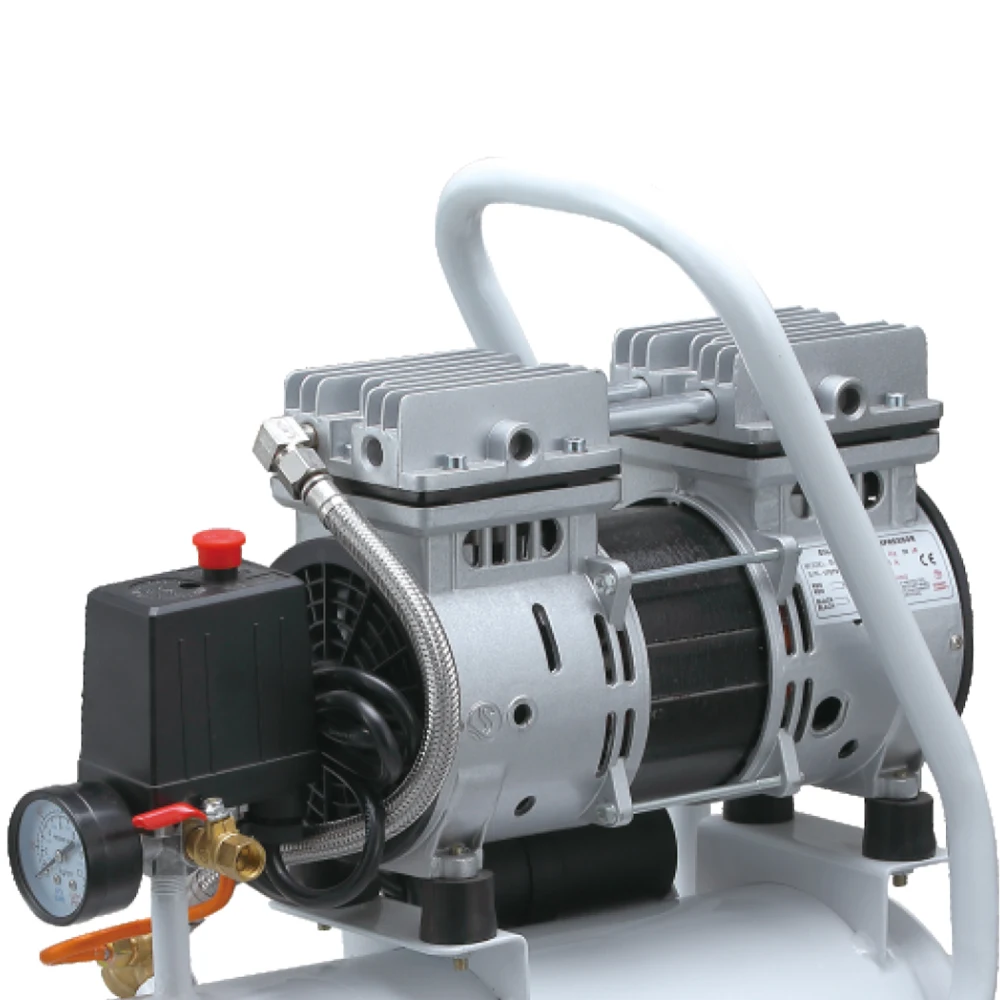

Best Air Compressor On Sale Mini Air Compressor Machine 9L 7Bar 59dB Silent Oil Free Air Compressor
- Category: >>>
- Supplier: Zhejiang Shengyuan Compressor Manufacturing Co. Ltd.
Share on (62554056012):
Product Overview
Description
Product Display
Product Parameter
Model# | GY-550-9W | GY-750-9W | ||
Type | Oil Free Air Compressor | Oil Free Air Compressor | ||
Rated Input Voltage/Frequency (V/Hz) | AC-220V/50HZ | AC-220V/50HZ | ||
Rated Input Current (A) | 2.7A | 3.6A | ||
Rated Input Power (KW/HP) | 0.55KW 0.74HP) | 0.75KW (1HP) | ||
Speed (RPM) | 1380RPM | 1380RPM | ||
Air Flow Displacement | 102 L/min (3.6CFM) | 135 L/min (4.8CFM) | ||
Max. Pressure | 7 Bar (101.5PSI) | 7 Bar (101.5PSI) | ||
Noise Level | 59dB | 59dB | ||
Working Temperature | MIN.0℃ ~ MAX. 40°C | MIN.0℃ ~ MAX. 60℃ | ||
Maximum Pressure (Bar) | Continous | 7 Bar (101.5PSI) | 7 Bar (101.5PSI) | |
Intermitten | 8 Bar (116PSI) | 8 Bar (116PSI) | ||
Restart | 0 | 0 | ||
Compressor Pump Performance (Ltr/m @ Bar) | 0.0 BAR | 88Ltr/min | 92Ltr/min | |
2.0 BAR | 71 Ltr/min | 89 Ltr/min | ||
4.0 BAR | 57 Ltr/min | 78 Ltr/min | ||
6.0 BAR | 45 Ltr/min | 65 Ltr/min | ||
8.0 BAR | 37 Ltr/min | 59 Ltr/min | ||
Electric Motor | Wire material | Copper | Copper | |
Stator Size | 140 tablets | 140 tablets | ||
Stator & Rotator Sheets | Silicon steel sheet | Silicon steel sheet | ||

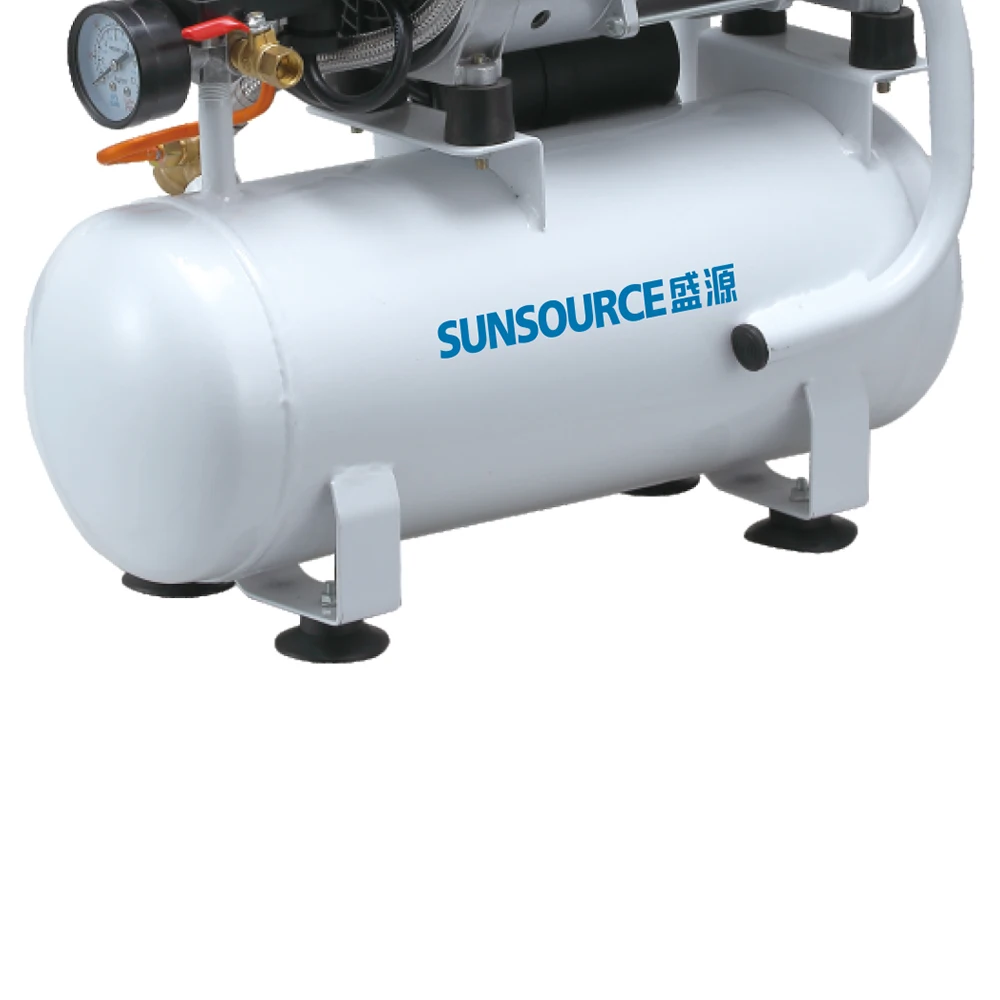

Tank | Capacity | 9L (2Gal) | 9L (2Gal) | |
Material | Q235 | Q235 | ||
Thickness | t=2mm | t=2mm | ||
Standard Equipment | Pressure Controller | 0.4-0.7Mpa/4-G1/4 | 0.4-0.7Mpa/4-G1/4 | |
Air Regulator with Valve | G1/4 with nozzle | G1/4 with nozzle | ||
Connecting Pipe Material | Soft Metal Tube | Soft Metal Tube | ||
Muffler | G1/4 Round iron shell | G1/4 Round iron shell | ||
Thermal Protector | Yes | Yes | ||
Power Cable | 3x1.0mm2x1.5m | 3x1.0mm2x1.5m | ||
Size & Weight | Net Weight (KG) | 17KG | 17KG | |
Machine Size | 480x205x502mm | 480x205x502mm | ||
Packaging | Carton | Carton | ||
Gross Weight(KG) | 19KG | 19KG | ||
Packaging Dimensions | 500x225x525mm | 500x225x525mm | ||
