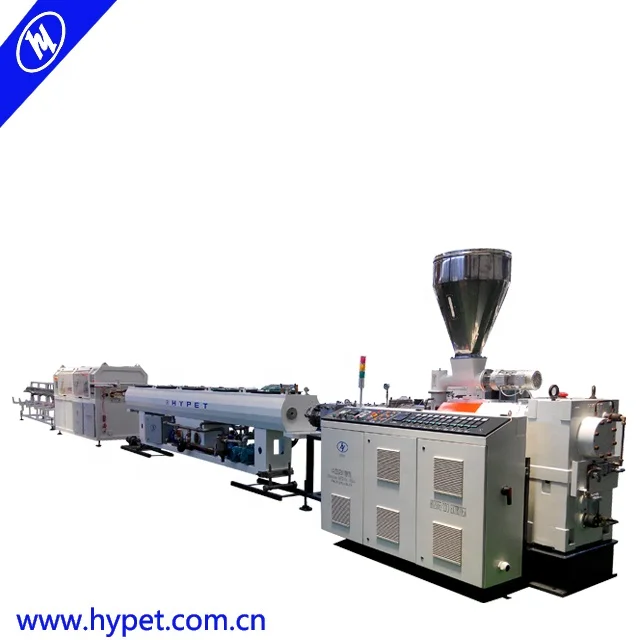

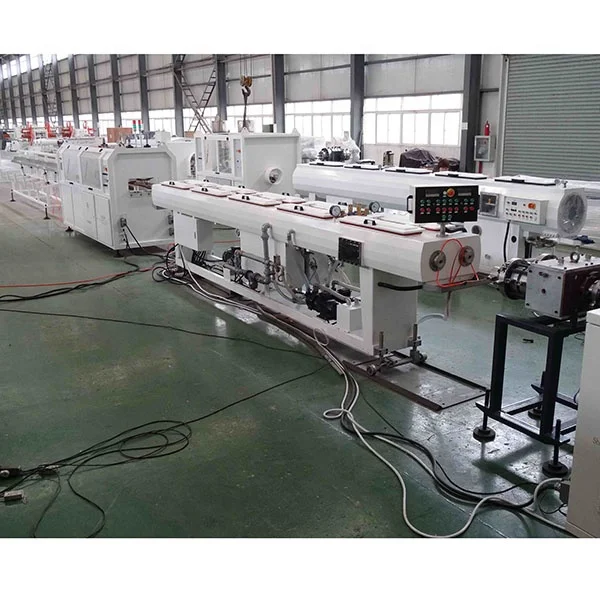

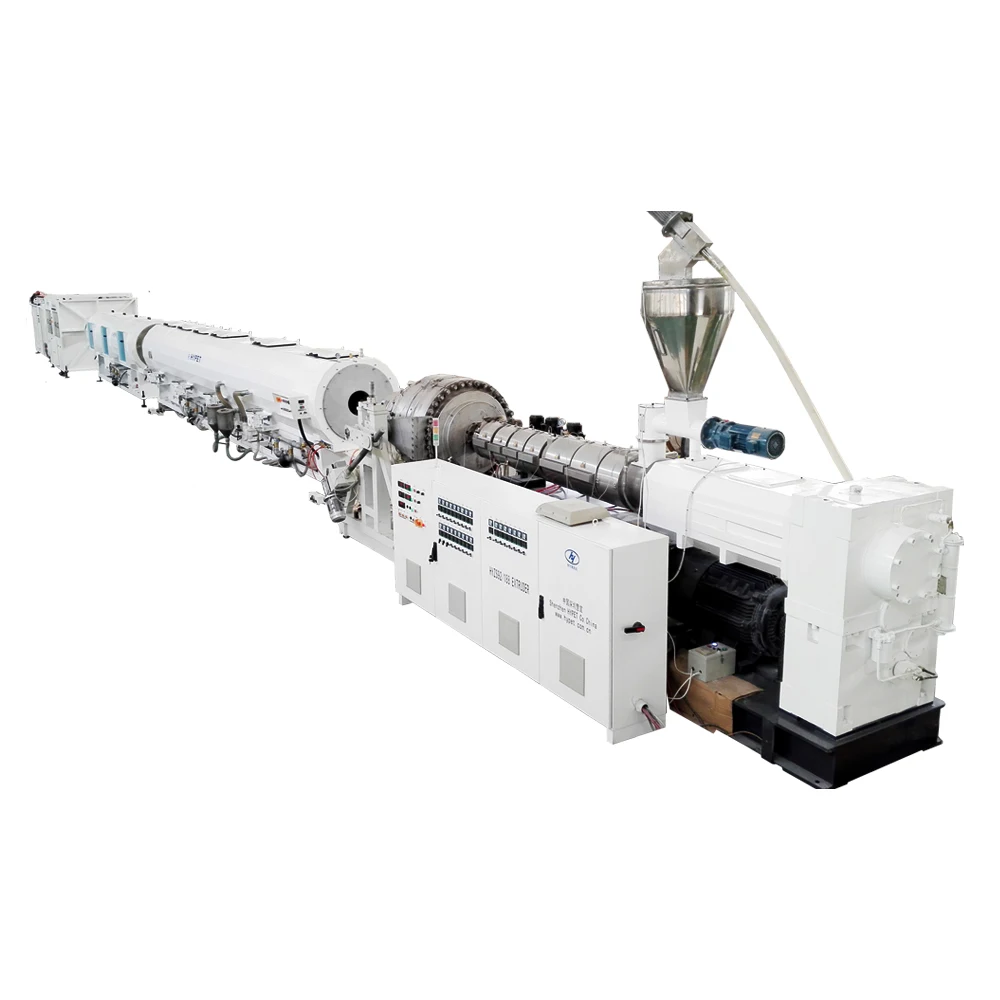

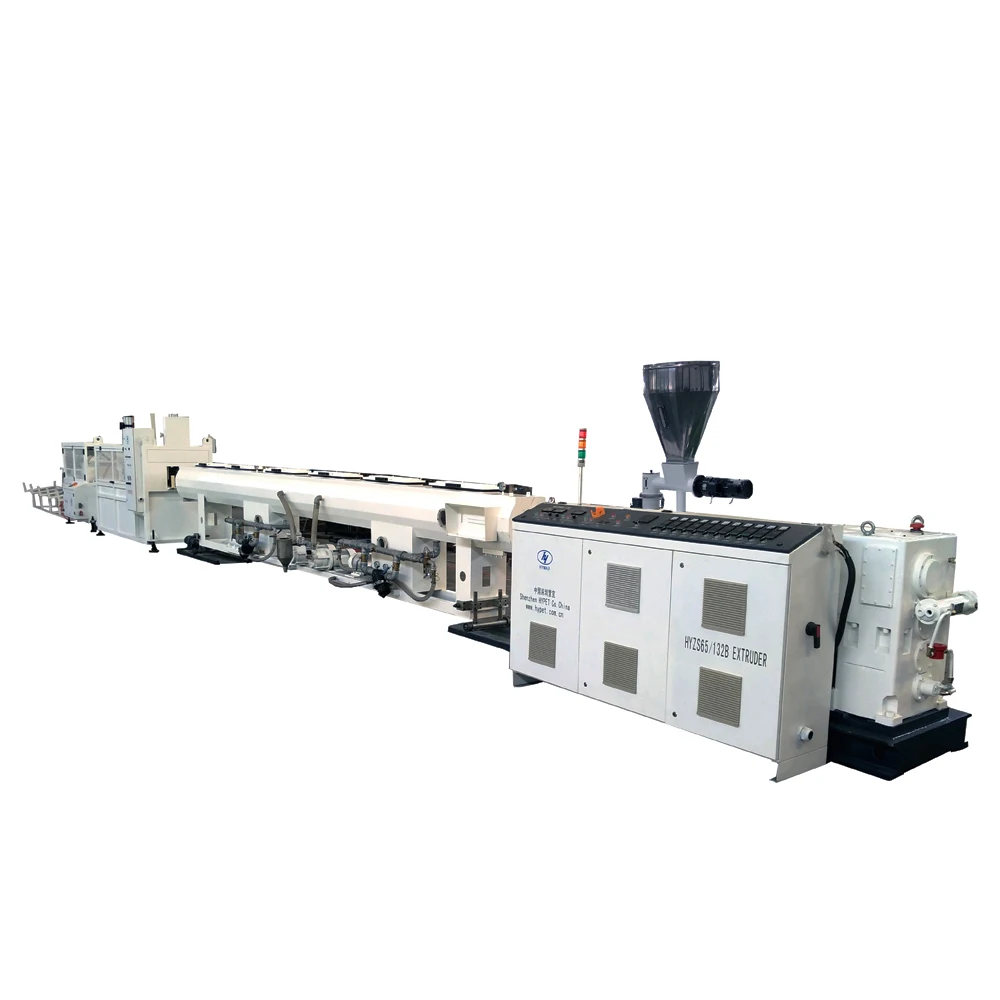

PVC UPVC CPVC pipe production line
- Category: >>>
- Supplier: Shenzhen HYPET Co. Ltd.
Share on (62554065889):
Product Overview
Description
PVC UPVC CPVC pipe production line
Unique advantage
SN | Parts | Description |
1 | High output | Ensure you the highest output as compared with other supplier. |
2 | New technology gear box | High torque geat box |
3 | Screw and barrel | Bi-metal material ensure you longer working life, ensuring 24 hours. |
4 | Energy saving heater | Heater on the barrel is energy saving type by 15% |
5 | Electric elements and box | In detachable, with world famous brand such ABB, Siemens, Schneider, Delta, well organized. |
6 | HYPET PLC control system | With operation easy, management full, energy saving and counting, and intelligent control system. |
7 | Pipe brighten device | To make the pipe shining and smoothing |

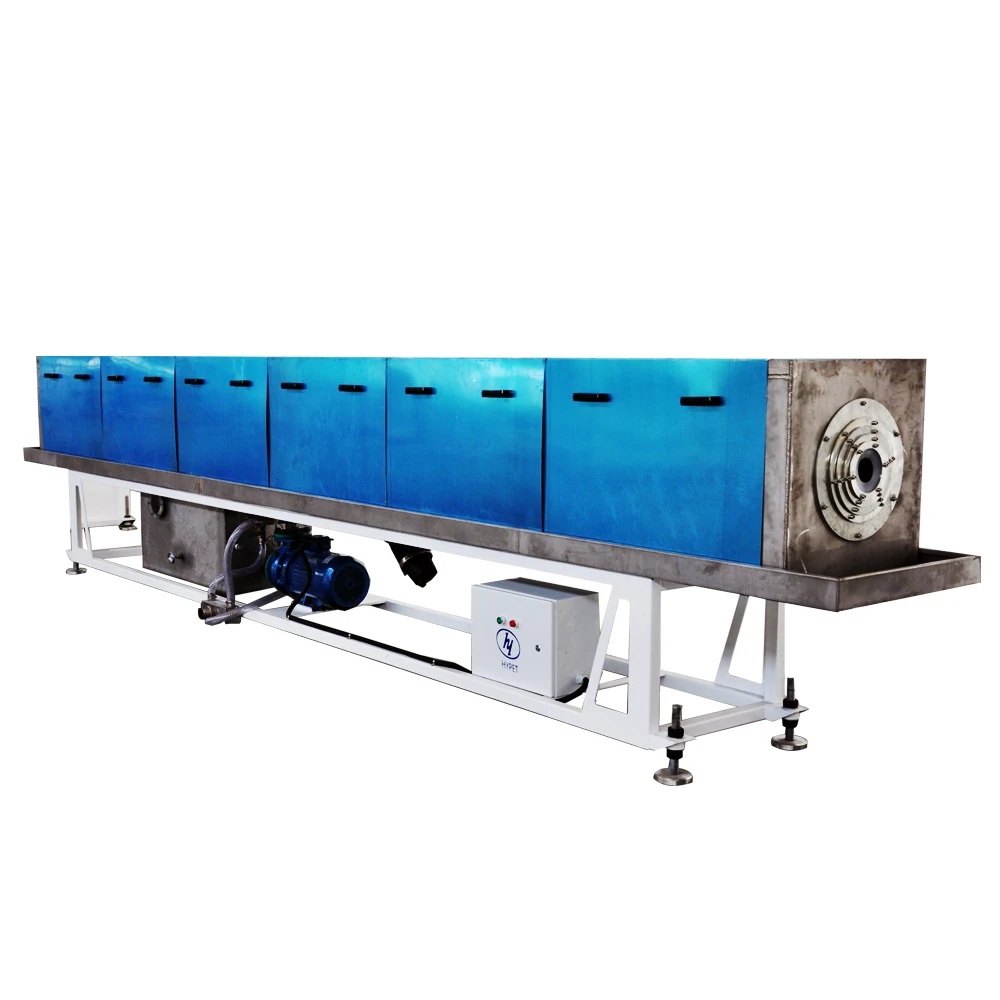

8 | Vacuum tank stainless steel 304 | Water level and temperature controlled automatically |
9 | Dustless cutter | In new device for cutting pipe to save material. |
Configuration
SN | Items | Choosing configuration | Remark |
1 | Production control system | Digital control system |
|
2 | Cooling system of the main control electric cabinet | Fan cooling electric cabinet |
|
3 | Main motor | AC motor with famous inverter |
|
4 | Pressure sensor | HYPET individual temperature and pressure control in two parts |
|
5 | Core thermoregulation control | Internal closed loop heat balancing system. |
|
6 | Material of screw & barrel type | Nitro Alloy with bi-metal in two parts |
|
7 | Quantitative feeding system’s mixing function | Twin screw with mixing device option |
|
8 | Cutter | Dustless type in new technology |
|
9 |

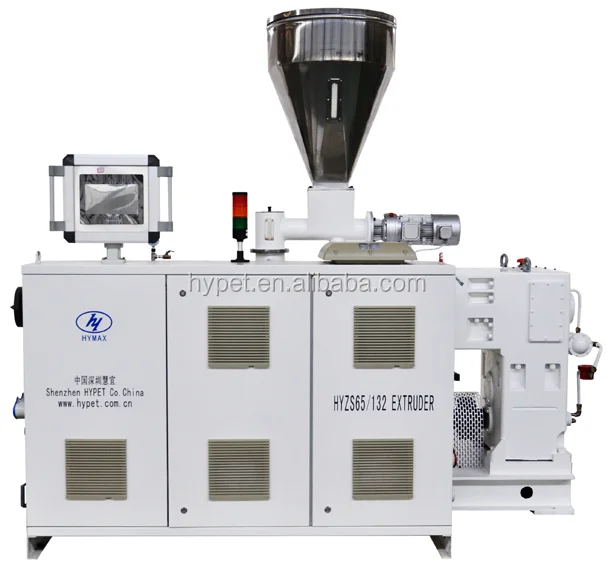

Extruder
Product Description
| Item Name | High speed PVC plastic double die head pipe line extrusion line |
| Brand Name | HYPET |
| Extruder Model | HYZS65/132 |
| Power | 37kw |
| Plastic progressed | PVC powder |
| Max output | 300g/h for PVC pipe |
| Pipe diameter | 20-63mm |
| Screw desigh | Conic twin srrew |
| Automatic Grade | Full Automatic |
| Voltage | 380V 50HZ 3Phase / Optional |
| Dimension | 18m*1.5m*2.5m |
| Weight | 15-15T |
| Certification | CE,ISO9001 |
| Motor brand | Siemens |
| Warranty | 12 Months |
| Payment | T/T and L/C (irrevocable, at sight) both are acceptable. |
Company Information
1. We have more than 30 years in extrusion field
2. Introduction from German tech and experience for the design and making twin screw extruders. And leaded by Germany experts Mr. Youcef and Mr. Elben for the long time
3. Designed and produced twin conical screw extruder, twin parallel screw extruder, and transfer the technology to the biggest gears factory in India
4. With high professional design team
5. A base combined with designing, making, studying in extrusion industrial.
6. Our philosophy is to learn advanced technology, make the best suitable machine, best efficient machine and best lines.
