Bidirectional RS232 to Wiegand26/34/66bits to RS232 support all these three output format in Hex card number

Product Overview

Description

wiegand26/34/37/48/66bits to RS232 DB Male,RS232 DB female or RS232 terminal converter for door access control system use





Product Description

Standard Wiegand communication convertor is designed for transfer Wiegand data (26bit,34bit or 37bits,48bits,66bits,ect.) with other device which have Wiegand input interface. It mainly use for hand-held testing tool or embedding into products manufactured by third-parties, especially for our RFID and access control system solution.

The converter support double-way transmission, can transfer Wiegand 26bit or Wiegand34bit data to RS232 data, also can transfer data via RS232 interface to Wiegand 26bit or Wiegand 34bit data.

Standard Wiegand output 34bit data in default (Wiegand 26bit and other format as optional), standard RS232 output ASCII number (hex format as optional) with communication protocol based on 9600,N,8,1 standard.



Technical parameters:

Model:WST-WG2RS232

Size: 90mm x 45mm x 35mm

Net Weight: 0.03KG
Operating voltage: DC 9V-12V;
Baud rate: 9600 (N, 8, 1)





How to transfer data:

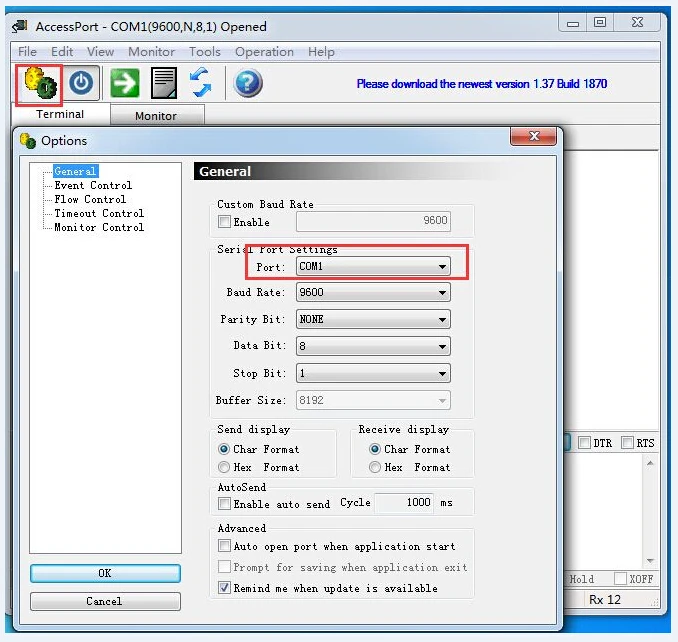

The converter transfer data based on standard RS232 protocol, Baud Rate 9600 N 8 1

There have two mainly application for data transfer:

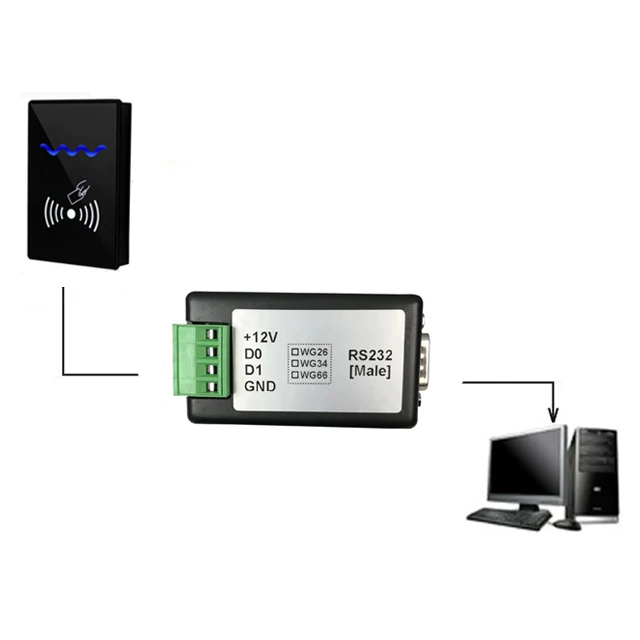

1. Transfer Wiegand output data to RS232

In this application, request transfer Wiegand output data to host via our converter, for example RFID reader, barcode scanner, fingerprint reader, face identify machine and any other devices have Wiegand output, usually it output Wiegand 26bit or 34bit, so you can connect this device with our Wiegand input, and the converter shall transfer to our RS232 interface.

Most time, RFID reader output Wiegand output as HEX, for example

4 byte number: 1010795316 = (hex) 3C3F8334

WG26 input (hexadecimal) 3F8334

WG34 input (hexadecimal) 3C3F8334



So RS232/RS485/USB(virtutal COM) output ASCII like this:

1010795316 for Wiegand 34bit (3C3F8334)

06333588 for Wiegand 26bit (3F8334)

0D 0A is a carriage return

Wiegand 26bit or 34bit data output transfer to our converter, our converter output max 10 digit ASCII number, for example: 1234567890, over this, the data shall send out separate.



2. Transfer ASCII output data to Wiegand output

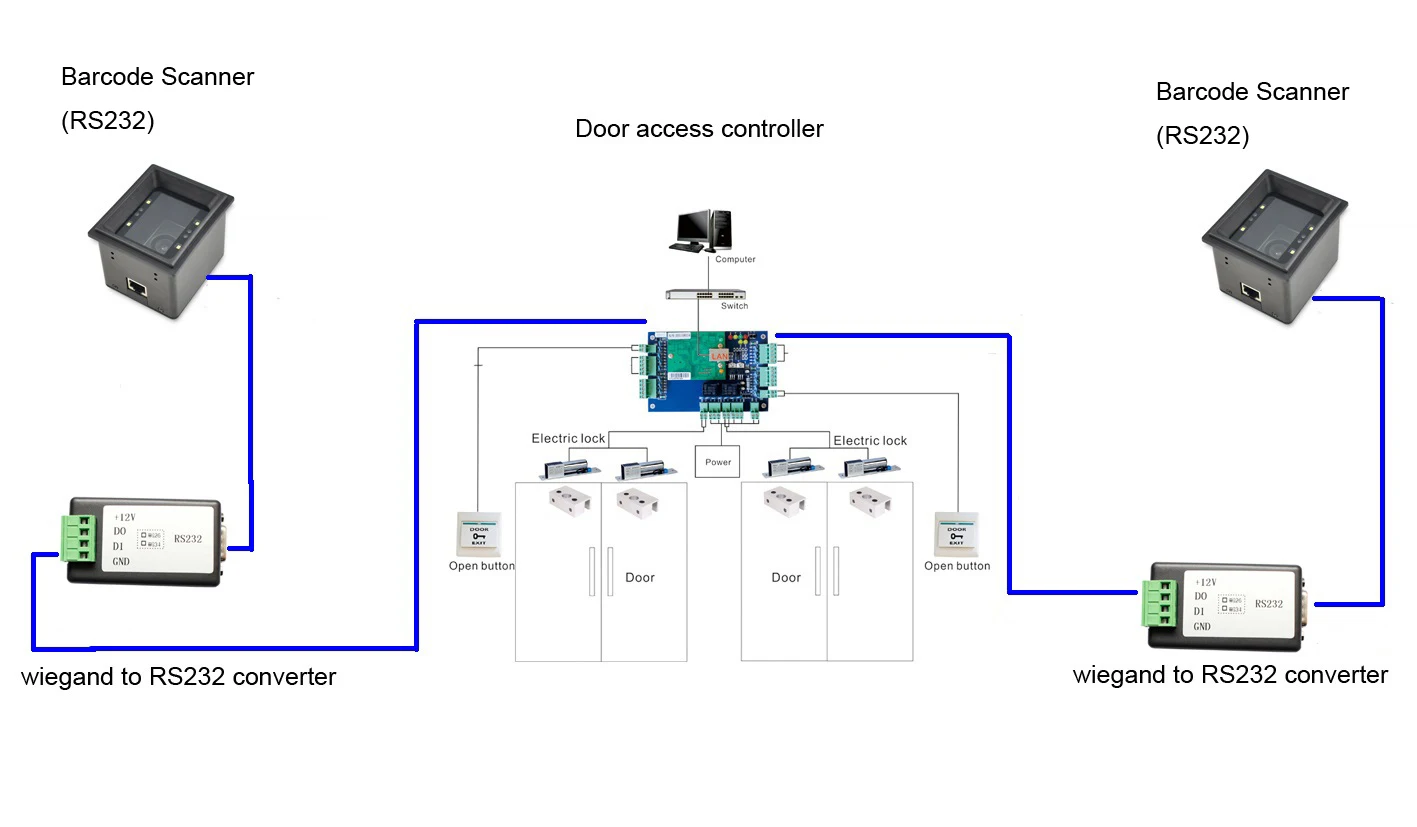

In this application, most customers transfer data from their own software, for example, sending 1234567890 from COM to our RS232 input interface, so our Wiegand output interface shall output data as Wiegand 34bit, connect to access controller, you can see access control software show a card number: 1234567890. The same application, if a barcode scanner connect to access controller via our converter, so when the barcode scanner output 11223344, so the access control software shall show 11223344.

(Remark: for more details protocol or further questions, please contract us for get support)

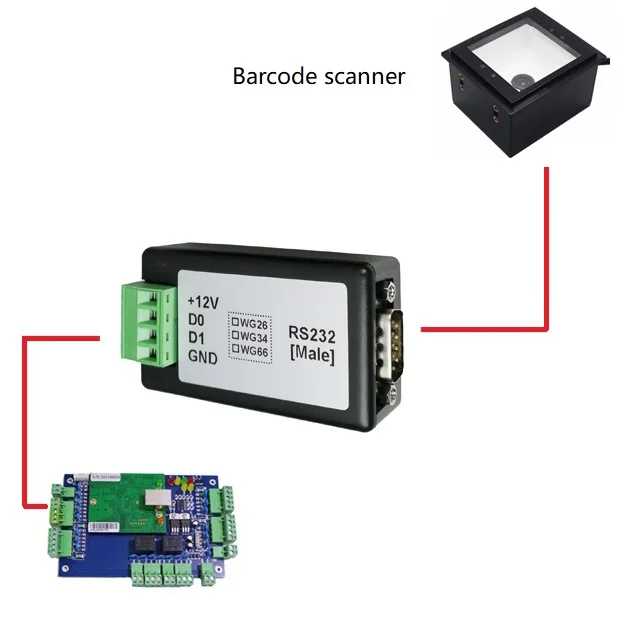

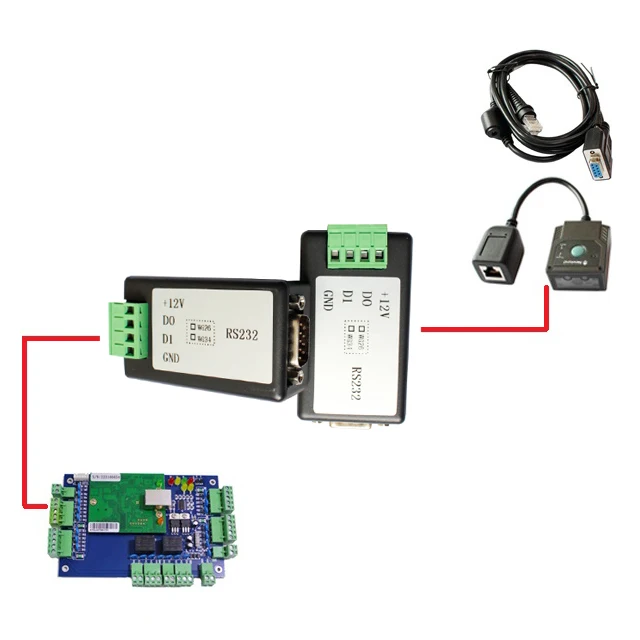

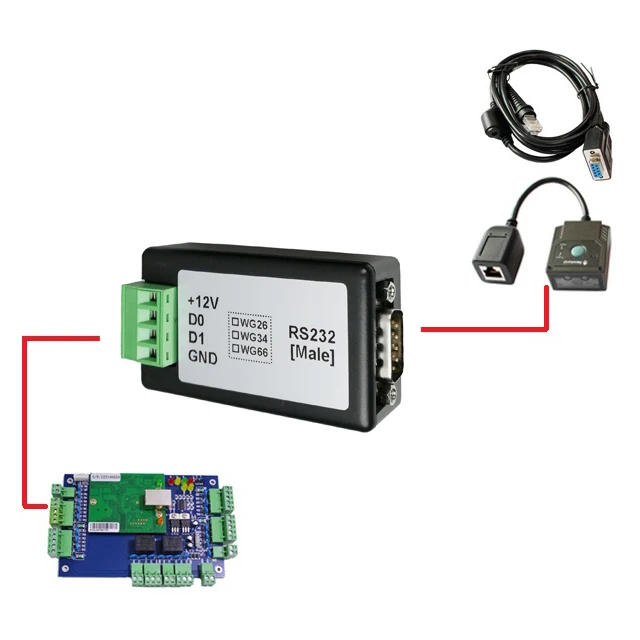

Refer to below pictures for connections:

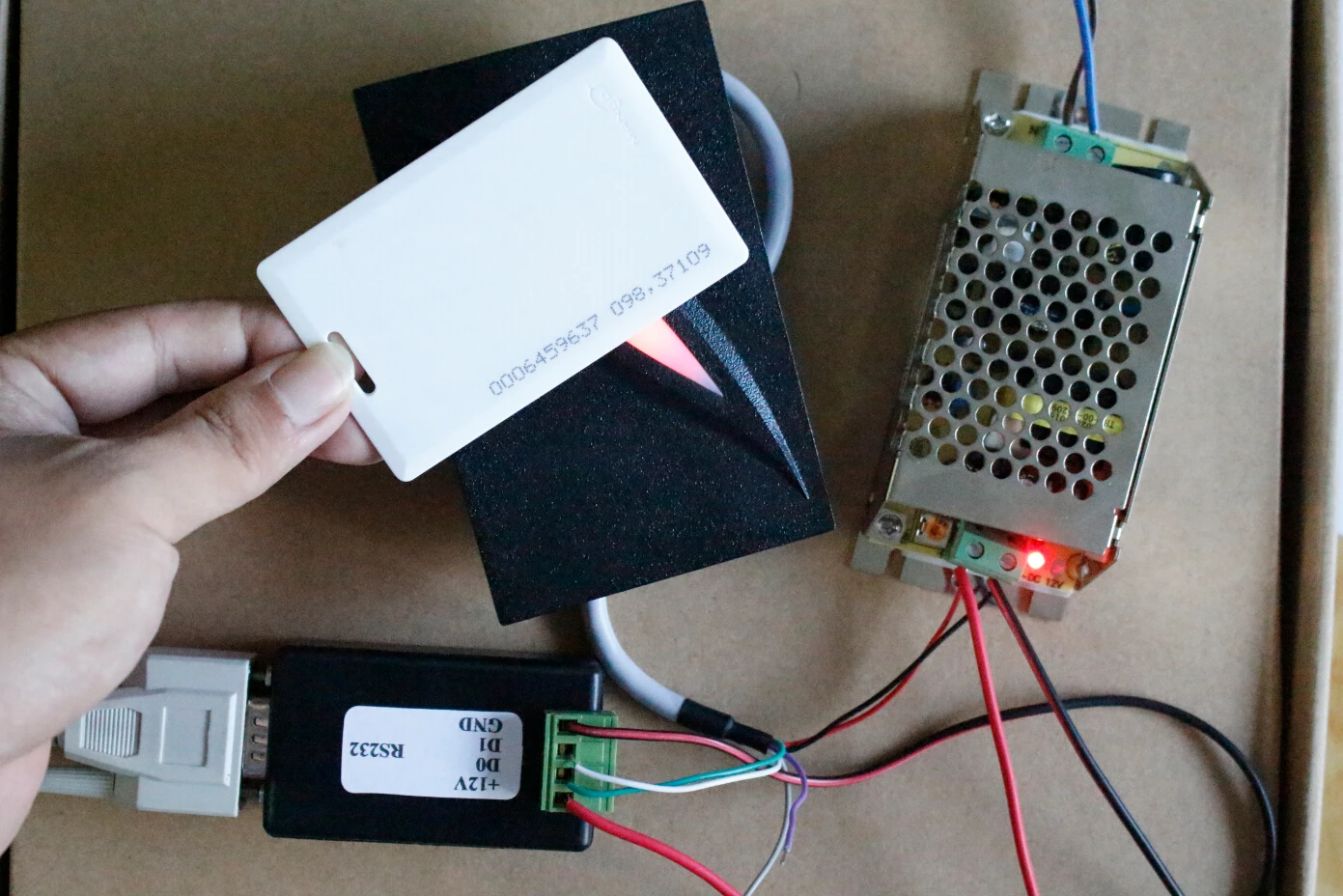

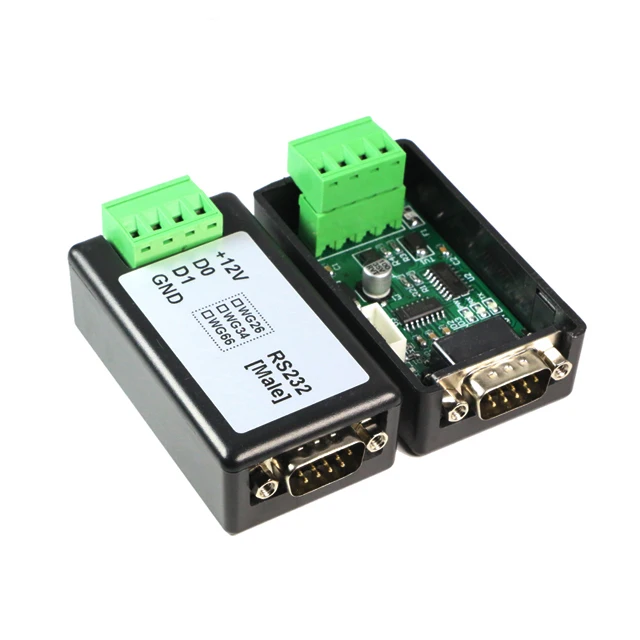

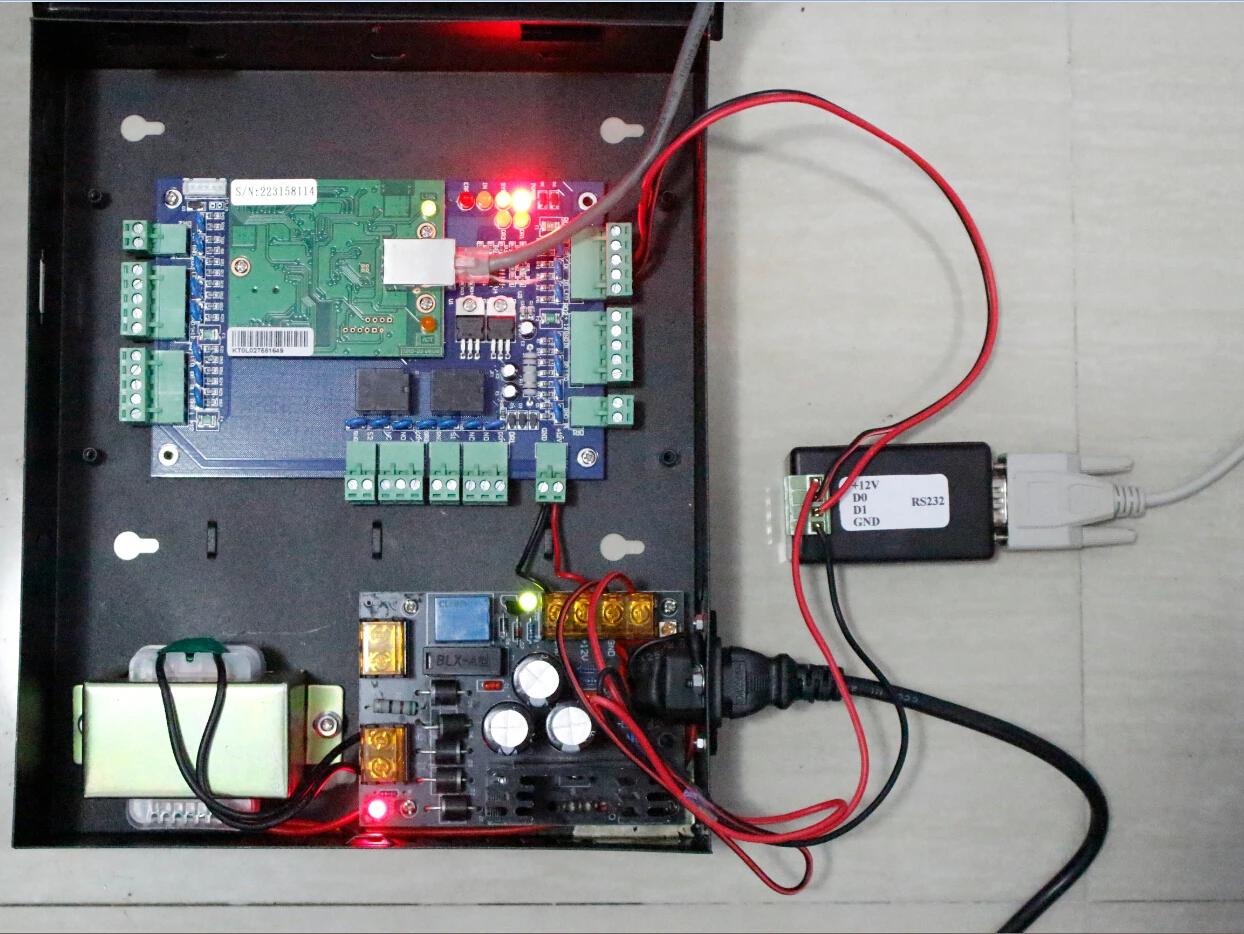

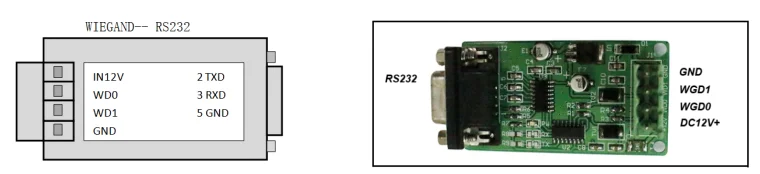

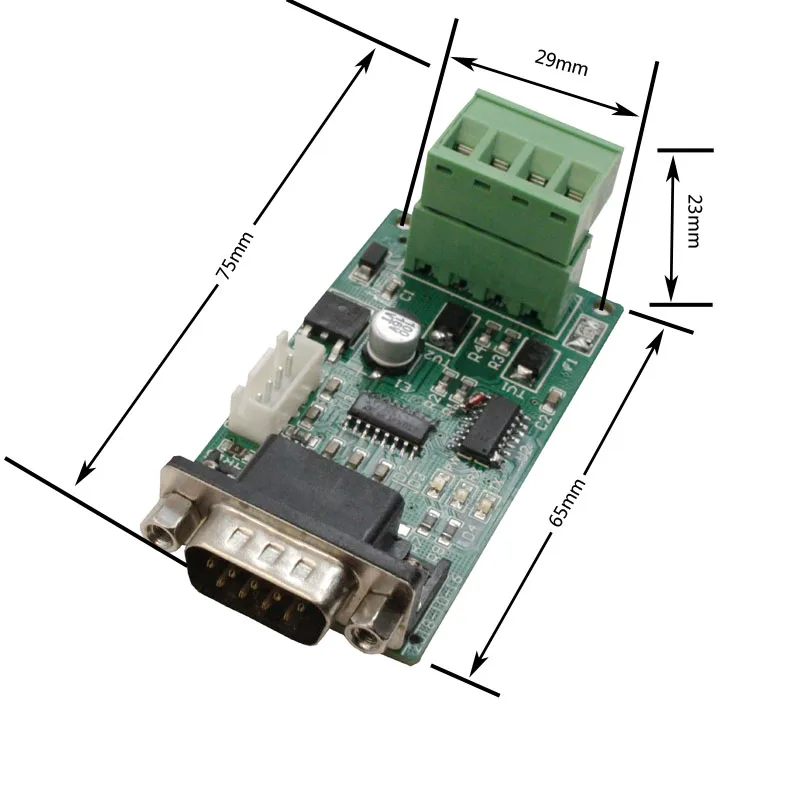

Model: WST-WG2RS232, Wiegand to RS232 converter connection picture and PCB for reference.

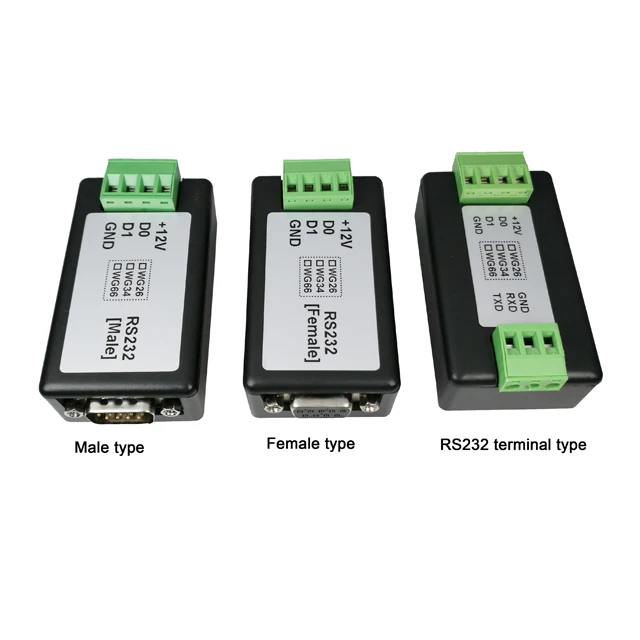

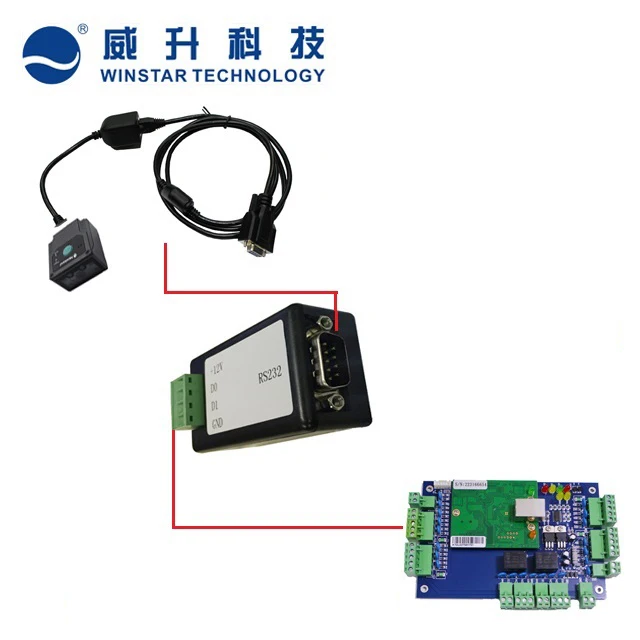

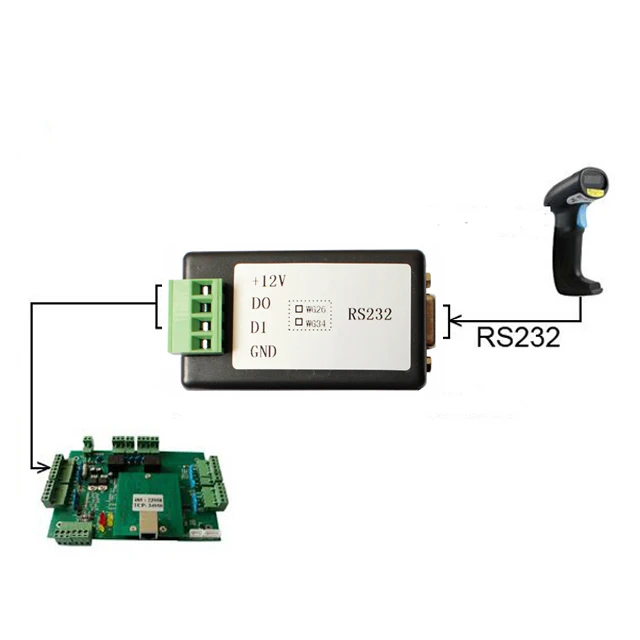

Remark: please note Wiegand to RS232 converter there have male and female option for choose. When it connects with a barcode scanner, in most case, should be order male type since most popular RS232 barcode scanners are Female type RS232 interface.



Appearance:

Please refer to the pictures:

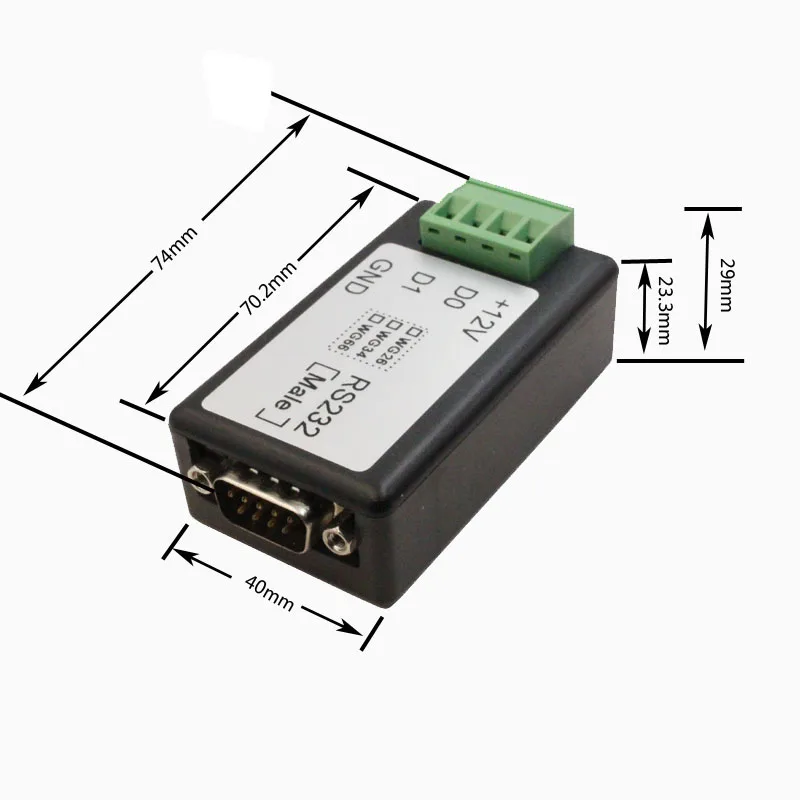

Model: WST-WG2RS232
