Introduction
This series Biomass flat die pellet machine is a new type of pellet machine, specifically aimed at biomass materials. It is widely used for pelleting various biomass materials. Transmission gears adopt high quality alloy steel, surface treatment of cemented quenching, after elaborate processing, smooth transmission, low noise, large load capacity, low temperature rise, long working life. Adding strong gluten in the bottom, high anti-pressure ability. It is suitable for home using or small enterprises producing biomass pellet fuel or feed. It can be configured to diesel or electric motor, it is mobile flexible and simple to operate.
Raw Material
1.For feed stuff use:
The compressed piece is suitable to be used as fuels and feedstuff of animals, such as horse, sheep, deer, pig, chicken, etc. Such machines are suitable for farms, and organic herbal medicine and chemical industry etc.
2.For wood pellets use:
This series flat die pellet presses can be used for producing wood pellets. Wood pellets are made of all kinds of wood sawdust and wood waste particle.
3. For biomass pellets use:
Biomass pellets are made of peanut sheller, corn stalk and other biomass materials. Crushed agriculture waste including corn stalks, cotton stalks, wheat straw, rice husk, corn cob, groundnut shell,etc.

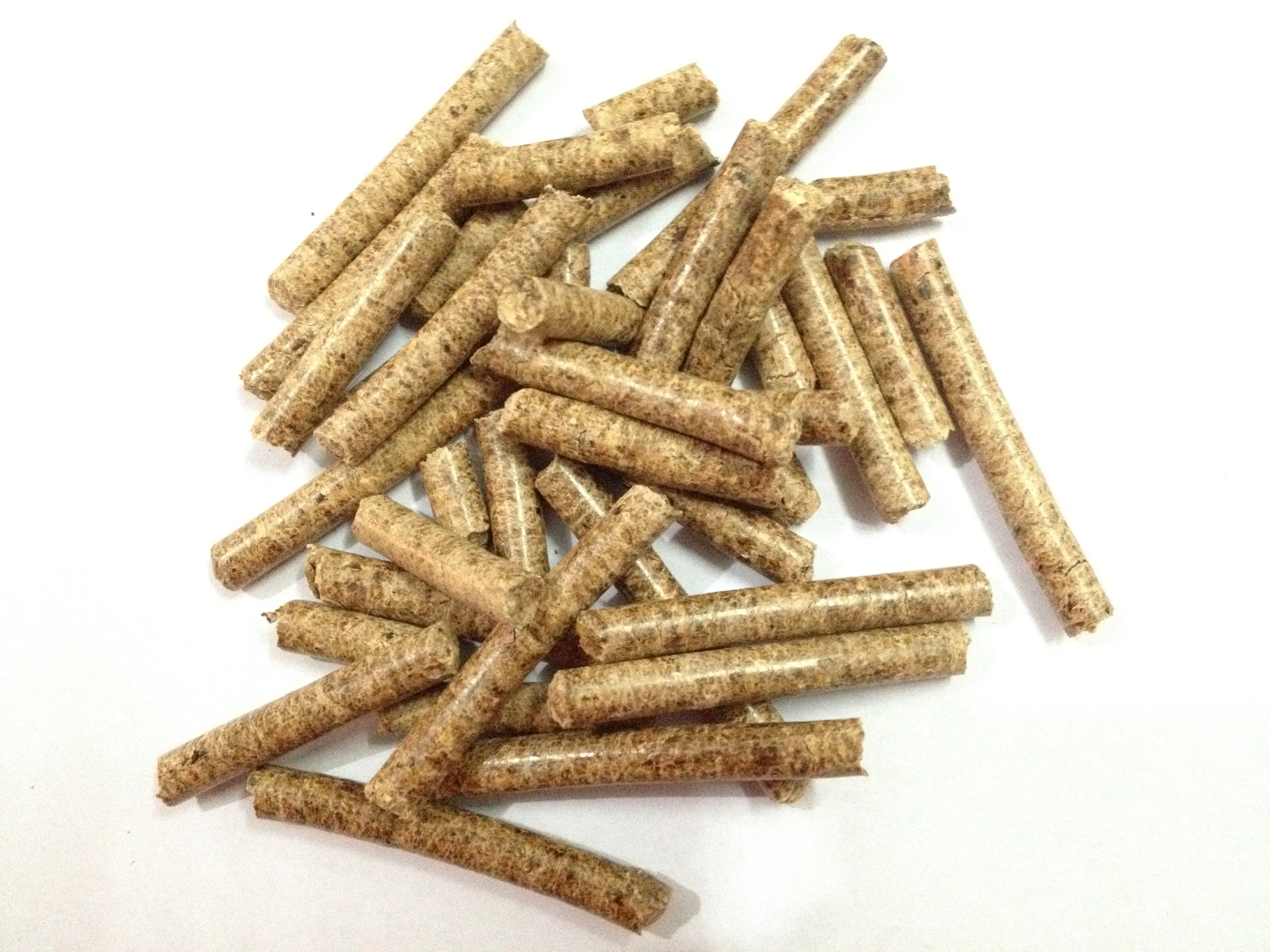

Final product
Technical parameter
Model
Machine size(mm) (L*W*H)
Power(kw)
Capacity(kg/h)
Voltage
125
630*270*750
4
80-100
220V/380V
150
650*270*780
4
90-150
220V/380V
210
850*350*910
7.5
200-300
220V/380V
260
1080*420*1040
15
400-600
220V/380V
300
1300*510*1210
22
600-800
220V/380V
360
1400*560*1600
22
800-1000
220V/380V
400
1500*610*1800
30
1000-1200
220V/380V

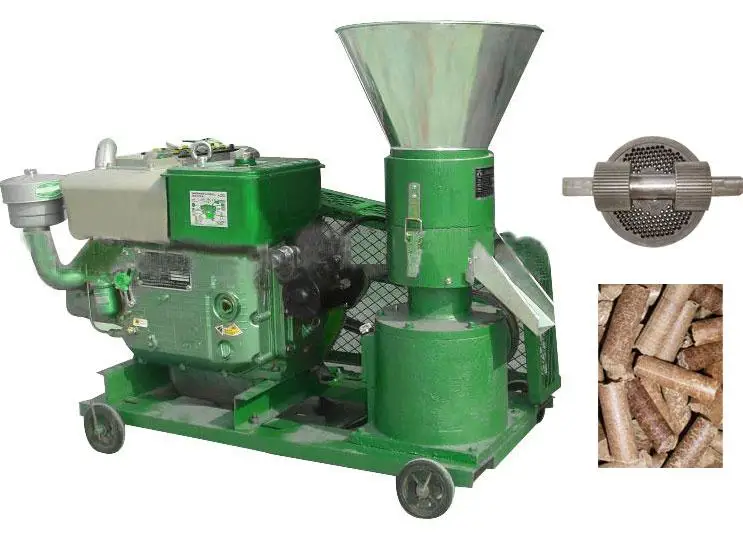

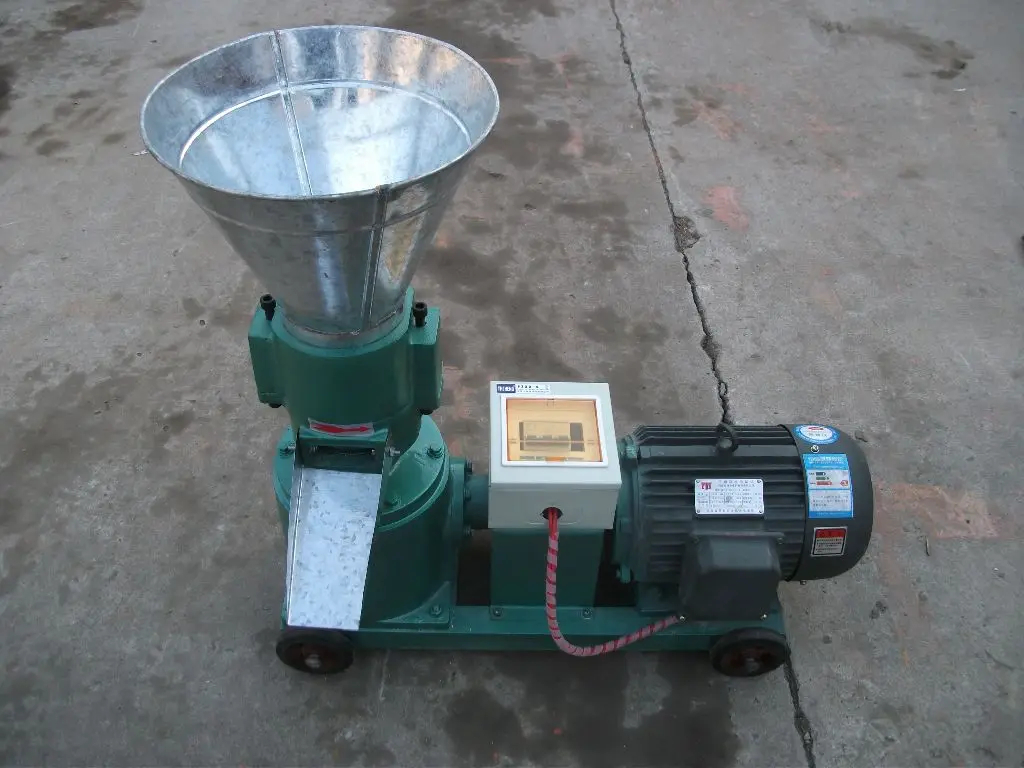

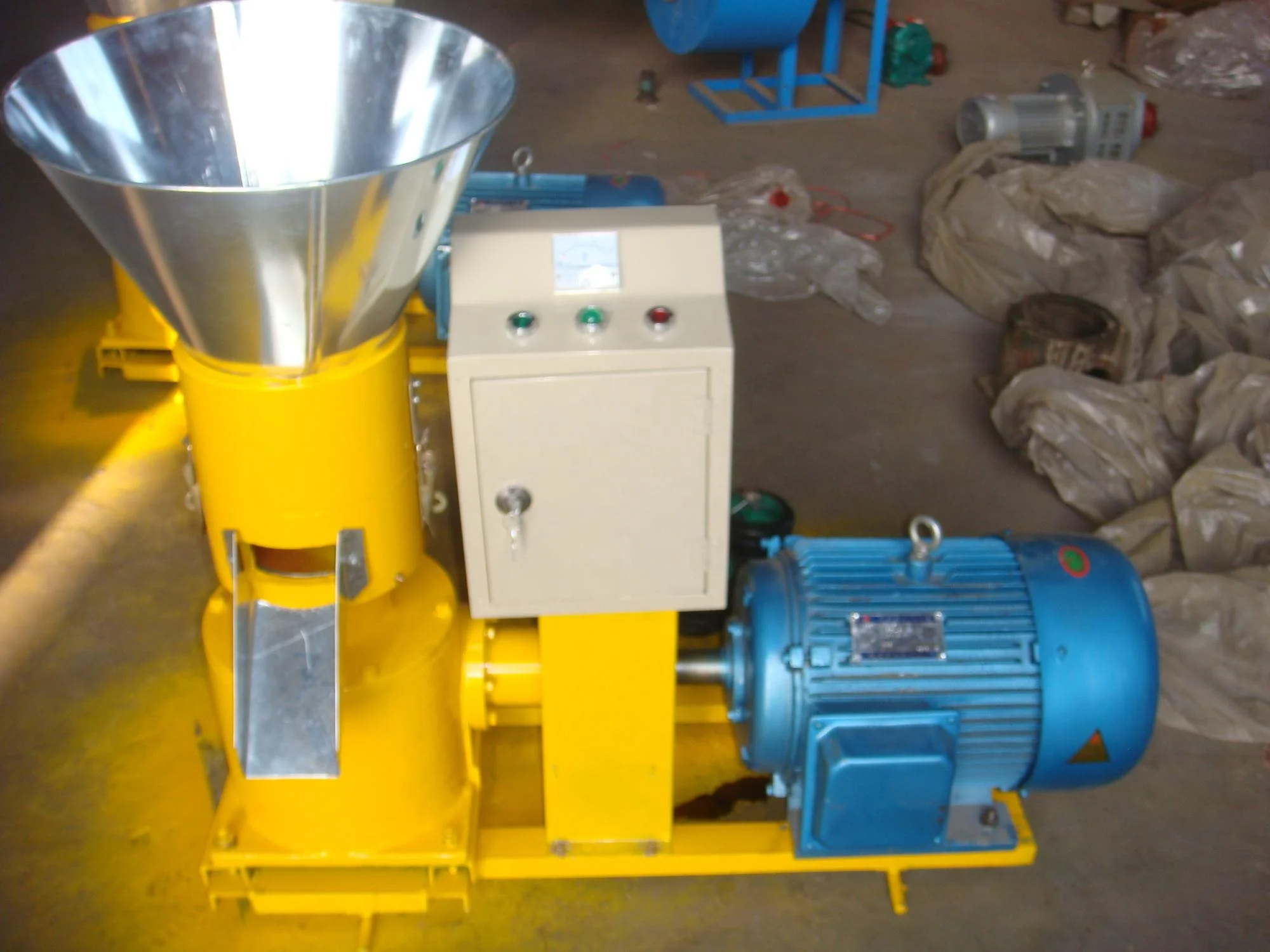

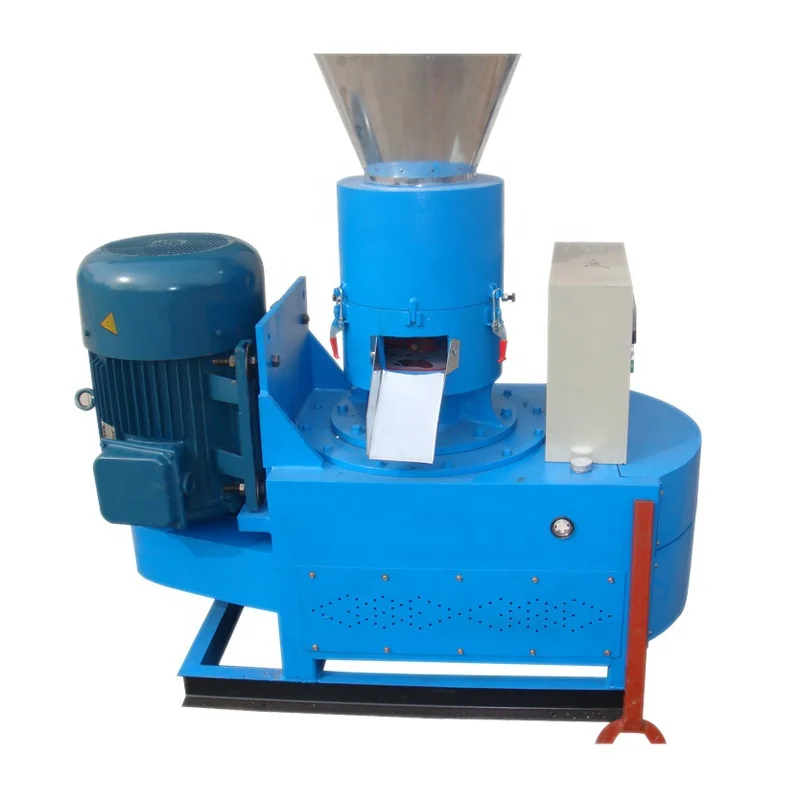

Detailed Images
Machine Parts
Name: Millstone
Brand: Vega
Original: China
Machine Parts
Name: Pinch roller
Brand: Vega
Original: China
