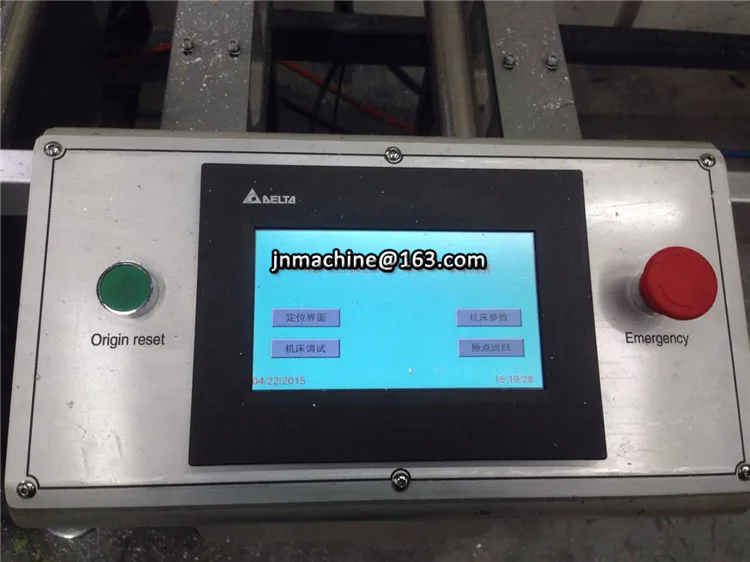

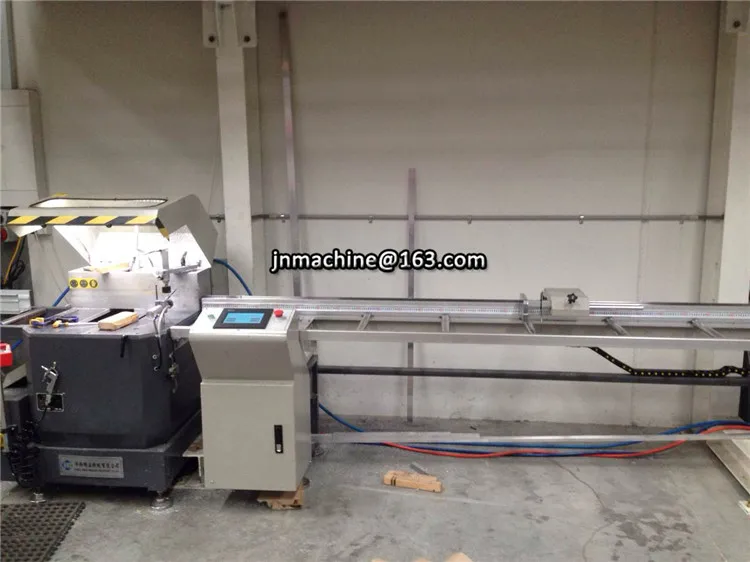

1). Fixed on the cutting machine accurately. Be used to size the length of profile precisely. 2). Driven by the CNC servo system the locating board move reciprocating one the rack. More precision and more supermatic. 3). Length of the locating boarding is adjustable. It can fit many kinds of cutting equipments. 4). It is easy to control by huan surface. A list of cutting can be arranged and effect cutting different length continuously. 5). Adopt stainless steel roller. The profile move smoothly. 2.Main Technical Parameter:
Power supply
220V 50Hz
Length of ruler
3800mm
Motor
Japan Panasonic Serso
Length of precision
±0.2mm
Speed
0-10m/min
Over all dimension: (L×W×H)
4100mm × 580mm × 1400mm
Weight:
200Kg
Detailed Images
Company Information
Jinan Mingmei Machinery Co.,Ltd
Factory and people. Our first company was founded in 1995. The factory covering over 60000 square
meters with more than 260 staffs, which is one of the biggest factory for door and window machinery,
cnc router in China. With professional sales group and qualified technicians, we believe that we can
provide you the best machine and service.
Equipment and Certification. All products are produced strictly according to the trade standards and
have passed ISO9001:2000 Quality Management system Certification. Our main products are processing
equipment of lathes, milling, planning, grinding, boring, drilling and other specialized equipment.
As the only factory with CNC working center for processing parts in this field, we have more than 100
sets of machines and the annual output comes up to 60000 sets.
Material and Parts. The metal parts are processed by CNC working center and the key parts are all of
world famous brands, like HSD, NSK, OMRON, SNS, etc, which not only ensures stable performance, but
