WINNSKY RF Circulator 150MHz 180MHz N Connector Coaxial Package 1000W Large Power 50ohm Custom
- Category: >>>
- Supplier: Shenzhen Winnsky Electronics Co. Ltd.
Share on (62554183991):
Product Overview
Description
Products Description

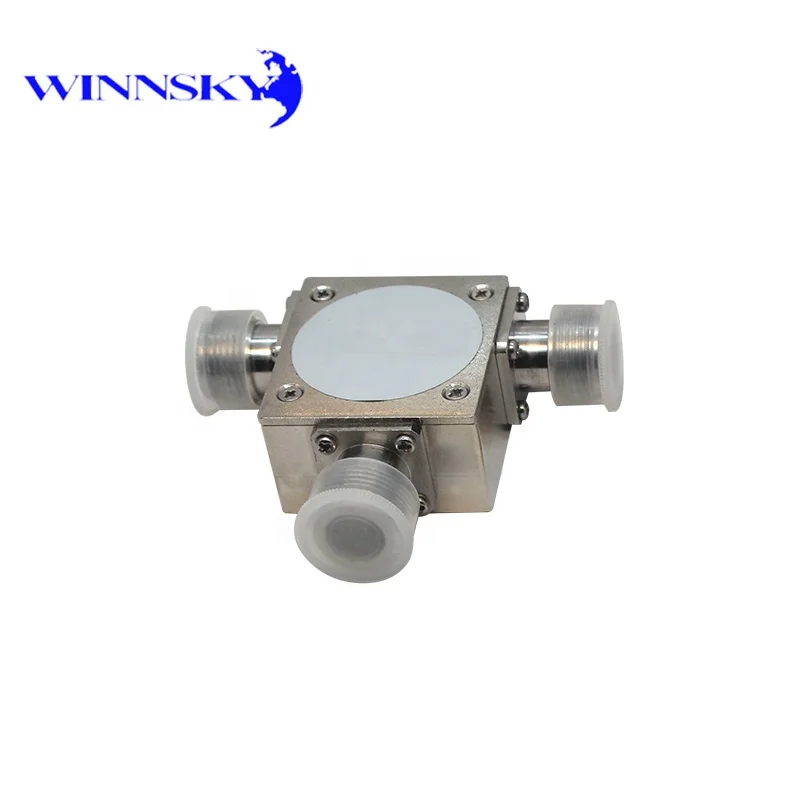

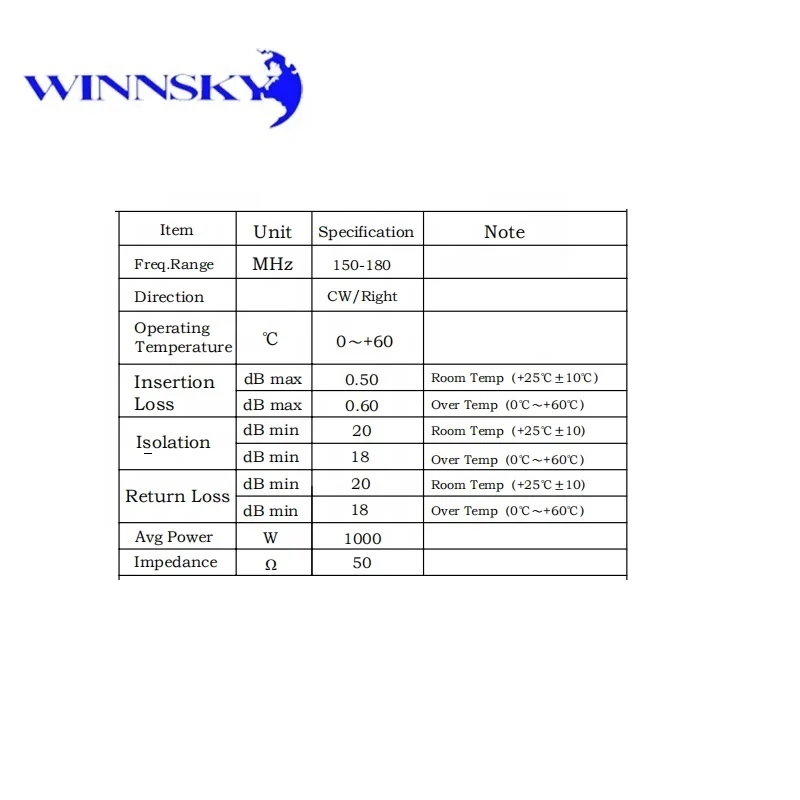

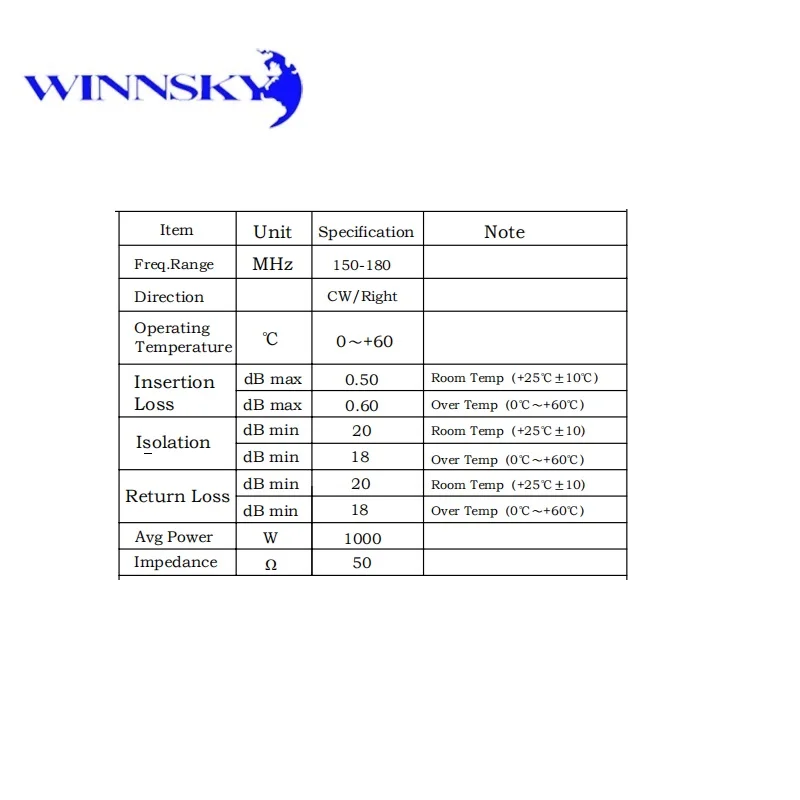

WINNSKY RF Circulator FCR180CNKKK 150-180MHz

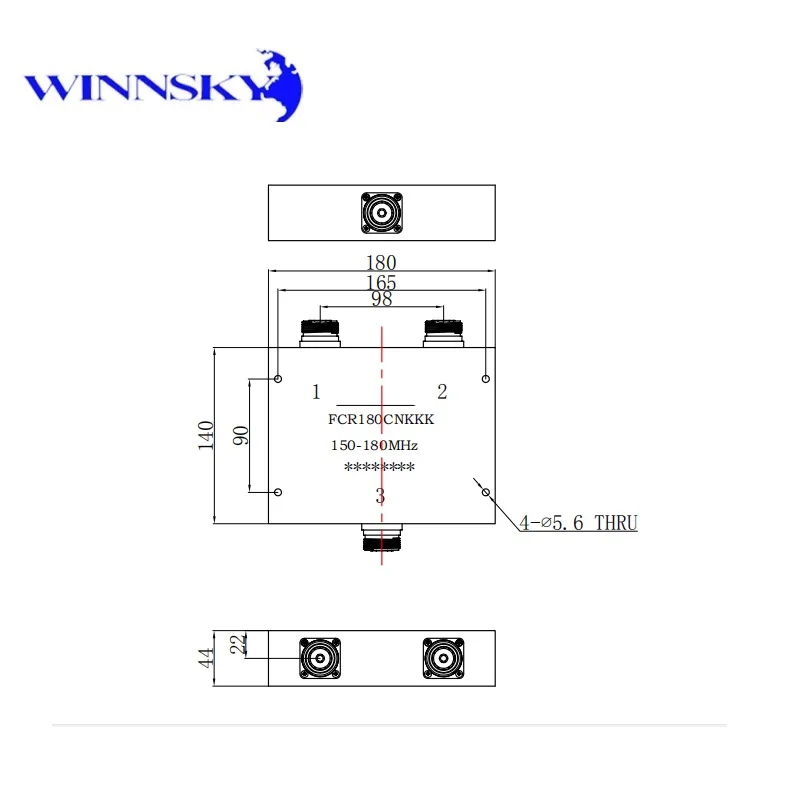

This RF Circulator is designed with frequency range of 150~180MHz, with very large power of 1000W. It is in a connector-N coaxial housing whose size is 180*140*44mm.
WINNSKY can customize RF circulators, RF isolators and waveguides according to your requirement, which means you can always receive the Very models to meet your requirement! What you need to do is notify us your requirement detailly and clearly.
Your are welcome to consult our sales engineers whenever it is convenient for you.
Recommend Products
Model | Frequency Range (MHz) | Insertion Loss (dB) | Isolation (dB) | Avg Power (W) | Package | Dimension (mm) |
136-174 | 0.6 | 16 | 100 | Coaxial | 50*53*13 | |
144-148 | 0.65 | 23 | 300 | Drop-in | 50*53*13 | |
144-148 | 0.5 | 24 | 100 | Coaxial | 53*50.5*13 | |
FCR50CNKKK 144-148MHz | 144-148 | 0.5 | 24 | 100 | Coaxial | 53*50.5*20 |
FCR180CNKKK 150-180MHz | 150-180 | 0.5 | 20 | 1000 | Coaxial | 140*180*44 |
FCR50D3 154-176MHz | 154-176 | 0.6 | 18 | 100 | Drop-in | 50*53*13 |
FCR50D3 161-166MHz | 161-166 | 0.65 | 23 | 300 | Drop-in | 50*53*13 |
FCR50CNKKK 220-230MHz | 220-230 | 0.65 | 23 | 300 | Coaxial | 53*50.5*20 |
FCR25.4D3 360-370MHz | 360-370 | 0.5 | 20 | 100 | Drop-in | 25.4*25.4*8.6 |
FCR35D3 360-370MHz | 360-370 | 0.3 | 20 | 100 | Drop-in | 35*38*13 |
FCR43D3 360-380MHz | 360-380 | 0.35 | 23 | 300 | Drop-in | 43*43*13 |
FCR25.4D3 360-390MHz | 360-390 | 0.6 | 18 | 100 | Drop-in | 25.4*25.4*8.6 |
FCR35D3 380-390MHz | 380-390 | 0.3 | 20 | 100 | Drop-in | 35*38*13 |
FCR50CSKKK 400-450MHz | 400-450 | 0.3 | 23 | 100 | Coaxial | 50*53*13 |
FCR35D3 470-550MHz | 470-550 | 0.5 | 18 | 150 | Drop-in | 35*38*13 |
FCL34D3 540-610MHz | 540-610 | 0.4 | 20 | 300 | Drop-in | 34*34*13 |
FCL20D2 566-605MHz | 566-605 | 0.35 | 20 | 100 | Drop-in | 20*20*8.6 |
FCR25.4FH3.8DX 606-678MHz | 606-678 | 0.45 | 20 | 100 | Drop-in | 25.4*25.4*10 |
FCR38FH4.75DX 606-678MHz | 606-678 | 0.3 | 23 | 200 | Drop-in | 38*38*13 |
FCR20FH2.6DX 606-678MHz | 606-678 | 0.5 | 18 | 100 | Drop-in | 20*20*8.6 |
Company Profile
WINNSKY is always your trustworthy partner!
WINNSKY was established in 2007 in HK, with two member units of WINNSKY International (HK) Co.,Ltd and Shenzhen WINNSKY Electronics Co.,Ltd.
Adhering to business philosophy of "integrity first, sustainable development","pioneering and innovative, forge ahead", WINNSKY is dedicated to the branded component R&D, production and marketing.
WINNSKY is specialized in design and manufacturing of RF (Radio Frequency) and microwave passive components including SAW series, RF circulator/isolator/waveguide series, LTCC multilayer series, Dielectric series and millimeter wave series.
SAW series: SAW filters, SAW resonators and SAW multiplexers covering all ranges of bands to meet most client’s requiement from all fields.

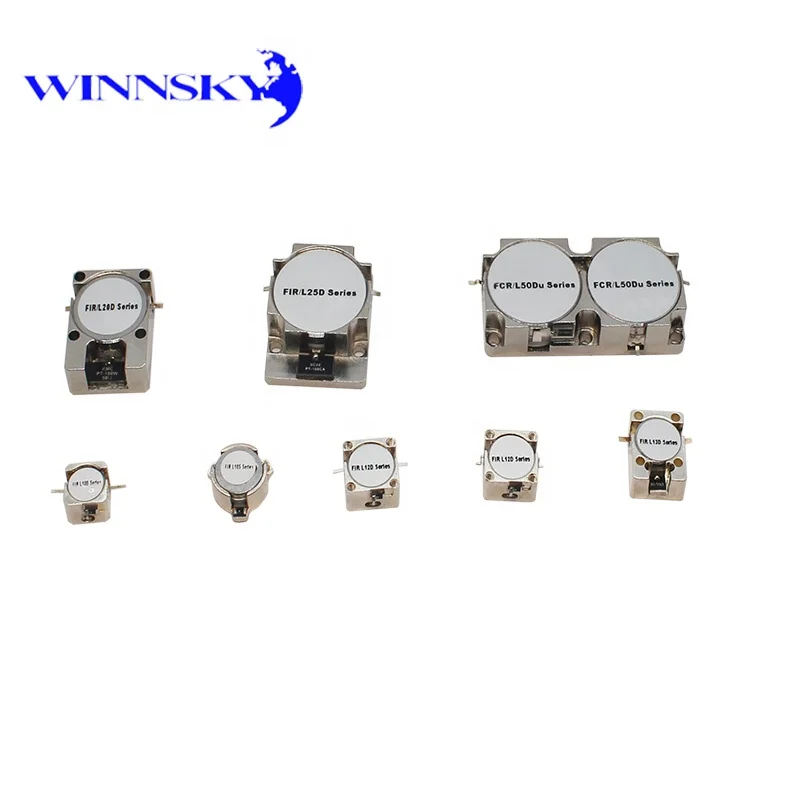

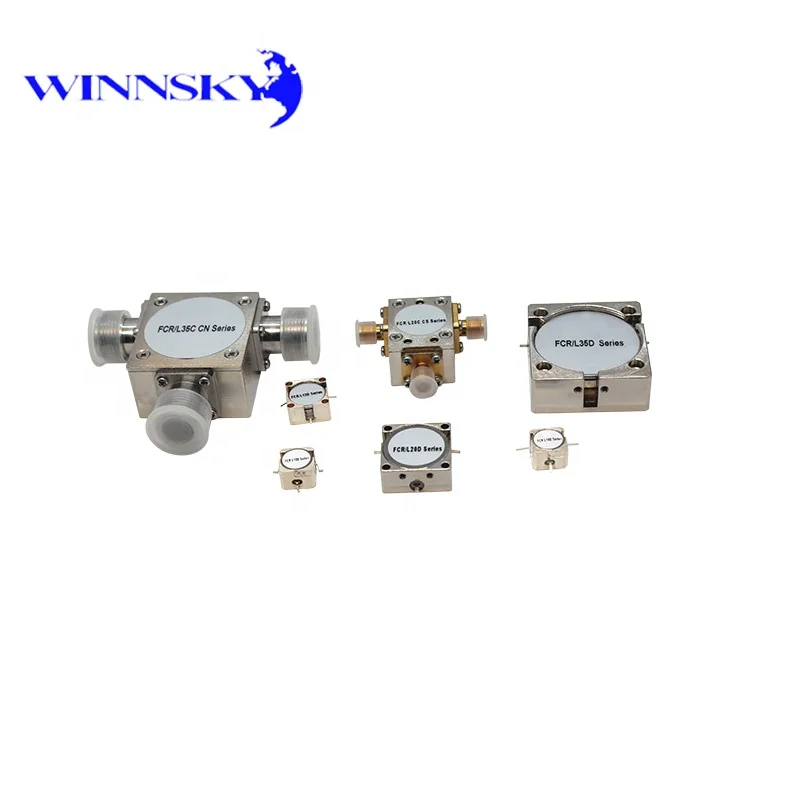

RF Circulators, Isolators, Waveguides: Drop-in, Coaxial, SMD, Microstrip, Dual-junction series ranging from 30MHz to 100GHz
