8KW OFS AQS S S 8 2 220v Induction Electric boiler for Home central Heating Price
- Category: >>>
- Supplier: Foshan Zhen Ang Electronic Equipment Co. Ltd.
Share on (62554296124):
Product Overview
Description

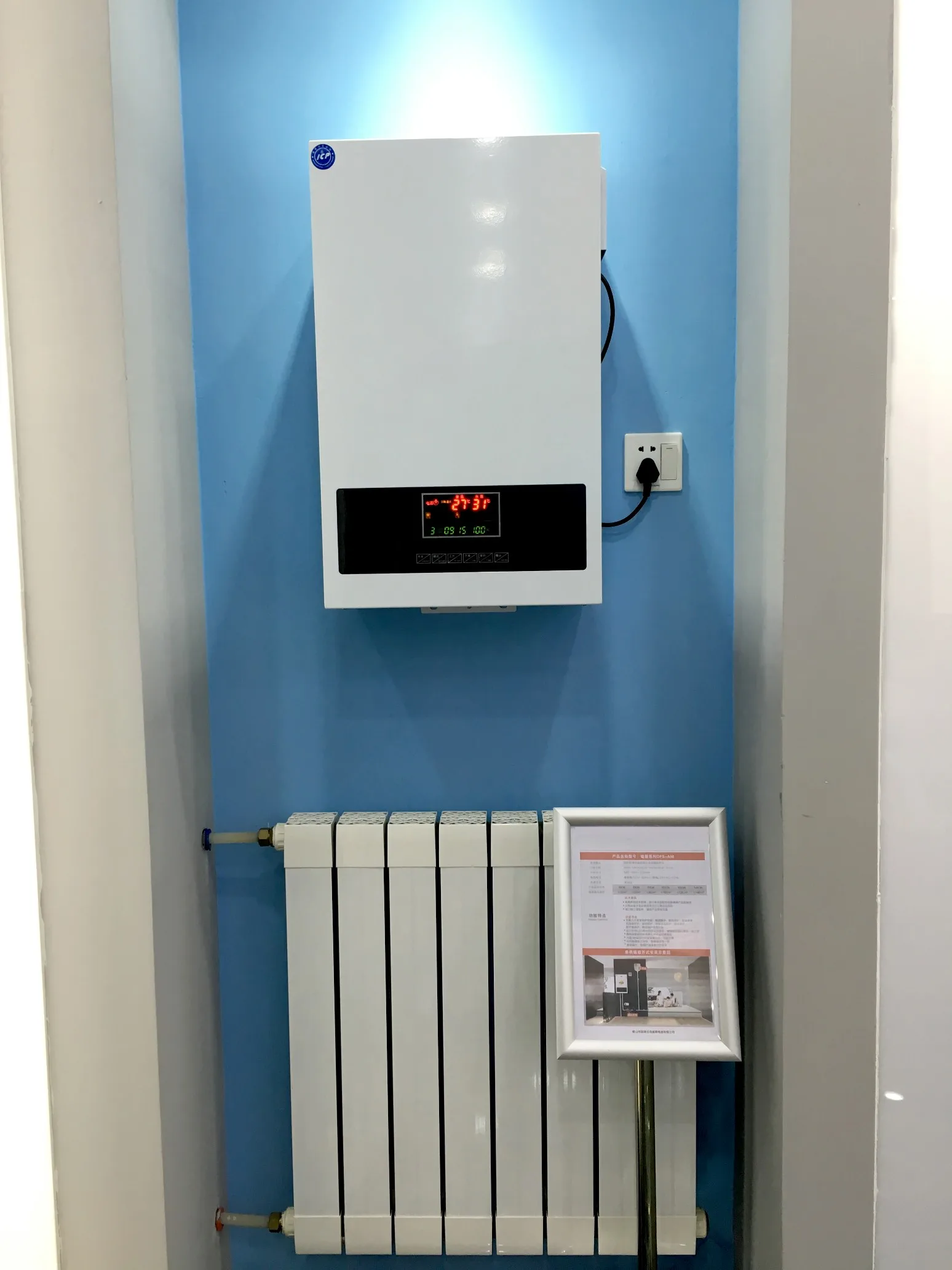

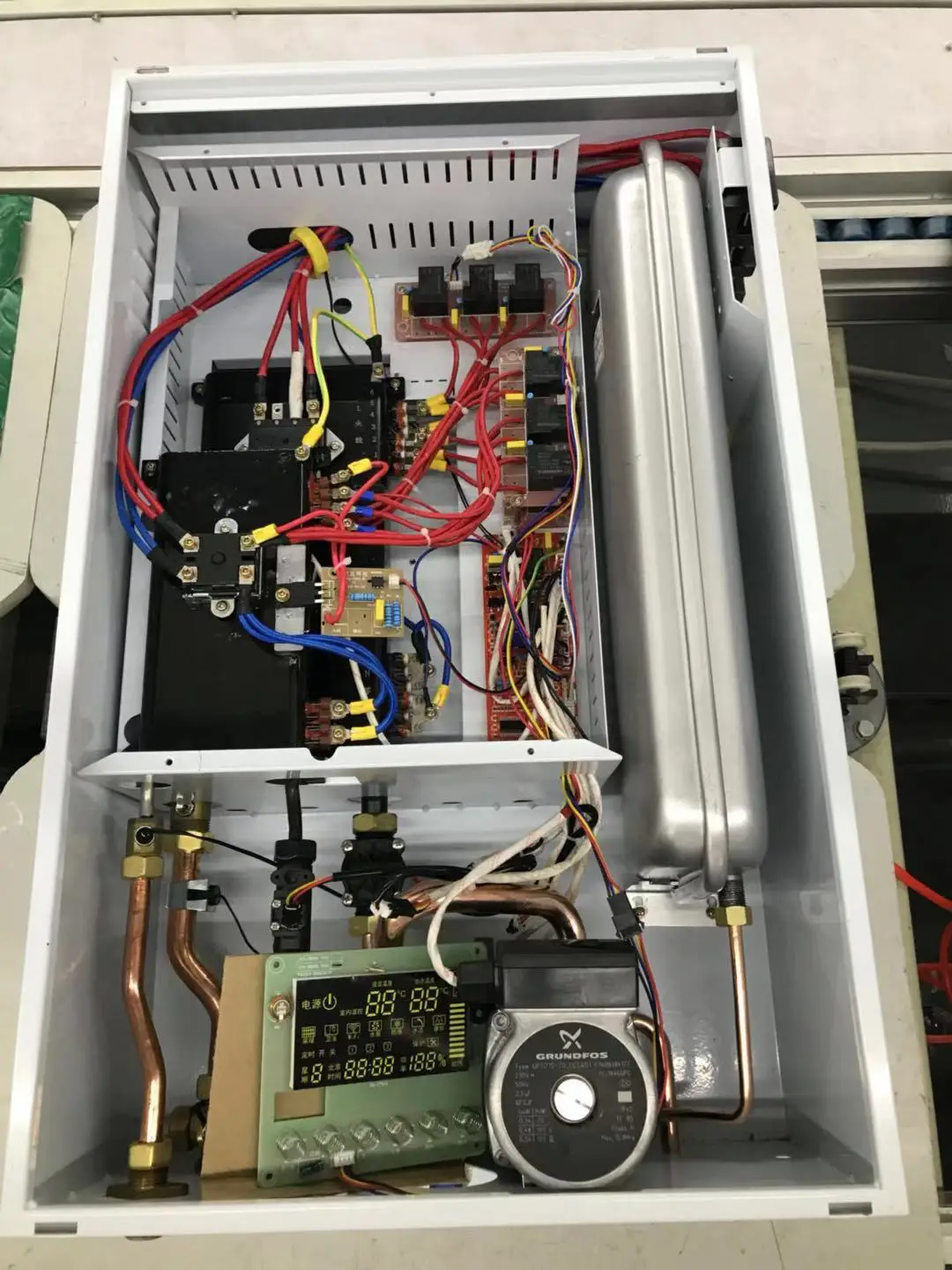

8KW OFS-AQS-S-S-8-2 220v Induction Electric boiler for Home central Heating Price
SBoiler Feature1
| Closed Type Single System Heating Only(Size: S) | ||||||
| Power(KW)&Voltage Frequency(V/Hz)/Phase | 4kW/220V (1 phrase) | 6kW/220V (1 phrase) | 8kW/220V (1 phrase) | 10kW/220V (1 phrase) | 12kW/220V (1 phrase) | 14kW/380V (3 phrase) |
| Copper Core(MM2)/ Ammeter Requirement/ Leackage Switch(A) | 2.5mm²/60A/32A | 4mm²/60A/32A | 6mm²/60A/40A | 10mm²/60A/63A | 10mm²/60A/63A | 4mm²/3 phrase/40A |
| Heating Area (M2) | ≤40 | ≤60 | ≤80 | ≤100 | ≤120 | ≤140 |
| Rated Current(A) | 18.2 | 27.3 | 36.4 | 45.5 | 54.5 | 21.2 |
| Water Pump | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China |
| Water Pump | 5L | 5L | 5L | 5L | 5L | 5L |
| Capacity of Expansion Tank | 140℃ | 140℃ | 140℃ | 140℃ | 140℃ | 140℃ |
| Thermal Cut-out | G1/2" | G1/2" | G1/2" | G1/2" | G1/2" | G1/2" |
| Inlet & Outlet Connection | G3/4" | G3/4" | G3/4" | G3/4" | G3/4" | G3/4" |
| Backwater Inlet Connection | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 |
| Net Weight KGS | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Gross Weight KGS | 580*360*230 | 580*360*230 | 580*360*230 | 580*360*230 | 580*360*230 | 580*360*230 |
| Product Size (MM) | 690*430*310 | 690*430*310 | 690*430*310 | 690*430*310 | 690*430*310 | 690*430*310 |
| Single Packing Size (L/W/H) mm | 0.091977 | 0.091977 | 0.091977 | 0.091977 | 0.091977 | 0.091977 |
| FLQ (20GP) | 294 | 294 | 294 | 294 | 294 | 294 |
SBoiler Feature2
| Closed Type Single System Heating Only(Size: L) | ||||
| Power(KW)&Voltage Frequency(V/Hz)/Phase | 16kW/380V (3 phrase) | 18kW/380V (3 phrase) | 20kW/380V (3 phrase) | 25kW/380V (3 phrase) |
| Copper Core(MM2)/ Ammeter Requirement/ Leackage Switch(A) | 4mm²/3 phrase/40A | 4mm²/3 phrase/40A | 6mm²/3 phrase/50A | 6mm²/3 phrase/63A |
| Heating Area (M2) | ≤160 | ≤180 | ≤200 | ≤250 |
| Rated Current(A) | 24.25 | 27.3 | 30.3 | 37.9 |
| Output Voltage of Pump | 220V | 220V | 220V | 220V |
| Water Pump | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China |
| Capacity of Expansion Tank | 5L | 5L | 5L | 5L |
| Thermal Cut-out | 140℃ | 140℃ | 140℃ | 140℃ |
| Inlet & Outlet Connection | G1/2" | G1/2" | G1/2" | G1/2" |
| Backwater Inlet Connection | G3/4" | G3/4" | G3/4" | G3/4" |
| Net Weight KGS | 29.7 | 29.7 | 29.7 | 29.7 |
| Gross Weight KGS | 32.3 | 32.3 | 32.3 | 32.3 |
| Product Size (MM) | 680*420*240 | 680*420*240 | 680*420*240 | 680*420*240 |
| Single Packing Size (L/W/H) mm | 805*495*320 | 805*495*320 | 805*495*320 | 805*495*320 |
| FLQ (20GP) | 224 | 224 | 224 | 224 |
