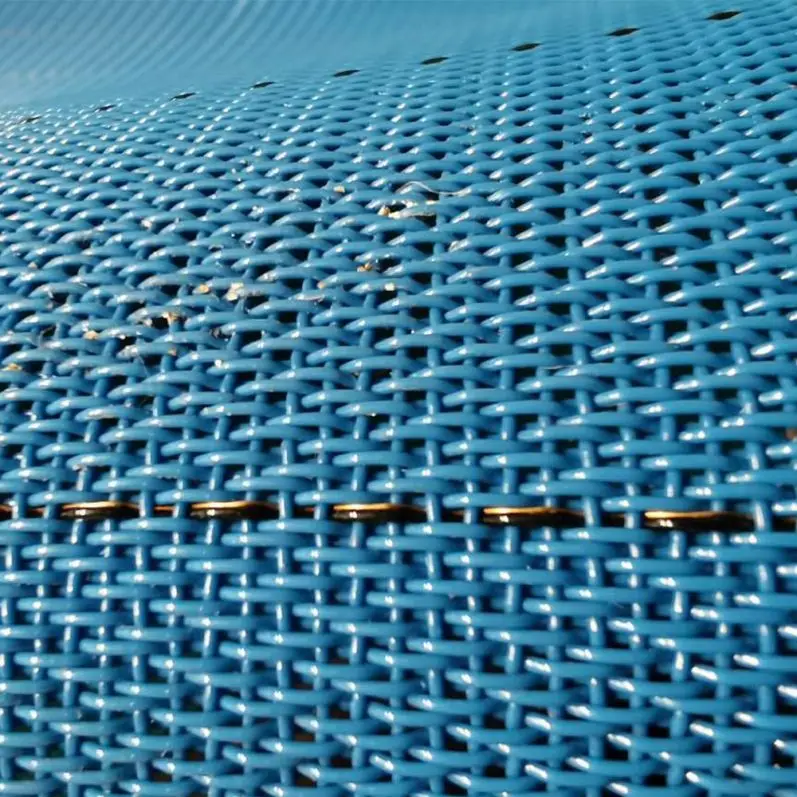

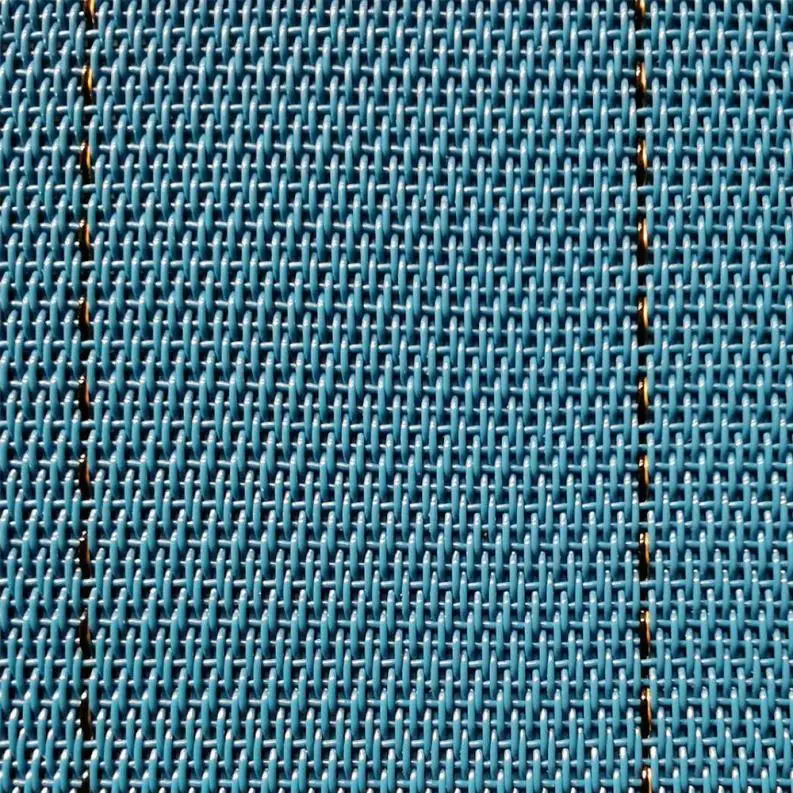

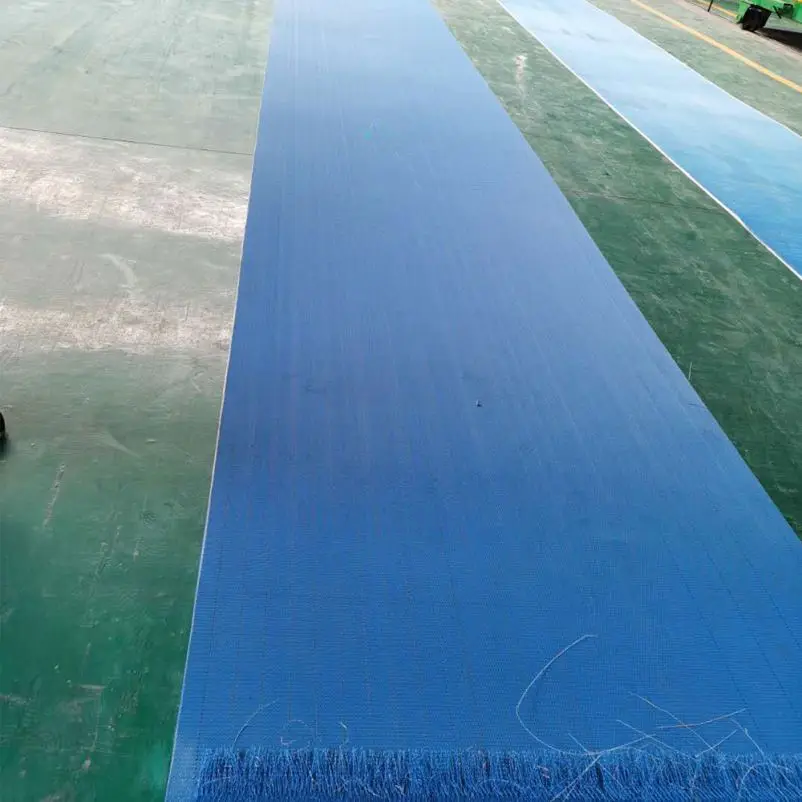

polyester paper making industry sludge dewatering filter mesh spiral dryer conveyor belt
- Category: >>>
- Supplier: Anping Hongke Wire Mesh Machinery Factory
Share on (62554344308):
Product Overview
Description

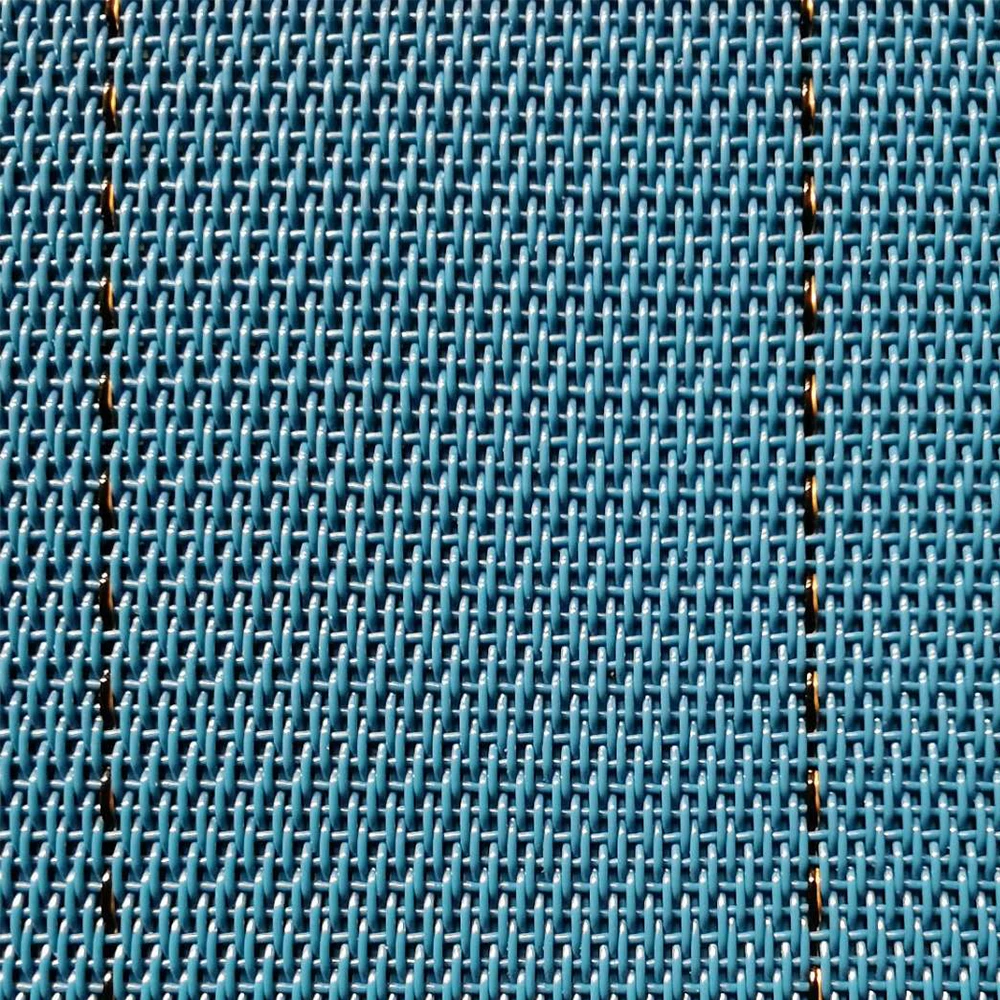

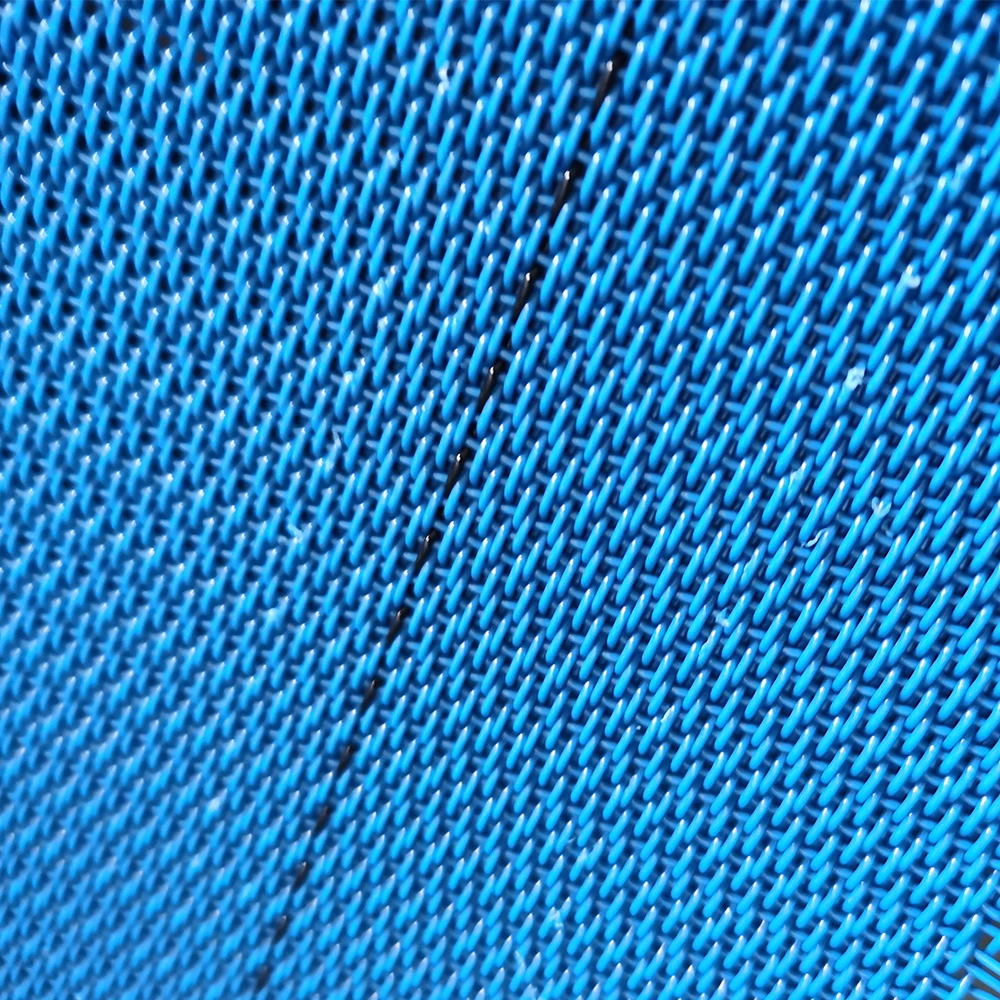

* Network with herringbone design
* Sludge and network with stripping fast
* Sludge and network with stripping fast
* Easy to stick mud
* Easy to clean
* Connect quickly and easily
* heat resistance under 180 degrees
* Easy to clean
* Connect quickly and easily
* heat resistance under 180 degrees
Polyester Filter Cloth Fabric for Sludge Dehydration | ||||||||||||
Model | Thread Dia.(mm) | Density(No.s/cm) | Srength (N/cm) | Air Permeability (m3/m2h) | ||||||||
Warp | Weft | Warp | Weft | |||||||||
22903 | 0.5 | 0.9 | 23 | 5.5 | 2000 | 6800 | ||||||
16903 | 0.7 | 0.9 | 17 | 4.5 | 2200 | 7920 | ||||||
121103 | 0.9 | 1.1 | 12.5 | 3.8 | 3600 | 8610 | ||||||
14803 | 0.7 | 0.8 | 14.2-15 | 4.2-5.5 | 2400 | 3900-8500 | ||||||
16803 | 0.7 | 0.8 | 15.6-16 | 4.5-6 | 2650 | 4500-6500 | ||||||
20703 | 0.5 | 0.7 | 20-20.6 | 6.5-8 | 1850 | 6000-10000 | ||||||
16704 | 0.7 | 0.7 | 16-16.4 | 8.5-9 | 2650 | 10000-12000 | ||||||
26908 | 0.5 | 0.9 | 26.4-27 | 6.5-7.5 | 2400 | 4500-6500 | ||||||
