Larger capacity passenger lift manufacturer

Product Overview

Description



Specifications

2.Capacity: 450-1600kg
3.Speed: 1.5-2.5 m/s
4.450kg/630kg/800kg/1000kg/1250kg1350kg//1600kg





Lift specifications

1.car size inside reference

Car   Net   Size   Inside	Capacity   load(kg)	Width(mm)	Depth(mm)	Car   net area inside	This Is For Four Reference Only
	1600	1950	1750	≤3.56 m2
	1250	1950	1500	≤2.90 m2
	1150	1600	1500	≤2.65 m2
	1000	1600	1400	≤2.40 m2
	800	1350	1400	≤2.00 m2
	630	1100	1400	≤1.66 m2
	450	1150	1100	≤1.30 m2

 2. Passenger lift type choose on speed 1.0m/s

Rate   speed(m/s)	capacity   load(kg)	With   machine room	No   machine room	Small   machine room
1.0	320	yes	yes	no
1.0	450	yes	yes	yes
1.0	630	yes	yes	yes
1.0	800	yes	yes	yes
1.0	1000	yes	yes	yes
1.0	1150	yes	yes	no
1.0	1250	yes	yes	yes
1.0	1350	no	no	yes
1.0	1600	yes	yes	yes

 3. Passenger lift type choose on speed 1.5m/s

Rate   speed(m/s)	capacity   load(kg)	With   machine room	No   machine room	Small   machine room
1.5	630	yes	yes	yes
1.5	800	yes	yes	yes
1.5	1000	yes	yes	yes
1.5	1150	yes	yes	No
1.5	1250	yes	yes	yes
1.5	1350	no	no	yes
1.5	1600	yes	no	yes

 4. Passenger lift type choose on speed 1.75m/s

Rate   speed(m/s)	capacity   load(kg)	With   machine room	No   machine room	Small   machine room
1.75	630	yes	yes	yes
1.75	800	yes	yes	yes
1.75	1000	yes	yes	yes
1.75	1150	yes	yes	No
1.75	1250	yes	yes	yes
1.75	1350	no	no	yes
1.75	1600	yes	yes	yes

5. Passenger lift type choose on speed 2.0m/s

Rate   speed(m/s)	capacity   load(kg)	With   machine room	No   machine room	Small   machine room
2.0	800	yes	no	no
2.0	1000	yes	no	yes
2.0	1250	no	no	yes
2.0	1350	no	no	yes
2.0	1600	yes	no	yes



6. Passenger lift type choose on speed 2.5m/s

Rate   speed(m/s)	capacity   load(kg)	With   machine room	No   machine room	Small   machine room
2.5	800	yes	no	no
2.5	1000	yes	no	yes
2.5	1250	no	no	yes
2.5	1350	no	no	yes
2.5	1600	yes	no	yes



The anvantageous performance

1.Precision leveling and high efficiency moving

32-bit microprocessor chip,information processing speed,can be detected an any time the exact location of car to ensure the error is almost zero,while the accuracy of leveling improve operational efficiency.

2.Ldeal riding comfort

Multi-joint control computer can be pre-calculated deceleration distance,pre-set operating curves,high quality vector inverter drive,run the almost perfect comfort.

3.High reliability

Integration with microelectronics 32-bit industrial microprocessor,compact,powerful anti-jamming design to control the system from environmental interference and influence,low failure rate and high reliability.

4.Preventive maintenance

Built-in remote monitoring and control system interface,can lift remote monitoring,diagnostics and data transmission,and has a fault diagnosis and fault storage function,truly from time to for the need for new security concept of peace keeping.



Functions List of Lift

• with/without drive operation


• Automatic return to the base landing


• Automatic landing


• Call cancel when begin reverse-running


• Cage door opening when elevator arrives the floor where there is a hall call


• Door opening / closing call indication


• Indication in the cage when hall calling


• Self-Learning of shaft data


• Full load non-stop operation


• Overload alarm, Car Operating panel display: “OL”


• Alarming device


• In-car and m/r inter talk device


• Light and fan auto-control


• Elevator Locking Device


• Door closing time auto delaying


• False-call canceling


• Emergency Light


• Driven over current protection


• Door opening / closing time-limited protection


• Rope sliding protection


• Door Nudging


• Trouble self-diagnosis and memory


• Over speed falling protection


• Top/Bottom landing overpass protection


• Inspection Operation


• Floor display


• Light curtain protection with mechanical safety edge


• Fireman’s return switch

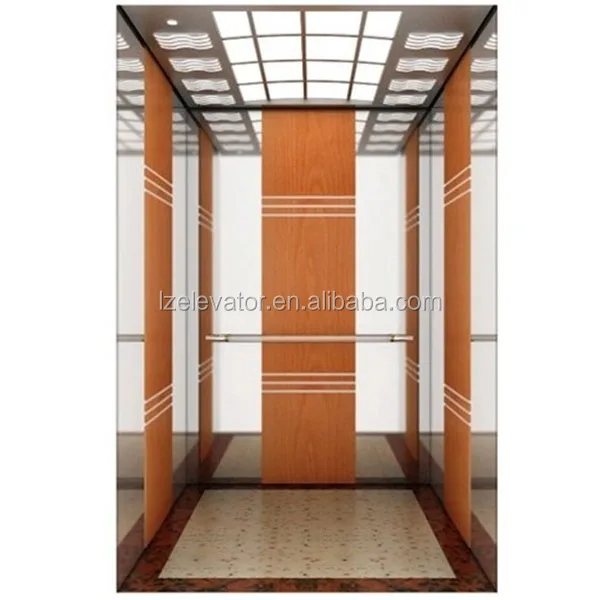

 Car optional



Picture   show
