II. Introduction of double wire type surface treating line
Composing of surface treating line
Mechanical husking and descaling with steel brush →Electrolytic acid pickling→ Hot water washing→ Boron coating→ Baking equipment→ Air drying equipment→[drawing machine]
III. Instruction of wire drawing machine
No.
Name
Unit
Data
1
Name of machine
LZ-8/900
2
Way of drawing
Beeline tuning
3
Number of block
8
4
Block diameter
mm
φ 900
5
Way of timing
AC frequency conversion timing
6
Motor power
KW
90
7
Diameter of inlet wire
mm
Φ10.0-12.0
8
Diameter of outlet wire
mm
Φ4.0-5.0
9
Average compressing rate
%
≤ 20.47
10
Designed drawing speed
m/s
≤ 7
11
Way of control
Total digital
12
Logical control
PLC
13
Tension strength of inlet wire
MPa
≤ 1250
14
Material of inlet wire
High carbon steel wire (82B)
15
Cooling of block
Self-descaling and small narrow gap water-cooling + Outer ring air cooling
16
Die box
Cooled by water
17
Water pressure for cooling
Mpa
0.2~0.3
18
Pneumatic driven system
Mpa
Air pressure≥0.5
19
Time for stop
S
Normal stop≤50s, emergence stop≤5s
20
Way of pay-off
Horizontal rotating Pay-off
21
Way of take-up
φ 800 coiler take up
22
Operation direction
From left to right
23
Power source
380V, 50HZ, three phase
1. Drive System
The way of transmission for wire drawing machine is by: Variable frequency motor + Narrow v-belt + Decelerator with hardness gear surface + Narrow v-belt to drive the block.
2. Block
Block is accurately founded by cast steel, re-tempering treatment after the rough processing, the work surface of block is welded by wear-resisting piano wire then sprayed with carbide tungsten, then finish machined by a grinding machine. The block working surface rigidity is over HRC60. The inside surface of block is sprayed with Aluminum.
Block inside adopts narrow gap type water cooling while block outside adopt concentrate air cooling. All blocks are fixed with leaning rollers.
3. Water jacket
The narrow gap cooling way is adopted for the block’s interior uses. The water jacket is fixed to the axes seat, the clearance between block and water jacket is very small.
When the block is rotating oppositely to the water jacket, the cooling water spouts from the water jacket can flow by very high velocity. This could generate very high heat conduction efficiency. Water jacket is made by cast steel with galvanizing on surface.
4. Die box
All are normal die boxes(die dimension should be offered by client). Die box is cooled directly by water.
Tuning roller is driven by cylinder. Die box can be adjusted up to down, front to back, left to right agility and can be fixed. The screw in top and nut for die box are both made of tin bronze. Hard alloy made direction guiding die is fixed at die box inlet.
5. Gearbox
The chief bearings for gearbox with hard gear surface adopt products from Japanese NSK. All gearboxes are filled with VG220 compound gear oil before leaving factory.
6. Safety cover
On the top of each block there is a safety cover, which needs to close before the equipment start up. If the cover is open, the equipment can only run in slow speed. The safety cover has covered the total front of operation side and have daylight lamp inside for illuming use. Safety cover is controlled by spring.
7. Lubricating
Electric driven grease pump is fixed, which can automatically fill oil into the chief shaft bearing of block.
8. Pay-off
It adopts the hydraulic high pay-off, equipped with two hydraulic arms and single supporting capacity ≤ 2500 kg. Through the exchange of two volumes line to achieve no-parking paying off.
9. Take-up
The coiler take-up adopts frequency conversion motor drive, to achieve no-parking taking up. There are two rows of slide rail on the bottom of bearing frame, to easy to replace the frame. (The size of bearing frame is provided by the user).
IV. Collocation of main mechanical parts
No.
Name
Collocation
1
Decelerator with hardness gear surface
Famous Chinese brand
2
Block
Japanese TOCALO
3
Main axis seat bearings
Japanese NSK
4
Frequency conversion motor
Wuxi Hengda
No.
Name
Collocation
1
Transducer and communication module
ABB
2
PLC & module
Siemens S7 series
3
Man-computer interface
Siemens TP series
4
Low voltage electric elements
Schneider
5
Button, indicators
Schneider

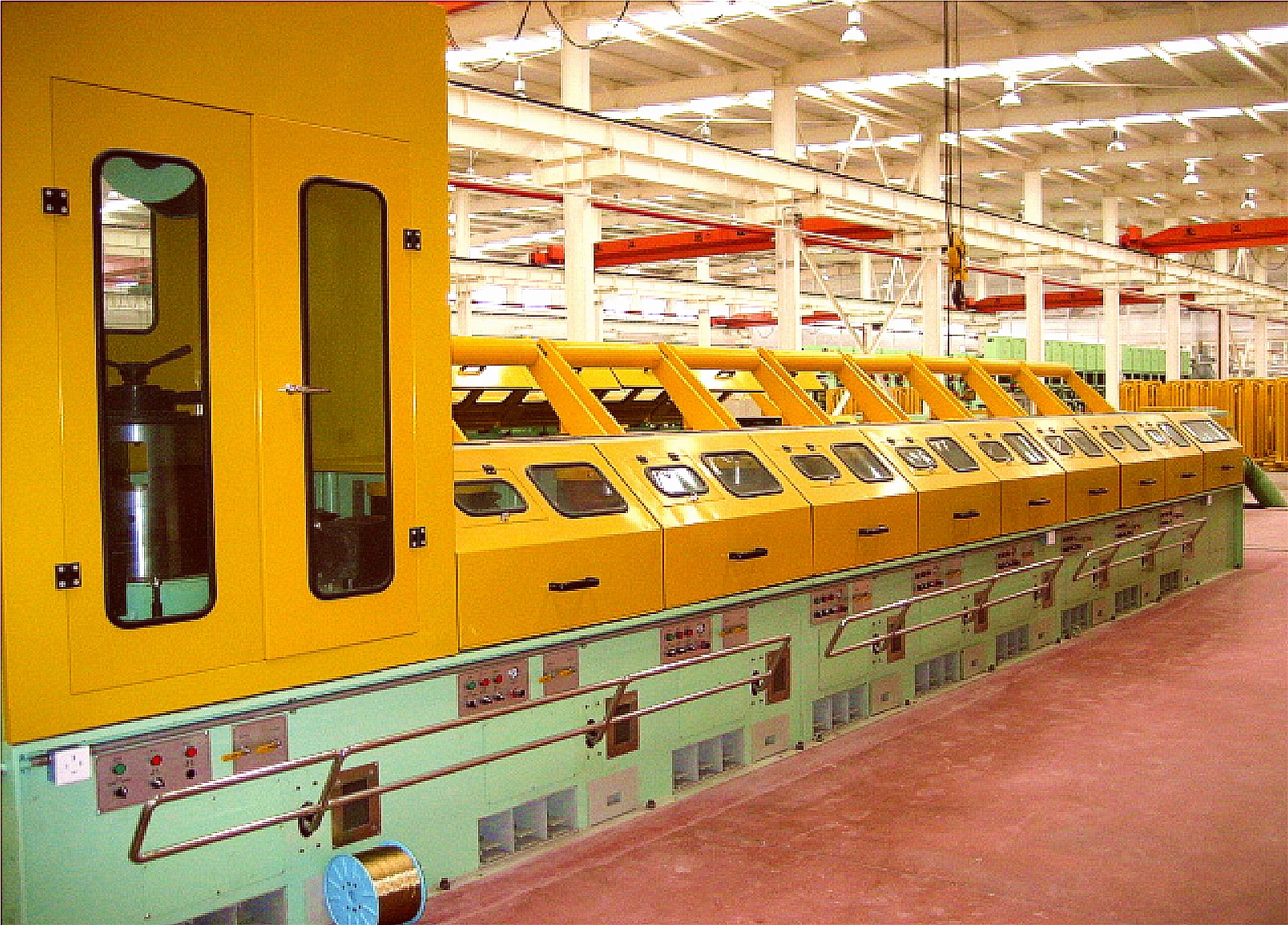

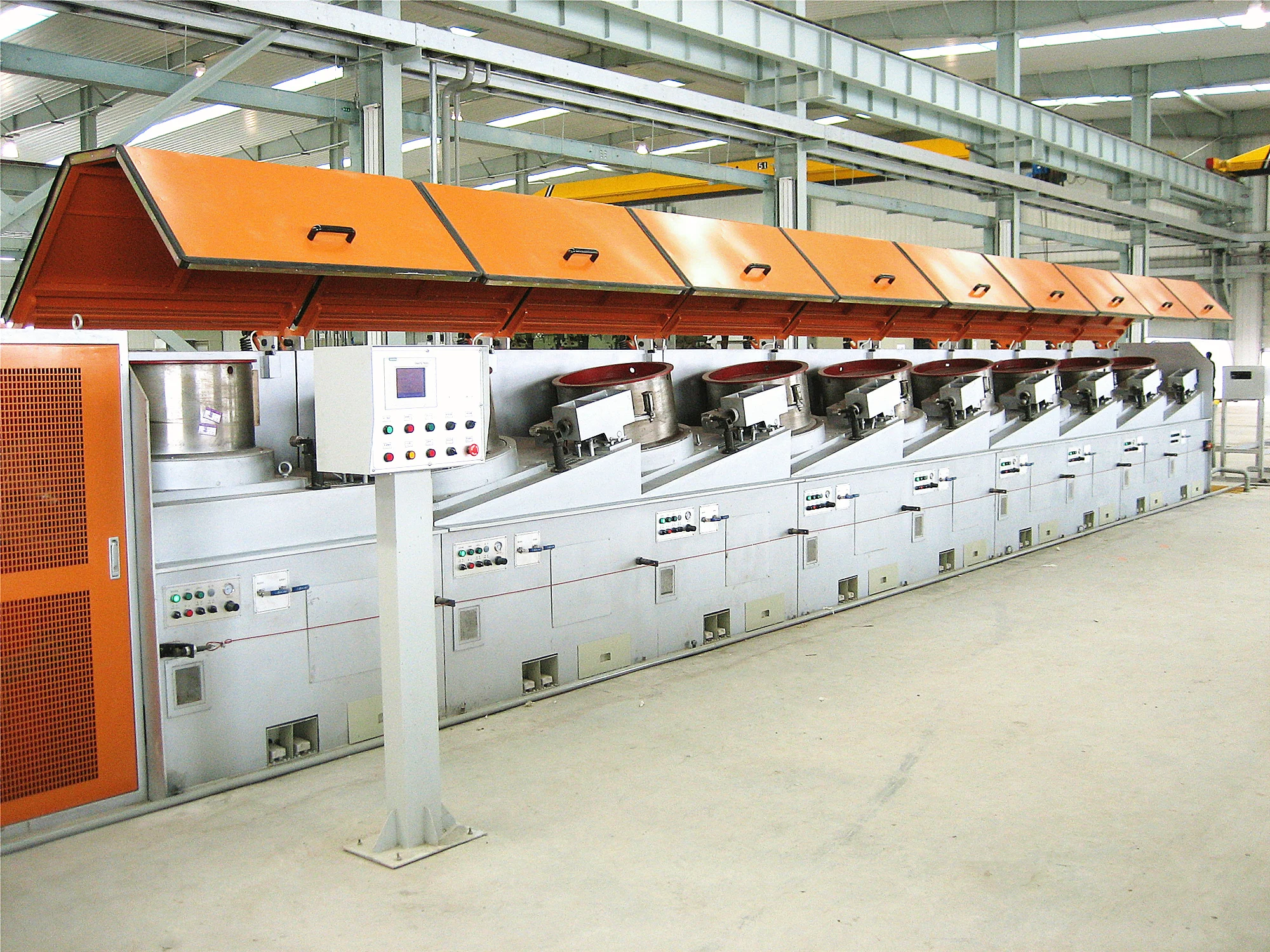

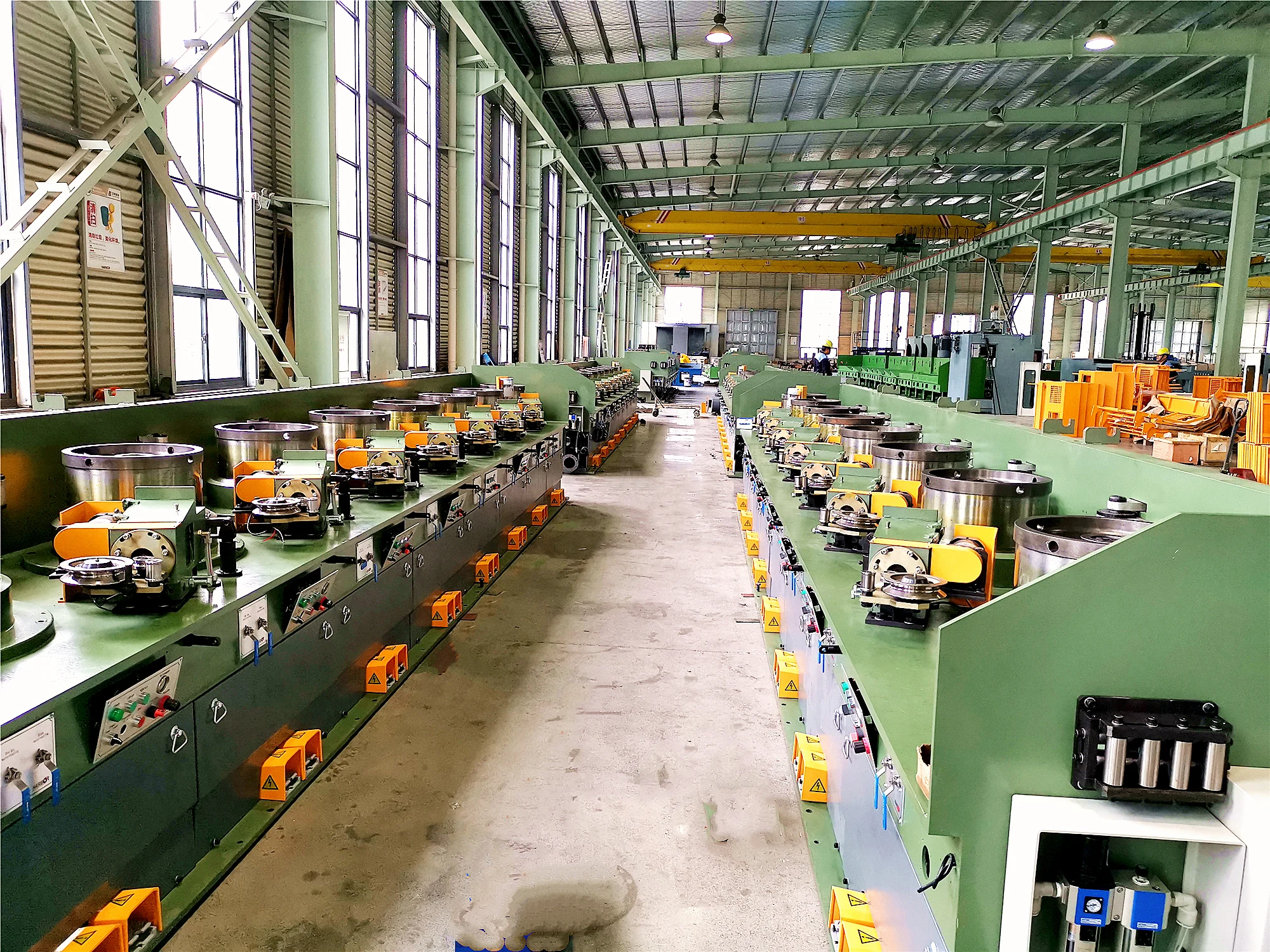

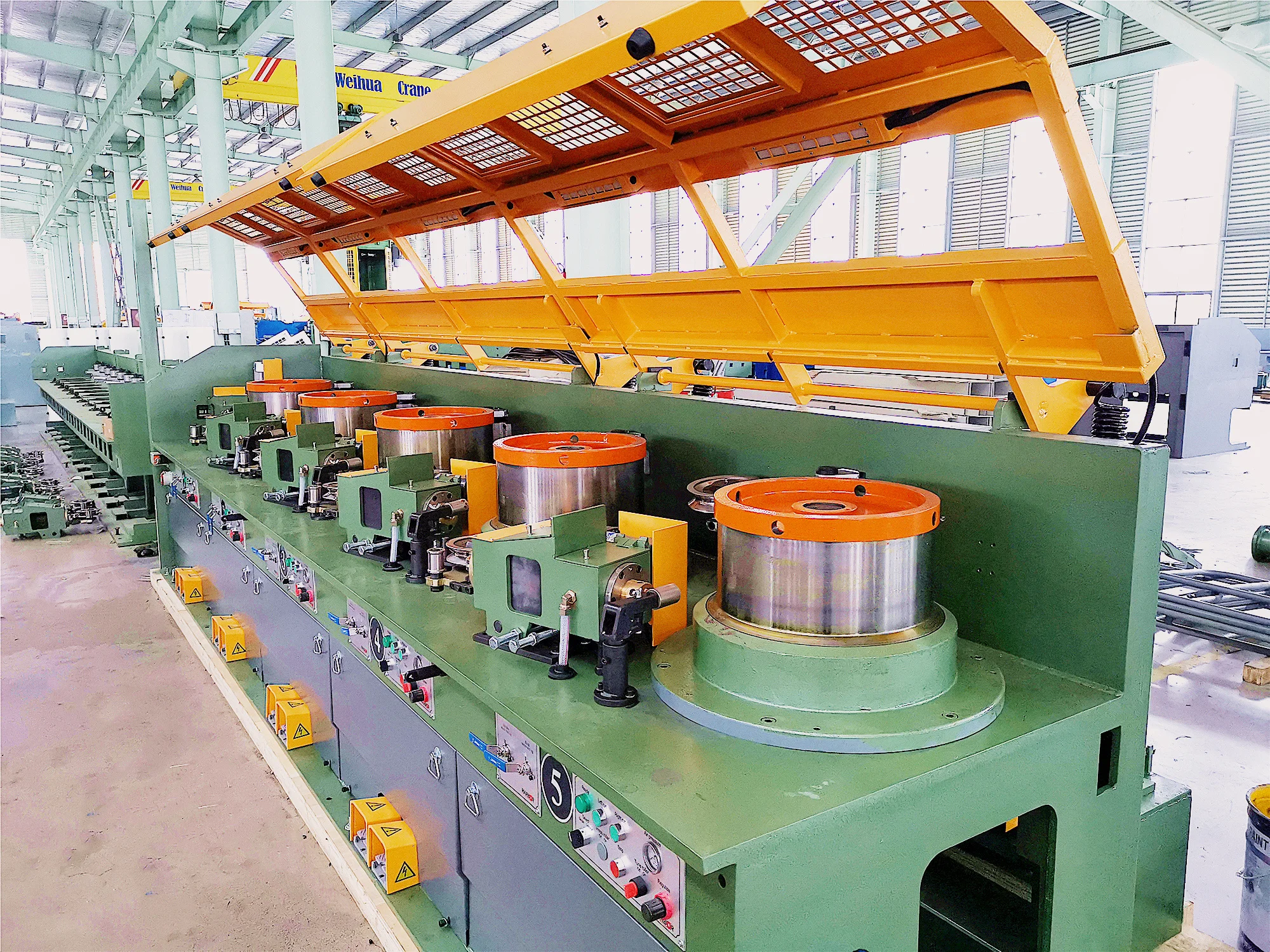

V. Photos of wire drawing machine
