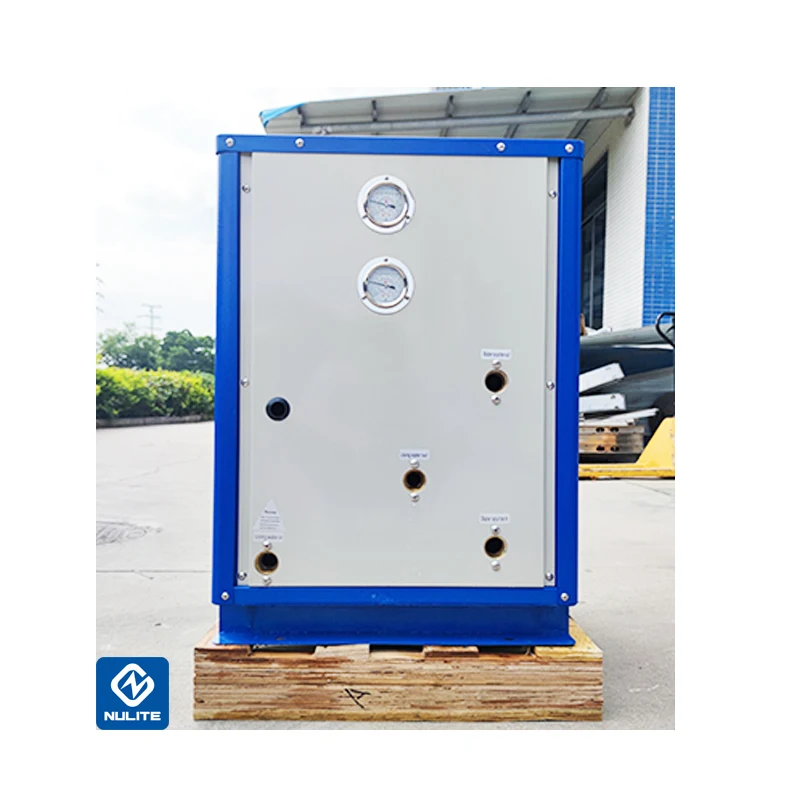

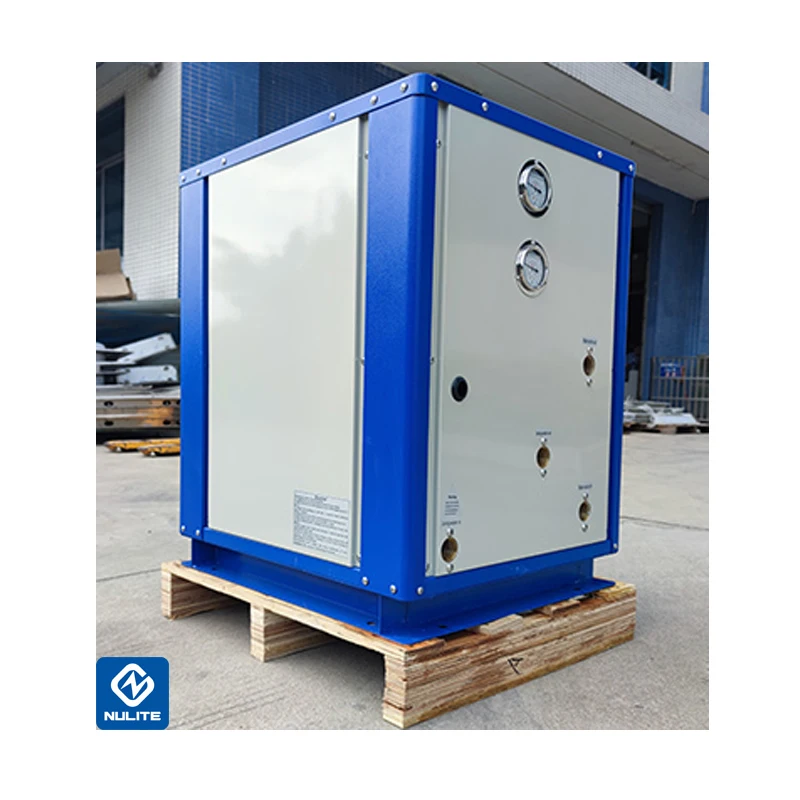

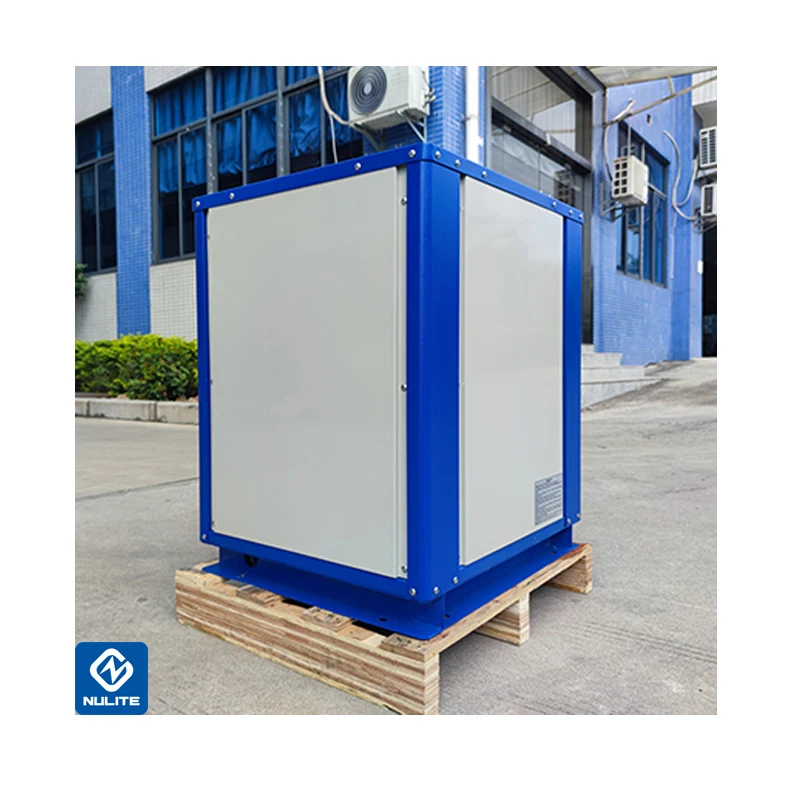

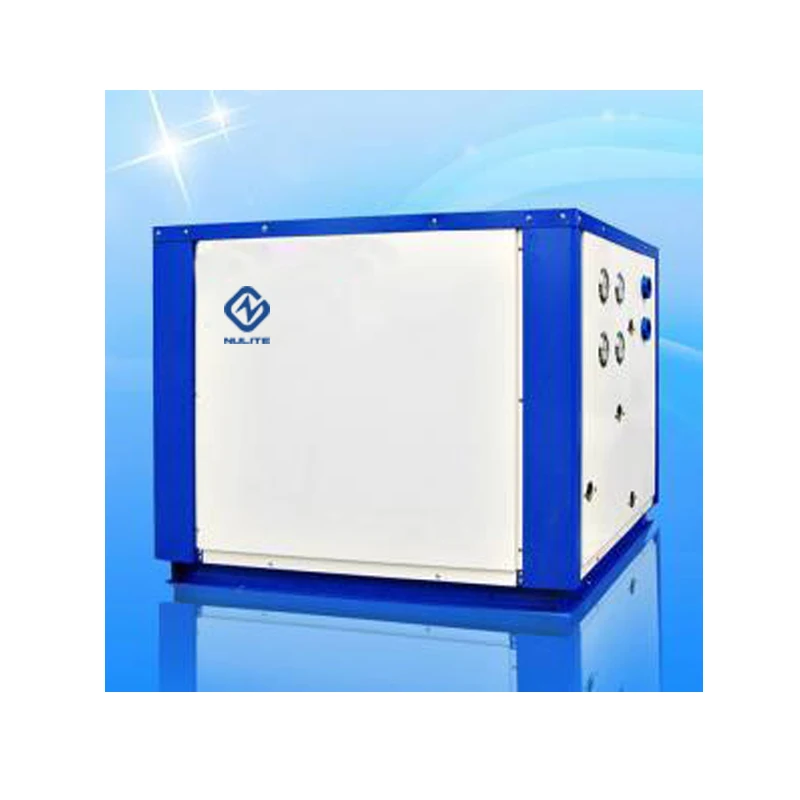

GSHP Geothermal Heat Pump 16KW Water Source Heat Pump High cop heating pump
- Category: Water Heaters >>>
- Supplier: Nulite New Energy (guangzhou) Co. Ltd.
Share on (62554773706):
Product Overview
Description
Product Description
1. ASHP Heating Capacity: 7KW 10KW 16KW 20KW 24KW Water to Water Geothermal Ground Source Heat Pump
2. Best Selling Market: Gemany, Poland, Sweden, UK, France, Spain, Portugal, Czech Republic, Slovak, Austria, Switzerland, Ukraine, Russia, Macedonia, Kosovo, Serbia, BIH, Croatia, Slovenia, Italy, US, Canada, South Korea, Israel, Australia, New Zealand, Chile, Jordan, Romania, Bulgaria, Turkey, Lithuania, Estonia, Finland, Norway, Iceland, Ireland, Netherlands, Denmark.
3. Ambient Temp of Using: Minus 30C, max 60C Hot Water Output
4. Certificate: ISO9001, CE, CB, EMC, MSDS, ROHS
5. *Copeland*-25C Low Ambient Scroll Compressor for G3Q G5Q G6Q Heat Pump Series
Product Name Ground Source Heat Pump Model Name Heating Capacity | EVI Monobloc Air Source Heat Pump (Heating/Hot Water)Heat Pump Heating Capacity G3S G5S G10S 10KW 20KW 40KW (A20W45) 8KW 14KW 28KW (A7W45) |
Manufacturer | Guangzhou NuLite Group |
Factory Scale | in total 3 manufacturing Base in Guangdong Province, more than 400,000sqm. 1,000,000+ units producing ability, 200,000+ units sold in 2020 |

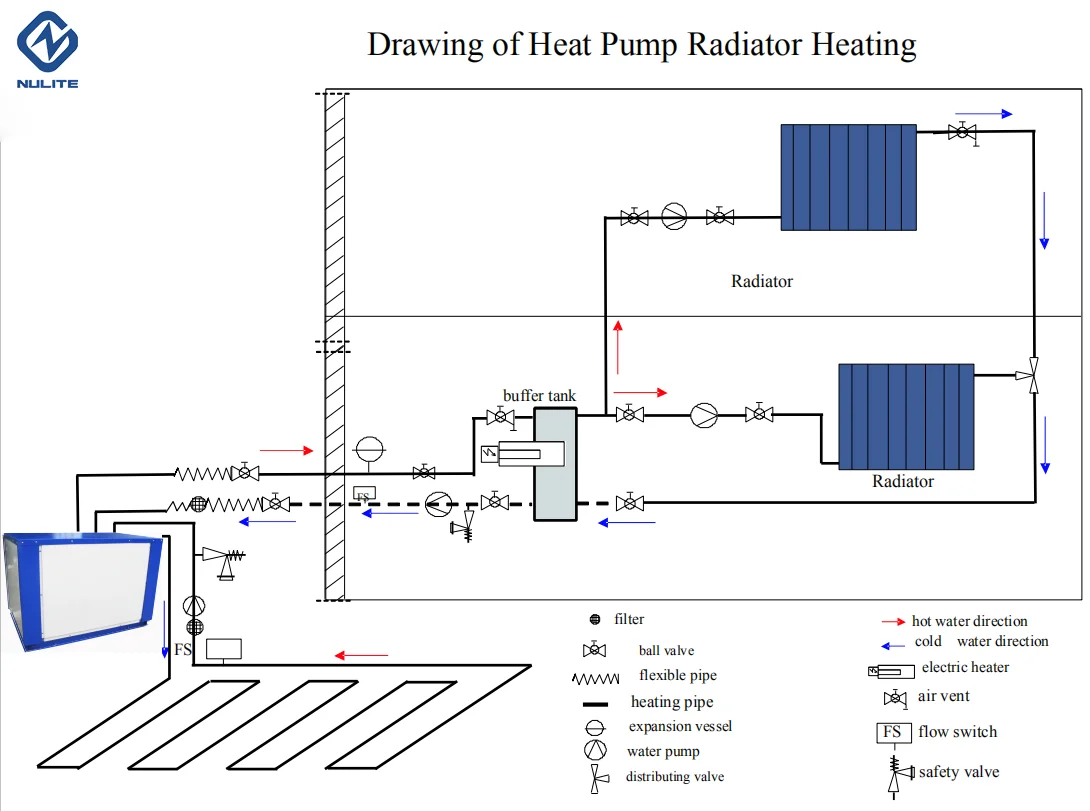

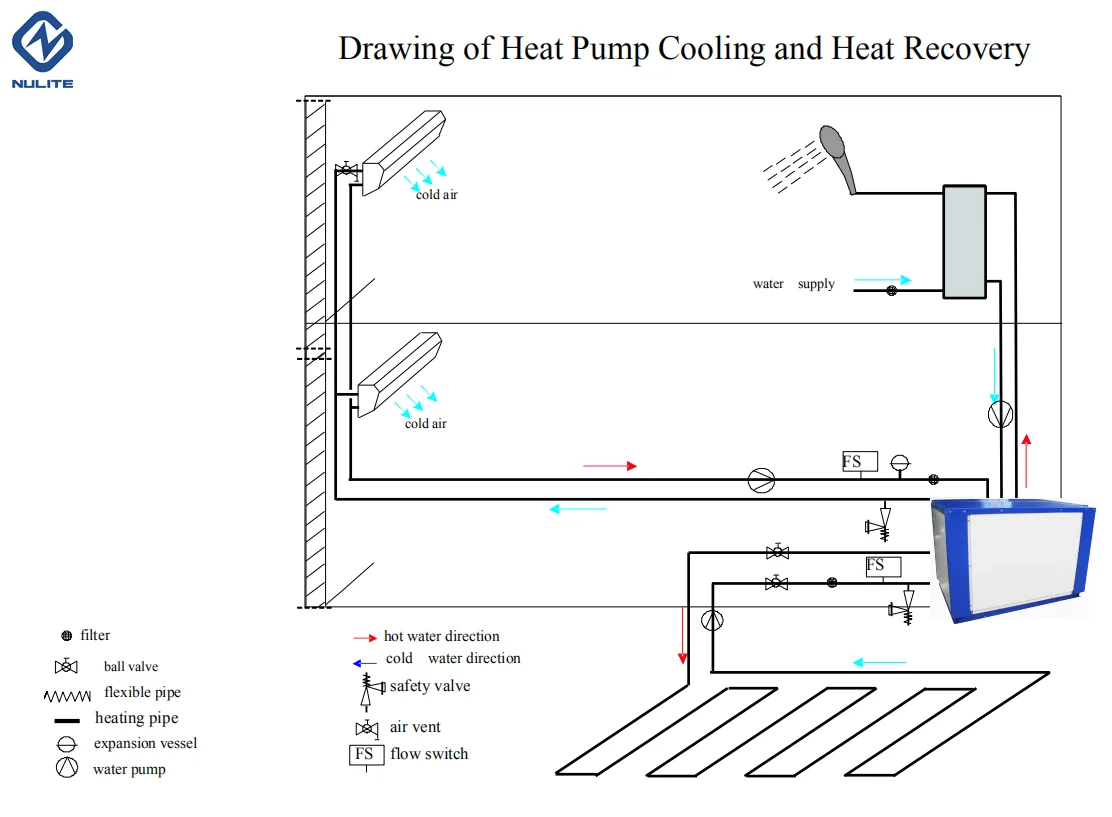

Heat Pump Function | Combined with Water Tank, Radiator, FCU, Floor Heating Cooling & Hot Water |
MOQ | 5-10Units+ (1-2 Units available with stocks) |
High Efficiency | 3.5~5 from A7~A35/W45 |
Water to Water Heat Pump | Geothermal Heat Pump 10KW (80-120m2) G3S Geothermal Heat Pump 15KW (120-150m2) G4S Geothermal Heat Pump 20KW (160-200m2) G5S Geothermal Heat Pump 24KW (180-220m2 ) G6S Geothermal Heat Pump 40KW (300-400m2) G10S Geothermal Heat Pump 80KW (600-800m2) G20S |

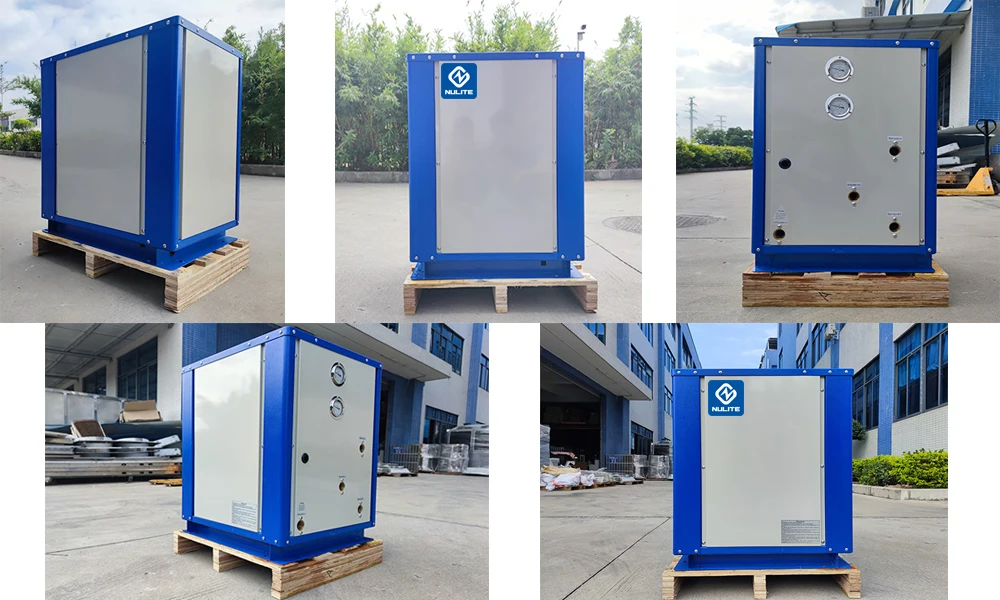

Details Images
Product Paramenters
Item | NE | G/3S | G/5S | G/6S | G/10S | |||||
Rated heating capicity (KW) | KW | 2.52～14 | 5.3～22 | 6～25 | 11～45 | |||||
Heating Rated input power/current | KW/A | 1.2～2.8/8.7 | 2.5～5.3/16.1 | 4.8～6/20 | 8～11/25 | |||||
Max input power/current | KW/A | 3/26 | 5.8/35 | 6.5/38 | 11 | |||||
Voltage (V) | V/Hz | 220V/1ph/25-80hZ | 380V/3Ph/25-80 | |||||||
Rated output water temperature | °C | 55 | ||||||||
Rated water flow | m³/h | 3 | 5 | 6 | 15 | |||||
COP | 4.6 | |||||||||
Refrigeration | R410A | |||||||||
Rated of waterproof | IPX4 | |||||||||
Control mode | Original Import Italy Carel Control , Wifi support | |||||||||
Compressor | Type | Rotery type | ||||||||
Quantity | 1 | 1 | 1 | 2 | ||||||
Brand | Mitsubishi | |||||||||
Outdoor unit | Evaperator | Finned heat exchange | ||||||||
Condensor | Tube in Tube heat exchanger | |||||||||
Net size | mm | 1120*490*710mm | 1120*490*1270 | 1120*490*1270 | 1500*800*1560 | |||||
Packing size | mm | 1190*520*865mm | 1200*520*1425 | 1200*520*1425 | 1550*850*1620 | |||||
Net Weight | 110 | 160 | 190 | 310 | ||||||
Gross Weight | Kg | 120 | 175 | 220 | 330 | |||||
Nosie level | dB(A) | ≤54 | 60 | |||||||
Fan | Type | internal rotor motor,plastic leaves | ||||||||
Fan power | W | 90 | 90 | 90 | 180 | |||||
Ambient temperature | °C | （-25℃ -- 40℃） | ||||||||
Inlet pipe diameter | DN25 | DN32 | DN50 | |||||||
Outlet pipe diameter | DN25 | DN32 | DN50 | |||||||
Loading Qty in a 20' container | sets | 44 | 22 | 22 | ||||||
Certifications
Our quality management system was certified in conformity with ISO9001, ISO14001 Standards, heat pumps with CE, EMC, erP, CB certificated. And also with customized OEM/ODM services for distributors all over the world.
Now NuLite NEW ENERGY Brand Heat Pump has been exported to more than 100 countries, even well installed.
Why trust us
We are professional，international and innovational
Customer Feedback
FAQ
Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are R&D and manufacturer factory. With 400,000 sq meters
modern factory in Guangzhou City & Heyuan City. with OEM service provided, MOQ> 20 Units.
modern factory in Guangzhou City & Heyuan City. with OEM service provided, MOQ> 20 Units.
Q: How long for your heat pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25
working days if the goods are not in stock, it is according to quantity.
Q: Do you also provide other kinds of heat pump?
A: ASHP of EVI(9KW-132KW) / Swim Pool(5KW-150KW) / Domestic Hot Water Heat Pump(80L-300L tank size)etc... heat pump air to water china heat pump air to water china
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shippment. AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25
working days if the goods are not in stock, it is according to quantity.
Q: Do you also provide other kinds of heat pump?
A: ASHP of EVI(9KW-132KW) / Swim Pool(5KW-150KW) / Domestic Hot Water Heat Pump(80L-300L tank size)etc... heat pump air to water china heat pump air to water china
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shippment. AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.
