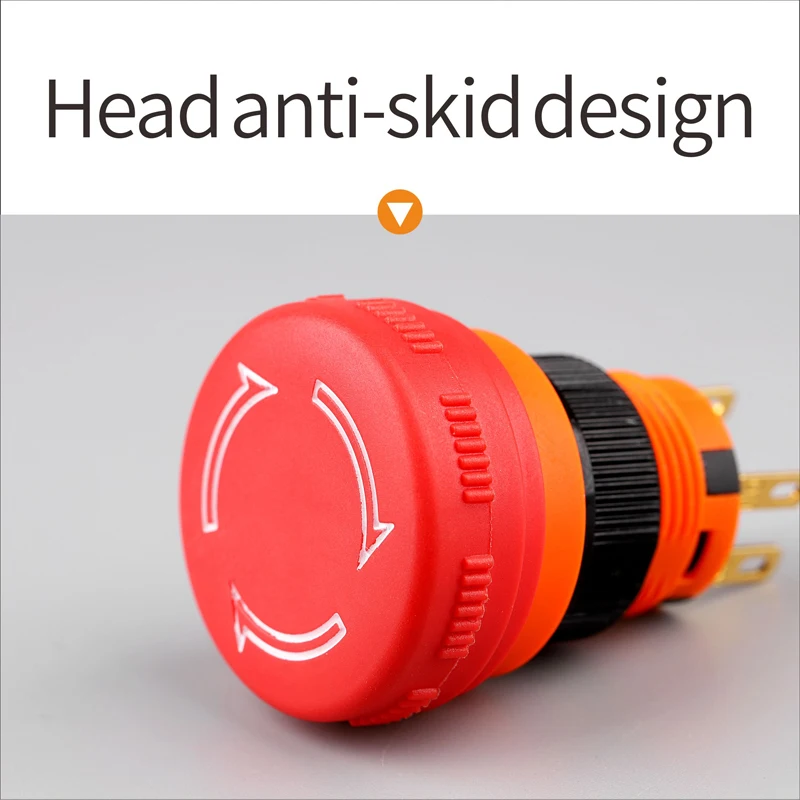

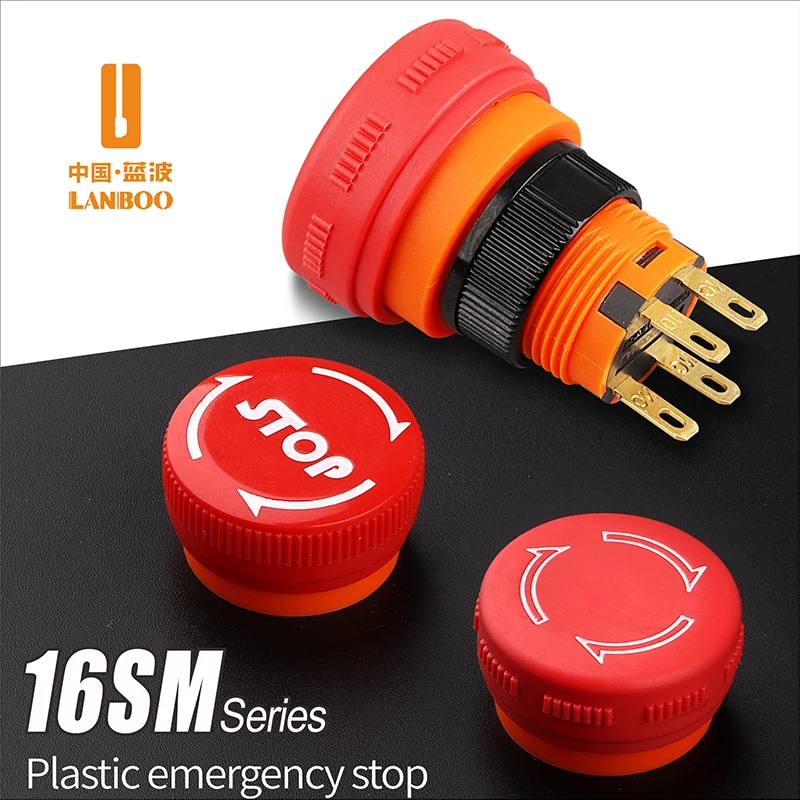

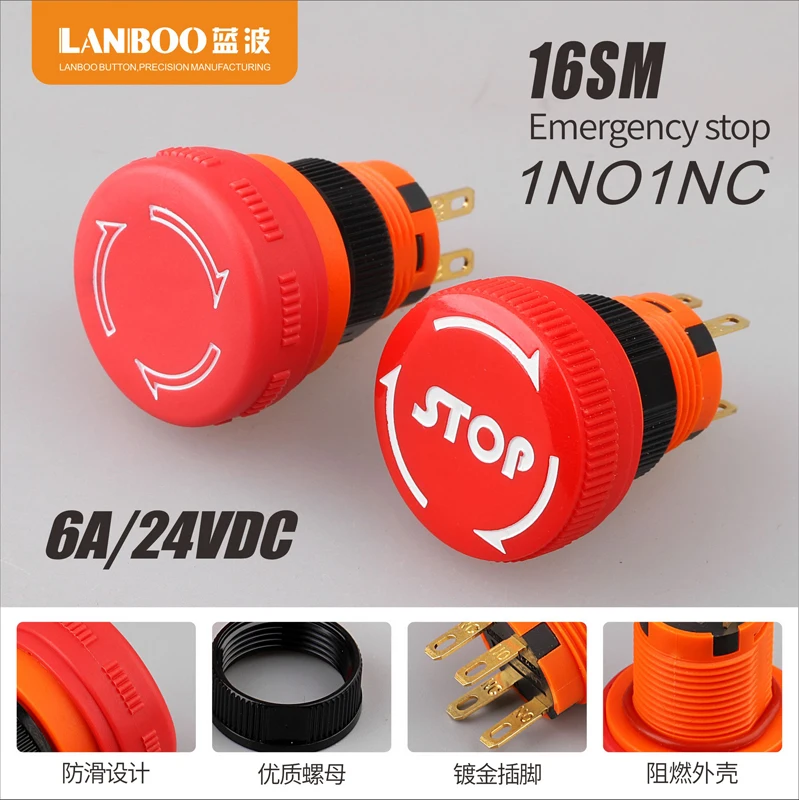

LANBOO 16mm High Current Plastic Mini Stop Emergency Button Switch Mushroom Head With Arrow Latching Flame Retardant PA66

Share on (62554850841):


Price:$2.00 - $2.40

Quantity:


Product Overview

Description


lantian



Product Description












































                               Model Description
  Modle   LB16SM  LB16SM2

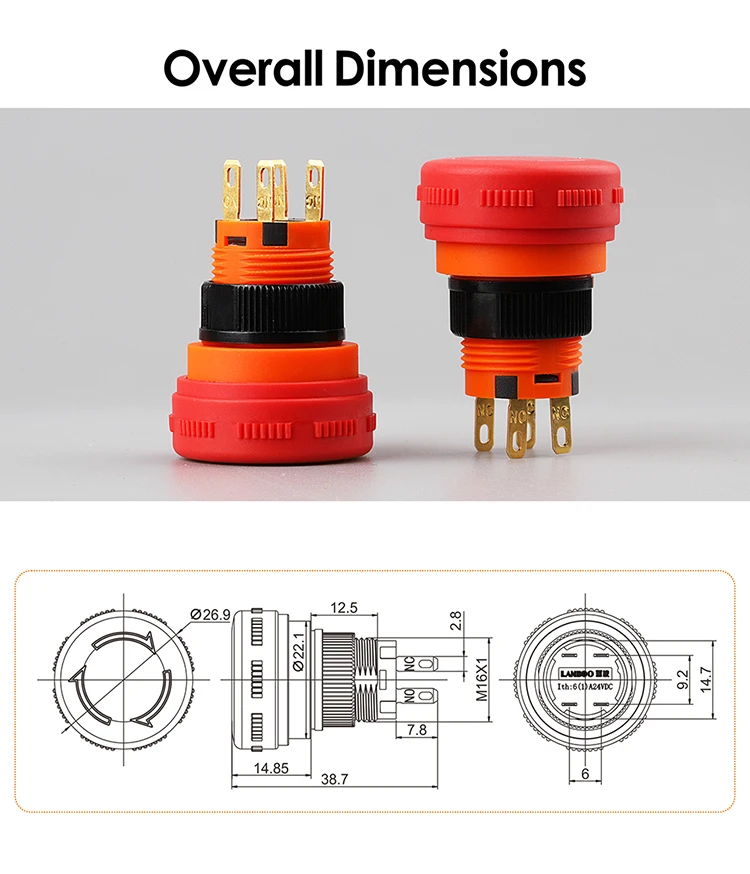

  Mounting diameter            16mm
  Head shape                      Mushroom

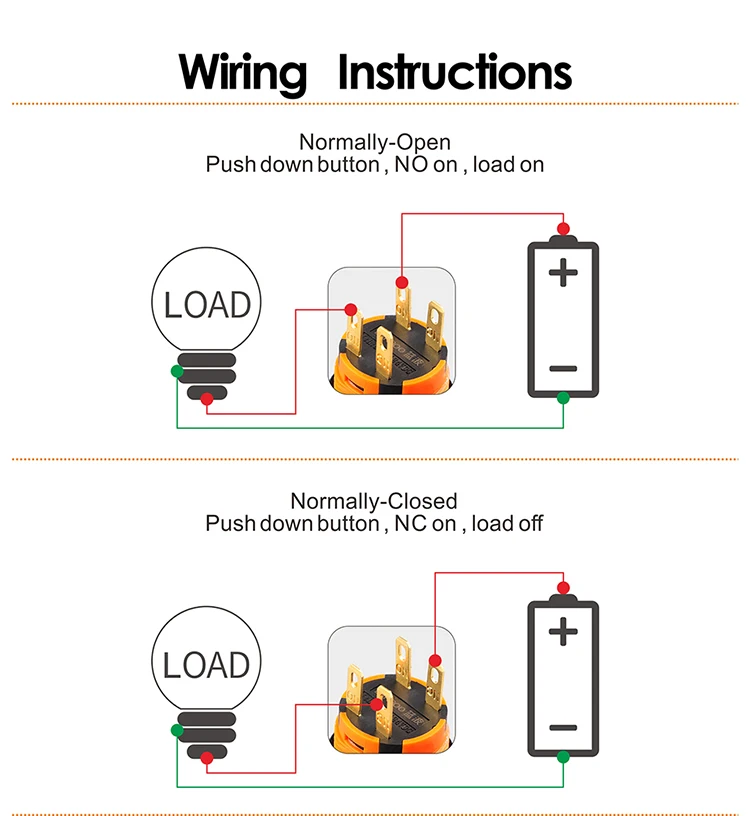

  Switch Combination          1NO1NC
  Operation type                 Latching
  Head color               Red
  Switch Voltage                  6A/250VAC
  Shell material                    PA66
  Electrical life  Resistant load: AC220V/7A, DC24V/7A: 20,000 times

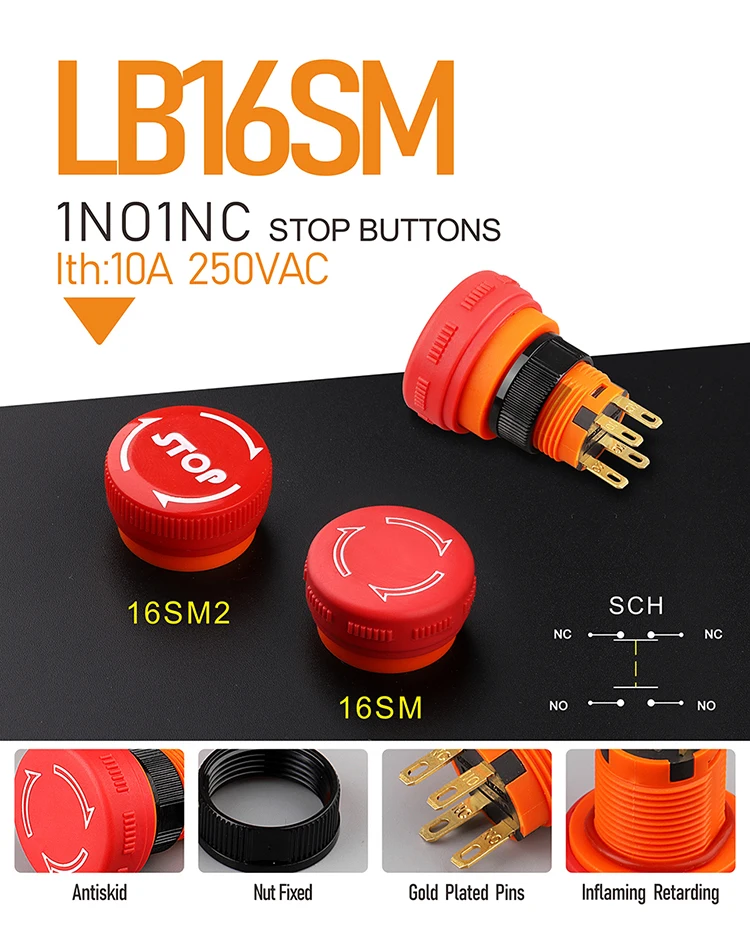

 16sm-750 (1)16sm-750 (2)16sm-750 (3)16sm-750 (4)16sm-750 (5)16sm-750 (6)16sm-750 (7)16sm-750 (8)16sm-750 (9)





Specification








































































The Others Parameters
ProjectParameterProjectParameter
 Modle No.  LB16SM  16SM2    Action trip 3.5±0.2mm
 Contact Resistance  ≤50mΩ Actuating Force about 6±0.8N
 Insulation  Resistance  ≥1000mΩ Mounting panel thickness ≤10mm
 Dielectric Strength  3000VAC,50HZ,1 min Nut torque 0.4~0.6N.m
 Ambient  Temperature  -40℃~+80℃

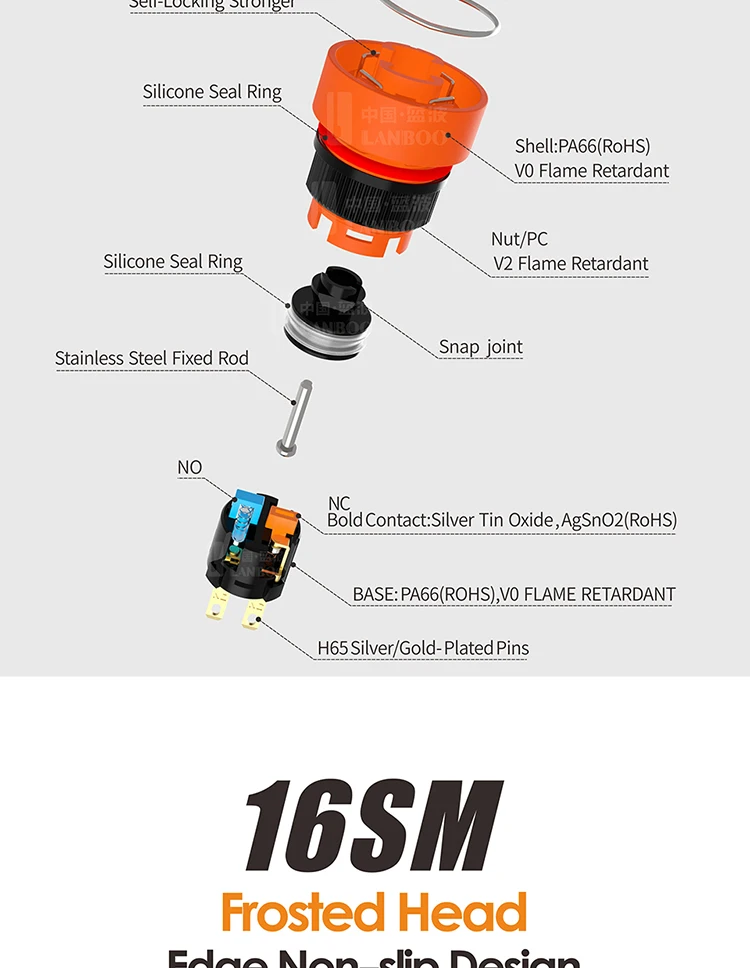

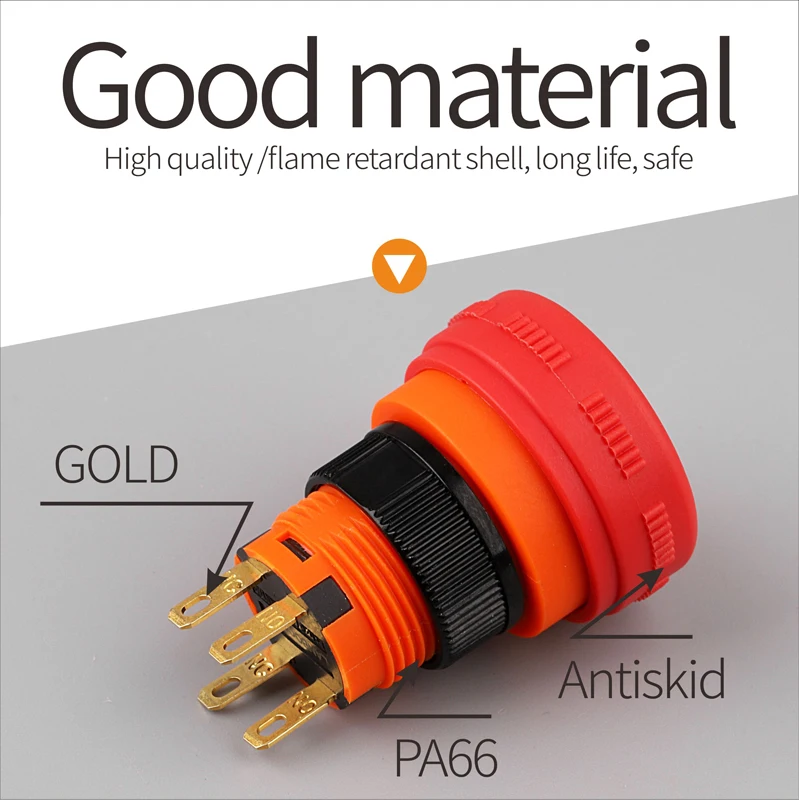

 Outshell/Press Key



 PA66


 Protection Levels- Diffuser PC
 Electrical Life

Resistant load: AC220V/7A, DC24V/7A: 20,000 times



 Nut


 Base Seat/


 Bottom Seat



 PC





 PA66


 Mechanical Life

 250,000 times

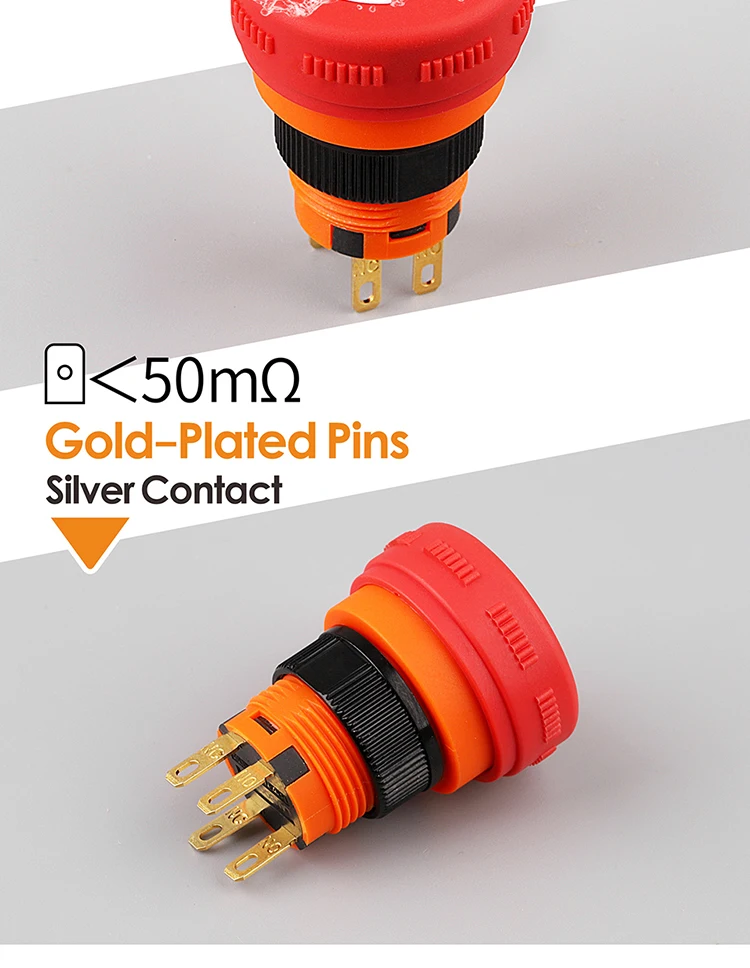

  Pins                      Contact


 H65 Silver Plated

 AgSnO2(RoHS)

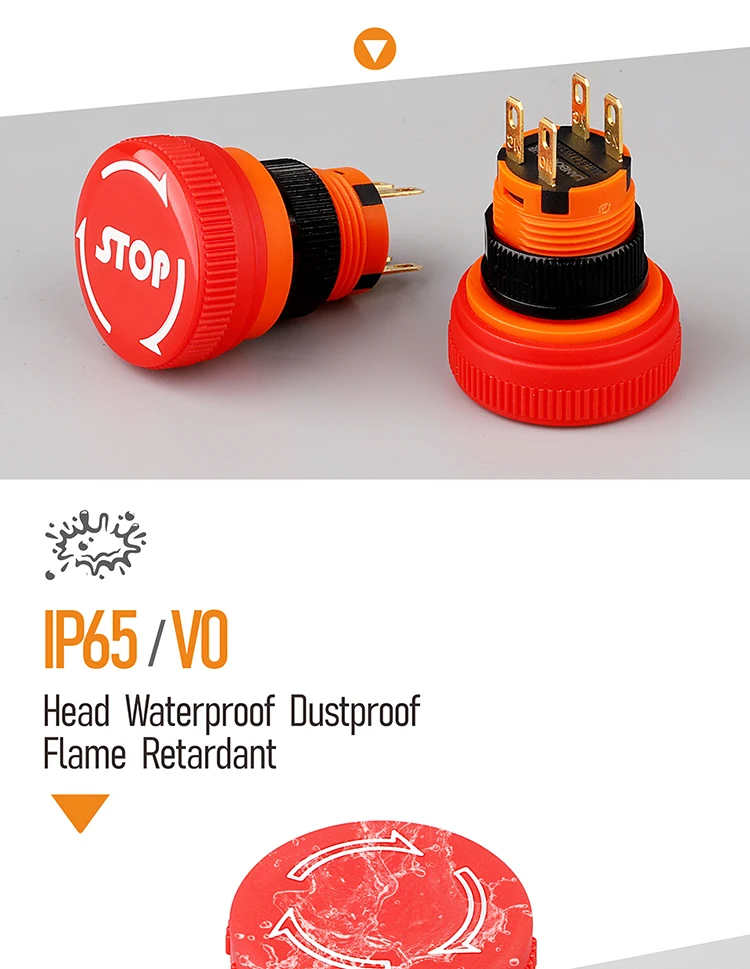

 Waterproof   IP65 Spring Improved steel wire





Packaging & Shipping
