Ultrasonic Flaw Detector DGT FD952/953 NDT UT Testing Weld Inspection Equipments A/B SCAN DAC/AVG Pipe Welding Defect Machine
- Category: >>>
- Supplier: Dandong Flaw Detector Equipment Co. Ltd.
Share on (62554908105):
Product Overview
Description
Product Description

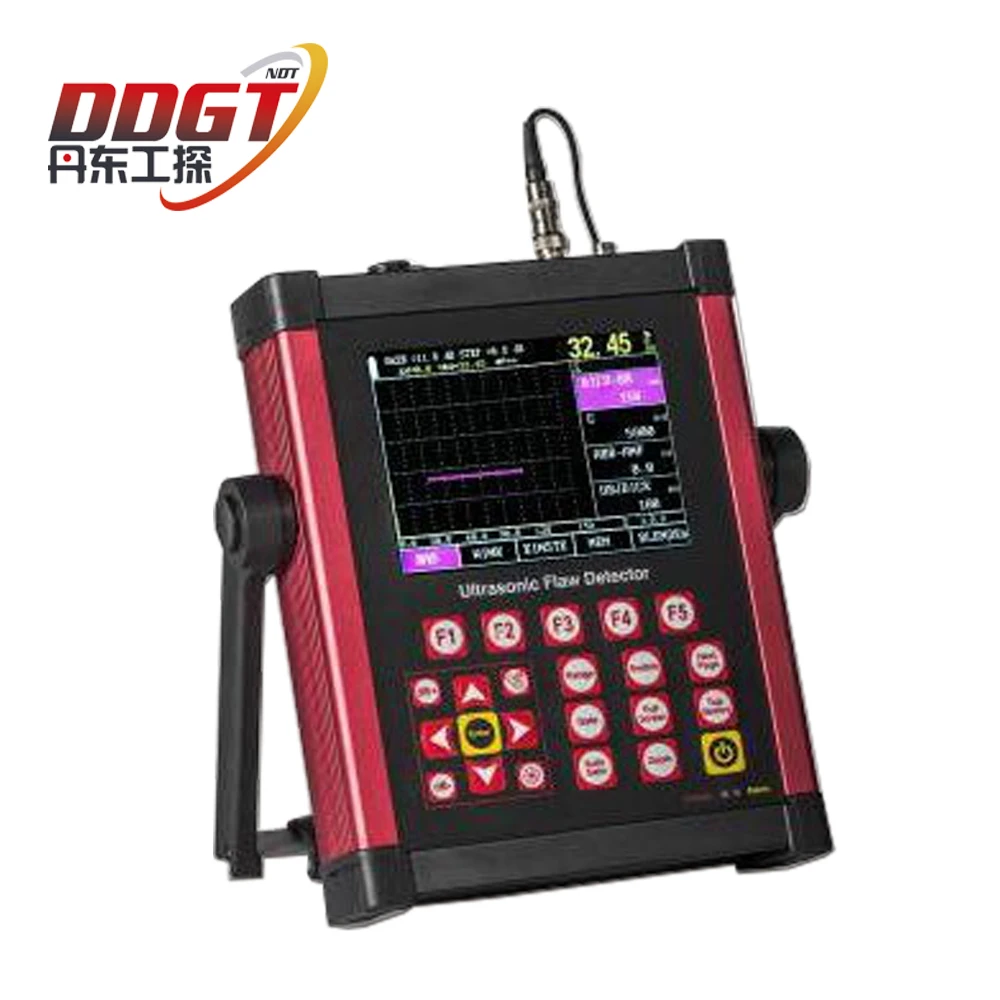

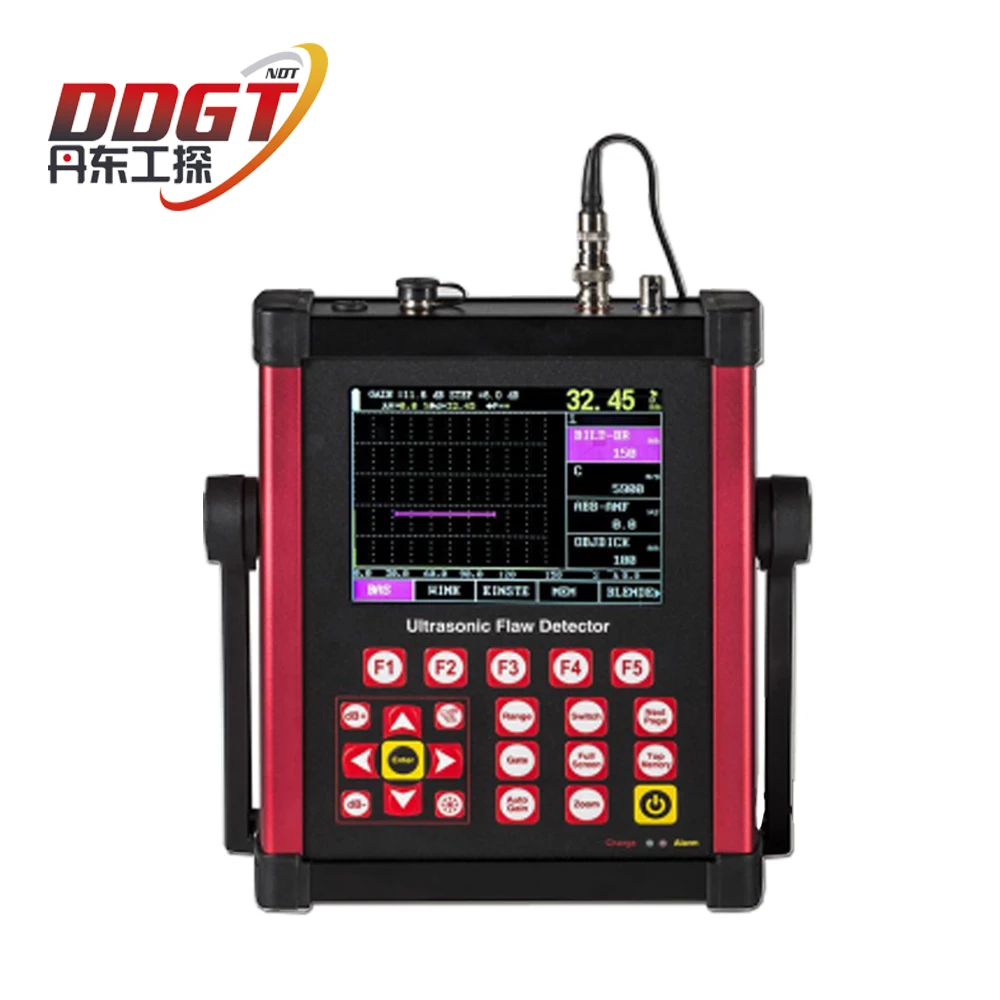

Ultrasonic Flaw Detector DGT-FD952/953 NDT UT Testing Weld Inspection Equipments
A/B SCAN DAC/AVG Pipe Welding Defect Machine
Application for quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the work-piece, such as cracks, welds, blowhole, etc. It Widely used in electric power, petrochemical, boiler and pressure vessel, steel, military, aerospace, railway transportation, automobiles, machinery, and other fields.
Model | DGT-FD952 | DGT-FD953 | |
Operating Frequency | 0.5MHz～20MHz | ||
Scan Range(mm) | 0-6000mm | 0-10000mm | |
Velocity Range（m/s） | 1000～15000 | 100～20000 | |
Vertical linearity error | ≤3% | ≤2% | |
Dynamic Range | ≥32dB | ≥35dB | |
Horizontal linearity error | ≤0.2% | ≤0.1% | |
Testing sensitivity | ≥62dB (Depth 200mm, Φ2 flat bottom hole) | ≥65dB (Depth 200mm, Φ2 flat bottom hole) | |
Measuring channel | 100 | 500 | |
Storage | 500 | 1000 | |
TCG curve | NO | YES | |
B Scan | NO | YES | |
PC Connection | YES | ||
Gain Range(dB) | 0~110 | 0~130 | |
AWS | NO | YES | |
Standard Probes | Straight probe: 2.5MHz, diameter 20mm, cable Q9-Q9 Angle probe: 4MHz, 60 degree, 8*9 mm, cable Q9-C5 | ||
Dimension | 240×185×55mm | ||
Weight | 1.85kg | ||
Functions & Features
IP65 standard, with the durable metal shell (oil-proof, water-proof and dust-proof)
PC software is available for data analysis, management and reports printing
Probe automatic calibration
DAC and AVG are automatically formed, and can be corrected and compensated
Freely switch to four kinds of standards (depth D, level P, distance S, amplitude H)
Functions such as Auto-gain and peak memory improve detection efficiency
Automatically calculate the φ value equivalent defects
13 built-in testing standards are available
Storage: 500-1000 pieces of A-scan images and data
Power supply: rechargeable Li-ion battery, standby time more than 15hours
The width and intensity of launch pulse are adjustable
AWS standards are available
With measuring video function
IP65 standard, with the durable metal shell (oil-proof, water-proof and dust-proof)
PC software is available for data analysis, management and reports printing
Probe automatic calibration
DAC and AVG are automatically formed, and can be corrected and compensated
Freely switch to four kinds of standards (depth D, level P, distance S, amplitude H)
Functions such as Auto-gain and peak memory improve detection efficiency
Automatically calculate the φ value equivalent defects
13 built-in testing standards are available
Storage: 500-1000 pieces of A-scan images and data
Power supply: rechargeable Li-ion battery, standby time more than 15hours
The width and intensity of launch pulse are adjustable
AWS standards are available
With measuring video function
Company Profie
Our Service

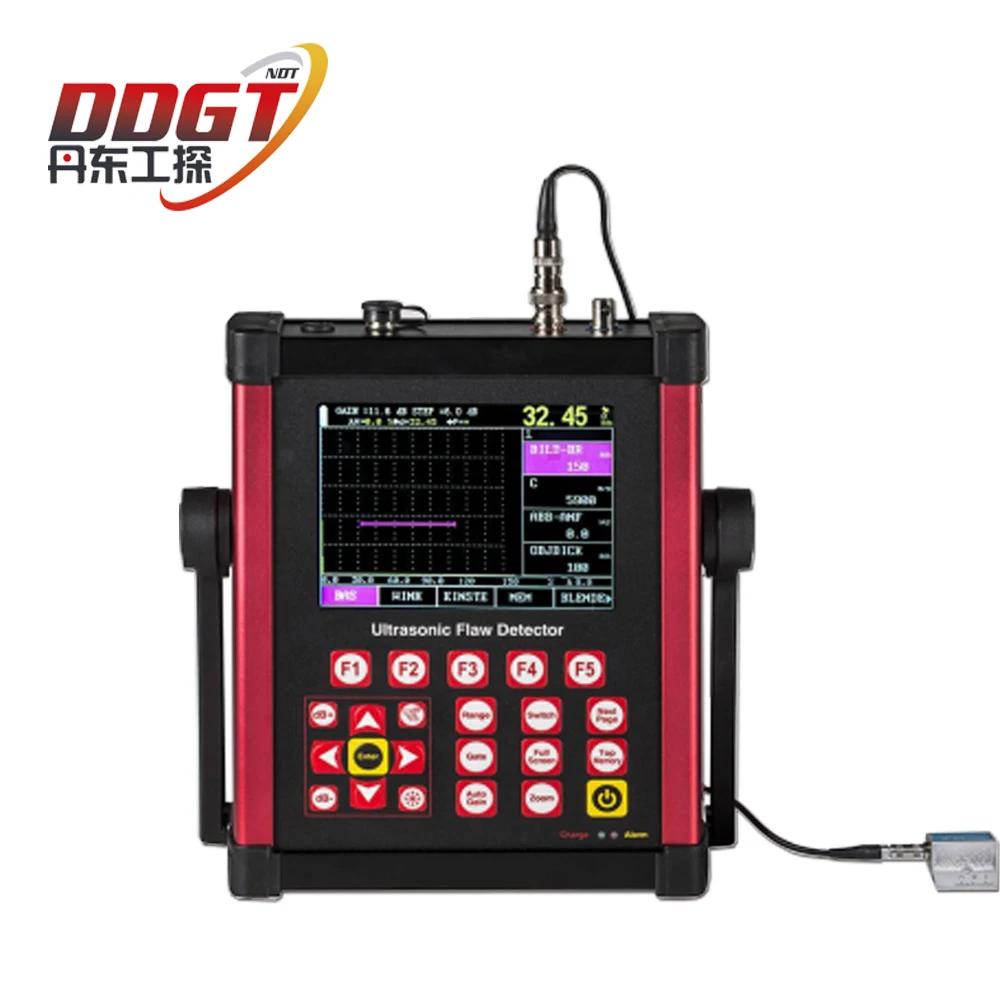

Ultrasonic Flaw Detector DGT-FD952/953 NDT UT Testing Weld Inspection Equipments
