The precision cutting machine is used to slit paper coil, plastic coil, tap, metalloid materil and metal foil. And the cut strip will be re-winded as a coil after slitting. The equipment characteristics are operation convenient, high-quality slitting, high-using rate or material, and step-less adjustment of slitting speed.
Technical Parameters Of XTF700
Type
XTF700
Material roll diameter
550 mm Φ
Maximum width of raw material roll
700mm
Inside diameter of raw material
Φ 50 ~ 85 mm Φ
Minimum width of finished product roll
6mm(aluminum foil 10mm)
Diameter of finished product
350 mm Φ
Scrolls diameter
Φ 40 mm, 75 mm Φ
Maximum number of cutting strips
59
Number of coils at the same time
2
Cutting speed
25~150m/min
Cutting thickness
0.006~0.03mm
Main drive motor
3KW
Overall dimension(L x W x H)
Host: 1605x1084x1310mm
Control box: 740x450x1710mm
Weight
2800Kg

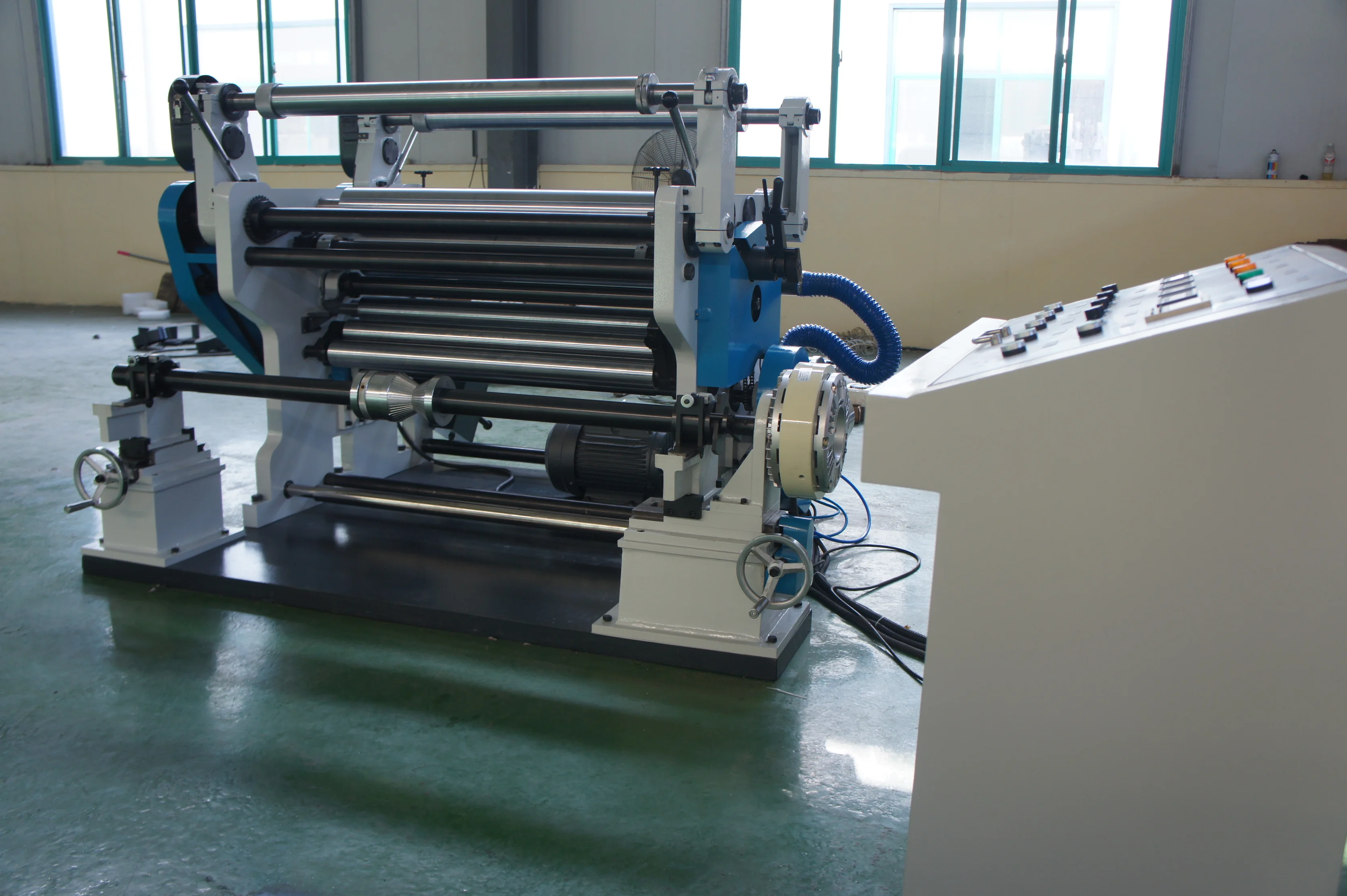

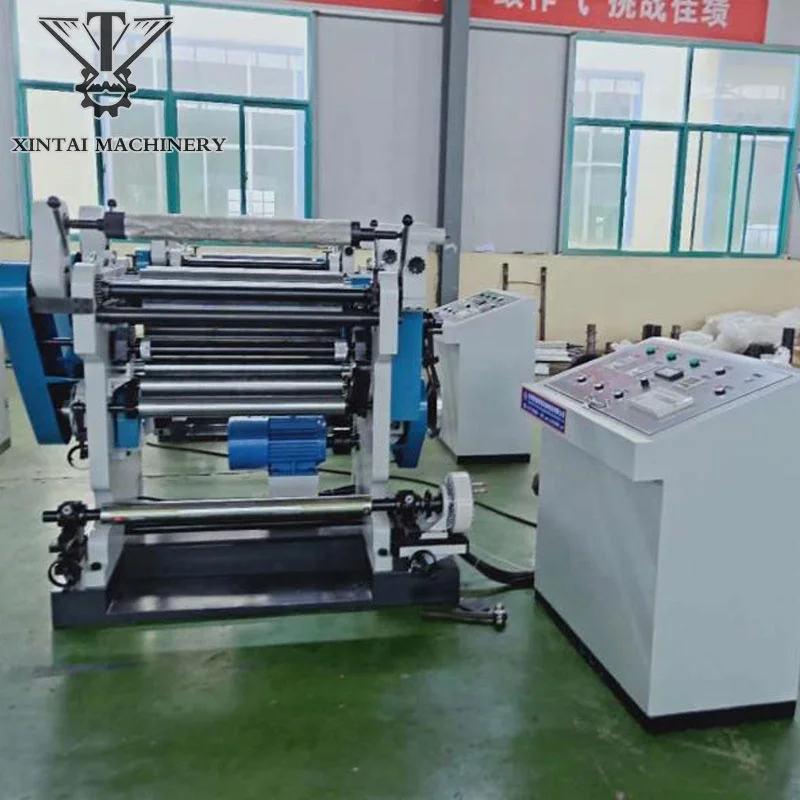

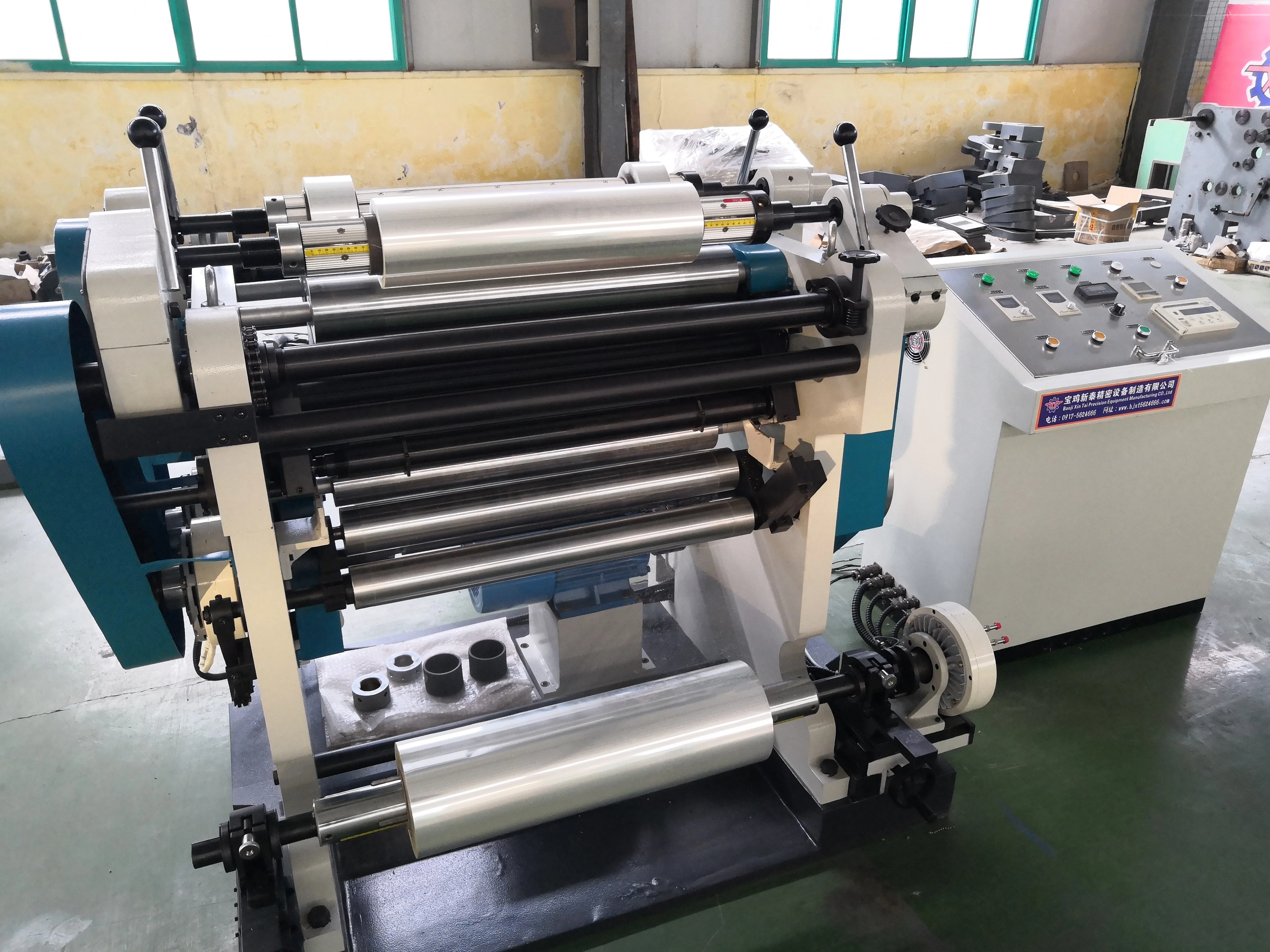

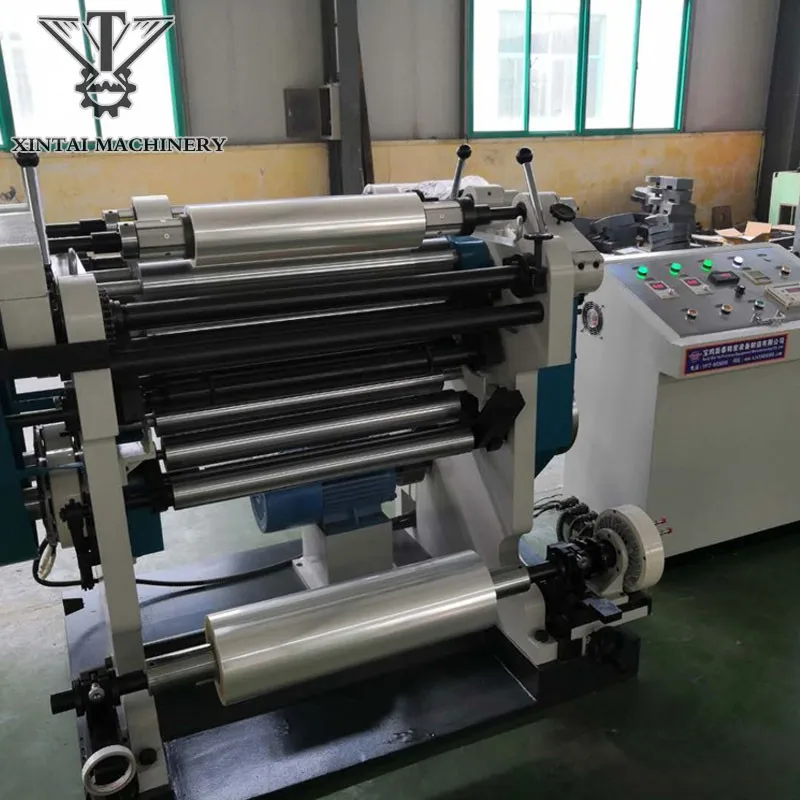

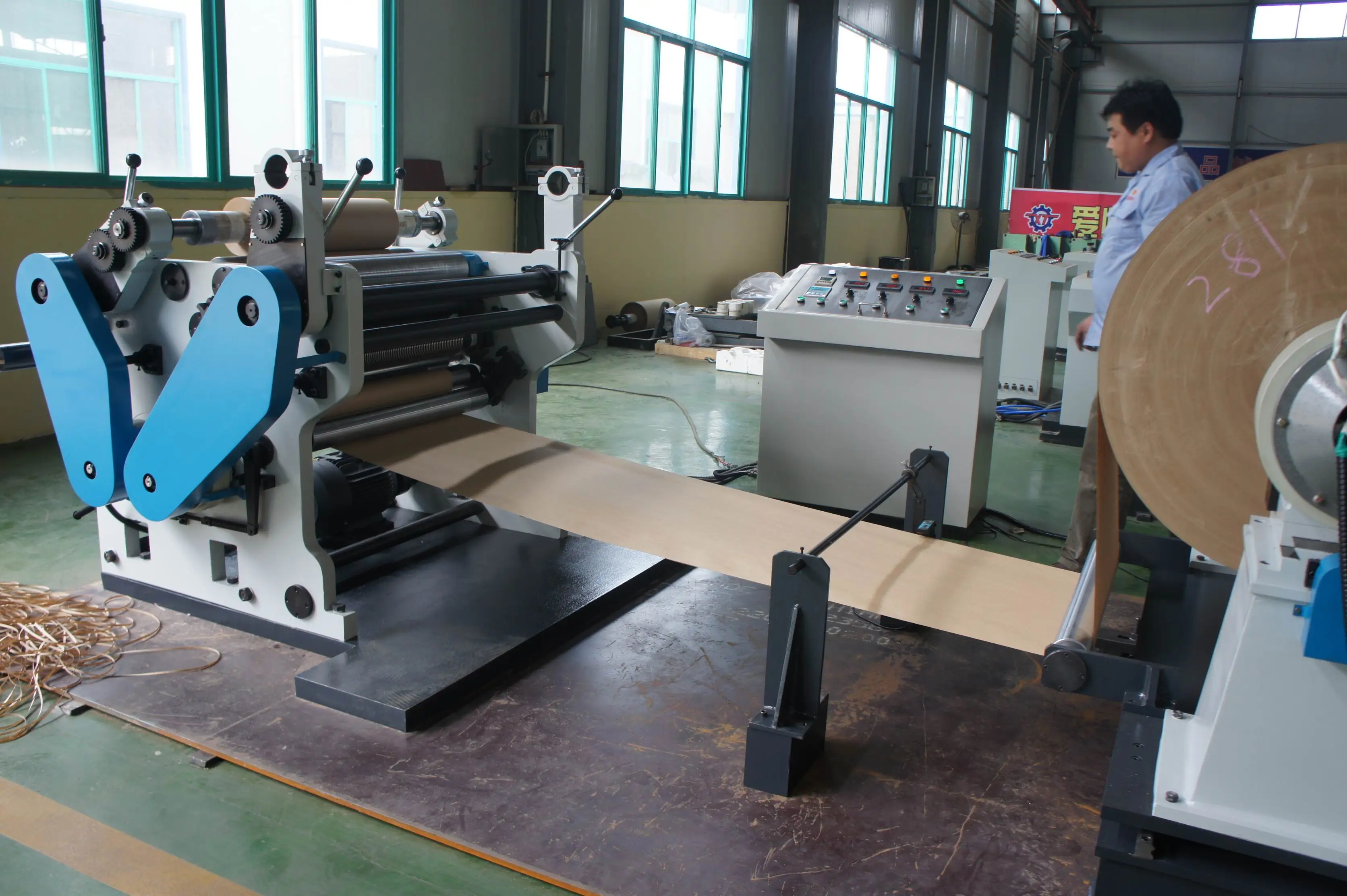

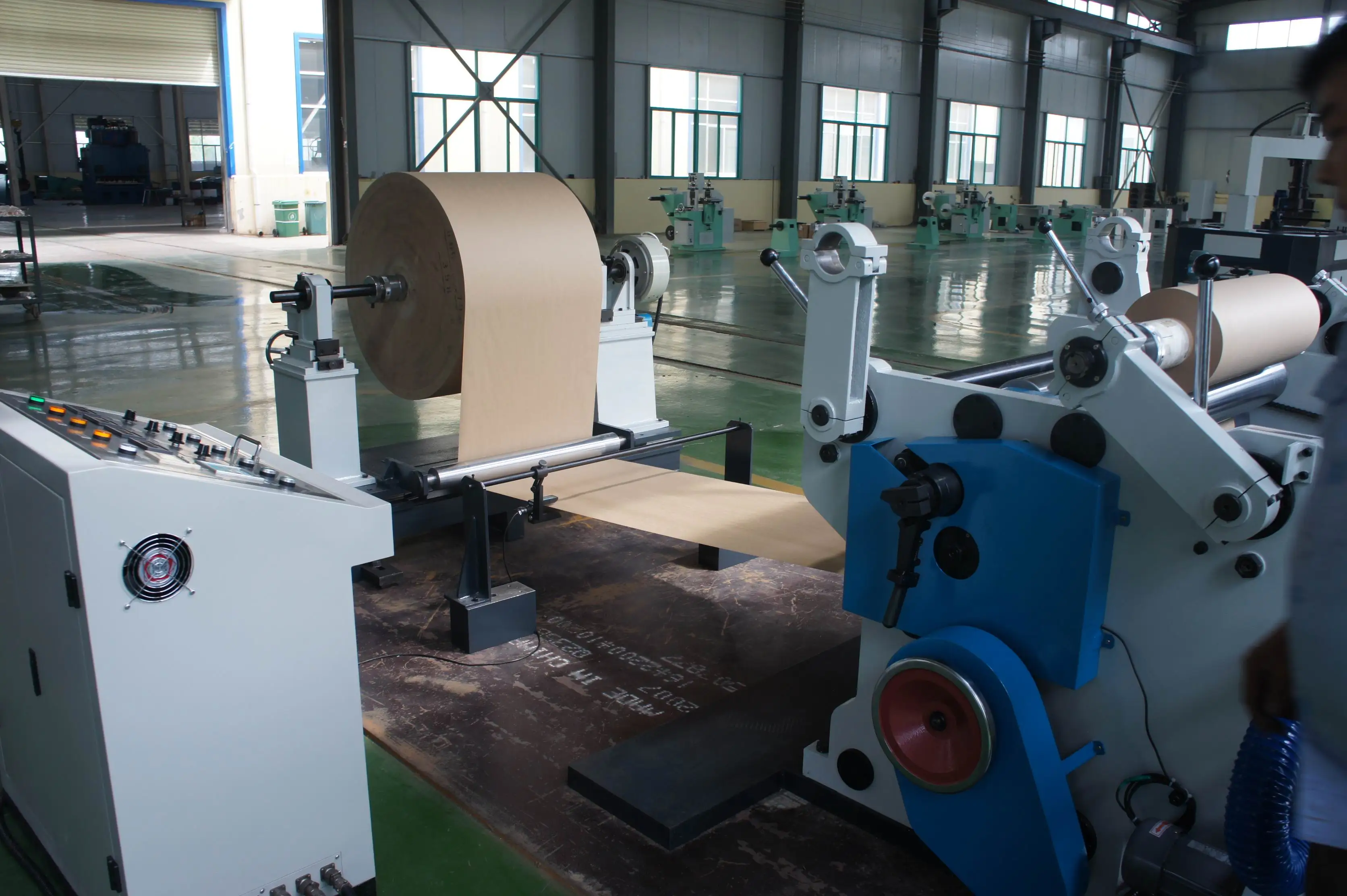

Detailed Images
Main Features
1. This machine is suitable for longitudinal shearing of rolling non-metal strip. It has the characteristics of convenient operation, high cutting quality, high material utilization rate and stepless adjustment of cutting speed. 2. Product warranty period is one year, non-human problems, free spare parts are provided during the warranty period, and equipment maintenance is the responsibility of the supplier. 3. Equipment color: customizable 4. Date of production: 20 days 5. Support overseas after-sales service.
* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas. *24 hours online support and Video training.
Our Service
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ
Q:Are you manufacturer? A: Yes, we are manufacturers for high precision slitting machine producing, and we have our own technical team, and about 30000 sqm workshop, feel free to contact us for inhouse training and visiting. You are always welcome!
Q:What payment terms do you accept? A: We are flexible on payment terms, please contact us for details!
Q:What information will you need to make the proposal? A: Coil weight, coil width, coil thickness, minimum strip width, maximum slitting quantity and your special requirements.
Q:What should I do to start a new business? A: Please contact us immediately, we provide free pre-sales consultant service. Also Xintai Machinery are willing to help you with the detail training.
Q: Do you provide training and maintenance? A: Yes. In order to your more efficiency for production, when the machine has arrived at the importer' s port. Our company will send engineers to installing the machine and responsible for training the worker of customer until they can operating the machine skillful. And also we will provide 24 hours support team for all of clients with video training and problem solving system. We also provide machine with English instructions including maintenance manual and operation manual.
Q:Why choose you? What is the difference between you and other Chinese supplier? A: We have specialized in this area for over 30 years. Our slitting machines are exported to many countries in the world. You can get higher quality product & better professional service from Xintai Machinery with competitive price.
