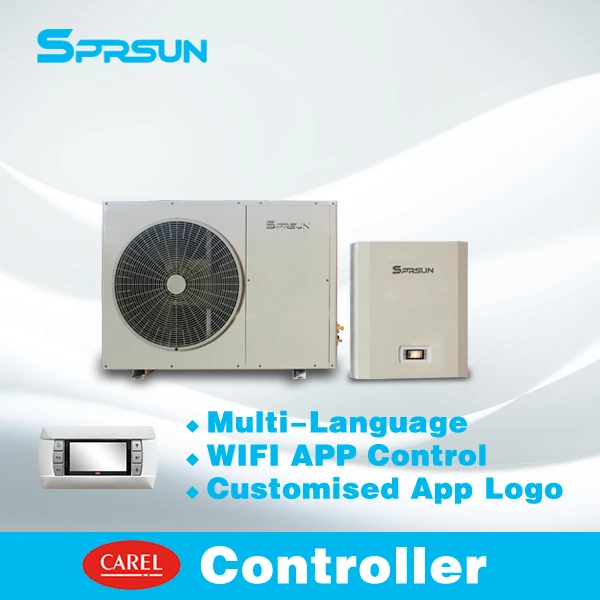

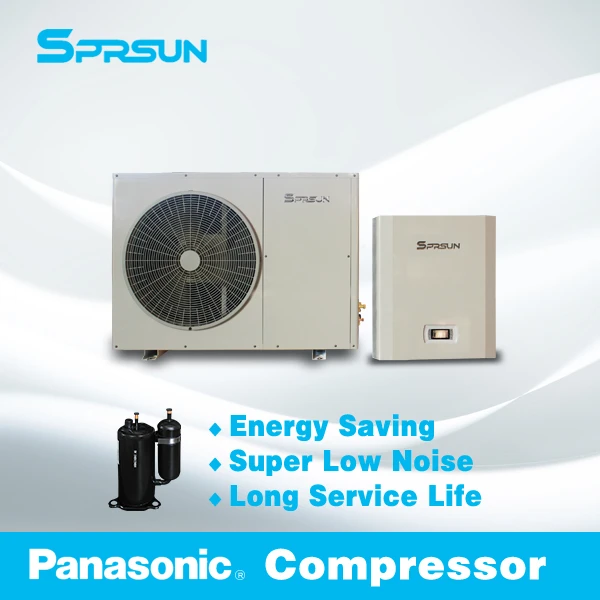

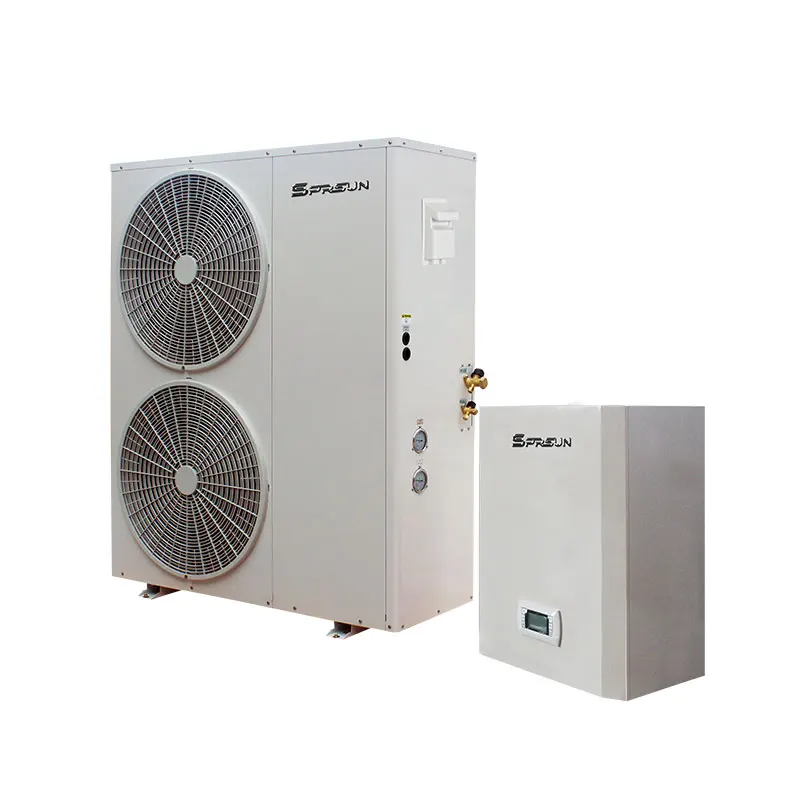

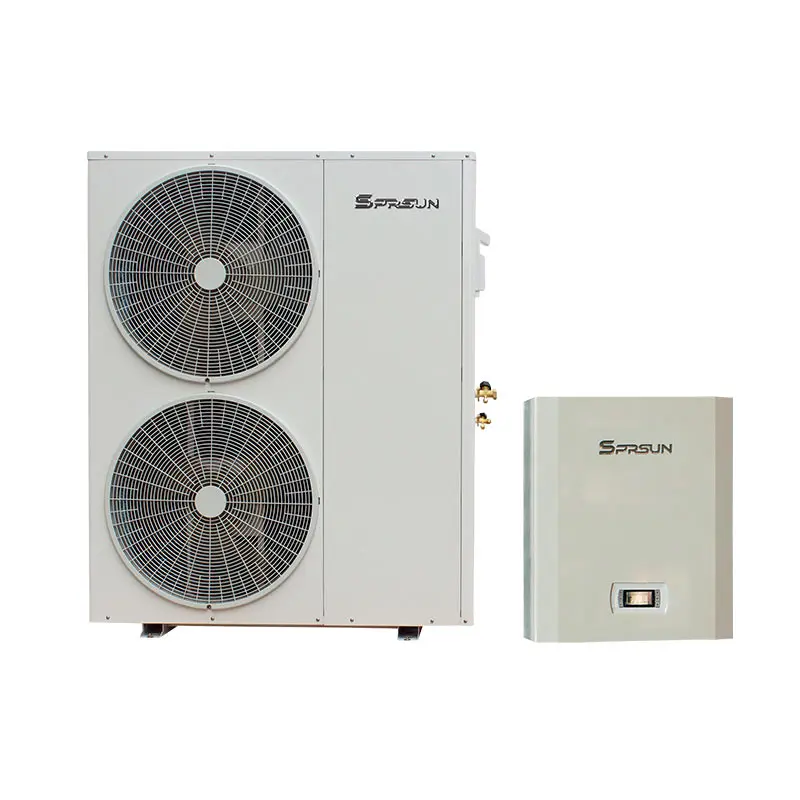

Europe Best Selling Heat Pump 9KW 16KW 18KW 220V R410A Heatpump Air Source Inverter split Heat Pump
- Category: Water Heaters >>>
- Supplier: Guangzhou Sprsun New Energy Technology Development Co. Ltd.
Share on (62554968336):
Product Overview
Description
Products Description
Model | CGK030V2LS | CGK050V2LS | CGK060V2LS | |||
Power Supply | V | 220V~240V/50Hz or 60Hz/1ph | ||||
Refrigerant | R410A | |||||
Heating Capacity | KW | 9.6 | 16.8 | 18.8 | ||
Input Power | KW | 2.157 | 3.75 | 4.282 | ||
COP | 4.45 | 4.48 | 4.39 | |||
Cooling capacity | KW | 7.9 | 13.9 | 15.6 | ||
Input power of cooling | KW | 2.688 | 4.672 | 5.335 | ||
EER | 3.50 | 3.48 | 3.30 | |||
Rated current | A | 10.3 | 17.9 | 20.5 | ||
Fan motor power | W | 100 | 200 | 210 | ||
Fan motor quantity | Piece | 1 | 2 | 2 | ||
Water Flow | L/s | 0.29~0.76 | 0.5~1.34 | 0.56~1.50 | ||
Water Pressure Drop | Kpa | ≤20 | ≤23 | ≤25 | ||
Net Weight | kg | 112 | 152 | 152 | ||
Gross Weight | kg | 156 | 205 | 205 | ||
Noise | db | 59 | 62 | 63 | ||
Waterproof Grade | IPX4 | |||||
Electric Shock Proof Grade | I | |||||
Expansion Tank | L | 5 | 5 | 5 | ||
Electric Heate | KW | 3 | 3 | 3 | ||

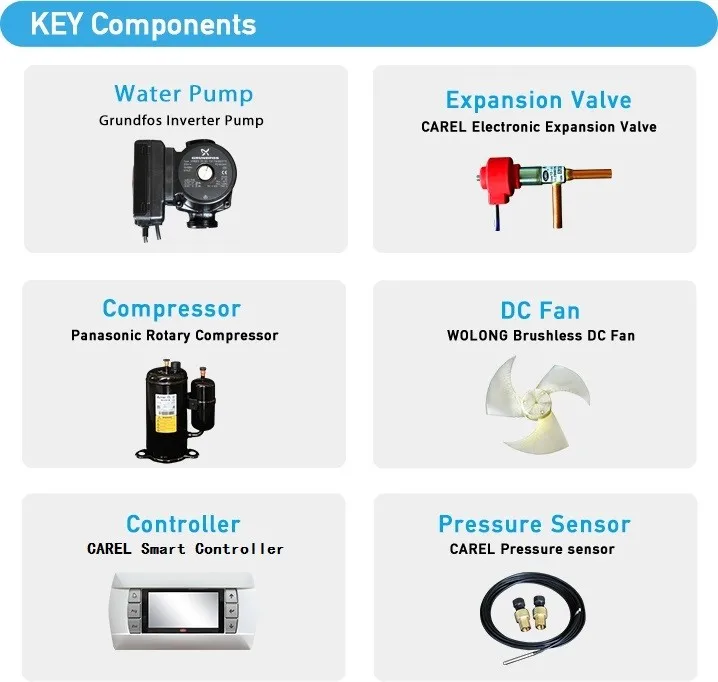

Grundfos Inverter Pump | UPMGEO 25-85-130 | |||||
Outdoor Unit Size（L×D×H) | mm | 1100*490*810 | 1110*475*1355 | 1110*475*1355 | ||
Indoor Unit Size（L×D×H) | mm | 550*325*650 | 550*325*650 | 550*325*650 | ||

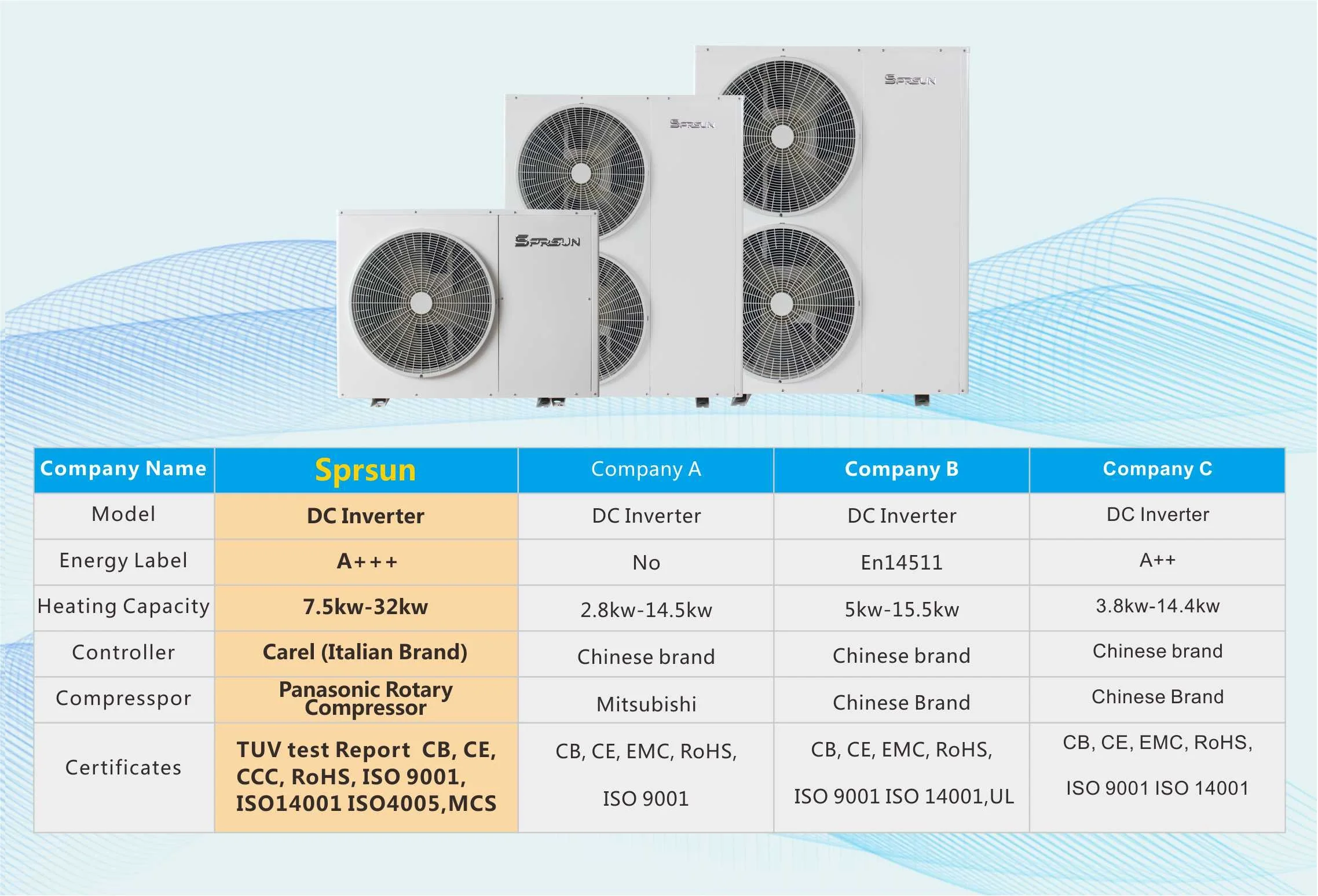

SPRSUN vs. Other Heat Pumps

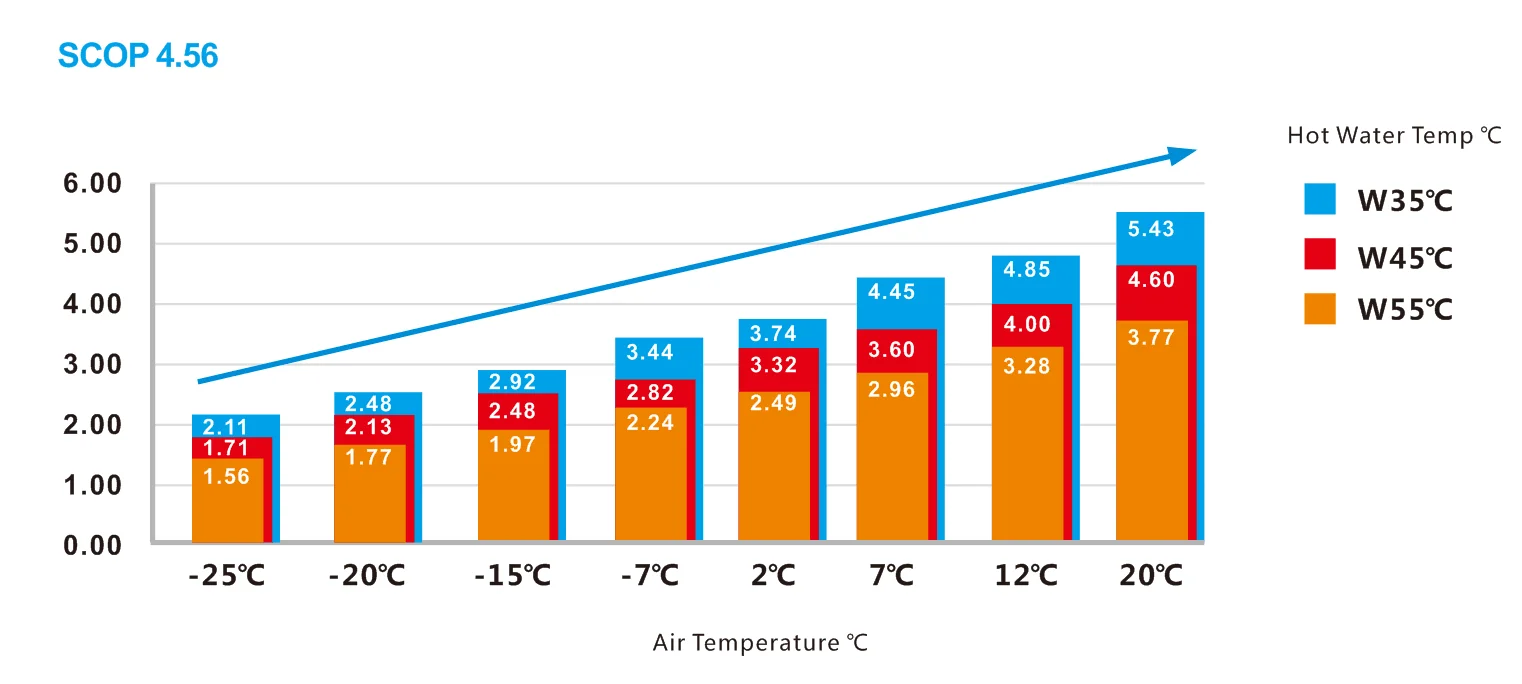

The ERP energy label gives an indication of energy efficiency in products. A rating system of A to G is used to rate the efficiency of products such as heat pumps. by TUV SUD, which is the highest rating available. This rating indicates that The new DC inverter heat pumps from SPRSUN have been rated ERP A+++ our air source heat pumps have low energy consumption and a high coefficient with SCOP of 4.56.of performance (COP). The highly energy-efficient DC inverter heat pumps use more than 30% less energy than other air source heat pumps.

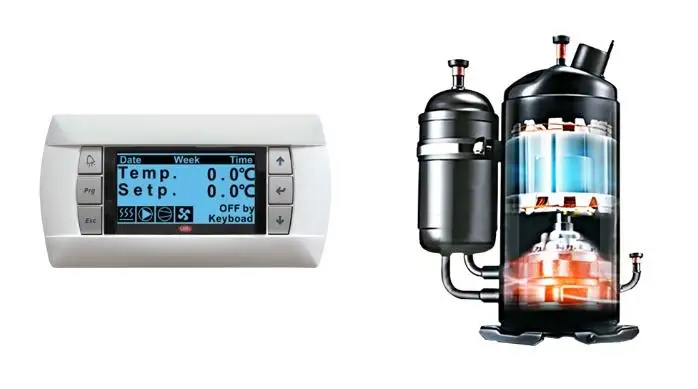

Before the indoor temperature reaches the set value, the Panasonic rotary compressor delivers high levels of efficiency, enabling the unit to operate at high frequency so that it can heat water or provide house heating/cooling at a faster speed.

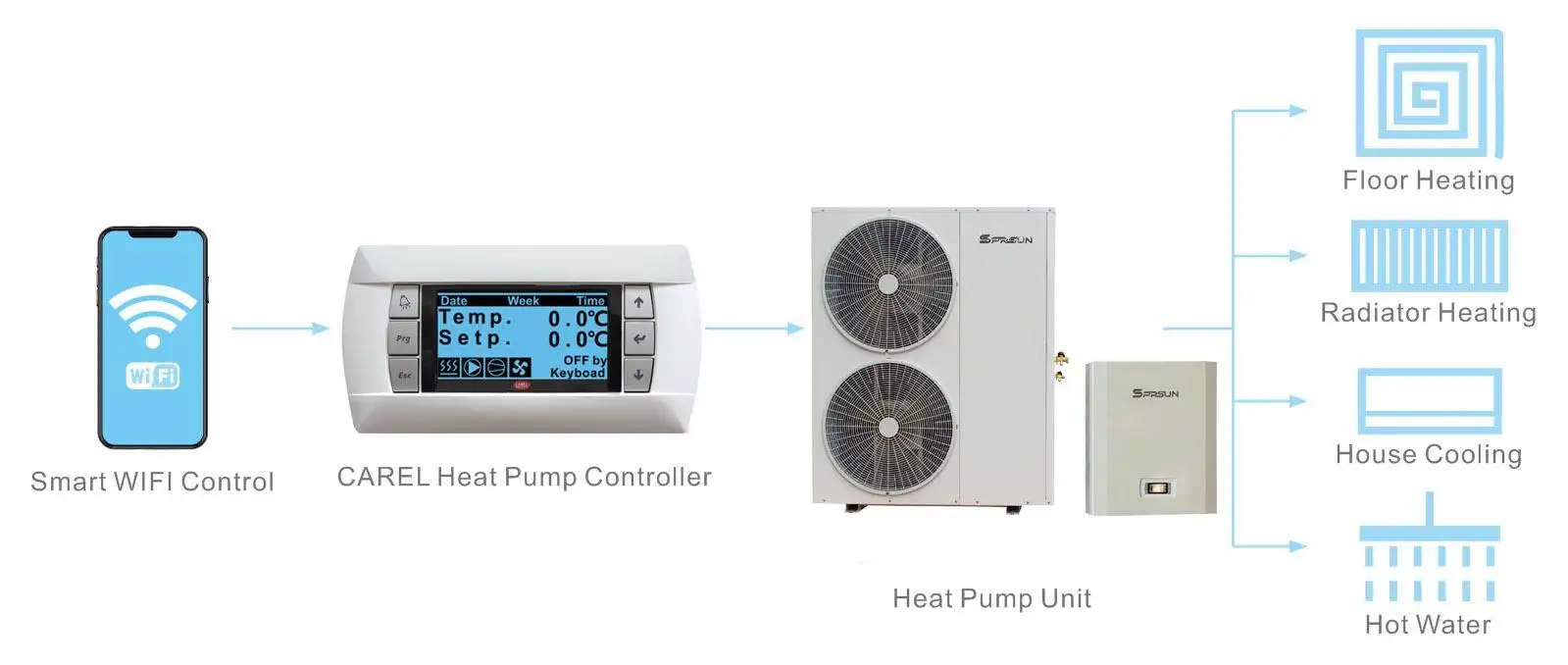

The intelligent CAREL controller with RS485 is adopted to realize the linkage control between the heat pump unit and the terminal application end. With the Cascade function, multiple heat pumps can be controlled at once for greater operating efficiency. The WIFI APP enables users to operate their units through a smart phone wherever and whenever they are.

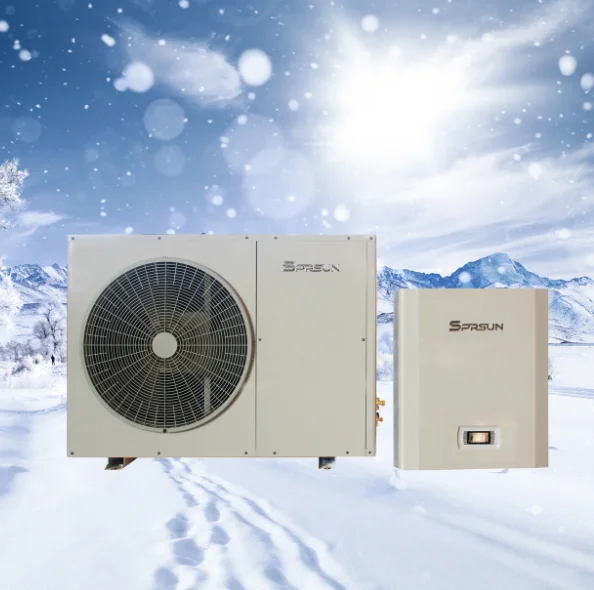

With the use of DC inverter compressor and DC inverter controller, it can automatically increase the operating frequency according to the ambient temperature and greatly improve the heating capacity in low temperature environment. Use the Enhanced Vapor Injection (EVI) Technology Rotary Panasonic Compressor, the Split Type EVI DC Inverter Heat Pumps work stably in cold weather where lowest air temperature reaches -25℃.

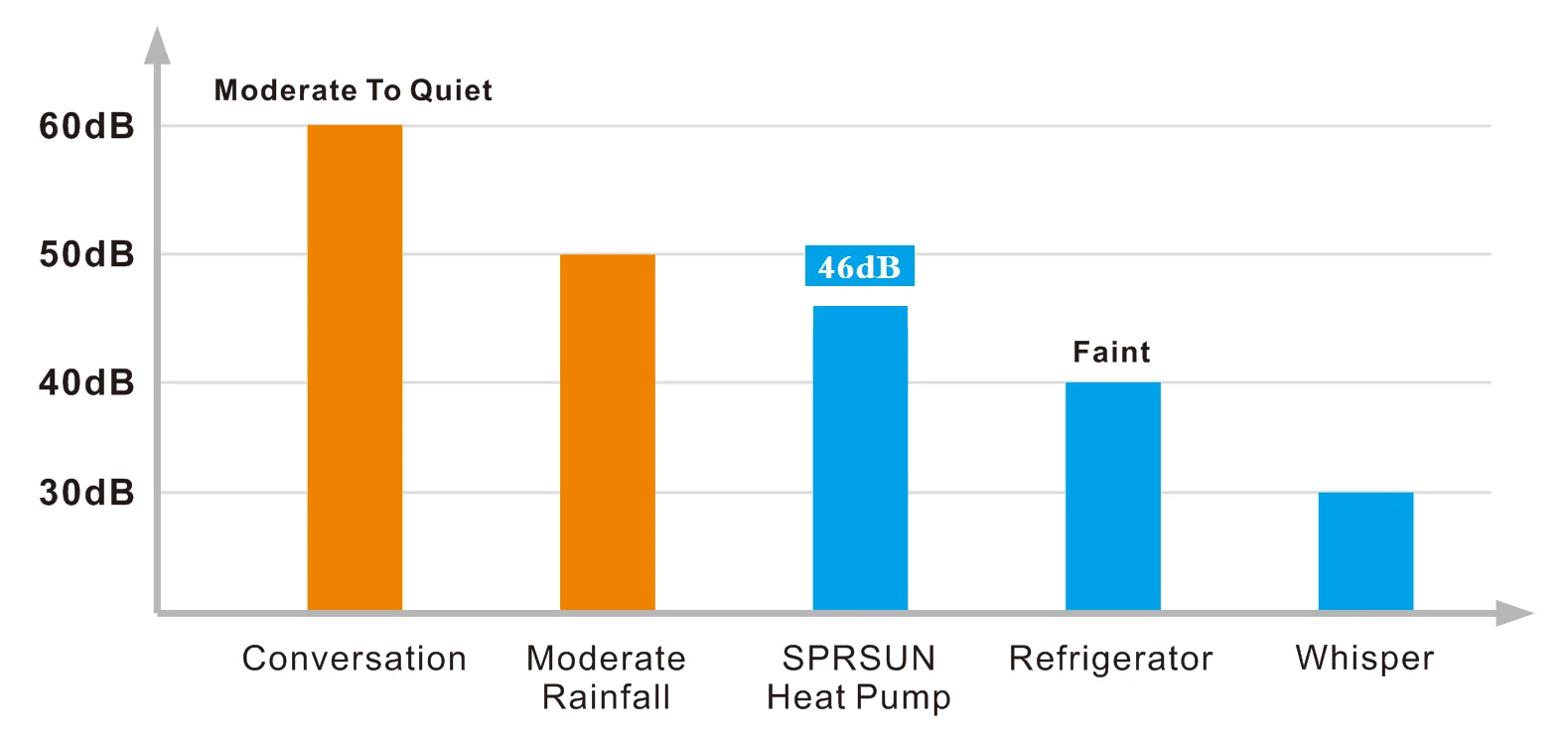

With Panasonic rotary compressor and DC inverter brushless fans, our DC inverter heat pumps adopt new noise reduction measures so that the sound of the unit is controlled at a satisfactory level. SPRSUN Full Inverter Heat Pump Series can realize low noise running of 70dB(A) when testing at sound power, equivalent to 46dB when testing at 1 meter.

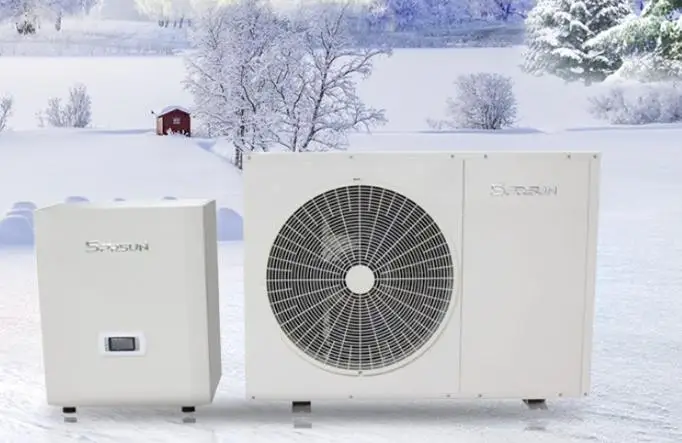

Consisting of an indoor unit that blows air over evaporator coils and an outdoor unit that powers the system, split heat pumps have many advantages to offer homeowners. For example, the split model design can better avoid freezing problems. The system will implement automatic anti-freezing protection by detecting system water temperature.

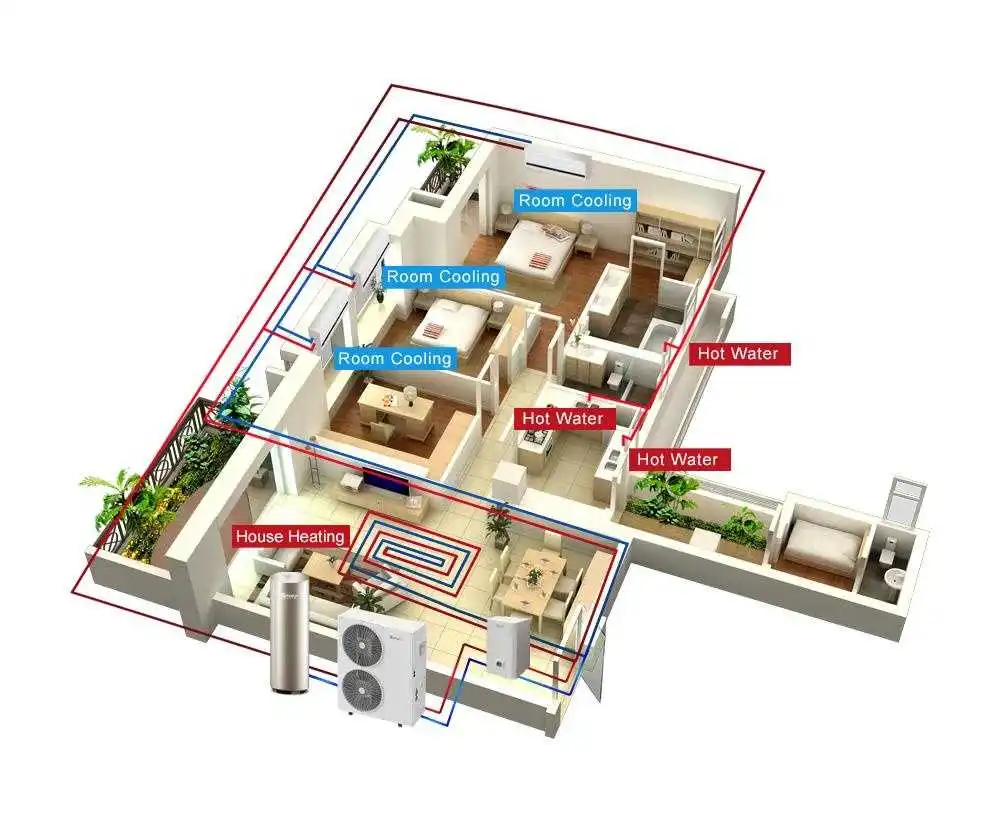

Mode 1 Central Hot Water: Constant Temperature, Sufficient Water Volume, 24-hour Instant Supply
Mode 2 Central Cooling: Water Cooled Air Conditioning, Soft Air Supply, Comfortable for Human Body.
Mode 3 Whole House Heating: Water Cycled Floor Heating, Well-distributed Heat Dissipation, Healthy & Energy Saving.
Mode 4 Hot Water + House Cooling: Meet the Requirements of Both Central Hot Water and Air Conditioning.
Mode 5 Hot Water + House Heating: Meet the Requirements of Both Central Hot Water and Room Heating.
Mode 2 Central Cooling: Water Cooled Air Conditioning, Soft Air Supply, Comfortable for Human Body.
Mode 3 Whole House Heating: Water Cycled Floor Heating, Well-distributed Heat Dissipation, Healthy & Energy Saving.
Mode 4 Hot Water + House Cooling: Meet the Requirements of Both Central Hot Water and Air Conditioning.
Mode 5 Hot Water + House Heating: Meet the Requirements of Both Central Hot Water and Room Heating.
Q1 Are you a manufacturer?
A: Yes, we are a professional heat pump manufacturer since 1999, with experienced and improved R&D, production, sales and service supply.
Q2: What are your main products?
A: Our main products include dc inverter heat pumps, air source heat pump water heaters, swimming pool heat pumps, EVI heat pumps for cold areas and so on.
Q3: How to place an order?
A: Please send us an inquiry or contact us with online service; after receiving your inquiry, we will reply to you with our
catalogue, quotation and other information you need.
catalogue, quotation and other information you need.
Q4: Do you provide OEM/ODM customized manufacturing service?
A: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce Europe standard heat pumps under your brand and according to your special needs.
Q5: Can I apply to become your heat pump distributor/reseller?
A: Yes, we are currently looking for more heat pump distributors/resellers across the globe, who can distribute our heat pump products in their local countries.
