Passenger lift elevators with granite parquet
- Category: Elevators >>>
- Supplier: Lingzhi Elevator Co. Ltd.
Share on (62555016620):
Product Overview
Description
Specification

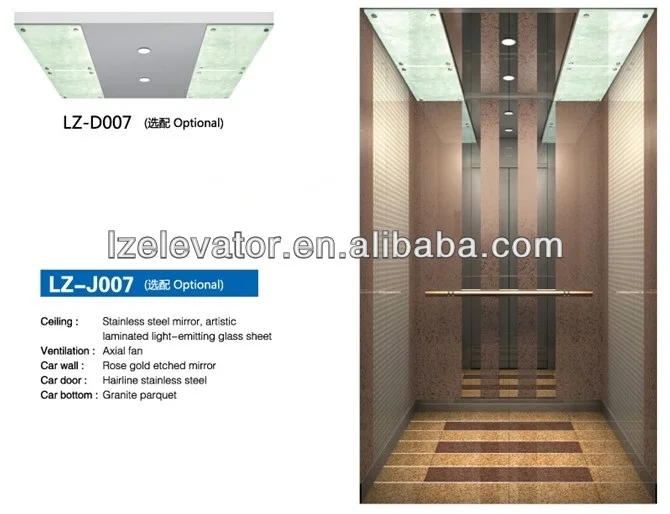

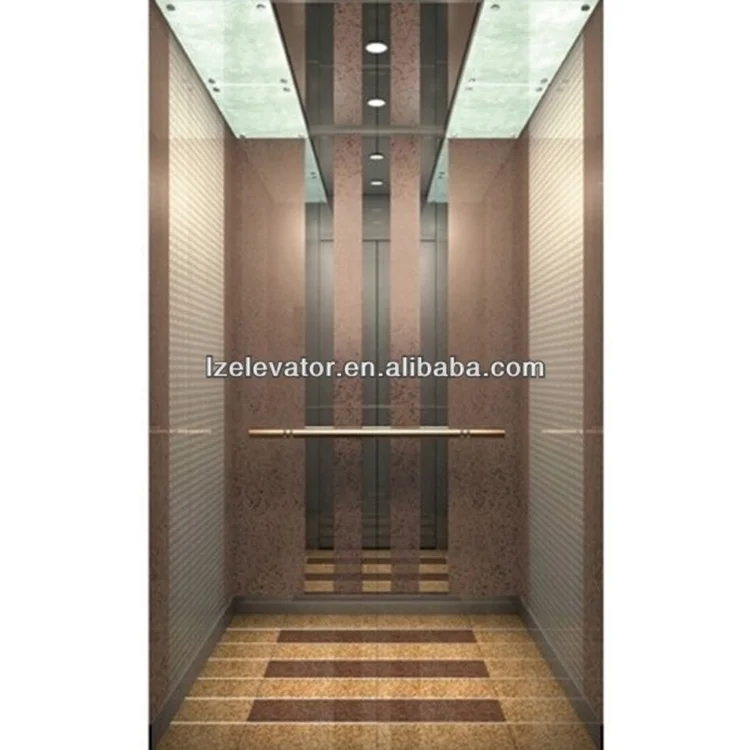

Passenger lift elevators with granite parquet
1.Persons: 16
2.Capacity: 1250kgs
3.Speed: 1.5m/s m/s
4.Modern design for car decoration
1.Passenger lift elevators with granite parquet specification
| Loading capacity | Rated speed | Door opening size | Door open type | Car size | Hoistway size | Machine room size | ||
| (Passengers) | (W x H)mm | (A x B)mm | (AH x BH)mm | Pit | OH | (W x D x H)mm | ||
| 450kg | 1.0 | 800x2100 | Center | 1400x850 | 2000x1550 | 1500 | 4500 | 2500x3200x2500 |
| 6 passengers | 1.5 1.75 | 1600 | ||||||
| 630kg | 1.0 | 800x2100 | Center | 1400x1100 | 2000x1750 | 1500 | 4500 | 2500x3600x2500 |
| 8 passengers | 1.5 1.75 | 1600 | ||||||
| 800kg | 1.0 | 800x2100 | Center | 1400x1350 | 2000x2000 | 1500 | 4500 | 2500x3800x2600 |
| 10 passengers | 1.5 1.75 | 1600 | ||||||
| 1000kg | 1.0 | 900x2100 | Center | 1600x1400 | 2200x2150 | 1500 | 4500 | 3000x4000x2600 |
| 13 passengers | 1.5 1.75 | 1600 | ||||||
| 1250kg | 1.0 | 1100x2100 | Center | 2000x1400 | 2600x2150 | 1500 | 4500 | 4000x4500x3000 |
| 16 passengers | 1.5 1.75 | 1600 | 4700 | |||||
| 1350kg | 1.0 | 1100x2100 | Center | 2000x1500 | 2600x2250 | 1500 | 4500 | 4000x4500x3000 |
| 18 passengers | 1.5 1.75 | 1600 | 4700 | |||||
| 1600kg | 1.0 | 1100x2100 | Center | 2000x1750 | 2600x2500 | 1500 | 4500 | 4000x4500x3000 |
| 21 passengers | 1.5 1.75 | 1600 | 4700 | |||||
2.Lift Elevator functions
1.Variable Frequency Control System, Microcomputer Control
2.Variable Frequency Door Operator
3.Infrared Ray Curtain For Door Protection Device
4.Overload protection Device
5.Internal Call System
6.Collective Selective Control
7.Each Floor Display Function
8.Emergency fire operation
9.Emergency Light Device
10.Alarm Contact Device
11.Lighting Automatically Shut Off And Delay Function
12.Over Speed Protection Device
13.Emergency Power Operation
14.Anti-Nuisance Car Call Protection
15.Door Overload Protection Device
16.Speech Synthesis Service
17.Emergency Unlocking Device
18.Landing Direction
19.Landing Direction Indicator
3.The advantageous performances
1. Deticated multi-functional, all-digital conversion syetems, precise control of the elevator running state,
the perfect running curve allows you to enjoy a comfortable ride feel.
2. Mature technology, advanced security detection systems and protective devices, ensure that you and your
family perfectly safe.
3. High compatibility, not only meet European standards, but also more in line China´s national standards.

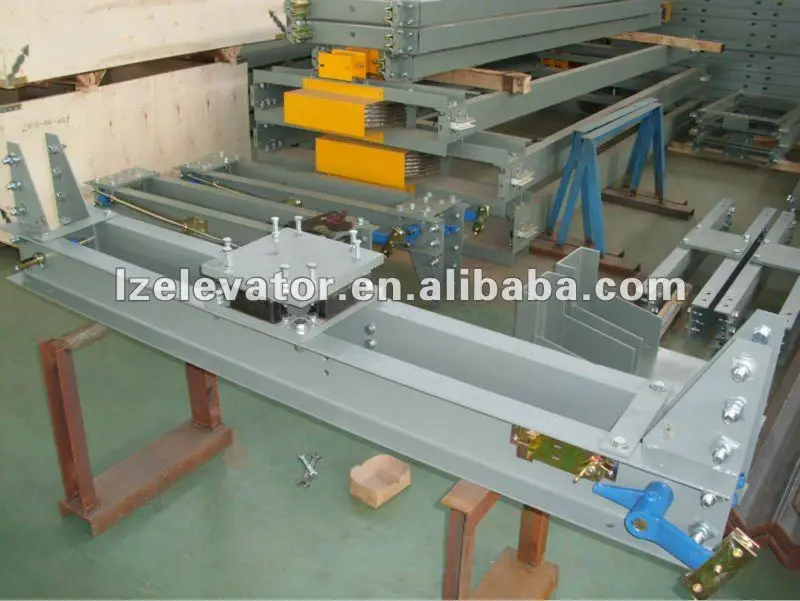

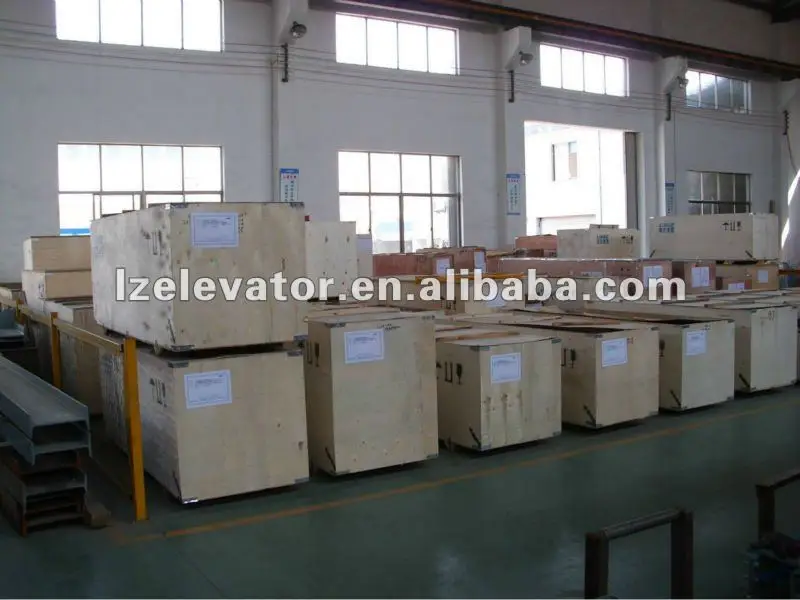

4.Photograph exhibition
We have professional production team, Installation personnel and good sales team,
we warm welcome you come and visit our factory!
If any questions pls feel free to contact us!
