Stainless Steel tube production line pipe making machine duct forming line for sale

Product Overview

Description

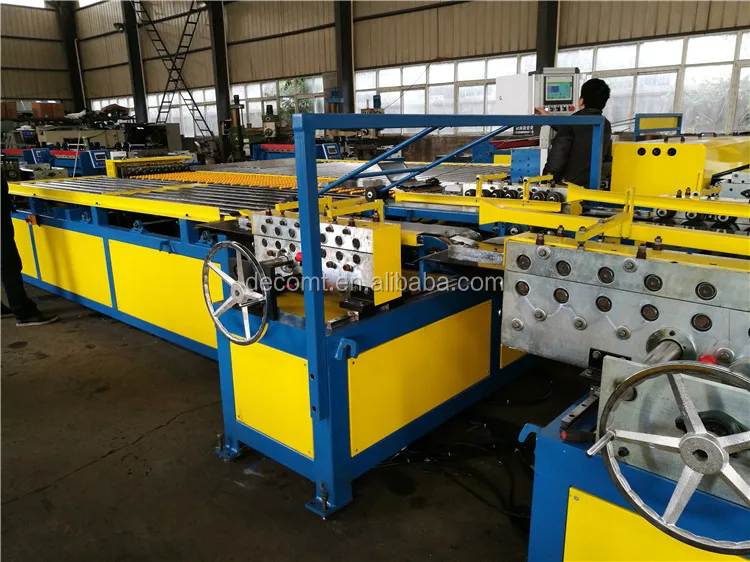

Stainless Steel tube production line pipe making machine duct forming line



Performance Features:

   · Honest strengthens the basis in the pursuit of customer satisfaction and constant innovation

 helps customers to achieve the goals.

   ·  During feeding mechanism with pneumatic servo manipulator helps to ensure stability and

 speed of the machine, and the accuracy of its locating system.

   ·   It only takes 20-25 seconds to make one L-shaped workpiece and the efficiency will double

 comparing with the linear type.

   ·  Without moving back and forth the fixed locking machine is able to improve the efficiency.

   ·  All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.

   ·  Under the material-saving mode of CNC system, waste is less than 20 mm per roll.

   ·  With production memory functions, the production orders can be tracked and checked.

Technical details:

Model No.	Max Coil Width	Thickness Range	Speed	Power	dimensions	Shearing Tolerance	Diagonal Tolerance	Weight
U-BYL5-1.2x1300	1300mm	0.4-1.2mm	0-18m/min	36kw	14*5*1.5m	±0.5mm	±0.5mm	12ton
U-BYL5-1.2x1600	1600mm	0.4-1.2mm	0-18m/min	36kw	14*5*1.5m	±0.5mm	±0.5mm	12.5ton



Function:

It's mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of

1000-2500 square meters. Only with inputting dimensions in duct, production line can

automatically complete uncoiling, leveling,beading, punching, shearing, locking, forming TDF /

angle steel / C-shaped flange and folding.



Main import Configuration:

· MITSUBISHI HMI Display And PLC

· MITSUBISHI Frequency Converter

· Japan NEMICON Inverter

· Taiwan Hydromax Pump

· Taiwan High Temperature Resistant Tubing





Basic Configuration:

       · Two electric coil cradles, 4 material trays (5-7 t each roll)

       · One rack

       · One host (line 2 host)

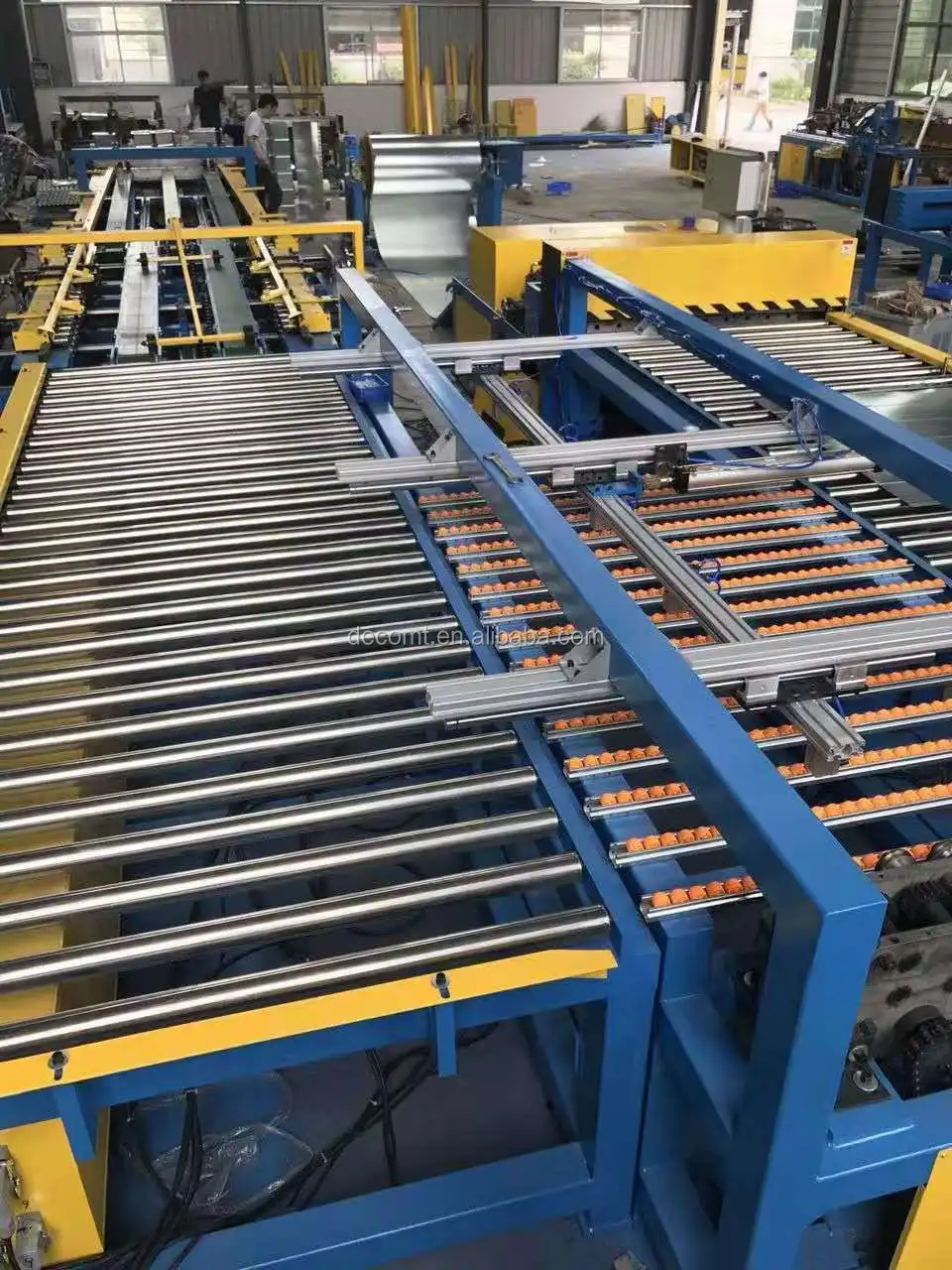

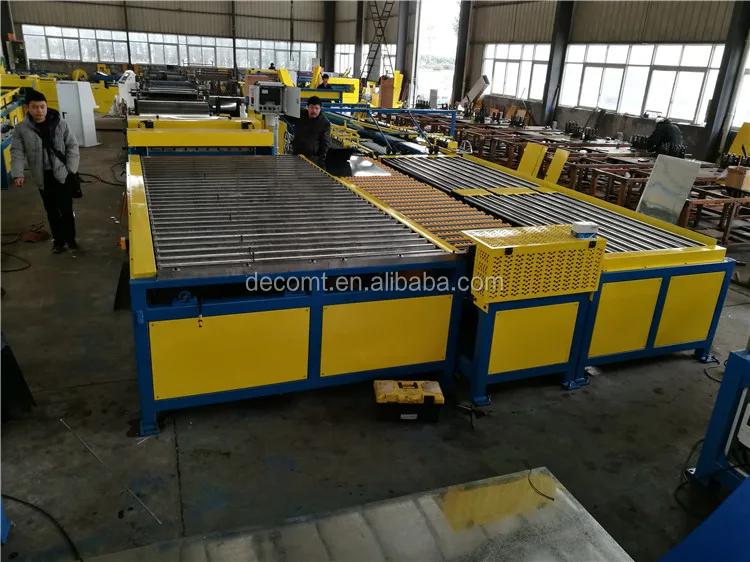

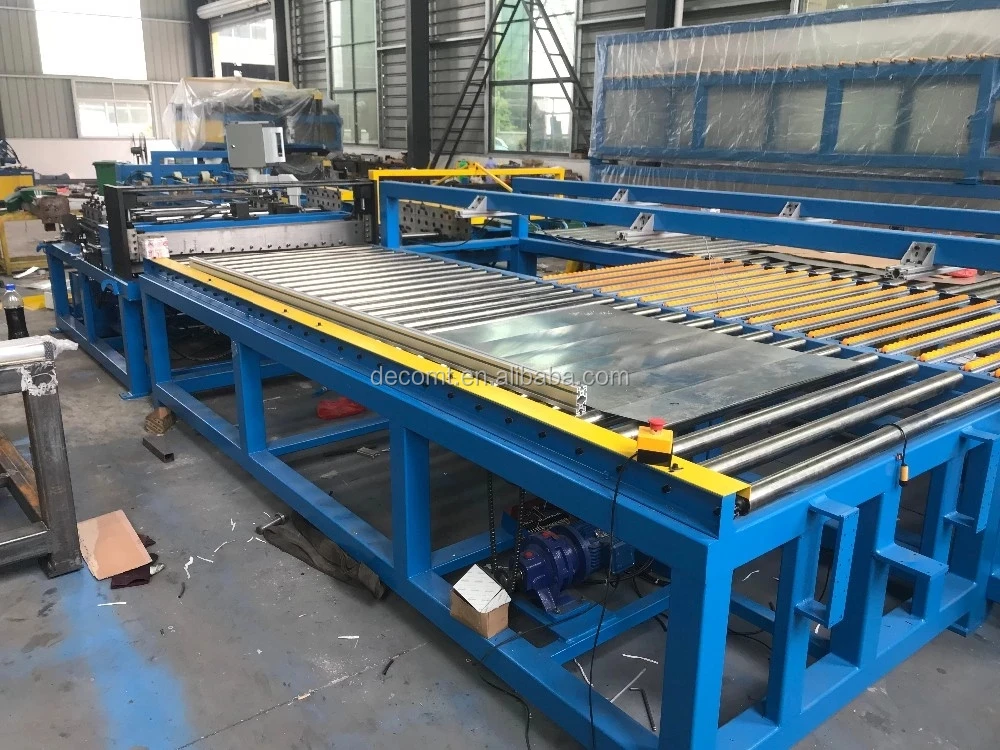

   ·  Two stainless steel roller convey platforms

   ·  One fixed joint locking machine

   ·  One duplex TDF flange forming machine

   ·  One duplex angle steel flange forming machine

   ·  One servo feeding platform

   ·  One hydraulic folding machine

   ·  One set of computer controlling system



FAQ:

1. Are you manufacturer or trading company?

    We are manufacturer.

2. What shall we do if don't know how to operate your machine?
    We can dispatch our engineers to your country and you can also send your engineers to our

    factory for learning operation. Besides, there are detailed installation and operating instructions

    attached, it is very simple. We have telephone and email support at 24 hours per day.

 3. What are your payment terms?
    We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance

    before the shipment.

 4. OEM is available?

    Yes.
