DP 9600G 6HP 4500W Diesel Engine Hydraulic Driven Airless Paint Sprayer
- Category: >>>
- Supplier: Ningbo Dino-Power Machinery Co. Ltd.
Share on (62555081241):
Product Overview
Description

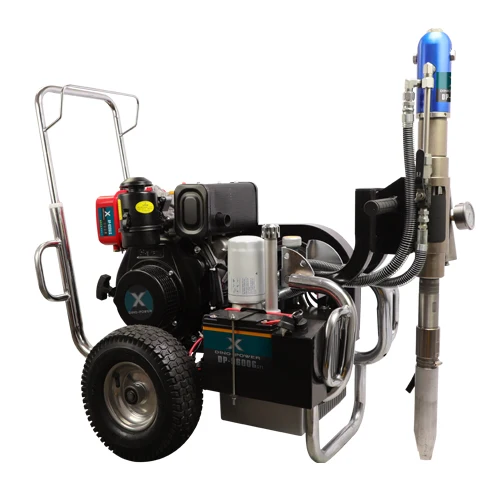

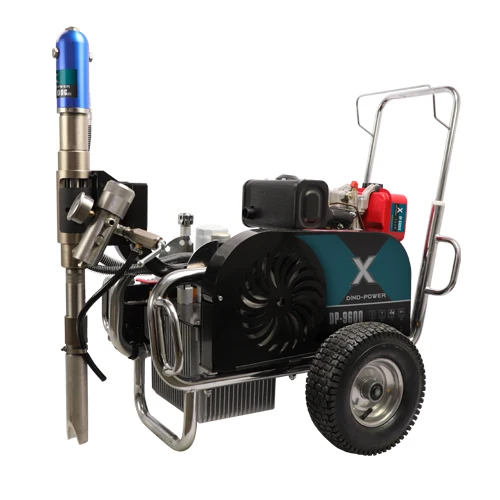

DP-9600G 6HP 4500W Diesel Engine Hydraulic Driven Airless Paint Sprayer
Model Number | DP-9600G |
Machine Power | Diesel powered |
Motor power | 6HP 4500W |
Motor type | Domestic diesel engine |
Flow rate | 12.0 L/min |
Max. tip size | 0.056”* 1 gun |
Max. hose length | 90m |
Max.pressure | 228bar / 3300psi |
Net weight | 89kgs |
Package | wooden case |
Measurement | 120*75*120 cm |
Container load quantity | 30sets/20ft |
| Hydraulic oil | DTE24 32# total 13 Liters |
Tank capacity | 13L |
The DP-9600G Airless paint sprayer is Heavy duty Hydraulic driven Piston Pump sprayer. which is powered by Diesel engine.Ideal for high viscosity materials, multi-gun use and working at heights. Sprays bituminous and fire retardant / fireproofing material, bitumen, epoxy, putty, plaster, spackling, block filler, gypsum,dry wall mud, white cement, all kinds of high viscosity materials or even 100% solid heavy material.
Features of DP-9600G Diesel Engine Hydraulic Airless High-Pressure Spraying Unit (Belt driven ):
Powerful high-performance pump -the power pack for large building projects and applying high viscosity materials.
The material pump of the Heavy duty units is driven by hydraulic motor which is imported from Taiwan
This has advantage that the shovel piston has a distinctly longer and slower stroke than with direct drive electric pumps.
Our own improved bigger oil tank which contains of 13L hydraulic oil inside, much bigger than Wagner original machine which is only 5L. The more oil inside, the less temperature machine is operating, and less wearing for the spare parts.
The low wear rate and the equipment are further positive aspects of hydraulic technology.
The wear surfaces of cylinder and piston rod are coated with an extremely wear resistant layer of hard chrome, making them able to with-stand aggressive and abrasive materials.
The pressure can be smoothly regulated up to 230 bar for perfect matching.
Applications of hydraulic airless sprayer (gasoline engine powered):
Indoors :
Large interior wall surfaces requiring a high level of productivity and surfaces coverage power:e.g. Primers, latex paints, emulsions and all other water diluted and solvent based materials
Applications of fillers (airless spray fillers)
Flame proofing / fireproofing, putty / plaster, gypsum,
Outdoors :
Exterior wall surfaces
Roof coatings
Thick coating materials
Bituminous paints
Corrosion proofing
Inorganic zinc and micaceous iron paints basement sealants.
Other :
– Fabric and other adhesives
– epoxy paint
– polyurethane paint
FAQ
Q1:HOW LONG CAN I GET THE FEEDBACKS AFTER WE SENT THE INQUIRY?
Your inquiries will be replied within 1 working day.
Q2: WHAT’S THE PAYMENT TERM?
Sample order, 100% before shipment. Formal order, 30% deposit before production and 70% balance against copy of BL. Normally by T/T.
L/C at sight, Paypal, West Union is acceptable depends on the amount.
Q3:WHAT IS YOUR DELIVERY TIME?
Normally 7 days for the sample order, 25~35 days for the formal orders.
Q4:WHAT IS YOUR WARRANTY TERM?
1 Year warranty for main components(Easy damaged parts are not included.)
Q5:CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
OEM is available. The delivery time will be 35-50 days depend on order quantity and the MOQ will be different based on different models.
Q6: CAN I CHECK THE QUALITY OF GOODS BEFORE DELIVERY?
A:You can come to our factory or ask colleagues from your Chinese office or a third party inspection company to check the quality of goods before delivery.
B:We also can provide inspection report to you before shipping.
