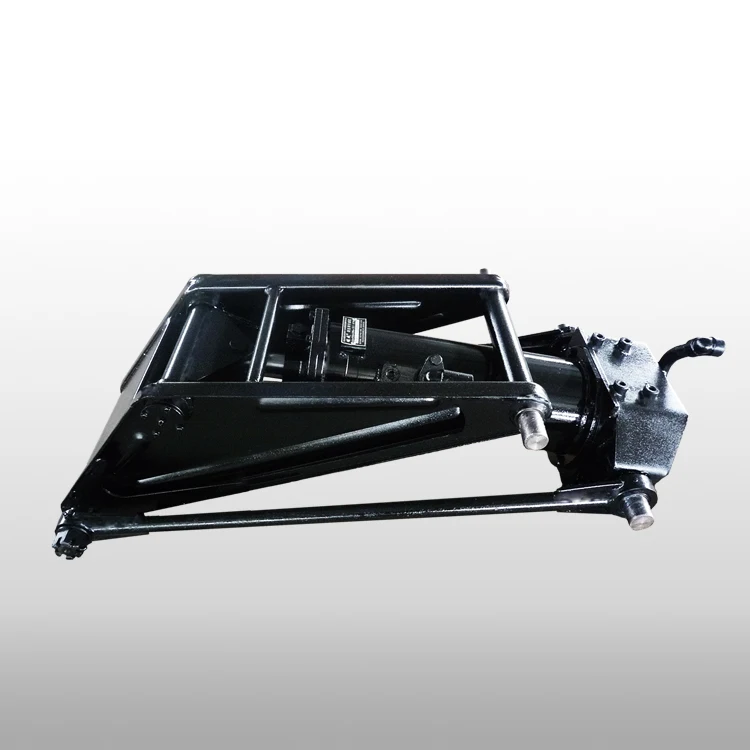

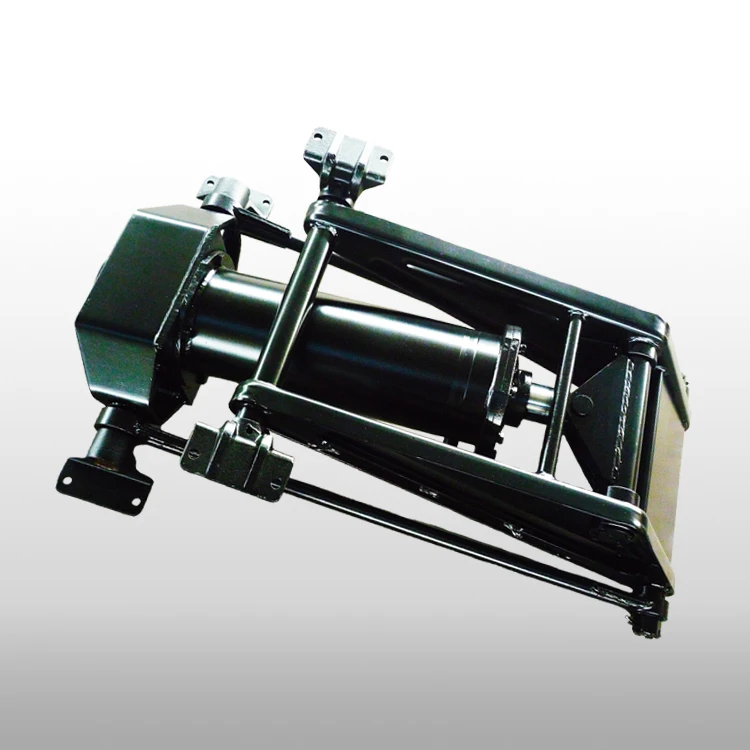

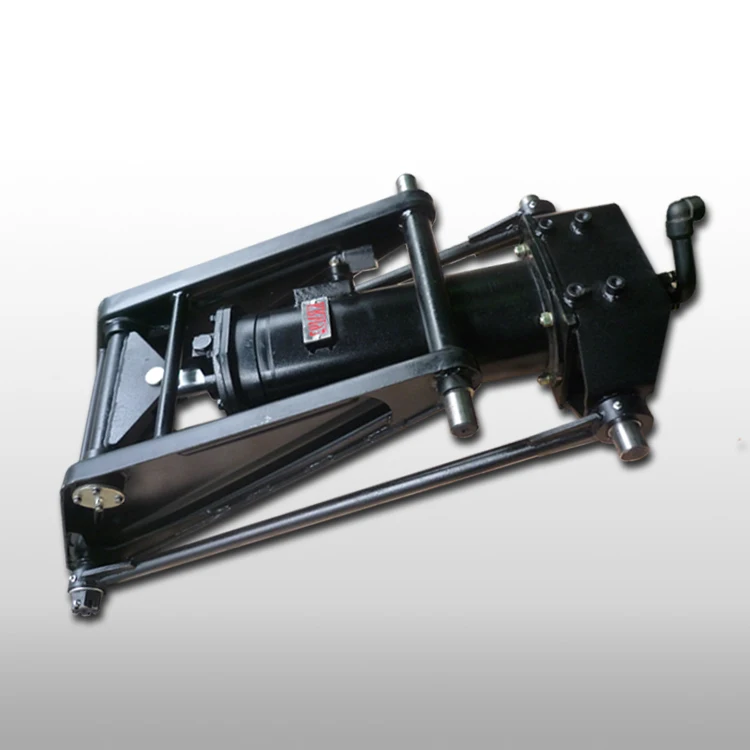

2 ton KRM92 hydraulic tipping cylinder mechanism for dump truck
- Category: >>>
- Supplier: Liuzhou Shuangji Machinery Co. Ltd.
Share on (62555151008):
Product Overview
Description
hydraulic dump tipping cylinder for tipper lorry truck
products description
1. Using new rolling technology to ensure high precision for the inside hole of cylinder.
2. The thickness of cylinder is up to 16mm,it can meet the strength requirement when the truck is overloaded.
3. Using 3 seal-rings to seal piston rod ,it can be lifetime used.
4. Automated cleaning equipment to ensure the cleanliness of cylinder tube.

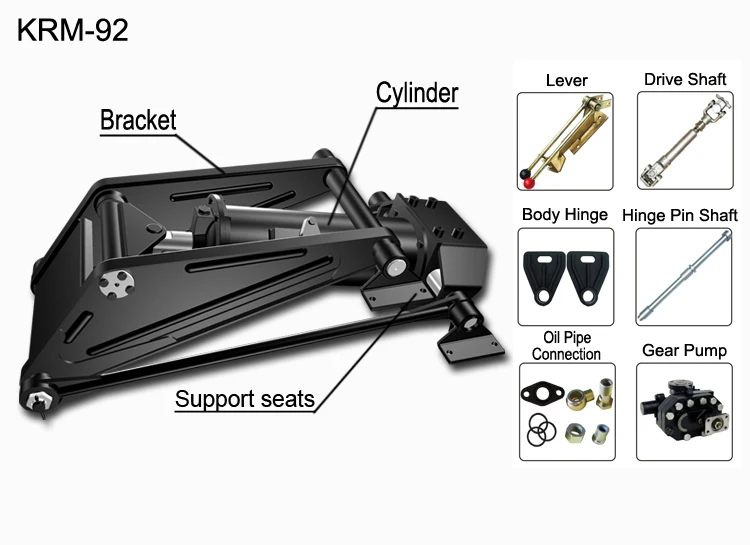

KRM92 Hoist mechanism, Dimension and weight (approx.)
| ||||
length (mm) | Width (mm) | Height (mm) | Min.closed length (mm) | Weight (kg)
|
1120 | 528 | 350 | 749 | 122
|
KRM92 Hoist cylinder and pump conbination specificatioj (approx.)
| |||||
KRM92 Hoist cylinder | Working pressure (MPa) (kgf/cm2) | 6.4 |
KP-35B Gear pump | Rotating speed (rpm) | 800 |
65 | Discharge volume (ml/rev.) | 35 | |||
| Inner diameter (mm) | 160 | Max.Testing Pressure (MPa) (kgf/cm2) | |||
| Stroke (mm) | 405 | 17.2 | |||
| Min.close distance (mm) | 666 | 175 | |||
| Piston rod diameter (mm) | 45 | weight (kg) | 10 | ||
Max.pressure (MPa) (kgf/cm2) | 14.7 | ||||
| 150 | |||||
| KRM92 Hoist mounting and maximum lifting capacity | ||||||
Recommended truck G.W
(kg) | Body length
(mm) | Rear Overhang length
(mm) | Distance between load center and hinge (mm) | Distance between trunnion and hinge (mm) | Rated lifting capacity
(kg) | Designed Max.lifting capacity (kg)(including load weight) |
| ||||||

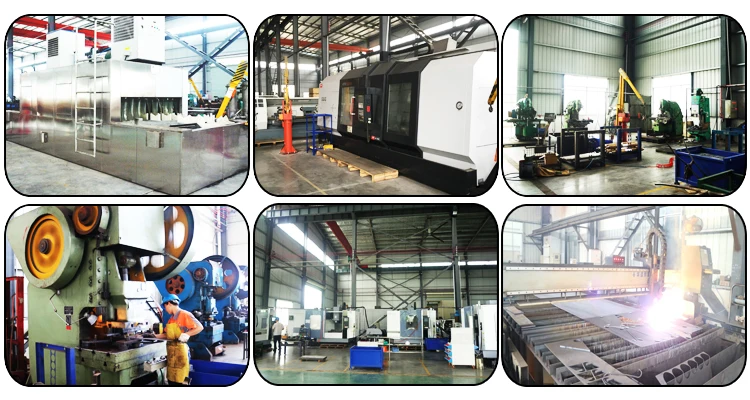

hydraulic tipper cylinders manufacturer procession

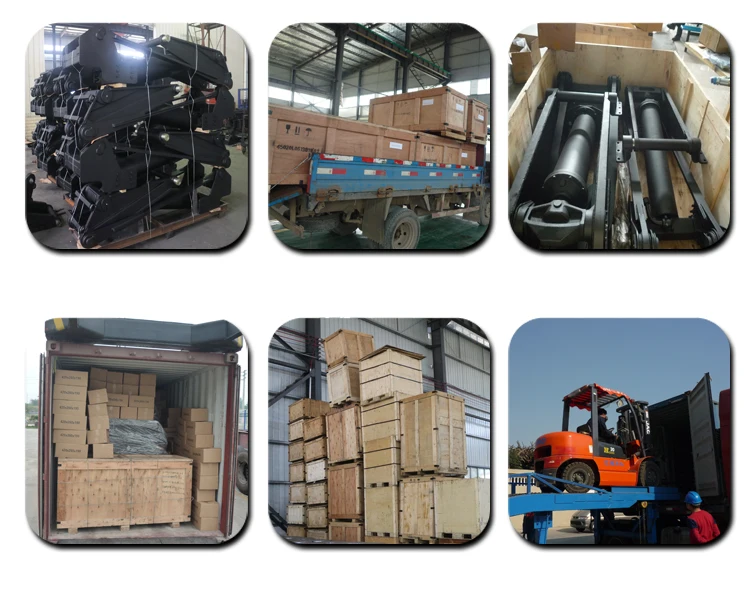

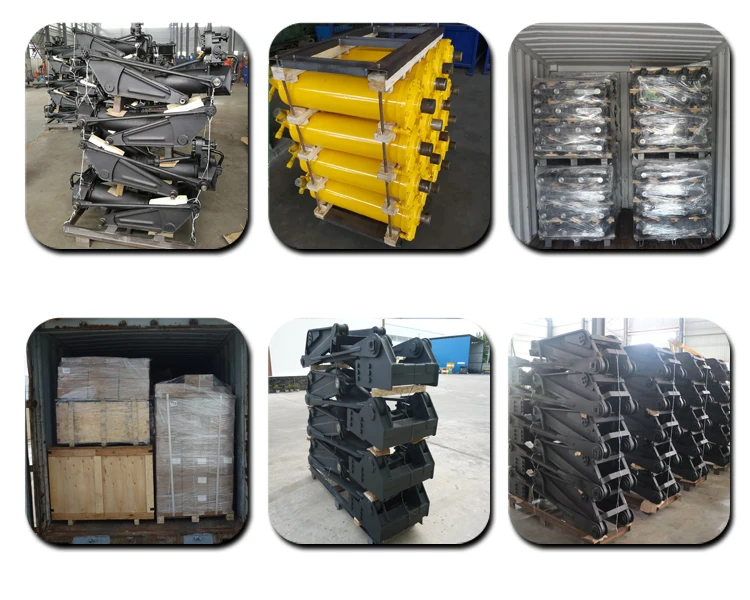

Packaging & Shipping
Good Choice of Shuangji hydraulic dump hoist
12 years manufacturer experience in hydraulic lifting industry.
Do you know what makes us walk such far ?
1. Competitive price
We are the manufacturer , and have lots of orders from domestic and foreign each year, so we can purchase the raw material with much cheaper price which will directly effects the price of the lifting machines.
2. Reliable quality
a. Material. Use the thickness of the rectangular tube is 5mm which make the whole machine more steady and durable.
b. Painting. We use the painting that can meet the international standard , which makes the surface of the machine more bright and smoothly, also not easy to remove or come off.
3. Good service
We have professional engineer team and R&D team. We can provide solution within 24 hours.
4. Keeping innovations
We welcome every recommendation and opinion from you and make progress together with you. We can design a new machine as your requirements, until your satisfaction.
How do we control our quality:
1. Cylinder products have to pass strict quality control from purchasing materials,processing,assembly ( we passed the certification of ISO/TS 16949:2009)
2. Automated cleaning equipment to ensure the cleanliness
3. Welding with CO2 arc and automatically grith welding, which can ensure the welding quality.
4. Full cylinder and power pack unit inspection, all products need to 100% pass the comprehensive test before delivery .
Company Information
Liuzhou Shuangji Machinery is an experienced and professional manufacturer of hydraulic cylinders and tail lift. With over 12 years' experience in manufacturing, we can produce all kinds of hydraulic cylinders and tail lift , Our products can be widely used in cargo truck, dump truck, tipper, and trailer for Japanese truck etc.

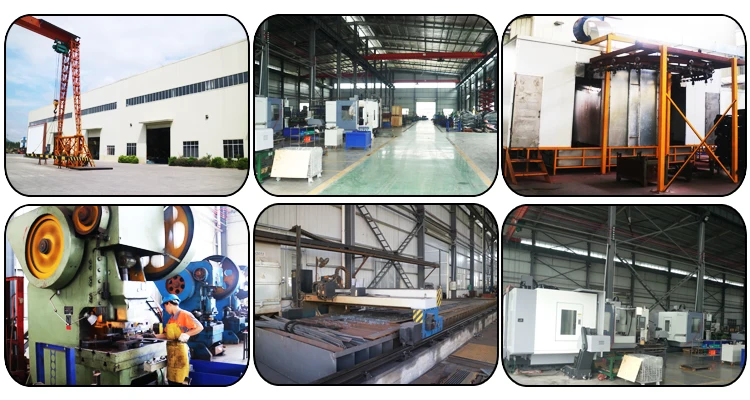

Our workshop and certification
Our Services
we are in exhibition
FAQ
Q1:Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage :Overload,polishing is not well controlled,bad seal kits. our products all designed to bear the overload power.We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q2:Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q3:Is your design reasonable? What about your product safe coefficient?
A:We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities . Rest assured.
Q4:What about the quality feedback of your products?
A: Guarantee the quality from the raw material. We have cold drawing production line and nickel-chrome electroplating production line , so we can produce cold-drawing pipe and hard-chrome pipe used for hydraulic cylinder.
Q5:How about the delivery time?
A: Over 200 sets advanced equipment to meet customer's large demand in short delivery time.Generally ,it's 15-20 days.
Q6:What 's the after-service?
A:If there is any quality issue, please send us photo or video. Our engineer team will give solution within 24 hours.
