<h2> Vacuum pressure impregnation equipment for motor coil insulation</h2>
Product Description
I Brief description and characteristics of Permanent Magnet Motor Paint Dipping Equipment
This kind of equipment is mainly used for insulation treatment to electrical products, such as high voltage motor, wind turbines, H-grade dry transformer, power capacitor and cable insulation materials, etc.
II Main components of Vacuum Pressure Impregnation Equipment
2.1 Vacuum pressure impregnating tank system, one
2.2 Paint storage tank system, one
2.3 Vacuum system, one
2.4 Hydraulic system, one
2.5 Water cooling system, one
2.6 Pressurized air drying system, one
2.7 Pneumatic valve system for repainting, one
2.8 Electric control system, one
2.9 Ventilating system, one
III Main illustrations and parameters
3.1 Vacuum-pressure impregnating tank system (2500 x 2500mm) vertical
3.1.1 Main parameters
Effective dimension | Φ2500 x 2200mm (H) |
Ultimate pressure | |
Working pressure | 0.5MPa |
Ultimate vacuity | 50 Pa |
Working vacuity | 80~10000Pa |
0.6Pa·m3/s | |
Tank body material | Q345R |
3.1.2 Tank structure:
l Vertical type with inspection hole lamp and inspection window.
l Liquid level display
l Air inlet and safety valve.
l Temperature: Room temperature- 80℃
l DN108 unloading mouth on the bottom
l Safety interlocking system, one set
l overpressure alarm and automatic decompression valve device, one set
3.2 Paint storage tank system
Tank structure
l Vertical type with inspection hole lamp and inspection window.
l Liquid level display
l DN20 stainless steel ball valve on the sample outlet and inlet parts,
l Magnetism paint filter 200 mesh.
Application
Permanent magnet motor paint dipping equipment, electric vehicle motor paint dipping equipment, new energy motor vacuum pressure paint dipping machine, hydrogen energy graphite board vacuum dip equipment, hydrogen energy graphite sheet dip equipment.vacuum dipping equipment.
Company Information

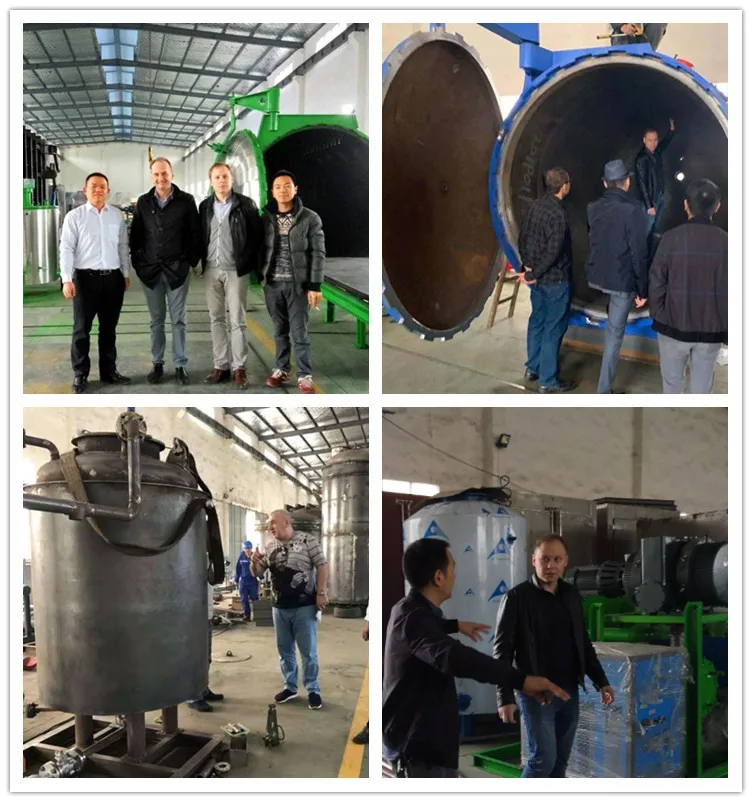

Clients Reference
