ATP bioluminescence detecting system tester meter

Product Overview

Description

ATP bioluminescence detecting system



3. Technical Parameters

Detection precision                          2X10-16mol ATP

Lower limit of detection                          ≤1.0 CFU/ml

Detection range              0~9999  RLU (relative light unit)

Coliforms                                  ≥1-106CFU

Detection time                              15s

Detection interference                         ±5%or ±5 RLUs

Background value                            ≤2RLU

Detection mode                       RLU or coliforms screening

Number of settable limit                       more than 100

Storage size                         more than 2000 detection results

USB interface                    the results can be transferred to PC computer

Instrument dimensions(W×H×D)             192mm×87mm×34mm

Instrument weight(Battery included)           265 g

Range of operating temperature                 5℃-40℃

Relative humidity range                        20-85%

Battery                                     AA battery

Resting state(20℃)                        6 months

1. Principle of Operation

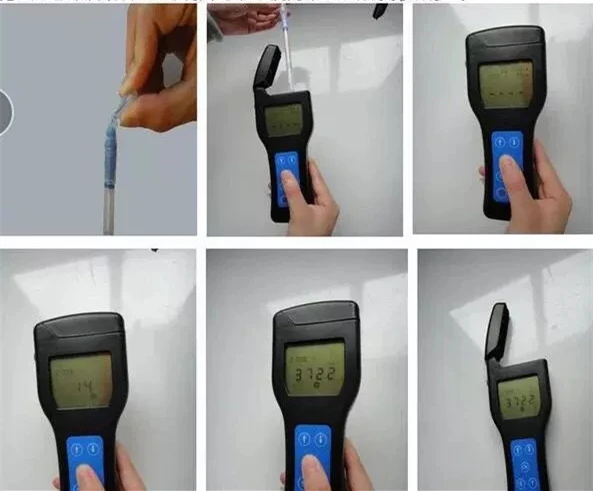

ATP bioluminescence detector converts invisible ATP concentration to visible light output by bioluminescent chemistry technology, to display a quantitative result of microbial population indirectly. The result is a number from 0 to 9999 in Relative Light Units(RLUs).  RLUs are not a kind of tangible unit of light measurement, but they can provide a real method to the ATP bioluminescent test. In this application, 1 RLU is roughly equivalent to 1fmol of ATP.

RLU value is compared with the result threshold set by user to offer an overall result, which is pass, caution or failed

In order to ensure that you can get timely and accurate testing result by ATP bioluminescence detecting system, please note the following:

Before you begin, please read this user's manual carefully.

ATP bioluminescence detector should be auxiliarily used with the ATP sampling swab.



2. Preparation for Use

Before you begin, please ensure you have read this user's manual carefully and understood the system composition and method of application of this instrument. Please confirm the integrity of the product you bought according to the elements noted in the user's manual.

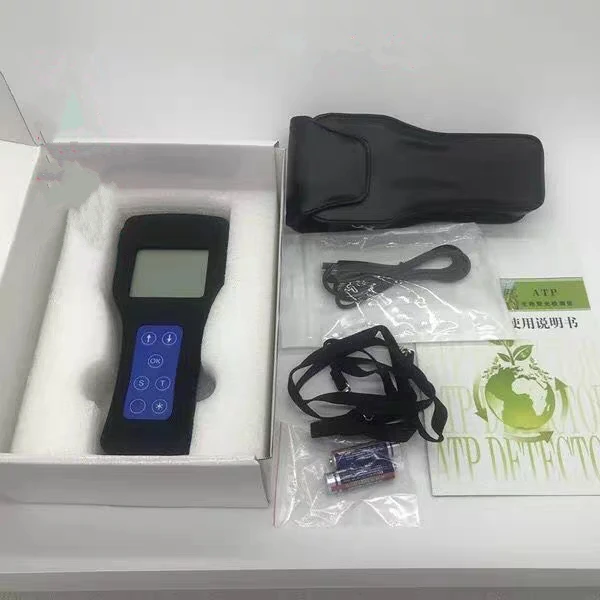

elements of ATP bioluminescence detecting system

Liquid Crystal Display:display test procedure and result

Unit lid:kill the light

Lable:display the instrument type and serial number

Battery compartment:fit two AA batteries

Up button:check last test result, and menu selection

Down button:check next test result, and menu selection

Start button:start test

Threshold set button:set threshold

Time set button:set time

Power on/off button:Power on/off the instrument

Special function button:Special function, such as enter delete interface



Opening the lid reveals the following internal features:



swab pocket: insert ATP sampling swab

data interface: transfer the data to PC by data cable.



2.3 instrument indication





Saving introduction:









The testing code is a three-digit number from 001 to 999. The number “1” after testing code refers to group one, and “2” refers to group two. For example, “048 2” can be regarded as the 1048^th sample.

2.4 Fitting the batteries

The instrument is designed to operat from 2 AA batteries. The batteries are fitted by openning the battery compartment cover on the back of the instrument, and inserting two batteries with the positive end towards top of the instrument. After fitting the batteries, the instrument powers on automaticly, and enters into clock setting mode. Date and time setting is discribed in Section 4.

     Caution: be careful not to swap the batteries’ poles over, for this may destroy the electronic system of instrument

     Tip: for better results, please use the batteries with good quality and replace them as soon as they become low.
