2024 Hot Sales Original Adjustable Automatic Double Swing Gate Motor Openers Online

2024 Hot Sales Original Adjustable Automatic Double Swing Gate Motor Openers Online

Category: >>>
Supplier: Chisung Intelligence Technology (shenzhen) Co. Limited

Price:$145.00 - $160.00

Quantity:

Product Overview

Description

Poster

Model	CSSGO-03-DC24V
Power Supply	AC220V±10V 50Hz, AC110V±10V, 60Hz
Electric motor	DC 24V
Current	2A
Absorbeb power of motor	28W
Max leaf length	2m
Max gate weight	200kg
Motor gate opening speed	1.6 cm/second (.63”/second)
Motor Rotational speed	5000RPM/min
Thrust	350N
Running time protection	Adjustable
Rod's max travel	400mm
Auto closing delay time	programmable (from 0 to 99 seconds)
Gate move speed	12S/90degrees
Operating Temperature	-20°C~+70°C
Relative Humidity	≤95%, No Condensation
Protection class	IP45
Application	home automation
Door opening angle	90°,100°,110°,120°
limit switch	with limit switch
Packing	16kg,2 motors in one carton: 850230170mm,1 control panel in one carton: 320250190mm,Together 2 cartons

Product Display

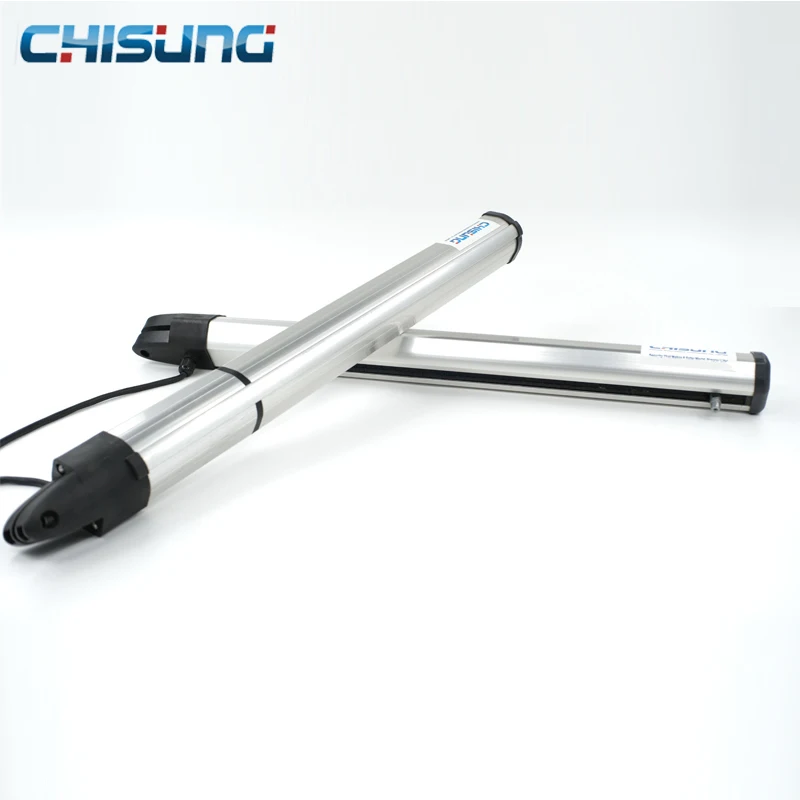

CSSGO-03 DC24V

A:Safe And Reliable Home Automatic System

includes an external pre-wired electrical control panels and control devices,speed up the installation,lower installation costs,making the installation more convenient for smaller weight with door

B:Flexible Installation Easy Adjustment

C:Low Noise High Reliability Need Less Space
D:Reliable Quality
