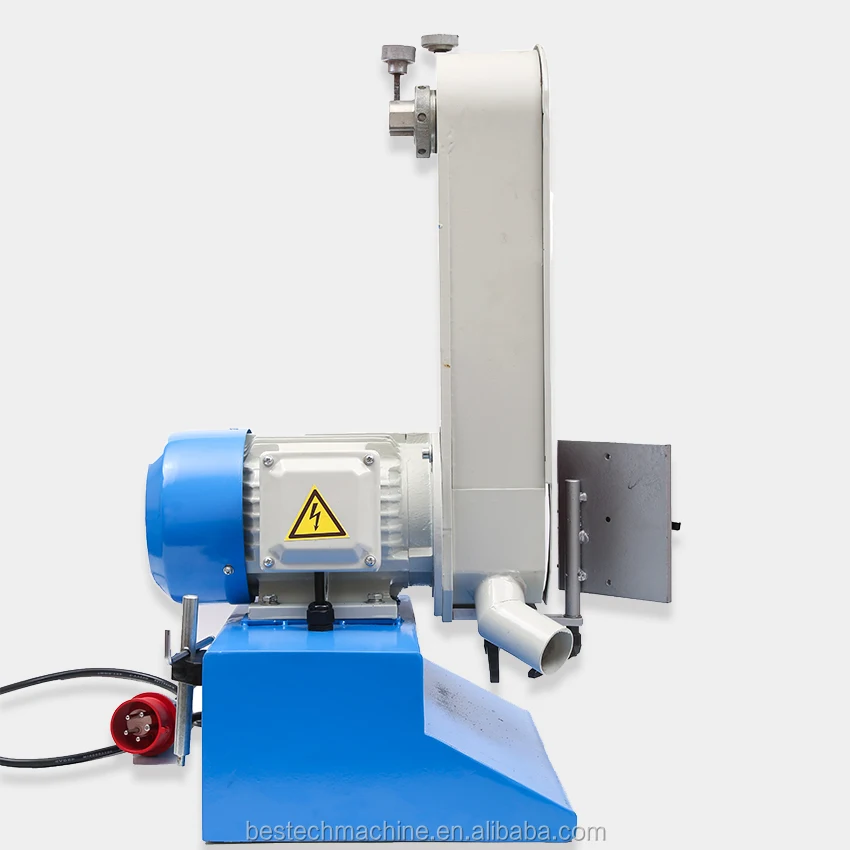

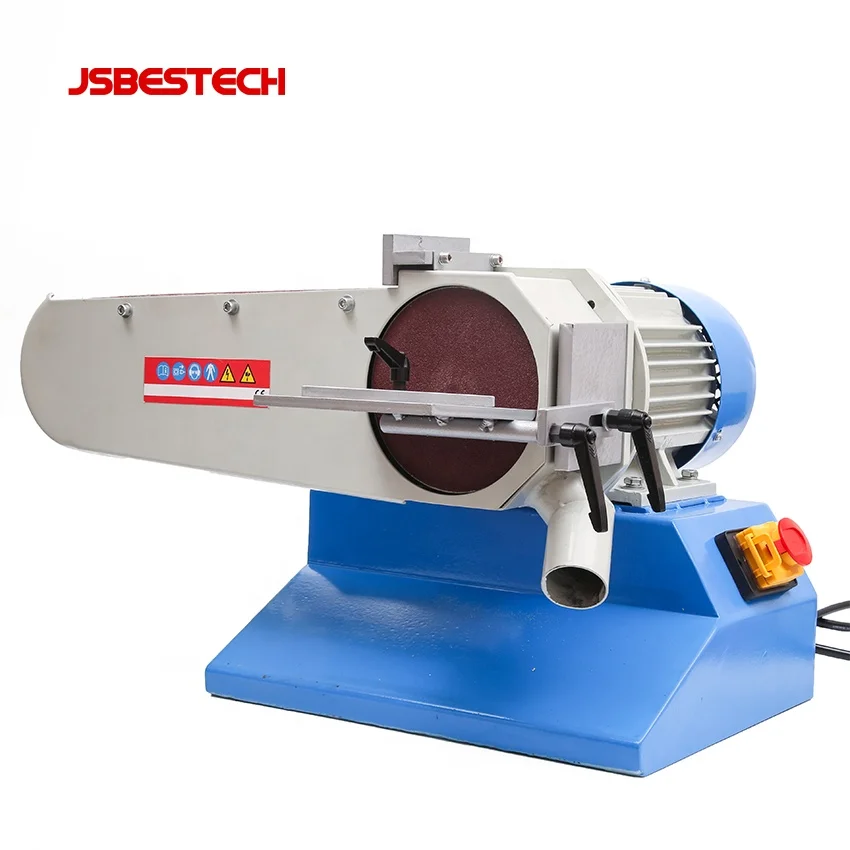

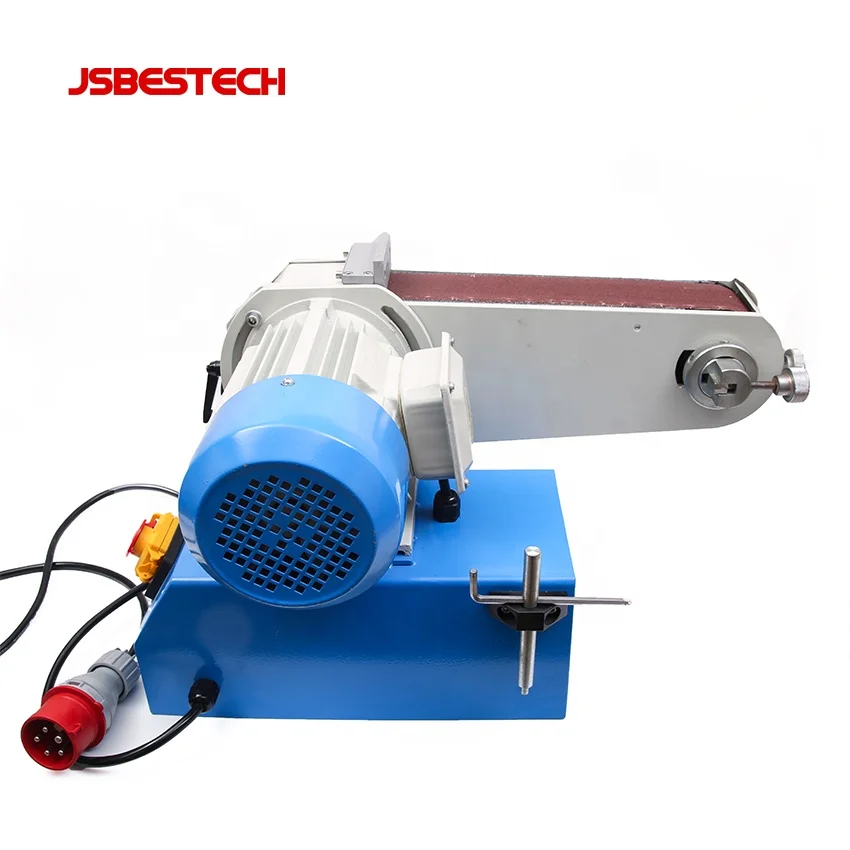

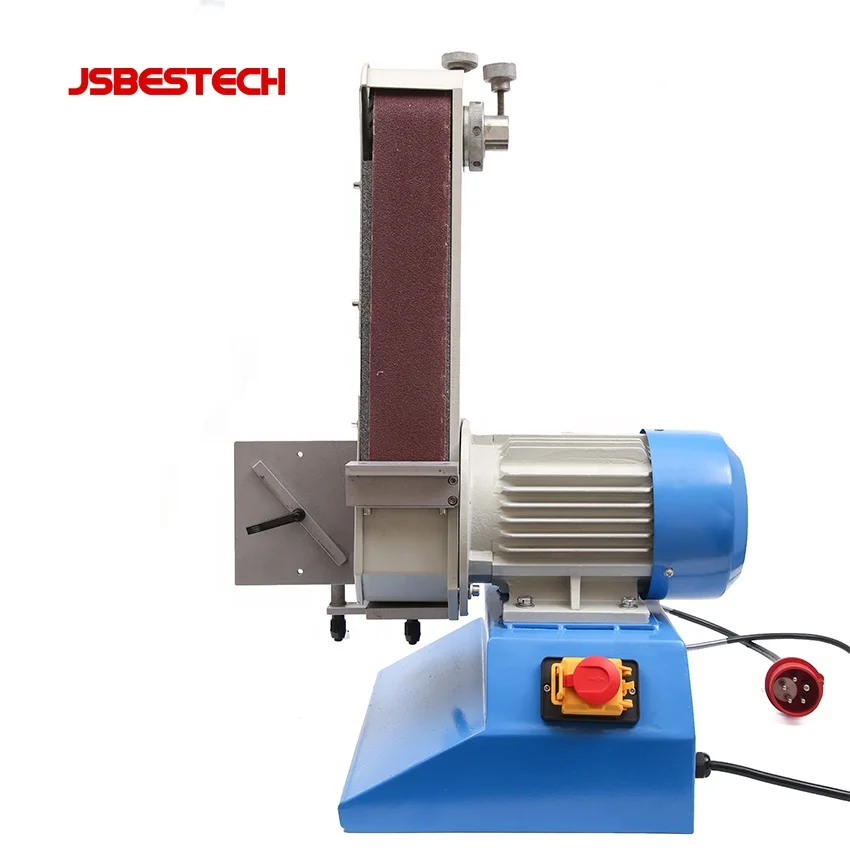

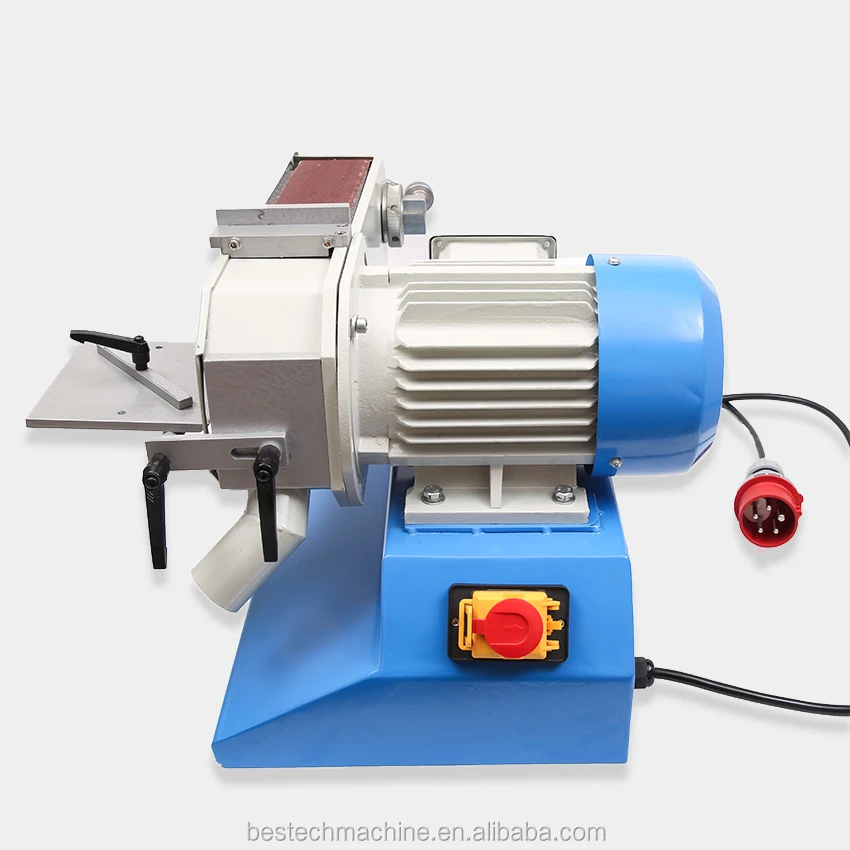

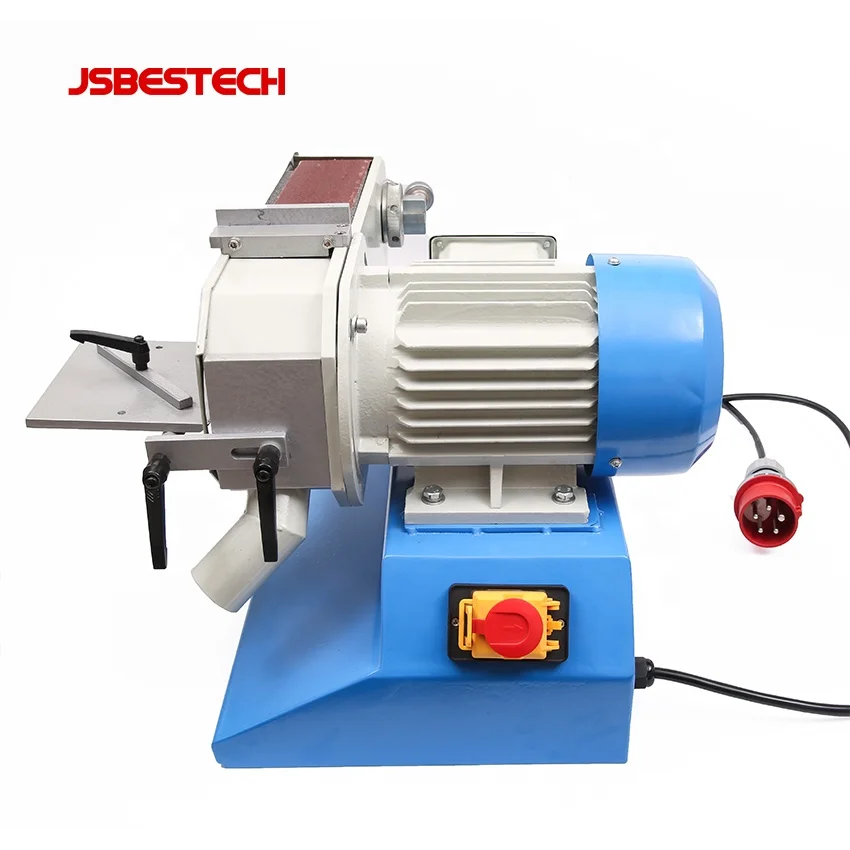

BS 75 Hot sale JSBESTECH mini Belt and disc sanding machines

Share on (62555416856):


Price:$272.00 - $310.00

Quantity:


Product Overview

Description



Product Description


Model: BS-75

•Graphite coating on face grinder increases sliding capacity of sanding belt

• High belt speed ensures excellent grinding performance

• Wide range of applications such as contour, surface and cylindrical grinding

• Quick adjustment from vertical to horizontal grinding

• Solid and torsion-free machine housing guarantees smooth run

• Efficient deburring of edges, buffing of welding seams

• Sanding disc with Velcro fastener, ideal for multiple change of grit

• Model BSM 75-2 comes with 2 speed settings and adjustable workpiece support

• Sanding belt is easy to change, manual adjustment of belt tension










Specification


Model
BS-75
BSM 75-2

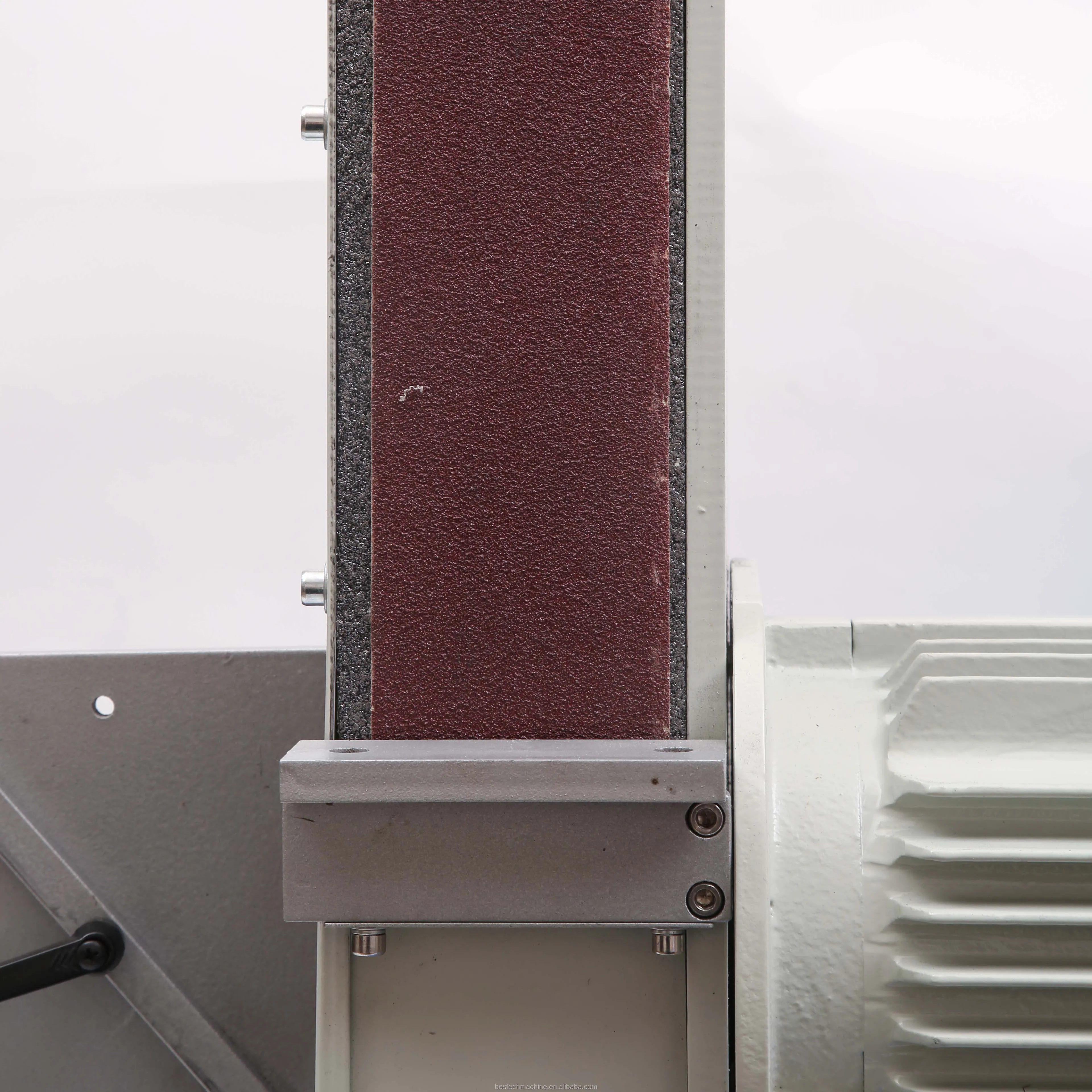

Sanding belt
75 x 1180 mm
Belt speed
11 m/sec.
11 / 22 m/sec.
Belt sanding table
280 x 80 mm
Belt sanding table tiltable
0° to 90°

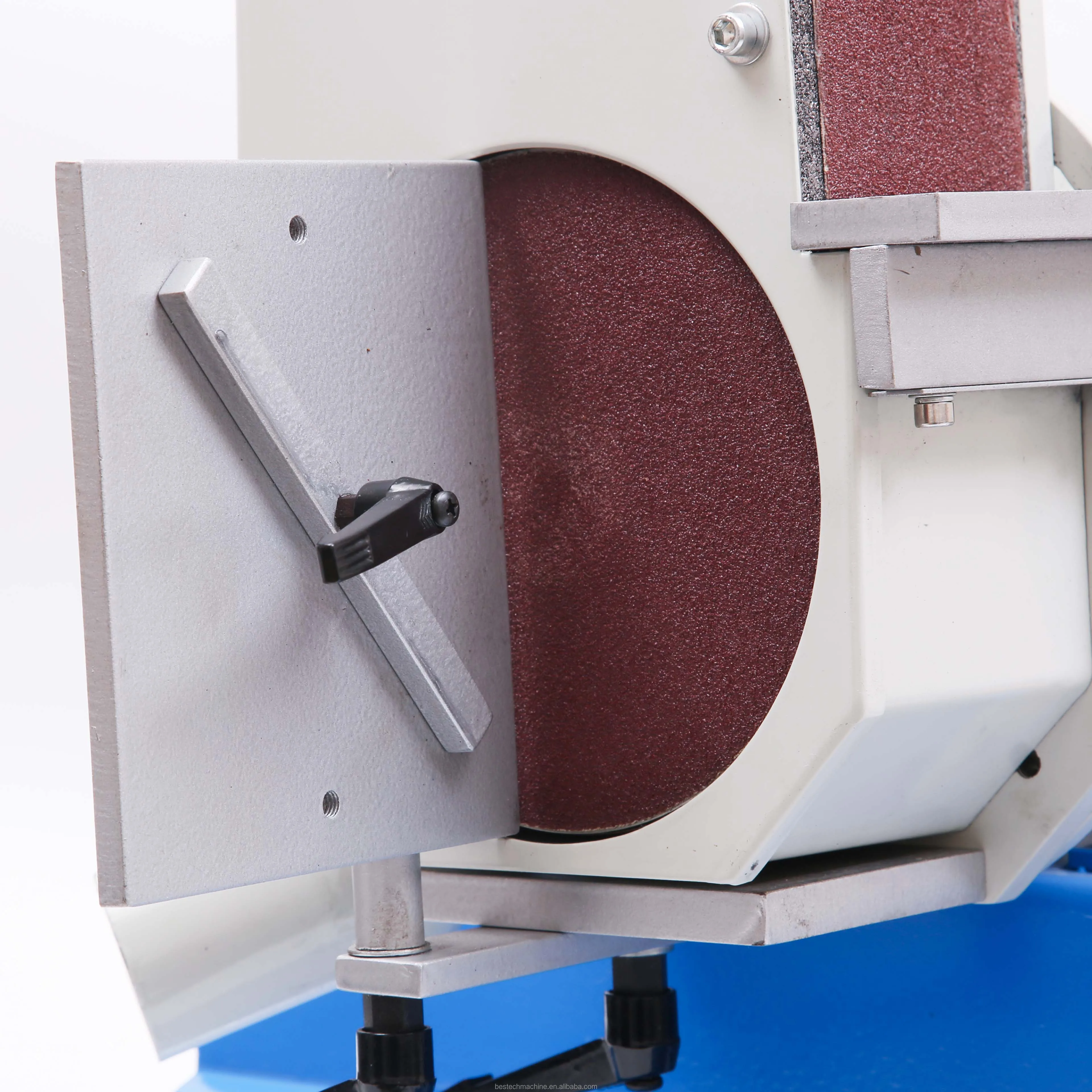

Sanding disc diam.
150 mm
Sanding disc table
150 x 130 mm
Sanding disc table tiltable
0° to 45°
Dust extraction outlet
50 mm
Motor power output S1 100%
1.1 kw
1.5/1.8kw
Motor power input S6 40%
 1.5 kW
2.1 / 2.5 kW
Voltage
400V
Machine dimension
470 x 720 x 520 mm
580 x 680 x 765 mm
Weight approx.
 65 kg
69 kg


Standard accessories
Sanding belt grit 80
Sanding disc grit 80
Spark protection (BSM 75-2)
Sanding and supporting table
Graphite coating
Dust extraction outlet

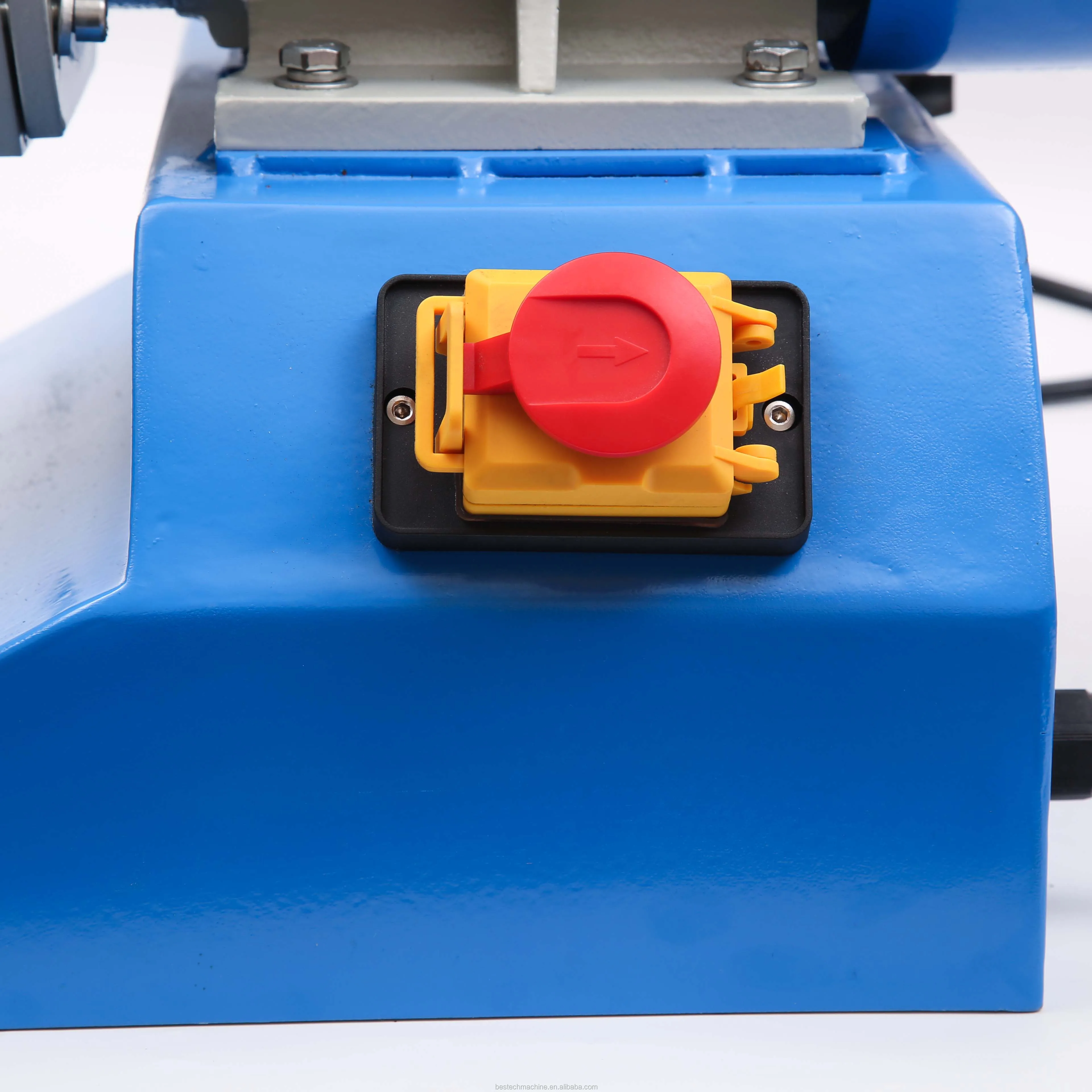

2-speed switch


Detailed Images




Wheel

It can be designed by your requirement (A,WA or others)

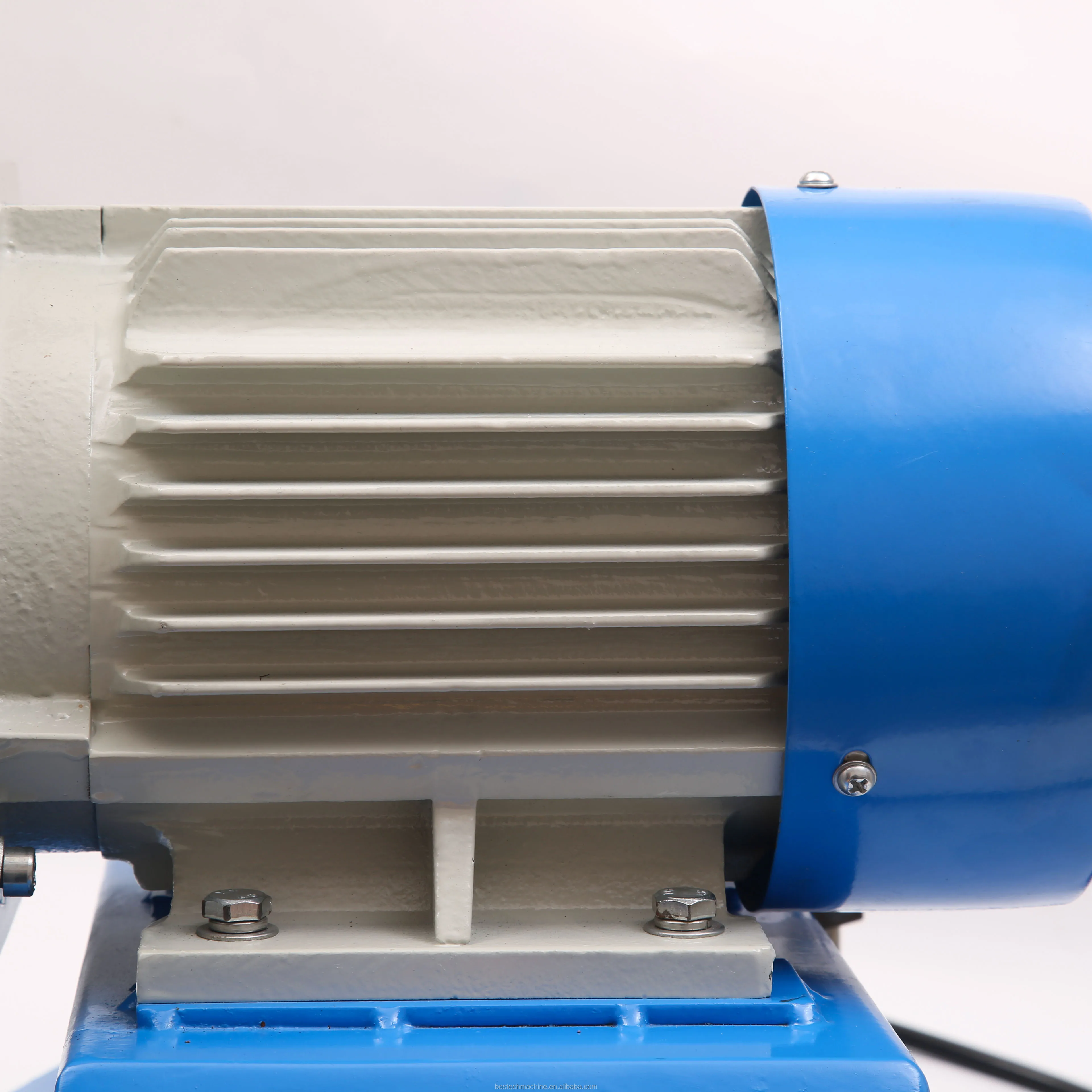

Stator

Used high quality Aluminum coil and copper coil

Base

There are many choices of base material (Aluminum,iron,platic and etc).







Similar products


Model
MD3212M
MD3215M
MD3212SF
MD3215SF
MD3215F
MD3217F
MD3220F
Voltage
230V-50HZ
230V-50HZ
230V-50HZ
230V-50HZ
230V-50HZ
230V-50HZ
230V-50HZ
Power
150W
150W
150W
150W
250W
300W
350W
Speed
2950/min
2950/min
2950/min
2950/min
2950/min
2950/min
2950/min
Wheel Size
(MM)
125x16x12.7
150x16x12.7
125x16x12.7
150x16x12.7
150x20x16
175x20x16
200x20x16
N/GW
(KG)
5.7/6.2
6.3/7
5.2/5.7
5.8/6.3
7.5/8.5
10/11
11.5/12.5
Packing Size
(CM)
28.5x18x20.5
29.5x20x20.5
29.5x18x21
30.5x20x21
34.5x20x25.5
35.5x24.5x28.5
37.2x26.5x28.5
20/40HQ
2600/5400
pcs
2300/4700
pcs
2500/5200
pcs
2150/4500
pcs
1500/3450pcs
1100/2300pcs
990/2110
pcs


Company Profile




JSBESTECH offered a large range of high speed precision lathe. Currently our major products include Bench Lathes (manual and CNC), Drilling Milling Machine, Drill Press, Bench Grinder, Table Saw and Band Saw,etc. which suitable for multiple purpose, to our clients of worldwide. No matter for education, tool room or industrial production line, from small to middle size, our clients have many choice to select the lathe machine which most match his request. And we also manufacturing quality CNC lathes for you to choose.


Certifications




Customer Photos




FAQ


1)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us, We can reply you within 1 hours on work days, and within 24 hours on holidays.
2)Q:About us, trading company or manufacture?
A: We are the manufacture with more than 15 years experience, welcom to visit our factory.
3)Q:Can we start with start with small quantity? What's the MOQ?
A:We can accept orders with 1 unit.
4)Q: Can I customized my products and packages?
A: Of course sure, you can. We accept OEM, make your trademark on your machine body and do the package with you need.
5)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website according to your request. Or you can let our sellers know what is your request secification or what is your parts, so let our sellers recommend suitable machine to you.
We do the machine more than 10 years, we are specialied, we have more than 10 QC contral the quality. Every machine will be tested more than 6 times from the machine little details.
6)Q: How long can I get the machine?
A: Some machines we have stock, when get your payment we can send you at once.
We can delivery the samples within 5-10 day after getting your payment.
Usually, we also can send you the mass goods within 45 days.

We want to know:
(1)What is your Industrial Voltage?
(2) We strongly suggest you tell us size, material of your workpiece for our evaluation, if possible, better to send us your workpiece drawing, so that we can recommend yuo most suitable model!
