330w Pv Mounting Bracket Aluminum Solar Panel Mounting Clamps for Metal Roof Standing Seam Metal Roof 10 Years 2 KN/M2 CN;SHG
- Category: >>>
- Supplier: Shanghai Chiko Solar Technology Co. Ltd.
Share on (62555481965):
Product Overview
Description
Metal roof

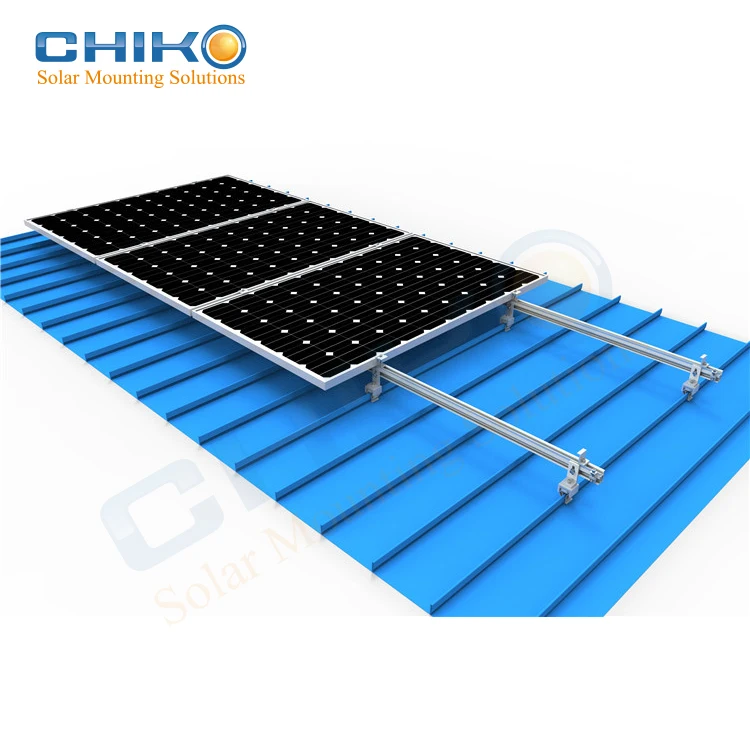

CHIKO Seam Roof Mount Solutions
It is designed with aluminum materials provide a lightweight solutions on all kinds of seam roofs,One bolts fastening saving labor time and easy build Appllicated for both panel in portrait and landscape . Unique design makes the whole system more stable
Universal used for different metal profiles
One bolts fasten at top makes installations more easy
Pre -assembled, Cost-effective

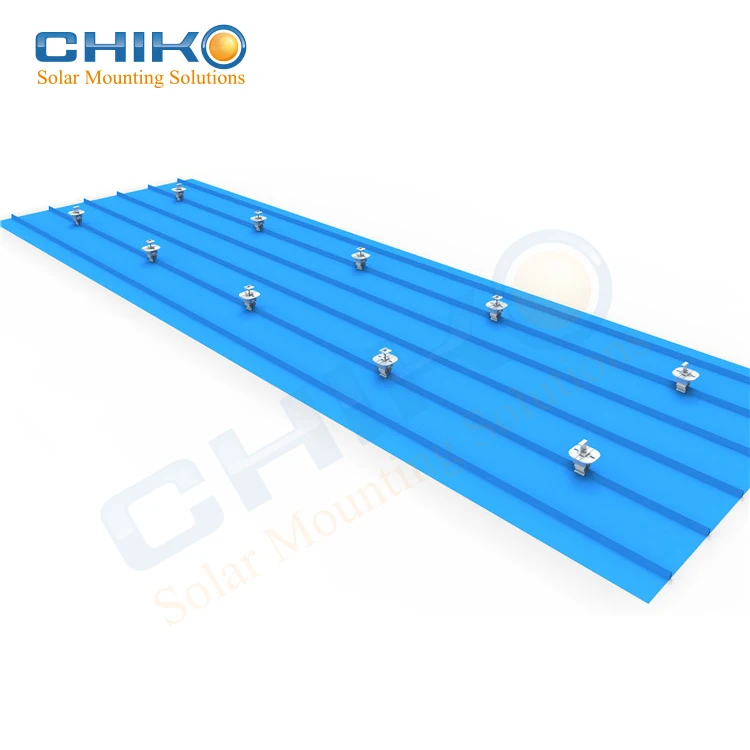

Clamps fix on raised seam only no damage surface of sheet
Strong material code Aluminum 6005-T5, SUS304/316 fasteners.
One bolts fasten at top makes installations more easy
Pre -assembled, Cost-effective
Clamps fix on raised seam only no damage surface of sheet
Strong material code Aluminum 6005-T5, SUS304/316 fasteners.
Wind Speed: 60m/s
Snow load: 2KN/m2
Material: AL6005-T5
Color: Silver or Black
Surface finishing: High standard anodizing
Anodized thickness: 12-14 microns
Rail Length: 2100mm,3200mm, 4200mm
Snow load: 2KN/m2
Material: AL6005-T5
Color: Silver or Black
Surface finishing: High standard anodizing
Anodized thickness: 12-14 microns
Rail Length: 2100mm,3200mm, 4200mm

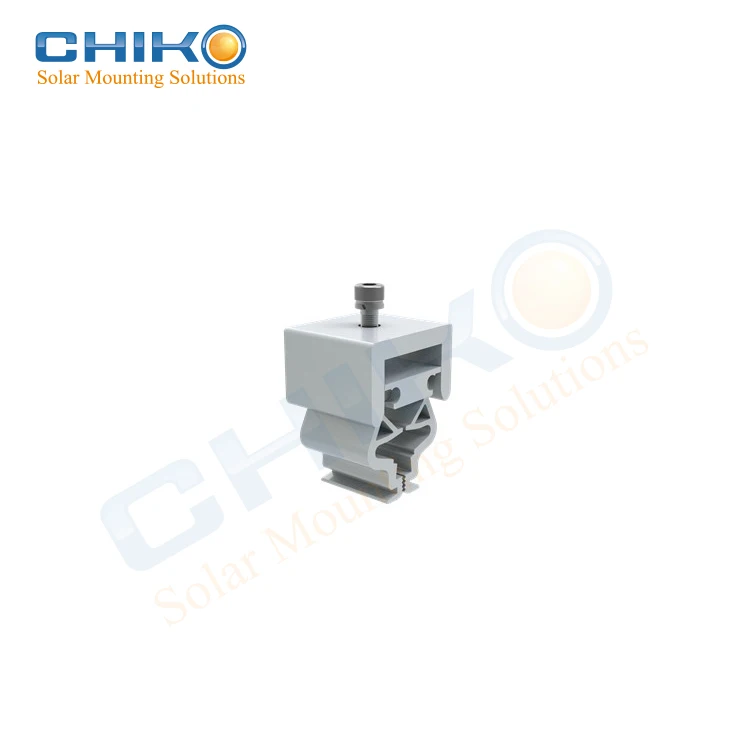

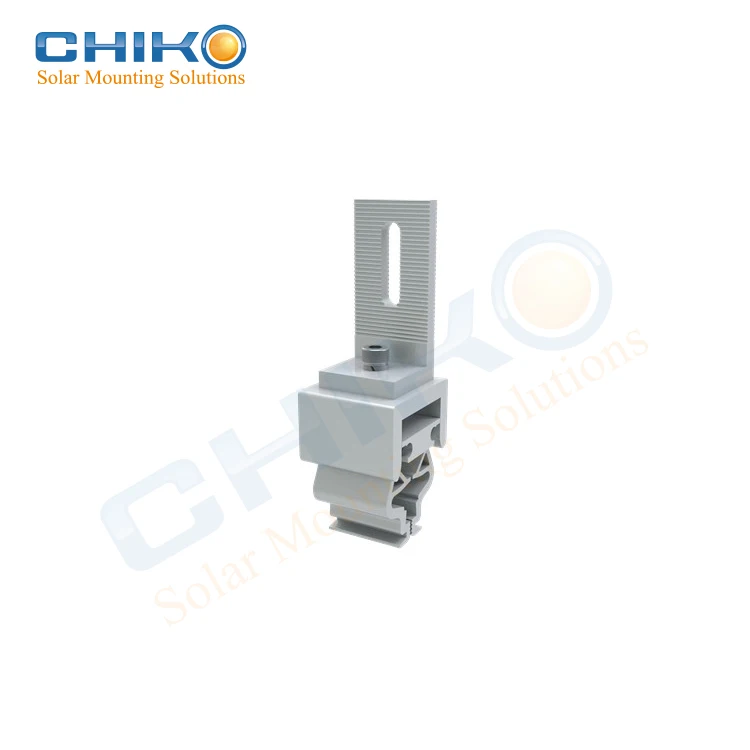

E-lock Seam Clamps

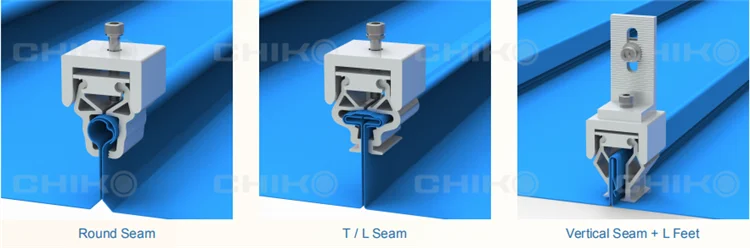

E -Lock series is non-penetrating solutions for seam roof mount,it could be flexible used on different metal roofs with horizontal seam ,vertical seam and Round seam.Matching together use with L feet improving power generation.
Full System With Different Rails
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

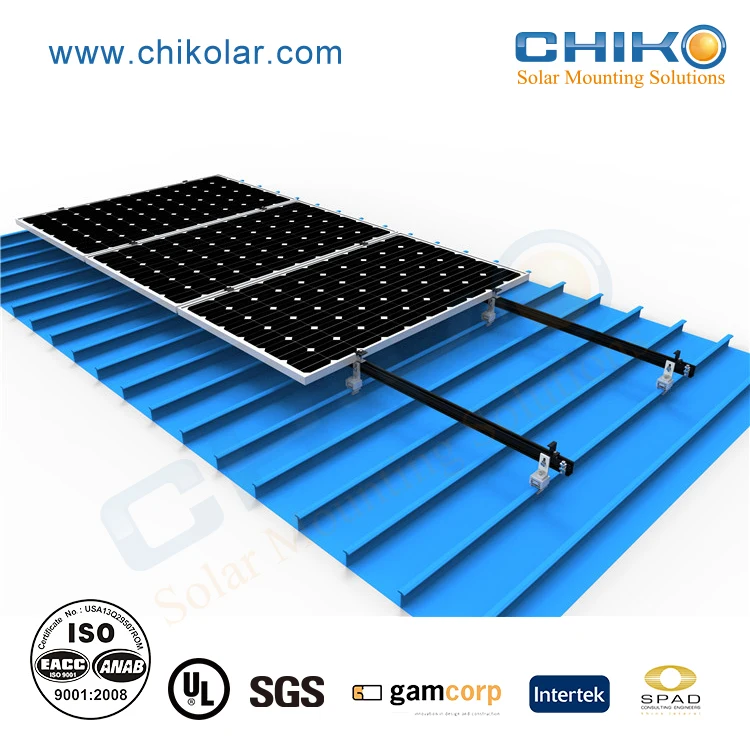

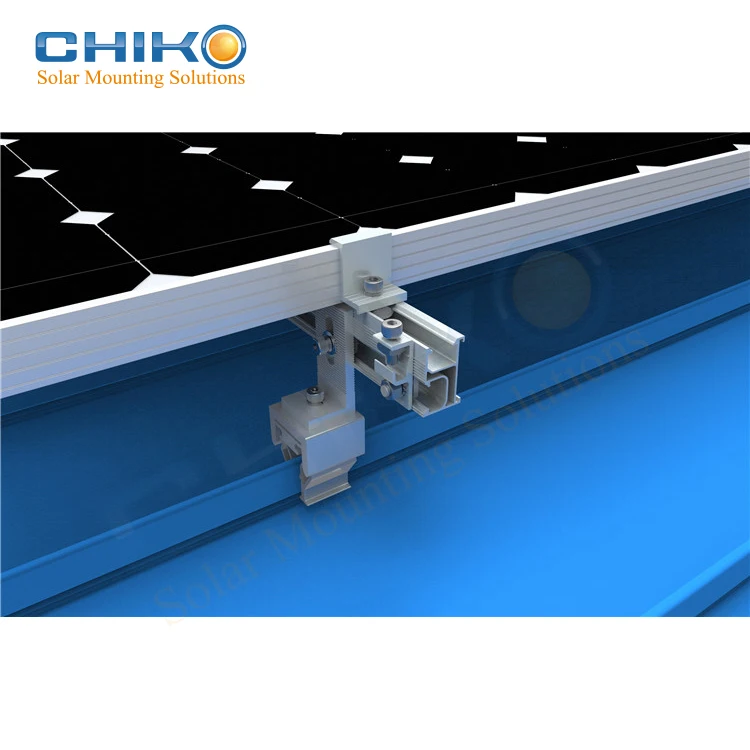

Apply with CHIKO Classical Rail CK-FT-R7B1
Which UL 2703 listed.Black color anodized rails available .
More easy installation of micro inverters
More easy installation of micro inverters

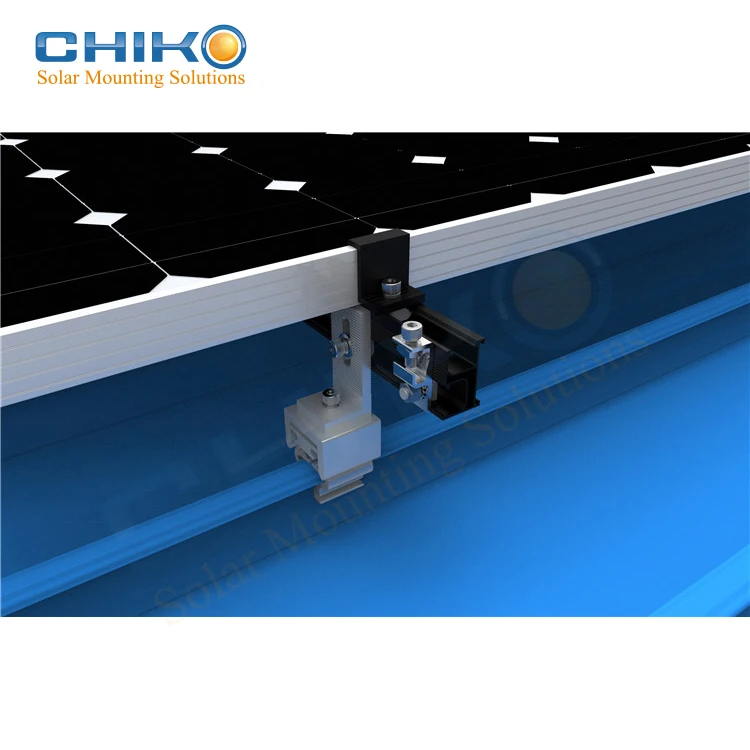

Use with CHIKO Ecomomical Infit Rail System
Black color anodized rails available .
"Click" type mid and end clamps makes installation more easy and quick
"Click" type mid and end clamps makes installation more easy and quick

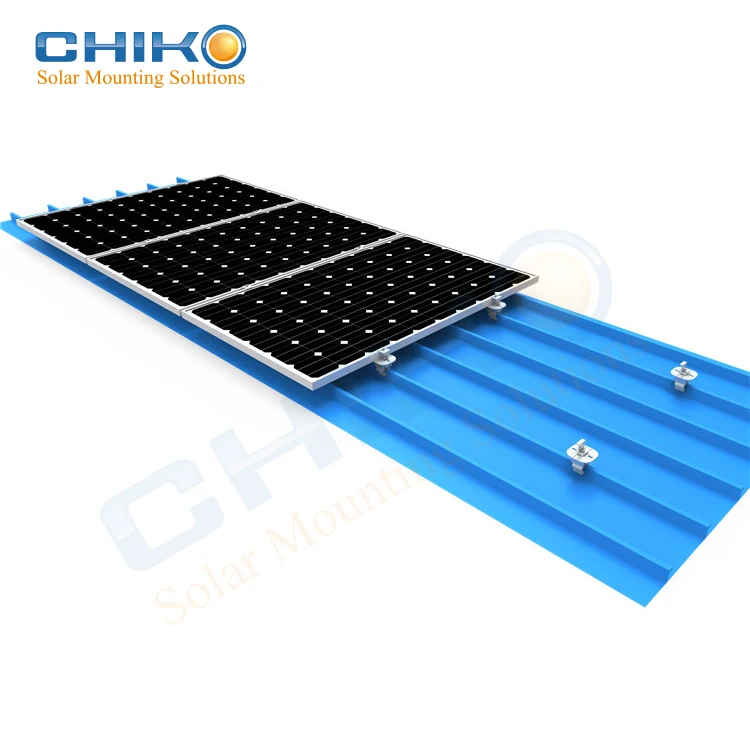

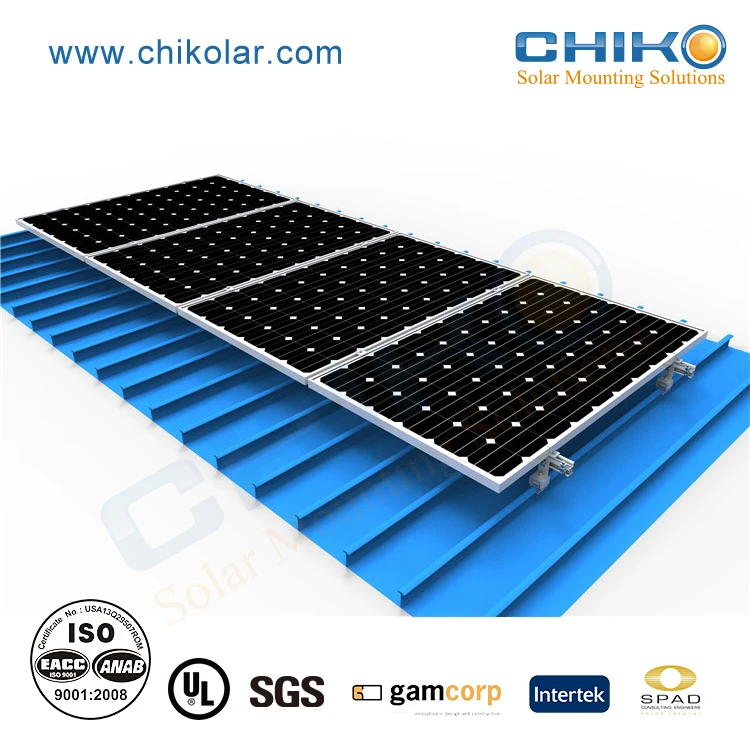

Railless Mount Solutions
When the clamps series apply in Railless Mounts.
Our service
Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
WHY CHOOSE CHIKO ?
• Cost-effective - Factory manufacturing
• Installation - Special design is available
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse
Product packaging
CHIKO Packaging: Put Warranty Chiko solar mounting products into CHIKO standard carton/ wooden pallet/ other customized packages for pitched roof/ tile roof solar mounting brackets/ solar racking/ solar installation/ solar instruction
CHIKO Shipping Lead-time: 1-2 weeks after the order payment confirm.
CHIKO Shipping Lead-time: 1-2 weeks after the order payment confirm.
Rail | 8 Pcs/Pkg320 Pcs/Pallet |
Rail Splice Kit | 50 Pcs/Box10000 Pcs/Pallet |
Mid Clamp | 100 Pcs/Box20000 Pcs/Pallet |
End Clamp | 100 Pcs/Box20000 Pcs/Pallet |
Hanger Bolt | 100 Pcs/Ctn10000 Pcs/Pallet |
Grounding Lug | 140 Pcs/Box28000 Pcs/Pallet |
Our Advantages
Company Profile
CHIKO Solar designs and manufactures high quality solar mounting systems for pitched roof, flat roof and ground open areas.
Whether for small or large-scale projects, standard models or tailor-made systems, we deliver what your need.
We are working with companies from USA, Mexico, Germany, UK, Brazil, Korea, Thailand, Australia, South Africa,Japan etc to provide
best services.
We are proud of the fact that more than 4GW solar project from worldwide used CHIKO mounting systems.
Whether for small or large-scale projects, standard models or tailor-made systems, we deliver what your need.
We are working with companies from USA, Mexico, Germany, UK, Brazil, Korea, Thailand, Australia, South Africa,Japan etc to provide
best services.
We are proud of the fact that more than 4GW solar project from worldwide used CHIKO mounting systems.
