Metal Wire Gauze Structured Packing Metal wire mesh structured packing
- Category: >>>
- Supplier: Pingxiang Zhongtai Environmental Chemical Packing Co. Ltd.
Share on (62555568081):
Product Overview
Description
Products Description

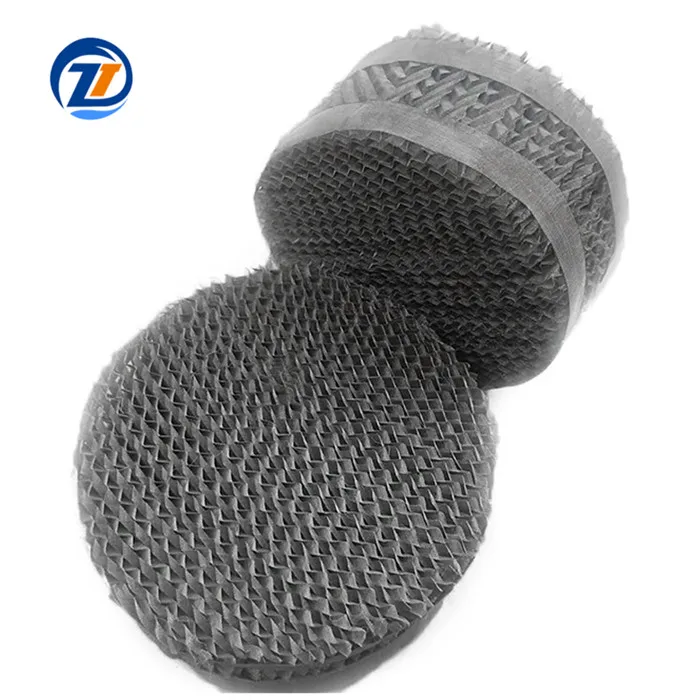

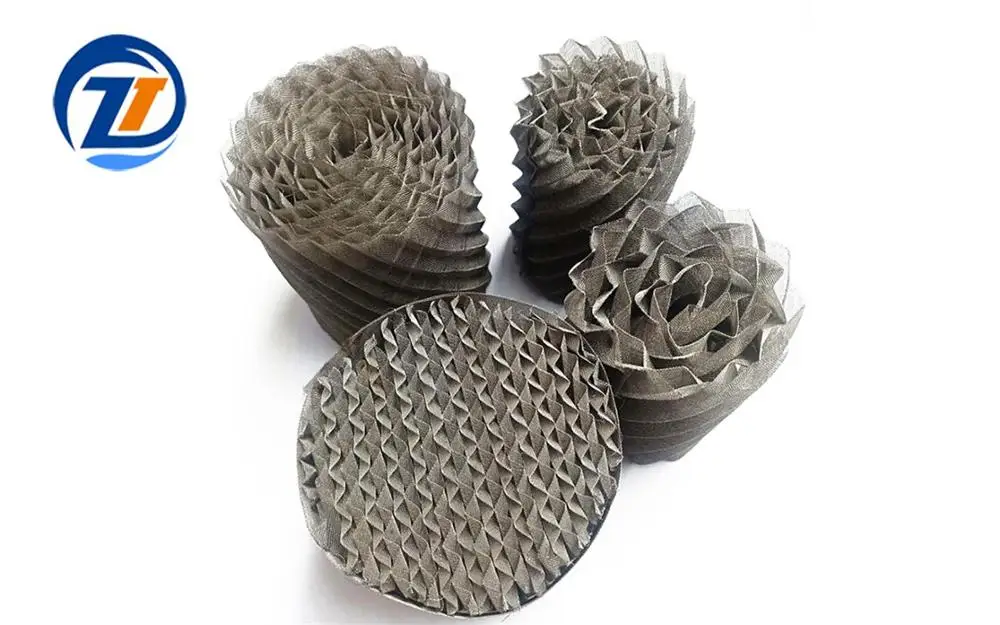

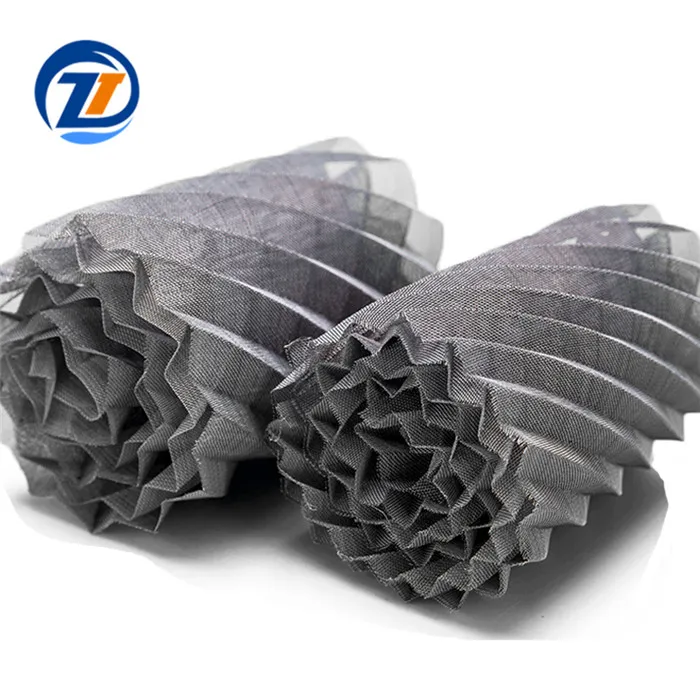

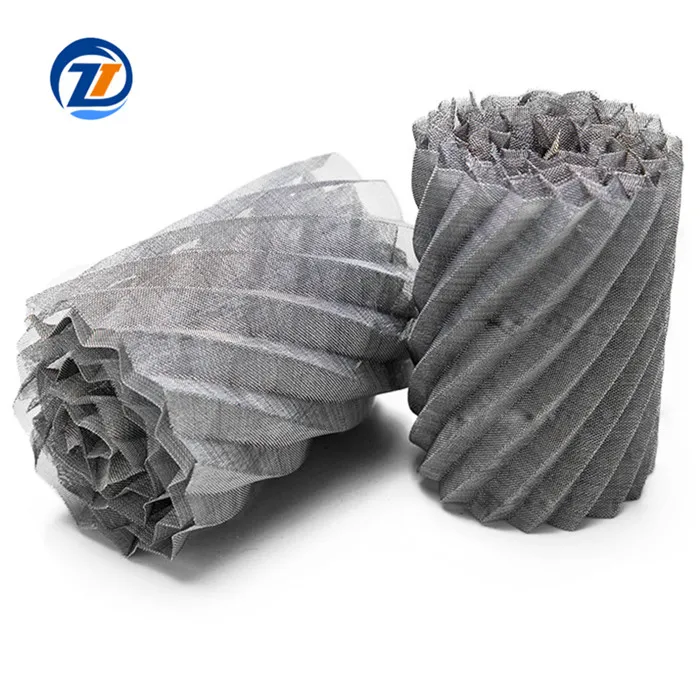

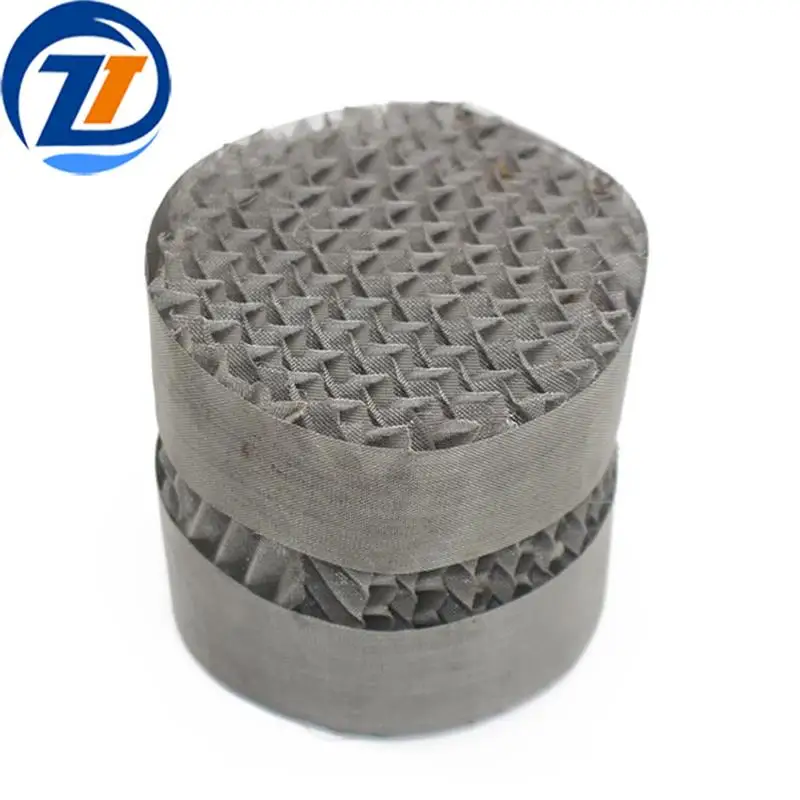

Metal Wire Gauze Structured Packing
1. Introduction:

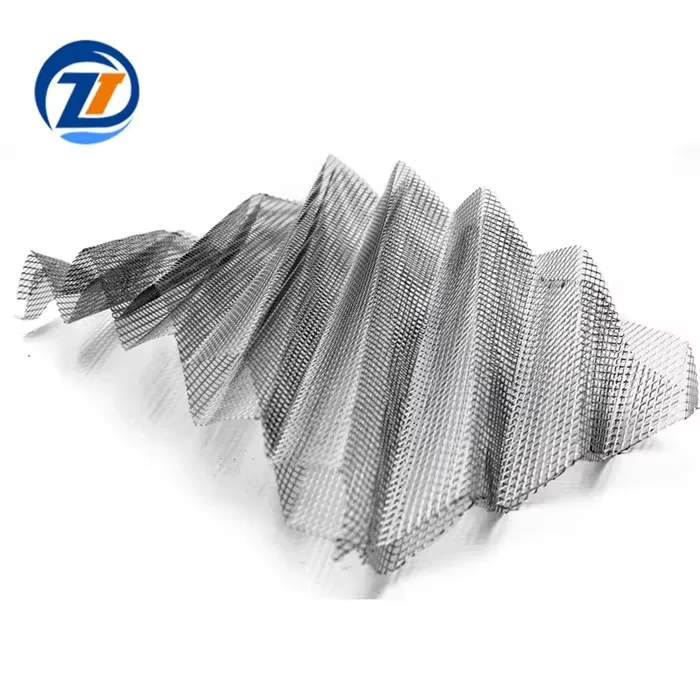

Metal Wire Gauze Structured Packing Metal wire mesh structured packingis made up of silk screen tablets with bellows, and this bellows tablets have 30 or 45 inclination, adjacent bellows tablets is in opposite directions. When being filling in the tower, the filler from top to bottom is arrayed with staggered stacked.
Metal Wire Gauze Structured Packing Metal wire mesh structured packingis made up of silk screen tablets with bellows, and this bellows tablets have 30 or 45 inclination, adjacent bellows tablets is in opposite directions. When being filling in the tower, the filler from top to bottom is arrayed with staggered stacked.
2.Application:
It is applied to vacuum distillation for difficult separation and thermal material, also it is applied to atmospheric distillation and absorption process, pressure operation, petrochemical, fertilizer, etc.
It is applied to vacuum distillation for difficult separation and thermal material, also it is applied to atmospheric distillation and absorption process, pressure operation, petrochemical, fertilizer, etc.
3.Technical Specification:
Model | Specific surface | Bulk density | Void ratio | Obl. | ΔP | Theo. plate | HETP/mm | F factor m/s (kg/m3)0.5 |
(m2/m3) | (kg/m3) | (%) | angle | (Pa/plate) | (piece/m) | |||
250AX | 250 | 125 | 95 | 30 | 100-400 | 2.5~3 | 100 | 2.5-3.5 |
500BX | 500 | 250 | 90 | 30 | 400 | 4~5 | 200 | 2.0-2.4 |
700CY | 700 | 350 | 85 | 45 | 600-700 | 8~10 | 333-400 | 1.5-2.0 |

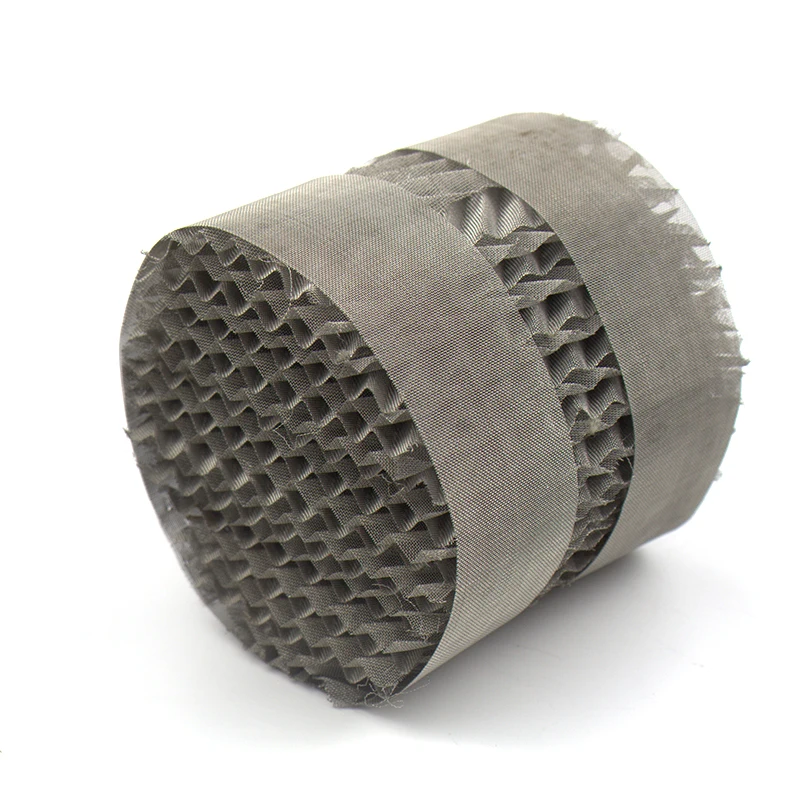

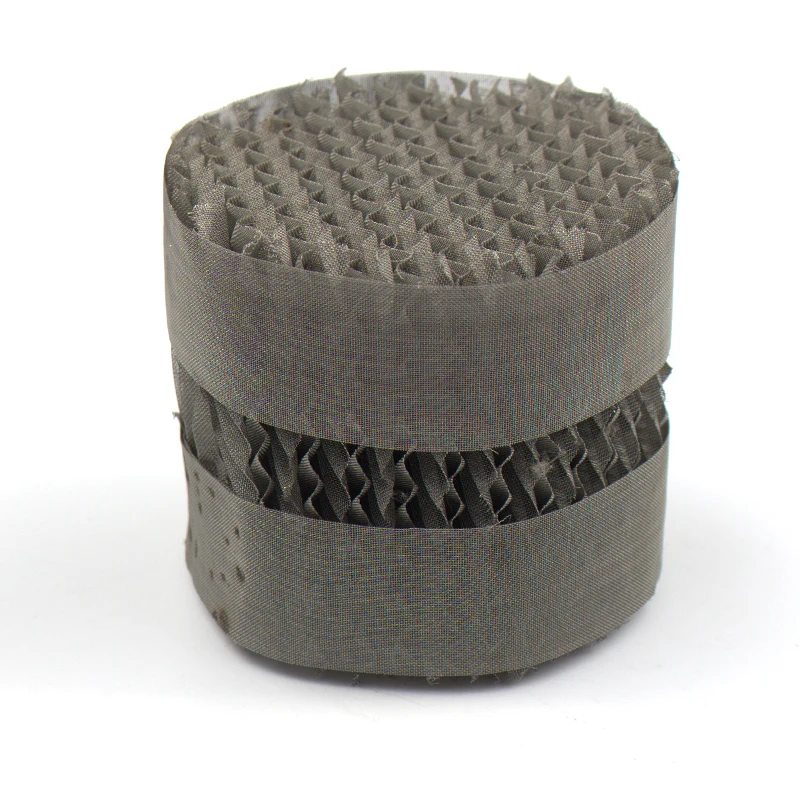

Details Images

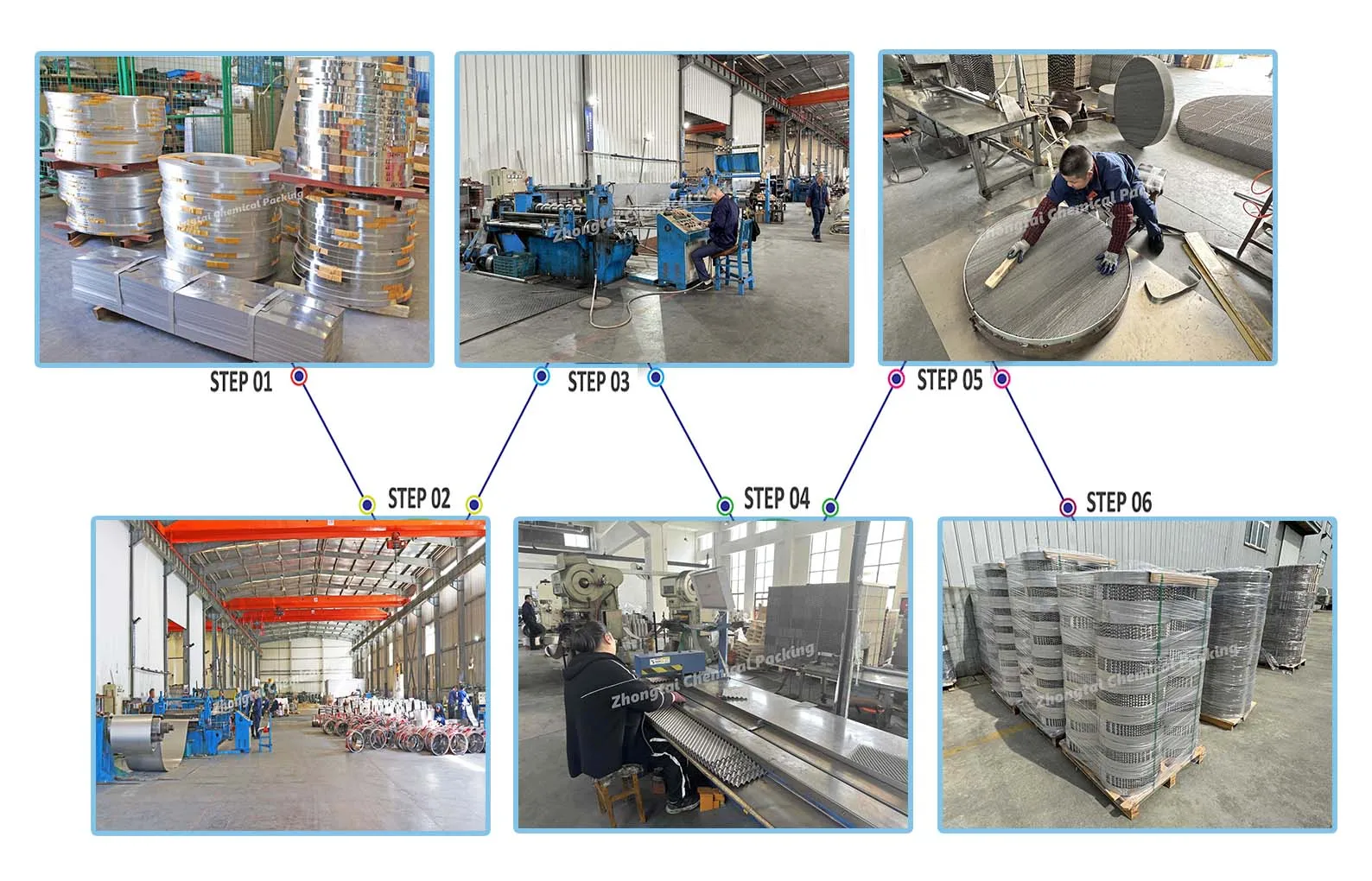

Production workshop
Product packaging

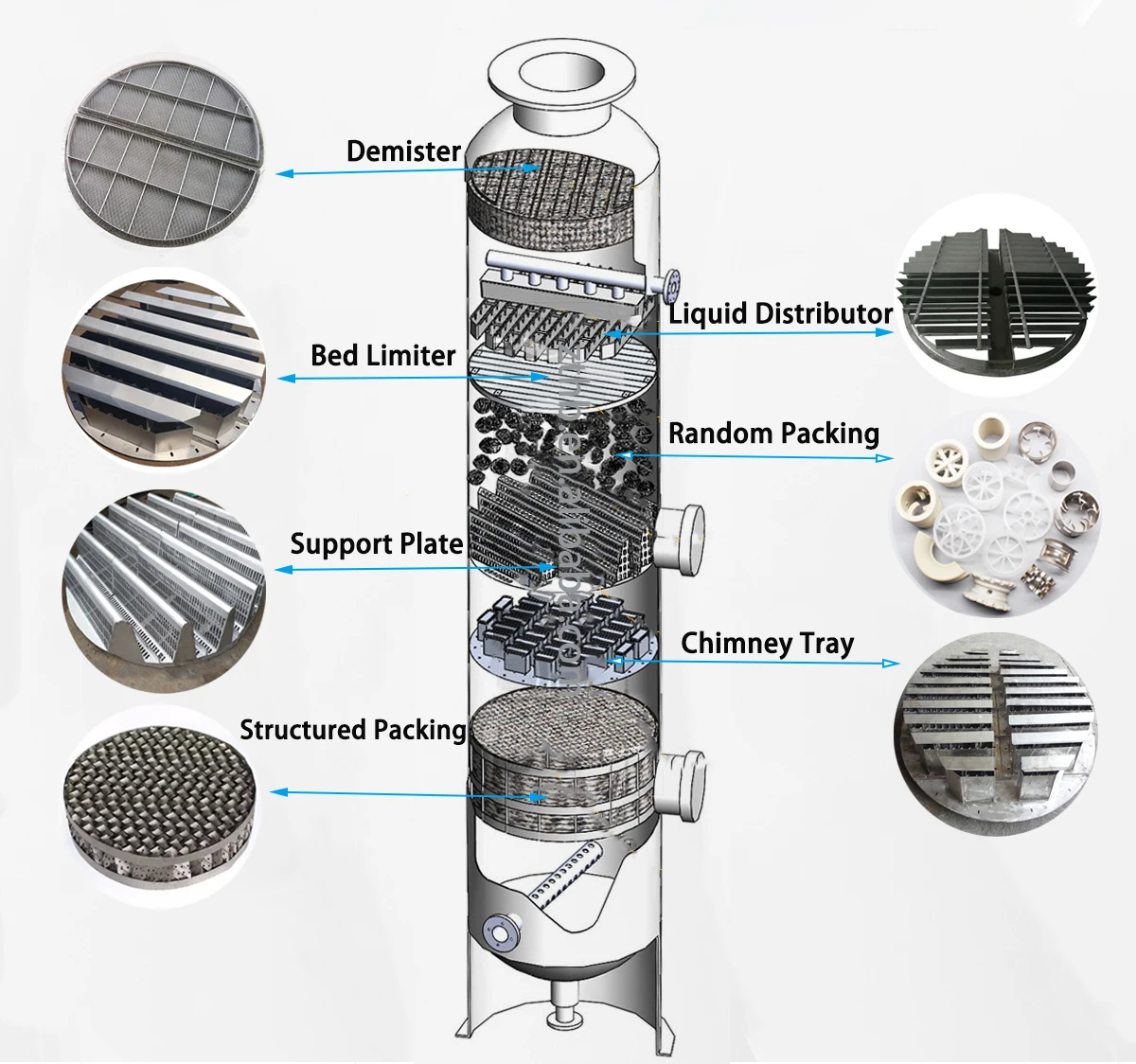

Product Application
Customer visit

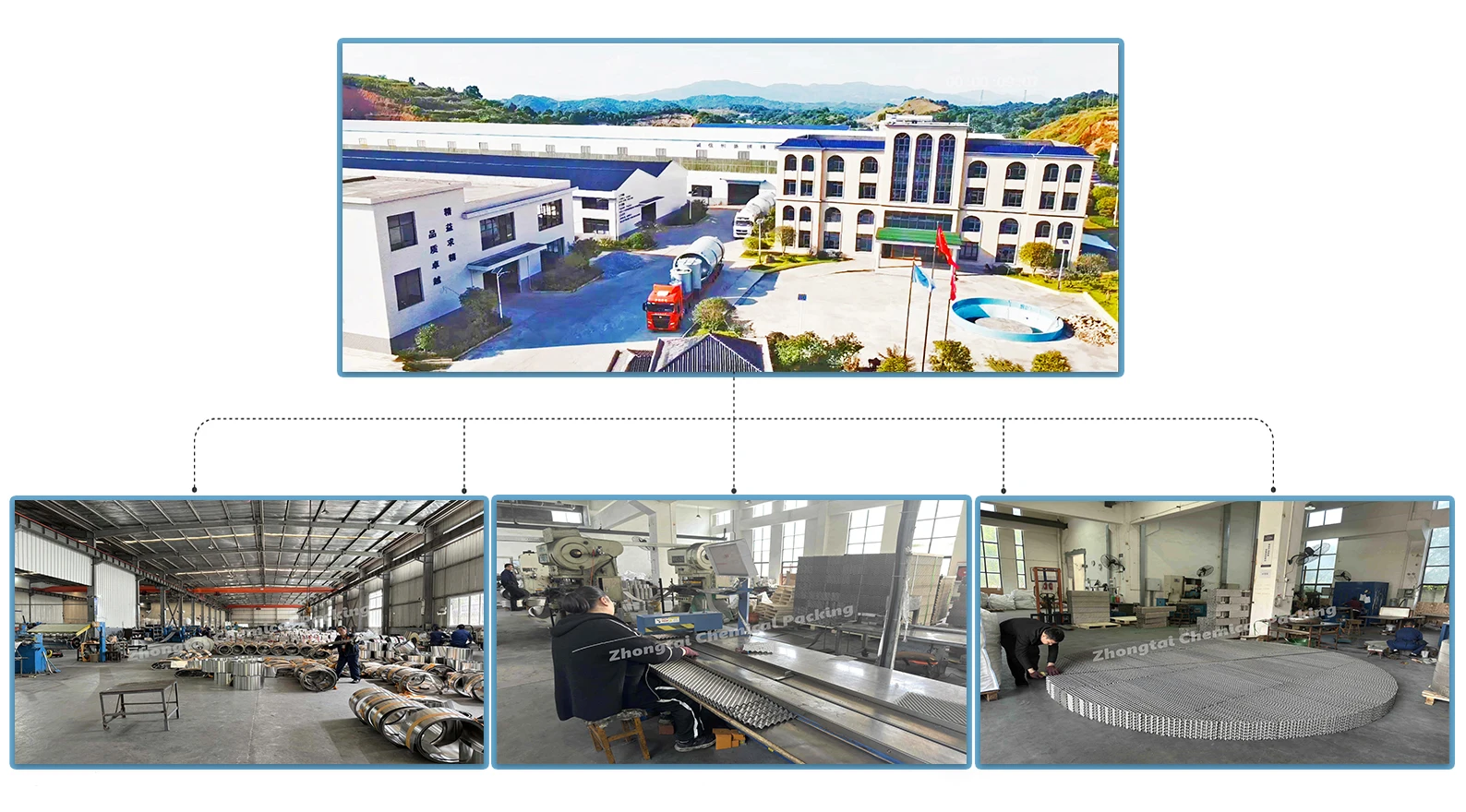

Company Profile
Pingxiang Zhongtai Environmental Chemical Packing Co., Ltd was established in 2003, It is a professional manufacturer and exporter that has more than 10 years experience in Chemical Packing. We are located in West Section Hi-Tech Industry Park Pingxiang City, Jiangxi Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our main products are ceramic,metal,plastic tower packing, ceramic ball,molecular sieve, honeycomb ceramic filter and so on, can be used in all types of petrochemical chemical processes and environmental application. Besides, we have received ISO9001:2008 certificate, and credible merchant of Alibaba. As a result of our high quality products and outstanding customer service, Our products have been supplied to more than 50 countries and regions around the world.
