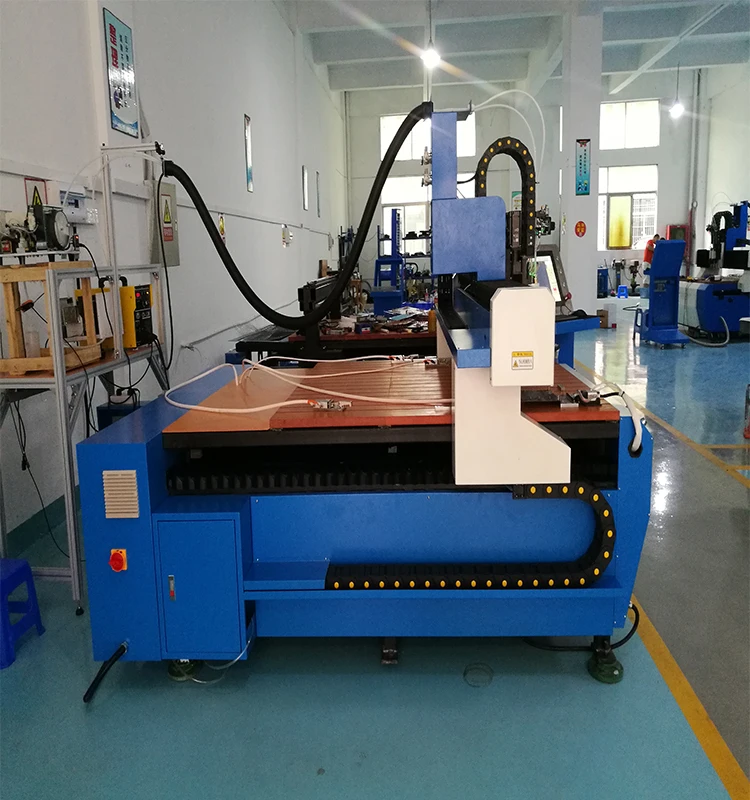

Hot Sale Multi welded Head CNC Stud Welding Machine
- Category: >>>
- Supplier: Rsm Machinery Co. Ltd.
Share on (62555659611):
Product Overview
Description
Product Description
Type | T1-1320 | T1-1315 | T1-1010 |
Dimensions（mm) | 3300*2200*1600 | 2300*2170*1600 | 1800*1900*1600 |
Rated Power | 3.2KW | 2.8KW | 2.8KW |
Working Power | 380V.50HZ | 380V.50HZ | 380V.50HZ |
Control Power | DC/24V | DC/24V | DC/24V |
Processing Range(mm) | X Axis1300.Y Axis 2000 | X Axis1300.Y Axis 1500 | X Axis1000.Y Axis 1000 |
Z Axis Moving Range | Servo Stroke 80 ,Pneumatic 40 | Servo Stroke 80 ,Pneumatic 40 | Servo Stroke 80 ,Pneumatic 40 |
Moving Speed | Max 600 m/s | Max 600 m/s | Max 600 m/s |
Precision | +-0.1mm | +-0.1mm | +-0.1mm |
Control Axis | 3 Axis | 3 Axis | 3 Axis |
Drive method | Electric Servo / Pneumatic | Electric Servo / Pneumatic | Electric Servo / Pneumatic |
Automatic welding gun | 1 Pierce | 1 Pierce | 1 Pierce |
Welding range | Diameter 3-6mm,Length 6-35mm | Diameter 3-6mm,Length 6-35mm | Diameter 3-6mm,Length 6-35mm |
Welding speed | Max 25 pierces/minute | Max 25 pierces/minute | Max 25 pierces/minute |
Detailed Images

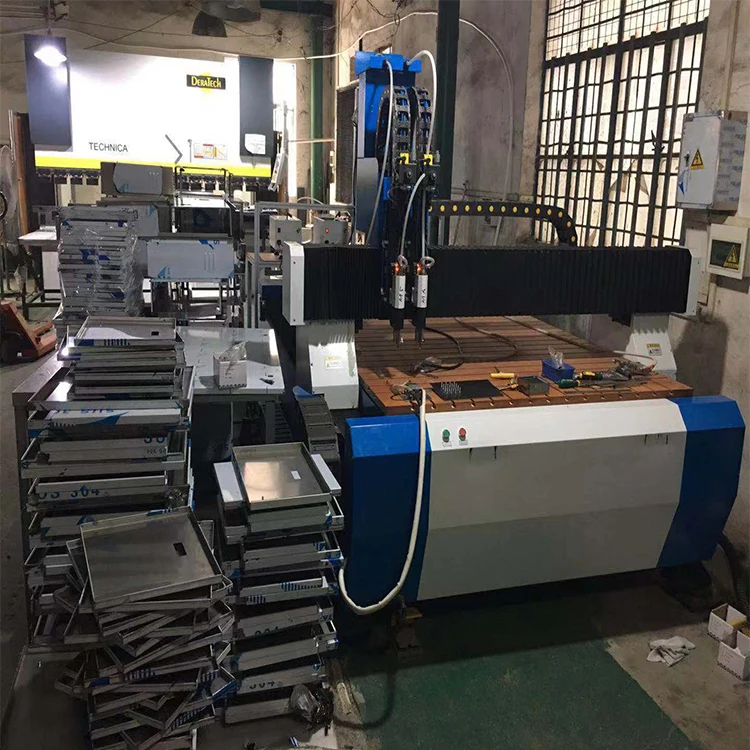

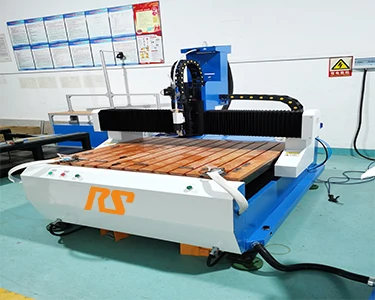

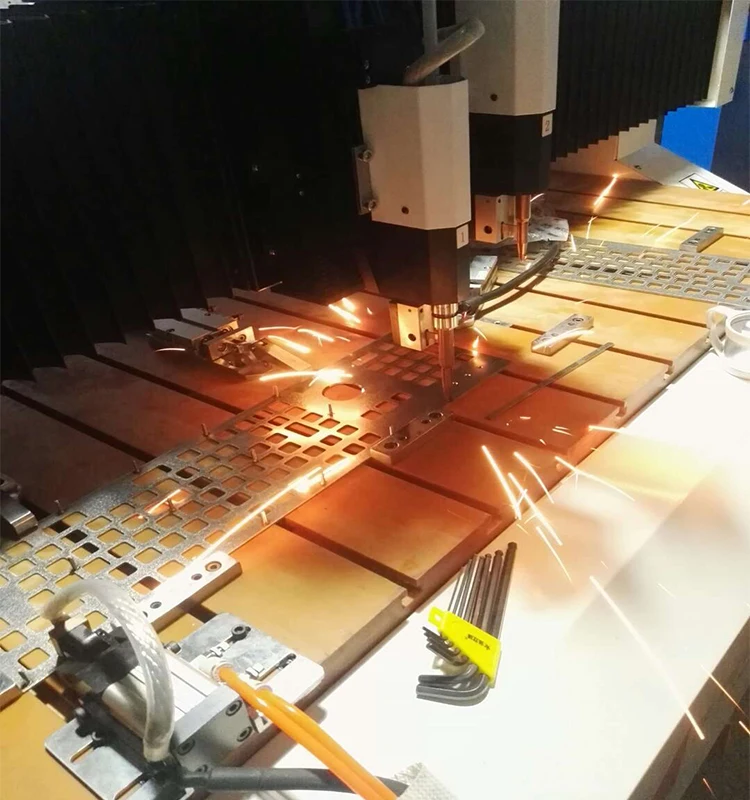

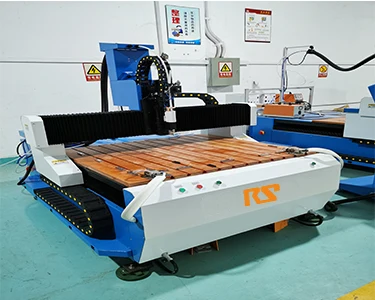

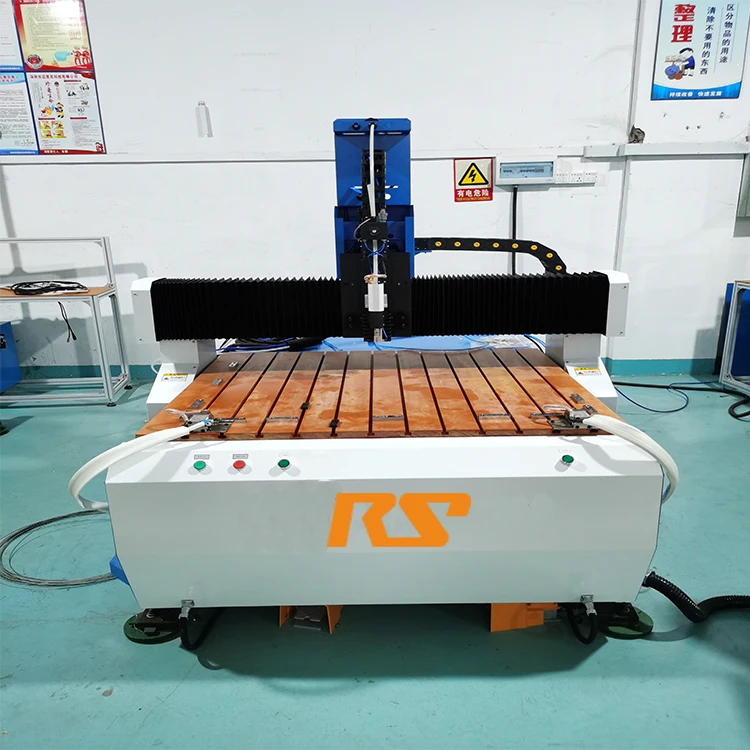

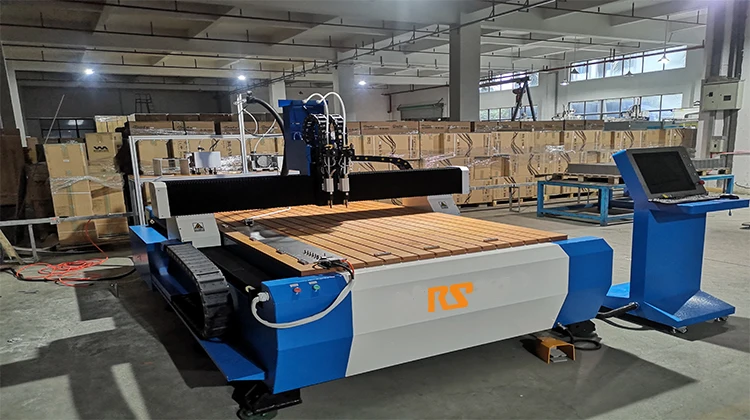

CNC stud welding machine (also called CNC nail planter, automatic stud welding machine). It is a new type of fully automatic stud welding equipment for industrial automation and intelligent development. With this kind of equipment, we can quickly and firmly weld fasteners of various specifications to metals without the need for cumbersome traditional processes such as drilling, riveting, arc welding and post-weld processing. At the same time, the welding heat affected zone is small, the base material is not deformed and discolored, and even the thin-walled workpiece is not welded.

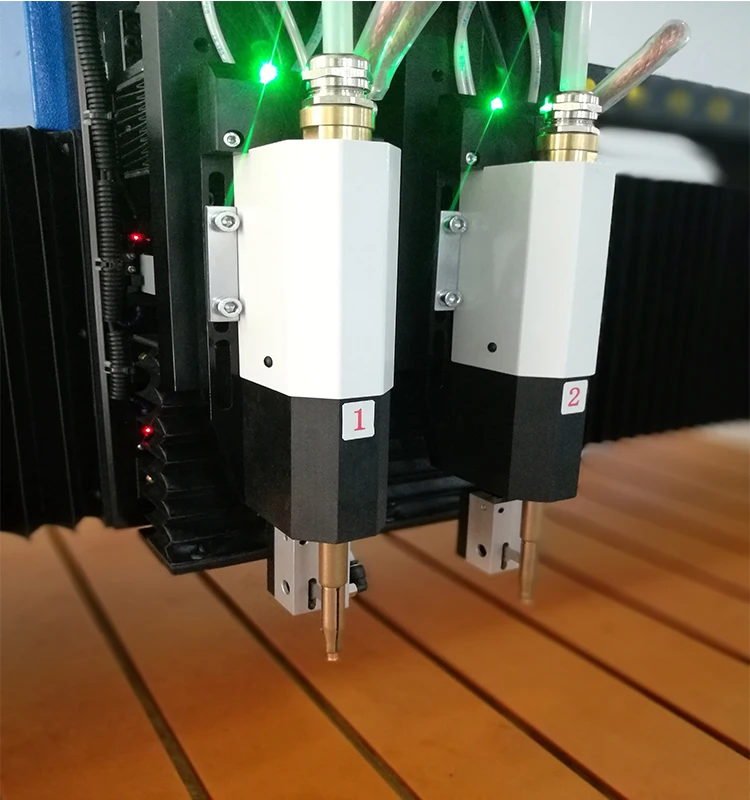

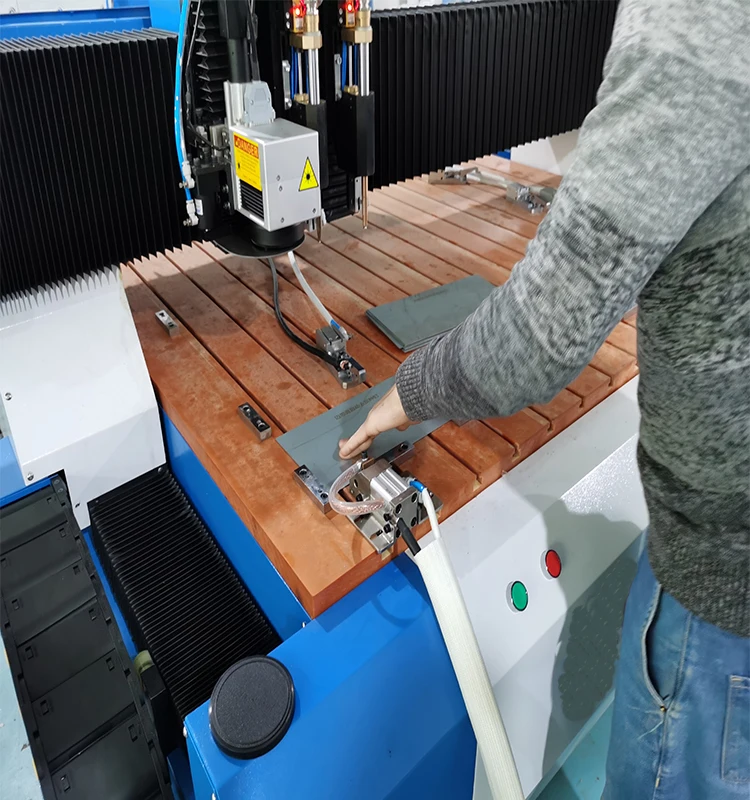

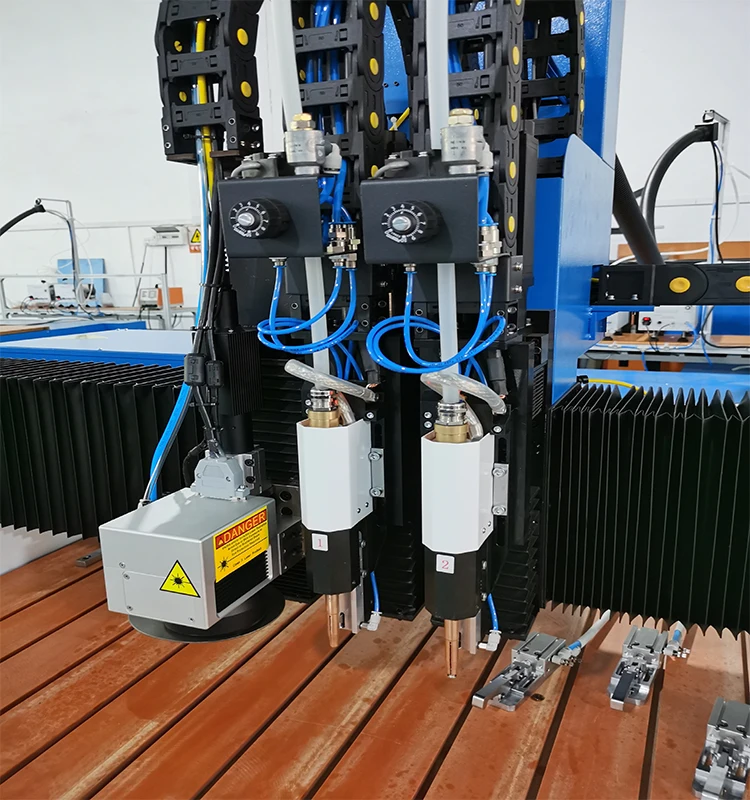

Automatic Welding Gun
German technology, this special stud welding gun has the advantages of advanced, simple structure, ruggedness and low failure rate.
Weight: 1.5Kg (without cable)
Guide mechanism: Guide shaft after hardening and precision grinding.
Drive: pneumatic cylinder
Stud length: 6-35mm
Stud diameter: 3-8mm
Weldable materials: low carbon steel, stainless steel, aluminum alloy and other metal materials
Weight: 1.5Kg (without cable)
Guide mechanism: Guide shaft after hardening and precision grinding.
Drive: pneumatic cylinder
Stud length: 6-35mm
Stud diameter: 3-8mm
Weldable materials: low carbon steel, stainless steel, aluminum alloy and other metal materials

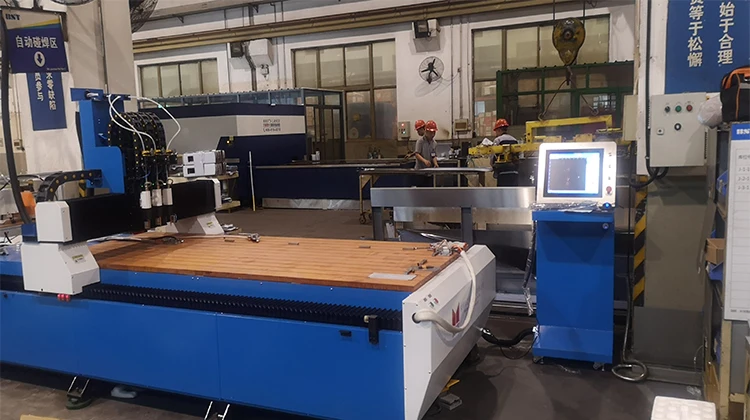

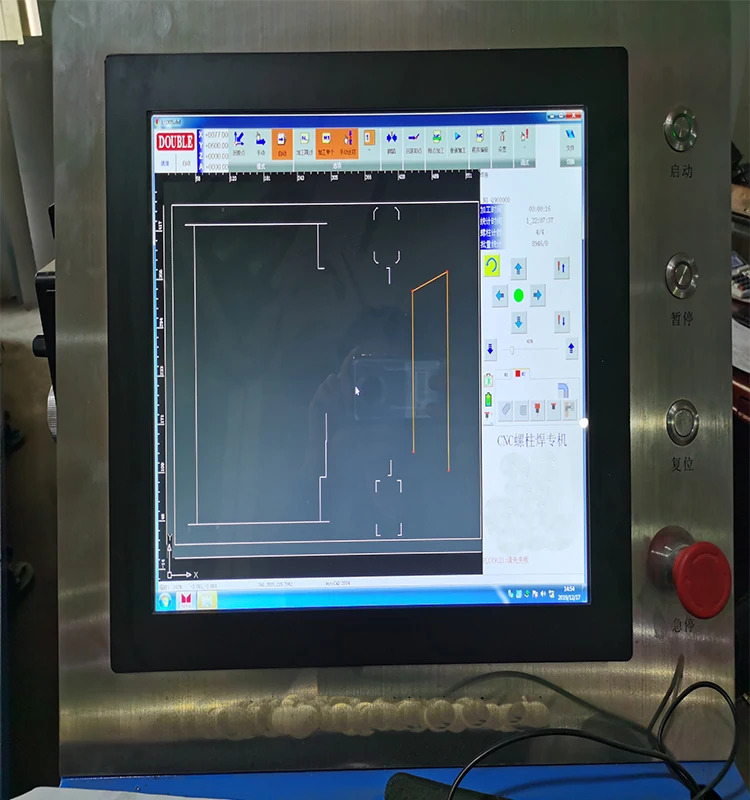

Program operation panel
Applications

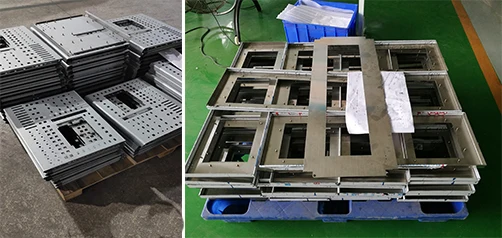

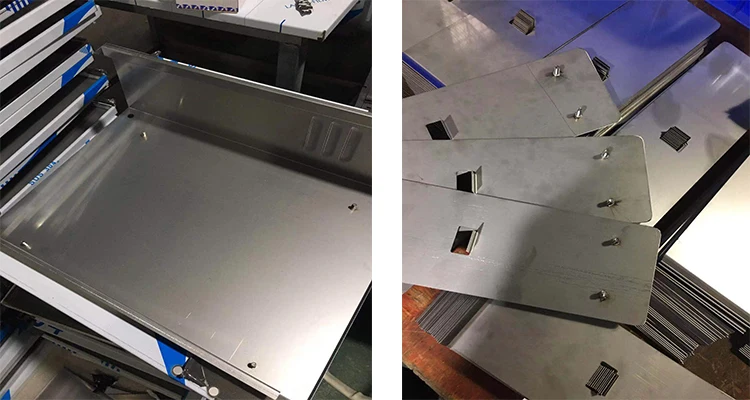

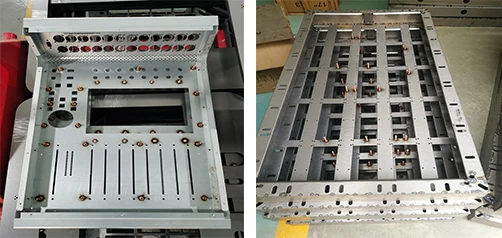

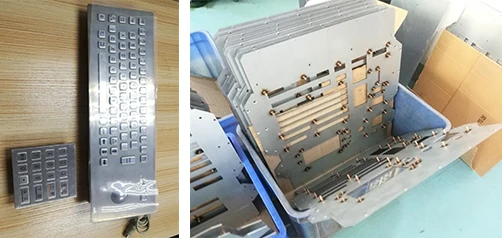

CNC stud welding machine is widely used in LED light box, audio equipment, power battery box, advertising machine, network communication cabinet, electric box and electric cabinet, air conditioning and refrigeration, medical machinery, credit card machine, intelligent teller machine, stainless steel products, etc.

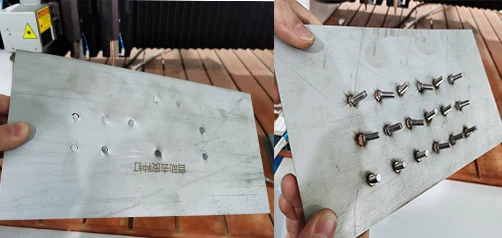

Automatic peeling seed nail
Related Products
Company Introduction
RSM MACHINERY CO.LTD is one of the world leaders for innovative products and resource sheet metal joint solution industry.Our mainly products are: Fastener insertion machine,Self-clinching machine,Self-Piercing rivet machine,Fastener elements,Spot welder,etc.
RSM sales net is cover more than 30 countries around the world and had established over 20 distributors. RSM are well-equipped to deliver timely and reliable solutions for customers wherever and whenever required.
