Dacheng Building Lift Electric Farm Tractor

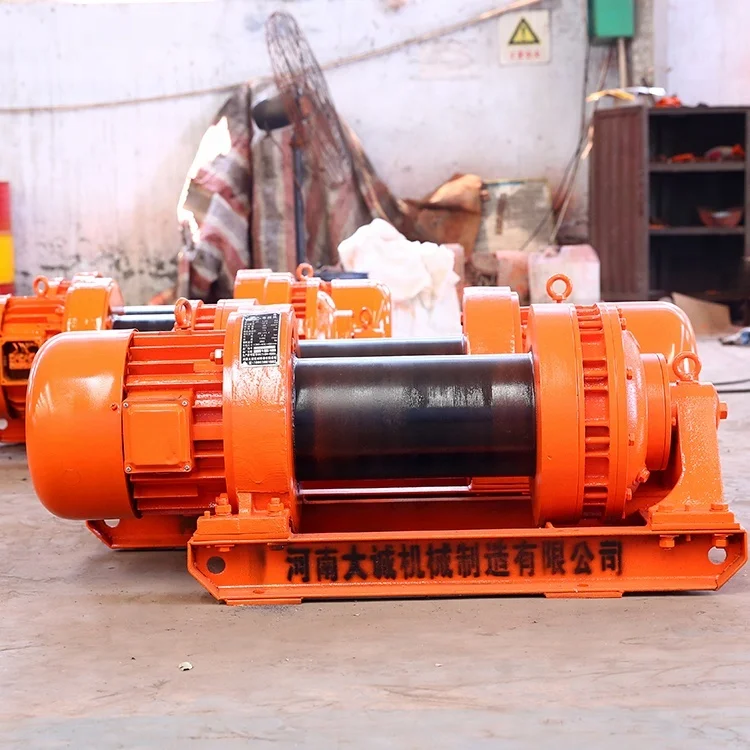

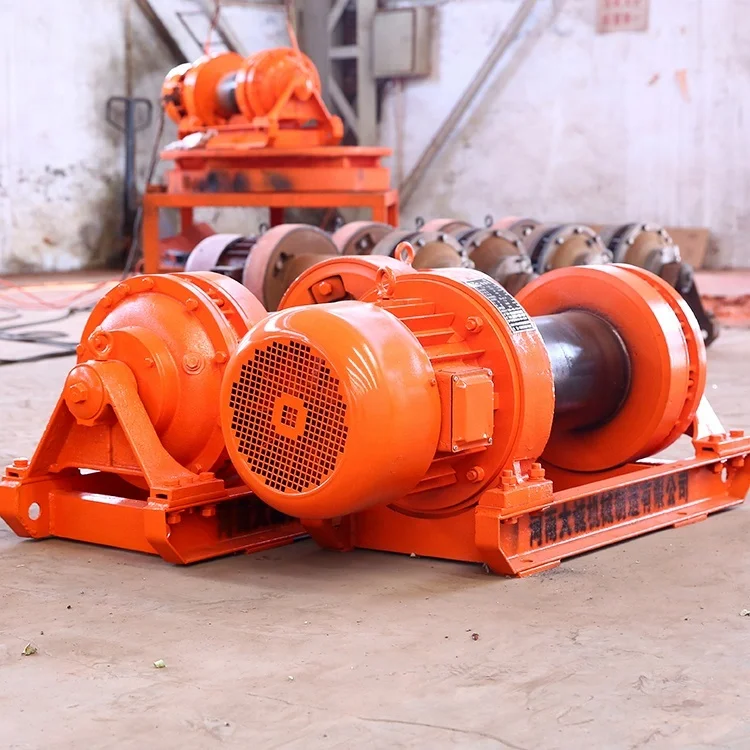

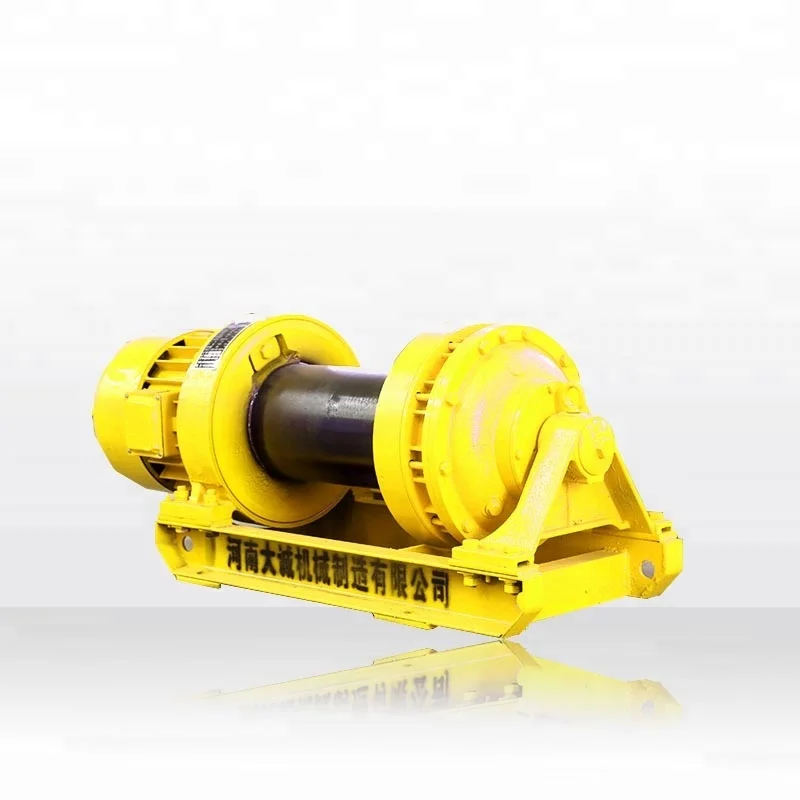

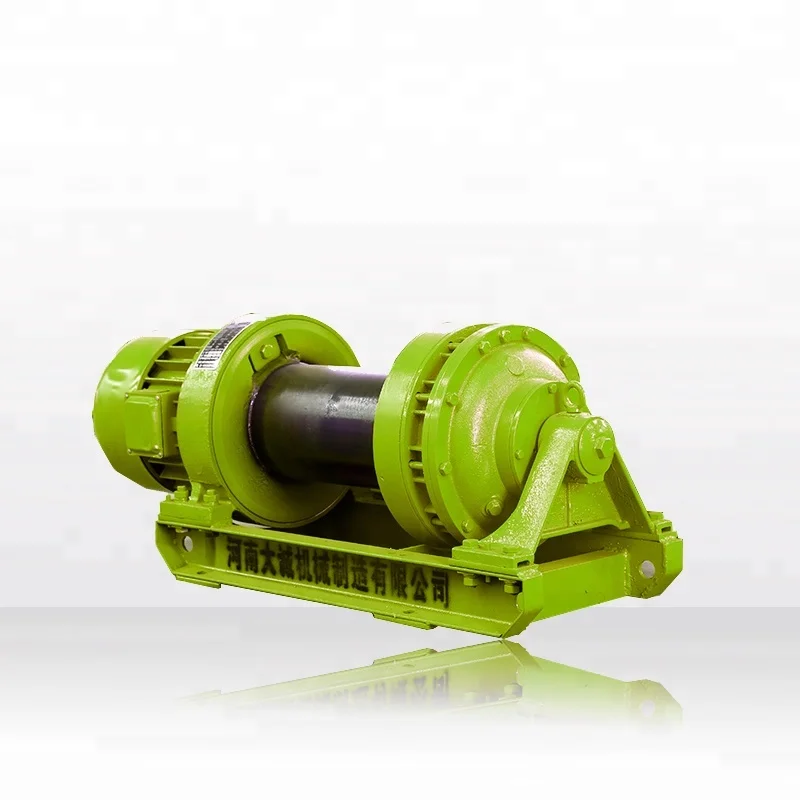

JK-D1 is a double hanging bar hoist which is a new model developed on the basis of the basis of the JK-D model hoist, is the efficient equipment supporting the construction derrick double hanging bar,but also can be used to level, cable-stayed heavy.
| Projects | Unit | JK1.25D1 | JK1.6D1 | JK 2.0D | JK 3.2D |
| Rated pull of wire rope | KN | 12.5 | 16 | 20 | 32 |
| Rated speed of wire rope | m/min | 40 | 28 | 36 | 28 |
| Diameter of friction wheel | mm | Φ255 | Φ375(255) | Φ250 | Φ250 |
| Diameter of wire rope | mm | Φ11 | Φ12.5 | Φ13 | Φ17.5 |
| Motor model | / | ZD1 41-4 | ZD1 41-4 | ZD1 51-4 | ZD1 52-4 |
| Motor power | kw | 7.5 | 7.5 | 7.5 | 7.5 |
| Motor speed | r/min | 1400 | 1400 | 1400 | 1400 |
| Boundary dimension(L*W*H) | mm | 1000*400*450 | 1290*440*560 | 1400*470*550 | 1600*600*600 |
| The whole machine quality | Kg | 300 | 330 | 510 | 810 |
| Foot mounting dimensions | mm | 450*360 | 450*400 | 732*420 | 860*550 |
Hot Sales
Packaging & Shipping
Comany Info
Advantages
FAQ
1. Are you manufacturer or Trade Company?
A:We are construction hoist manufacturer in China, and we also export our machine to other countries.
2. What's the difference between converter motor and constant frequency motor?
A: Converter motor hoist is steadier in the process of going up and down than constant frequency motor hoist.
3. Can we visit your factory?
A: Yes, of course, you will be warmly welcome to visit our factory.
4. Do you have CE certificate?
A: Yes, we have CE certificate.
