Taiwan turret and slotter head optional ram 3 axis DRO vertical milling machine fresadora X6325
- Category: >>>
- Supplier: Zaozhuang Luxing Machine Tool Co. Ltd.
Share on (62555746177):
Product Overview
Description

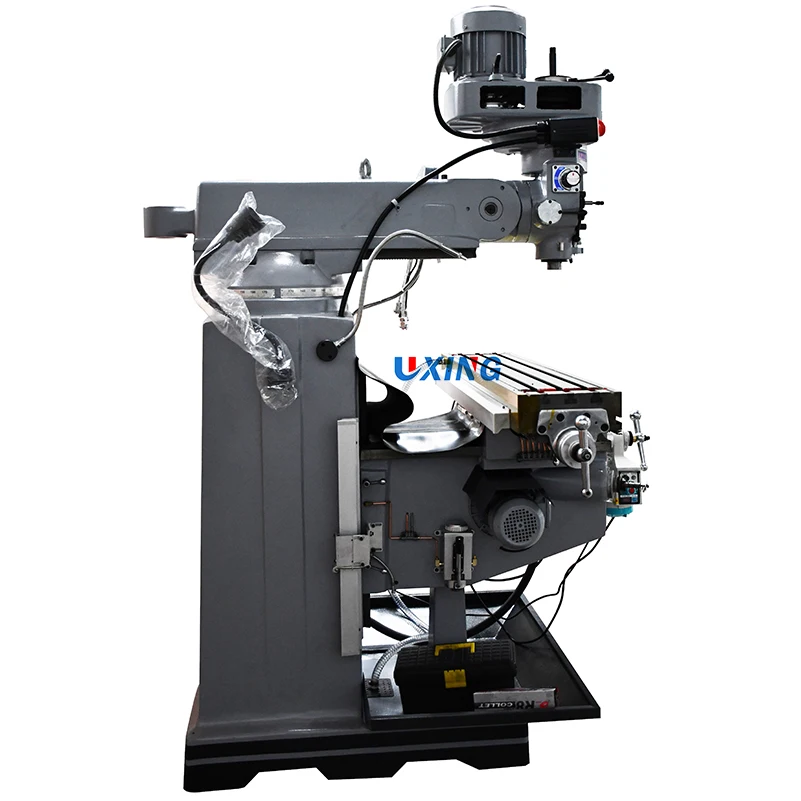

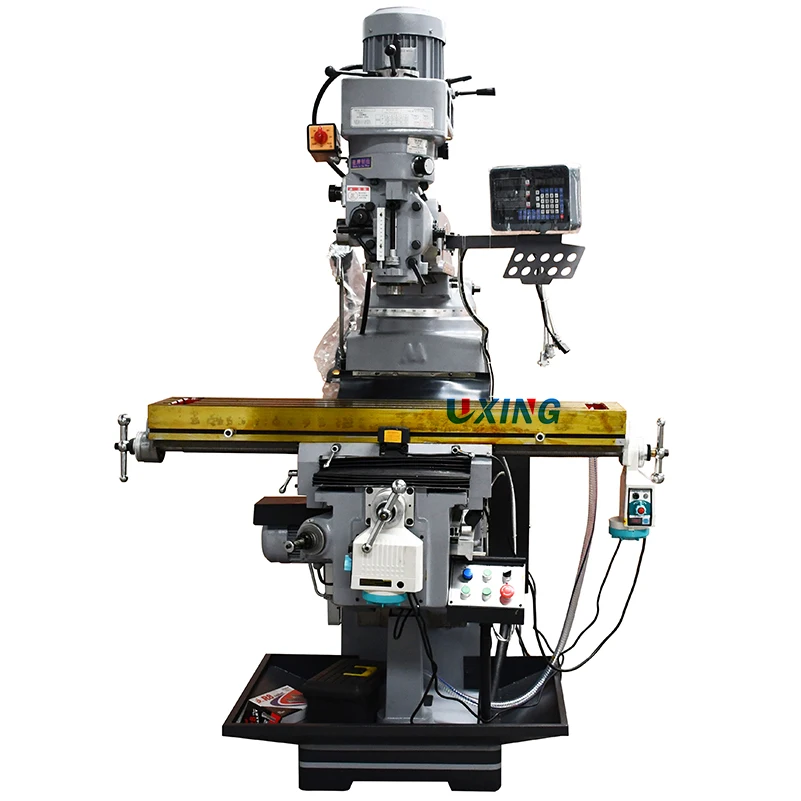

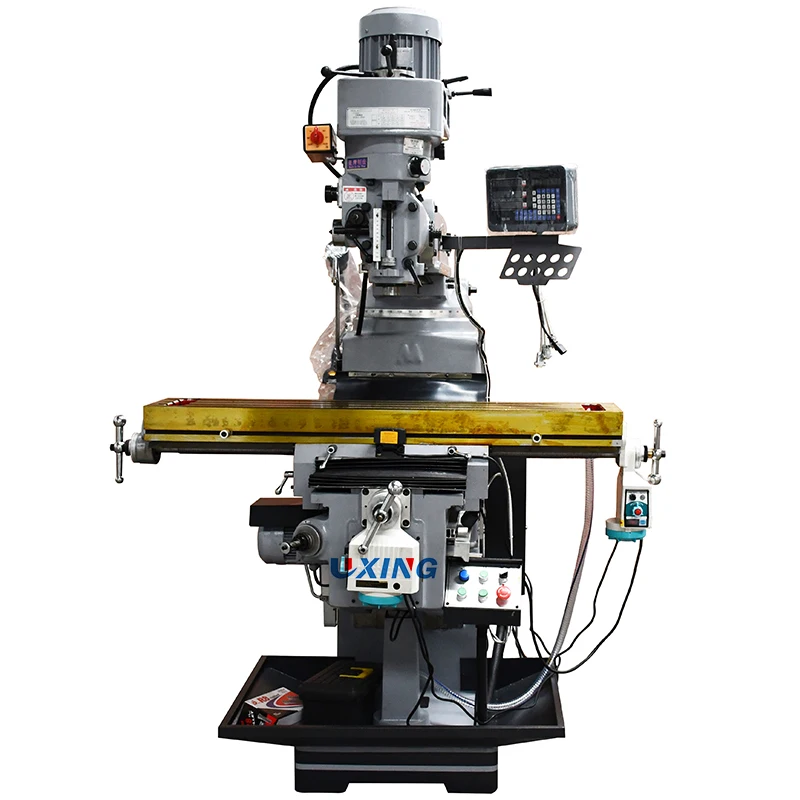

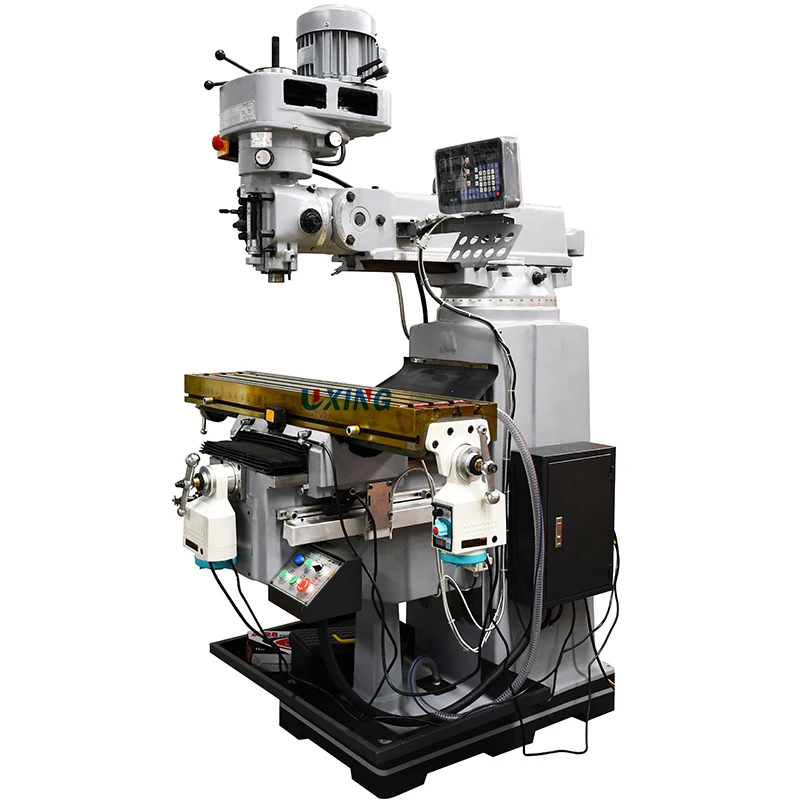

Taiwan turret and slotter head optional ram 3 axis DRO vertical milling machine fresadora X6325

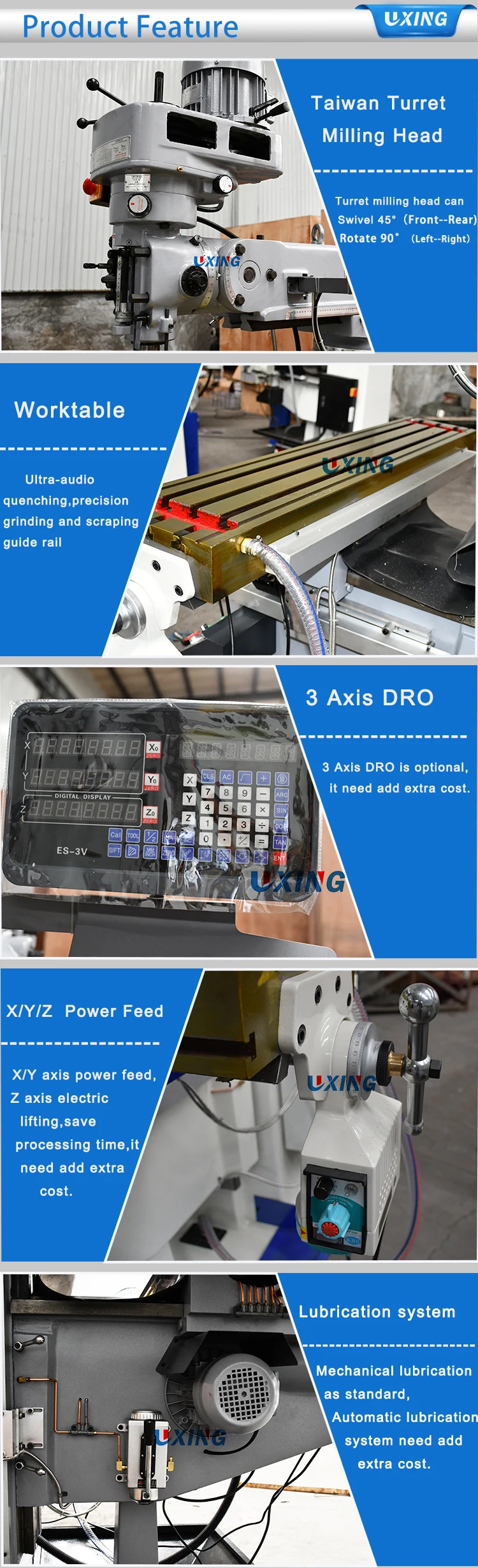

Features:

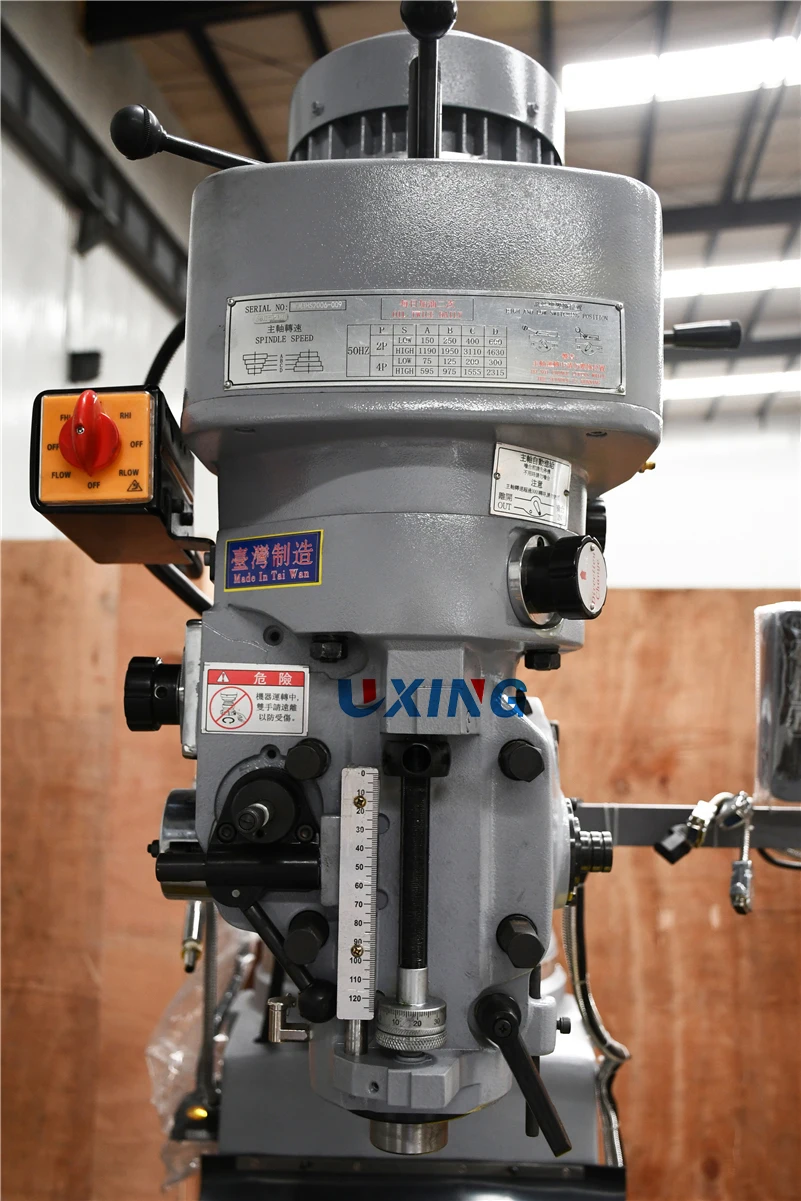

1.Taiwan Turret milling head;

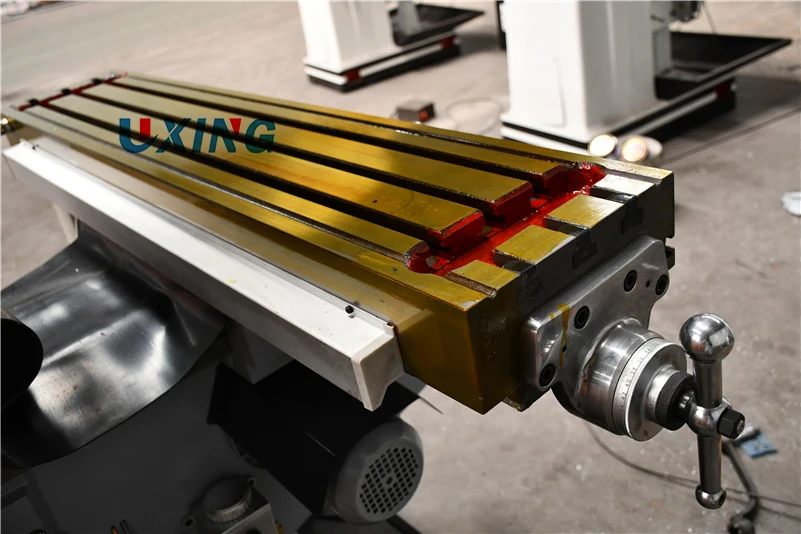

2.The guide rail is super-audio quenched, precision ground and scraped;
3.Automatic lubrication system can reduces creep at low speed, reduces machine wear, improves accuracy and extends machine life;
4. Head rotation rotation 90°(left and right),head rotation 45°(back and forth).
5.Pneumatic draw bar is optional..
2.The guide rail is super-audio quenched, precision ground and scraped;
3.Automatic lubrication system can reduces creep at low speed, reduces machine wear, improves accuracy and extends machine life;
4. Head rotation rotation 90°(left and right),head rotation 45°(back and forth).
5.Pneumatic draw bar is optional..
Machine main specifications:
Specifications | unit | X6325 |
Table size | mm | 254x1270 / 305x1370 |
Longitudinal travel | mm | 780 |
Transverse travel | mm | 420 |
Vertical travel | mm | 420 |
T slot no. and size | mm | 3x16 |
Ram travel | mm | 470 |
Distance from spindle nose to table surface | mm | 0-405 |
Spindle taper | standard: R8 | |
Optionl:ISO30/ISO40 | ||
Spindle travel | mm | 127 |
Spindle speed | rpm | standard: (50HZ) 65-4500 16steps |
optional: (variable)65-4500 | ||
Auto quill feed | mm/rev | 0.04/0.08/0.15 |
Spindle motor | kw | 2.2 |
Head swivel | 90° | |
Head tilting | 45° | |
Weight | kg | 1300 |
Details:
Optional Accessories(Need add extra cost):
Variable speed milling head;
Flat vise;
Milling chuck set;
DRO(Digital Readout);

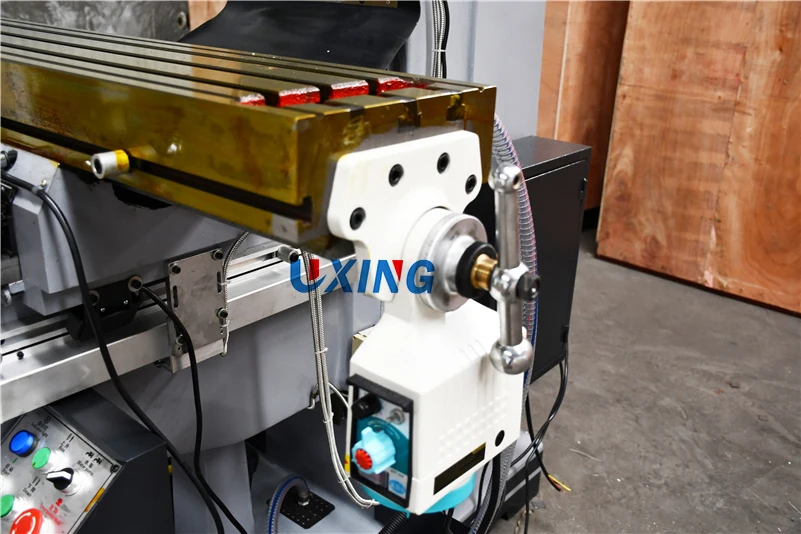

X/Y/Z axis power feed;
Pneumatic draw bar;
Slotting head;
Clamping kits;
Dividing head.
Flat vise;
Milling chuck set;
DRO(Digital Readout);
X/Y/Z axis power feed;
Pneumatic draw bar;
Slotting head;
Clamping kits;
Dividing head.
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .
