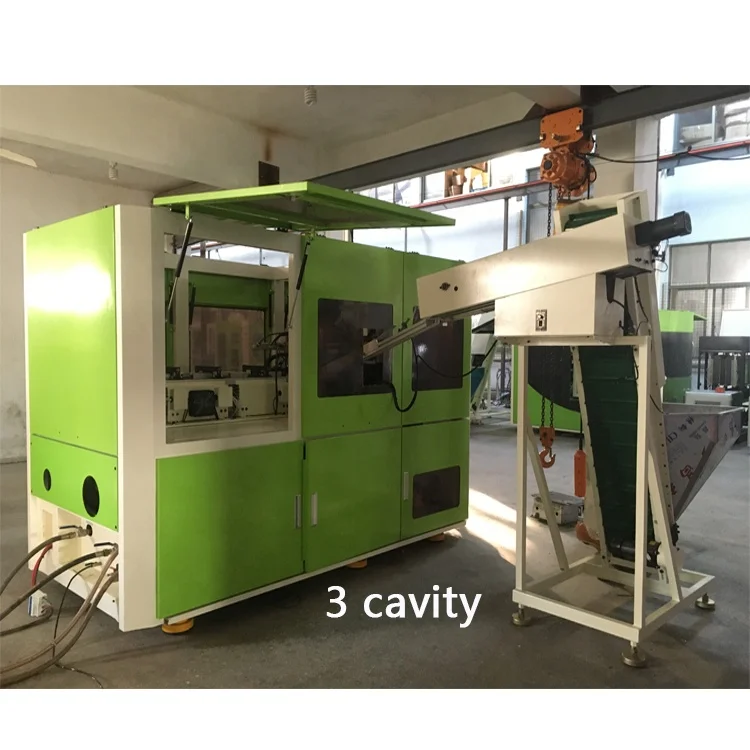

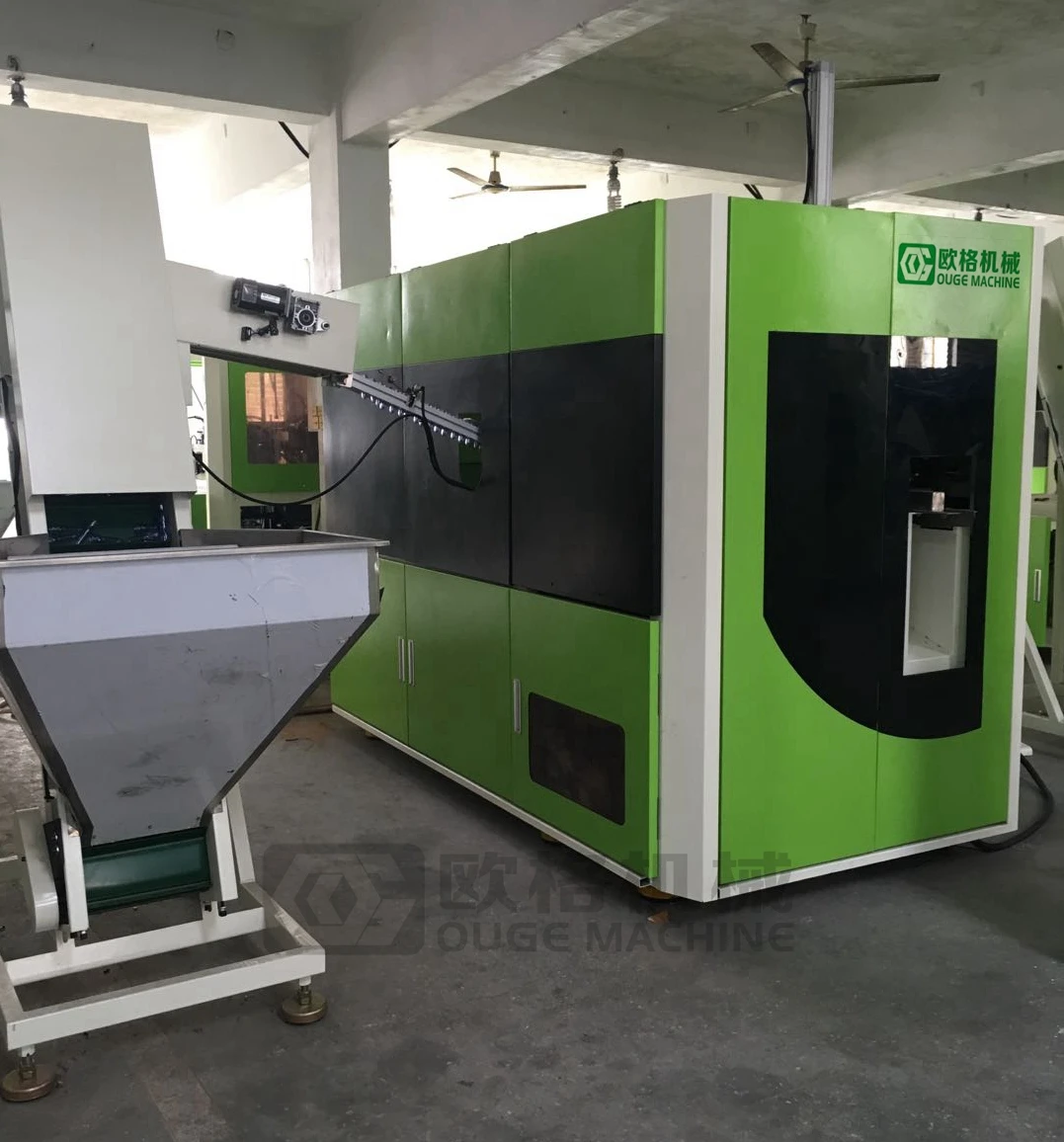

Automatic blowing machine manufacture price plastic bottle moulding machine
- Category: >>>
- Supplier: Taizhou Huangyan Ouge Machine Mould Co. Ltd.
Share on (62555791919):
Product Overview
Description
Product Description
Features:

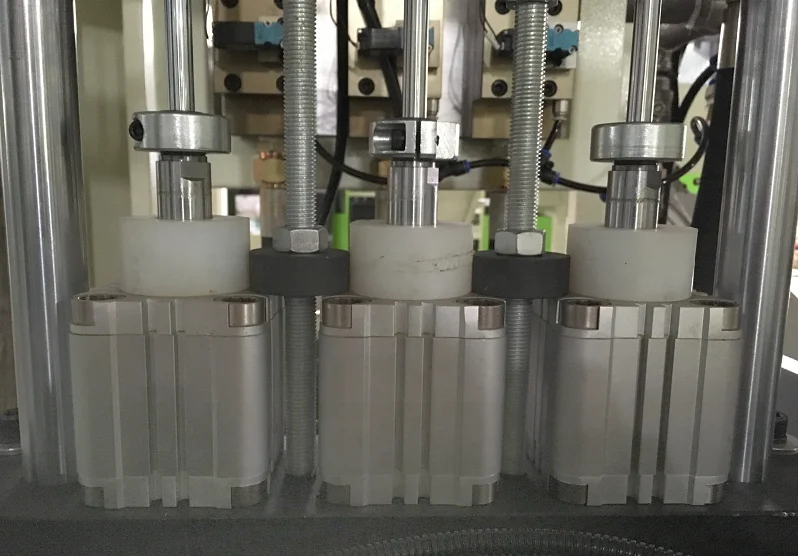

1.The machine adopts human-computer interface to control the whole working procedures,auto-loading,auto blowing,auto droping.Action cylinders are all assembled with magnetic induction switches.Connect with PLC to control every step and test every cylinder.Next action will continue after the former step done.If former step is not finished ,alarm automatically and do not work.PLC displays problem position.
2.Fast speed,accurate position,smooth action.
3.According to special demand,adopt cross double crank pressed clamping, with strong clamping force.Mould open stroke can be adjustable according to the bottle size to save the time.
4.Far infrared heater lamps have strong penetrations,prefrms are heated uniformly while rotating,PLC or electronic pressure adjustor controls each group of temperature separately.
5.Particular pre-heater design makes preform close while heating,Change space,shorten heating tunnel and reduce energy consumption according to the bottle size while blowing.
6.The air supply system consists of slight blow,high pressure blow,low pressure actions,to supply enough air for different products.
7.Reliable and special valve design make all the air system clear.
8.Servo motor saves more electricity and gets more output.
9.Automatic lubrication oil device protects the machine well.
10.Production workmanship process is fully automatic to make best quality and pollution-free.It holds less investment,high efficiency,easy operation,simple repair,safety ect.
2.Fast speed,accurate position,smooth action.
3.According to special demand,adopt cross double crank pressed clamping, with strong clamping force.Mould open stroke can be adjustable according to the bottle size to save the time.
4.Far infrared heater lamps have strong penetrations,prefrms are heated uniformly while rotating,PLC or electronic pressure adjustor controls each group of temperature separately.
5.Particular pre-heater design makes preform close while heating,Change space,shorten heating tunnel and reduce energy consumption according to the bottle size while blowing.
6.The air supply system consists of slight blow,high pressure blow,low pressure actions,to supply enough air for different products.
7.Reliable and special valve design make all the air system clear.
8.Servo motor saves more electricity and gets more output.
9.Automatic lubrication oil device protects the machine well.
10.Production workmanship process is fully automatic to make best quality and pollution-free.It holds less investment,high efficiency,easy operation,simple repair,safety ect.
Specification
ITEM | 单位 | OGB-3S | ||||
理论产量 | Theoretical output | Pcs/h | 4500 | |||
瓶型规格 PRODUCT | 最大容积 | Max. Volume | L | 1.5 | ||
最大高度 | Max. height | mm | 360 | |||
最大直径 | Max. diameter | mm | 105 | |||

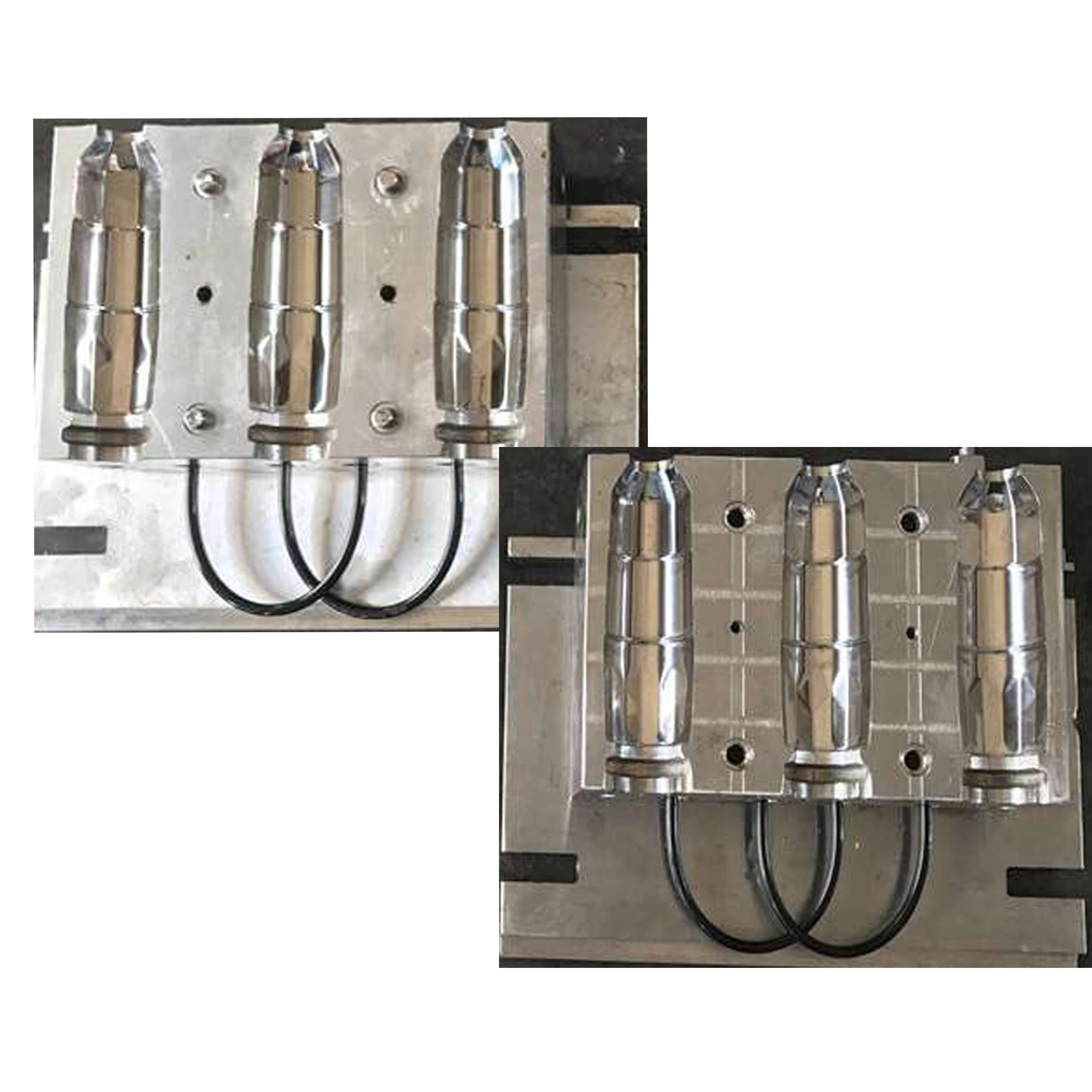

成型组规格 MOULD | 模穴数 | Number of cavities | / | 3 | ||
模板尺寸 | Mould plate dimension(LxH) | mm | 430×360 | |||
模厚 | mould thickness | mm | 188 | |||
开模行程 | Mould opening stroke | mm | 110 | |||
电力规格 ELECTRICAL | 电源 | Power | 220-380V | |||
50-60Hz | ||||||
总功率 | Total power | KW | 18 | |||
加热功率 | Heating power | KW | 15 | |||
空压机规格 AIR SYSTEM | 动作压力 | Operation pressure | Mpa | 0.8-1.0 | ||
动作耗气量 | Action air consuming | M3/min | ≥1.6 | |||
吹气压力 | Blowing pressure | Mpa | 2.4-4.0 | |||
吹气耗气量 | Blowing air consuming | M3/min | ≥3.2 | |||
机器规格 MACHINE | 吹瓶机主机尺寸 | Main body dimension(LxWxH) | M | 2.7×1.45×2.05 | ||
吹瓶机主机重量 | Main body weight | KG | 2300 | |||
瓶坯输送带尺寸 | Preform autoloader(LxWxH) | M | 1.9×1.9×2.2 | |||
瓶坯输送带重量 | Preform automatic weight | KG | 200 | |||
Company Profie
About us:
OUGE offers total solutions of PET bottles for you
OUGE company is located in the East China Sea coast, the famous “land of plastic mold”---- Huangyan zhejiang. Specializes in the production of PET automatic and semi-automatic blowing machines, preform moulds and bottle moulds. The main products include: all kinds of carbonated beverage bottles, juice bottles, alcohol drinks bottles, and cosmetic containers, PMMA lamps, PP infusion bottles, edible oil bottles ,etc. Ouge consists of many professional engineers with rich experience in the PET industry and high-quality staff. Over the past several years, Ouge has always been devoting its utmost efforts to improving the technology, researching the market and developing new products to suit for all customer needs.Our service:
Warranty: One year from the date from the date of Installation or acceptance of the Plant
whichever comes first.
Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table,Furnace heating tube and other relative vulnerable part .
Installation: Experts’ team to buyer’s country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $50/day during the engineer’s journey.
whichever comes first.
Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table,Furnace heating tube and other relative vulnerable part .
Installation: Experts’ team to buyer’s country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $50/day during the engineer’s journey.
Exhibition
The 125th Canton Fair
2019 Chinaplas
2017 Chinaplas
Certifications
Packing & Delivery
Payment term
√30% by T/T as deposit, the balance should be paid by T/T before shipment.
Packaging
√Package type: wooden case &plastic packaging
Shipping
√Shipping:By sea/By air
Delivery time
√30-45 days after customer send the deposit and confirm the bottle drawing.
Guarantee time
√12 months after machine running in buyer’s factory.
√30% by T/T as deposit, the balance should be paid by T/T before shipment.
Packaging
√Package type: wooden case &plastic packaging
Shipping
√Shipping:By sea/By air
Delivery time
√30-45 days after customer send the deposit and confirm the bottle drawing.
Guarantee time
√12 months after machine running in buyer’s factory.
FAQ
Q1.When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or inform us by email, so that we will regard your inquiry in priority.
Q2.Can you do the design for us?
A: Yes. We have a professional team having rich experience on bottle designs. Just tell us your ideas and we will help to carry out your ideas into perfect products . It does not matter if you do not have someone to complete files. Send us high resolution images, your Logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q3.What kind of files do you accept ?
A: STP,IGS,PDF, high resolution JPG ,Words
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or inform us by email, so that we will regard your inquiry in priority.
Q2.Can you do the design for us?
A: Yes. We have a professional team having rich experience on bottle designs. Just tell us your ideas and we will help to carry out your ideas into perfect products . It does not matter if you do not have someone to complete files. Send us high resolution images, your Logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q3.What kind of files do you accept ?
A: STP,IGS,PDF, high resolution JPG ,Words
