Использованная машина для распыления краски стенд печь для выпечки
- Category: Spray Booths >>>
- Supplier: Zouping Xinghuo Coating Equipment Co. Ltd.
Share on (62555870929):
Product Overview
Description

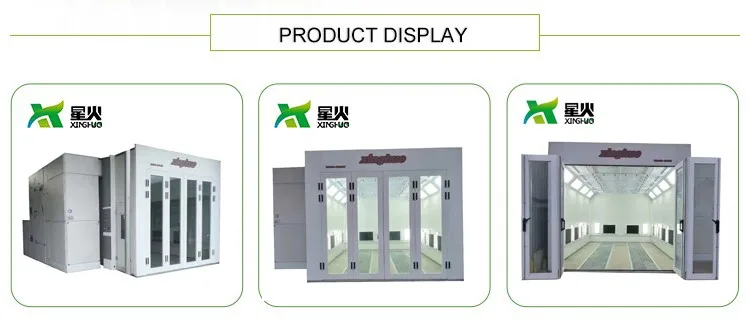

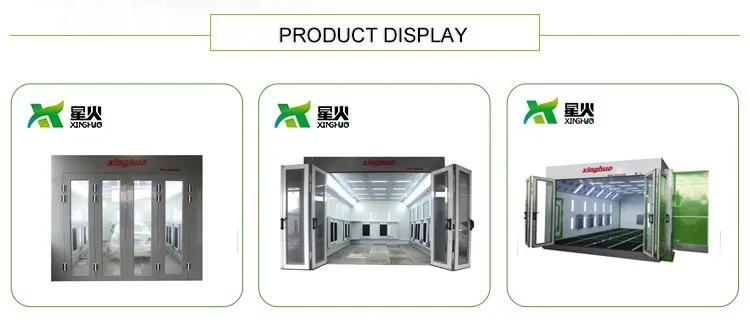

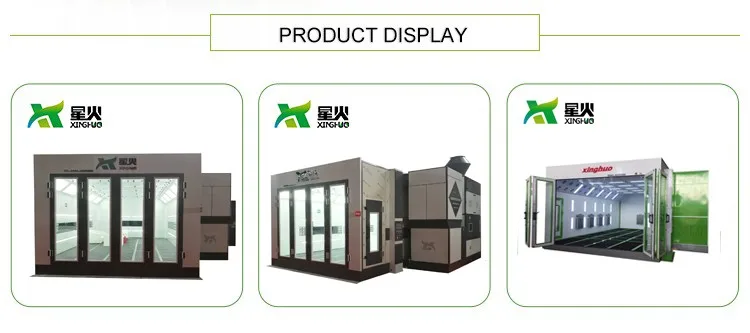

Products Show
Product Parameters
XC-G20-A1 type technology parameters and configurations | ||||||||||||||
External size | Internal size | Main door size | Air fan type | Fan Capacity | Power | Wind speed | Noise | |||||||
7000*5500 *3300mm | 6900*3900 *2600mm | 3000*2500mm | DDF turbine | 22000/ 15000 m3/h | 15kw | 0.3 m/s | <75dbA | |||||||
Housing system | 50mm thickness rock wool cotton wall panel ,double-sides manual purification color steel plate, steel single-deck 0.5mm thickness, High density hydrophobic basalt for 4 sides sealing edge ; anti-flame and heat-insulation, galvanized steel roof panel. | |||||||||||||
Door System | Full handmade metal 4- folding doors, aluminum frame, external mortise lock,tempered glass window; Safety work door with safety pressure lock device, automatically inspection bounces pressure relief. | |||||||||||||
Air System | 7.5KW fan*1 air intake,5.5KW fan*1 air exhausting. Cabinet for the fans*1unit, galvanized steel frame with sound insulation layer; exhaust air mechanism air duct*4m ; the cabinet is separated 100mm from the house body to avoid resonance. | |||||||||||||
Filtering system | Glass fiber cotton dry filter paint mist solid particles, high-quality galvanized sheet welded frame cotton tow mop, filter cotton is built - in to prevent shedding, design six cotton mops for easy replacement , enhance the overall strength, Primary filtration of domestic cotton and top filter cotton fine filtration, filtration rate 98 %. | |||||||||||||
Heating system | Fuel oil heater system, Italy Riello brand diesel burner, Stainless steel heat exchanger. 5~10 minutes reaching the baking temperature 60°c~80°c. | |||||||||||||

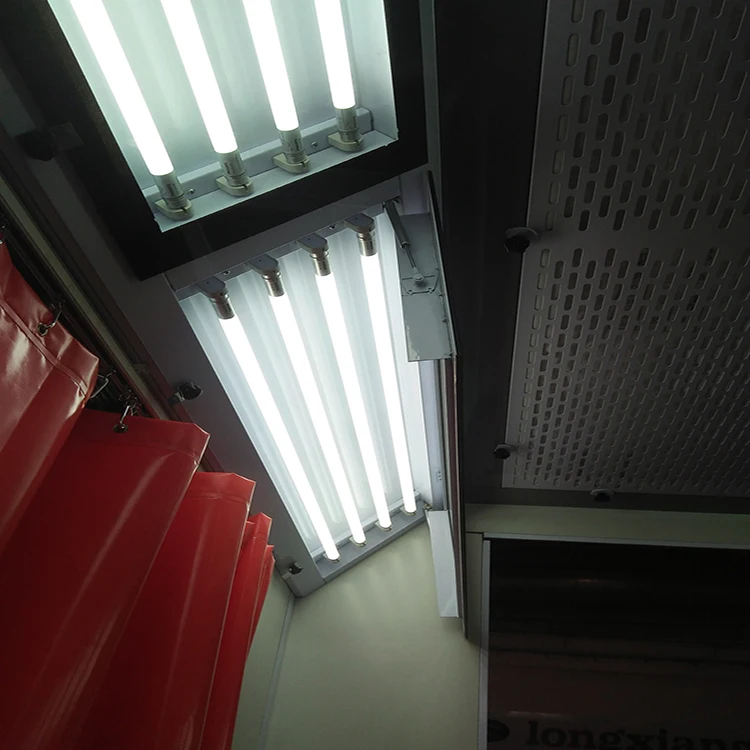

Lighting System | Ceiling light 4Pcs*8units=32*28W, LED tubes illumination≥1000lux, glass cover. | |||||||||||||

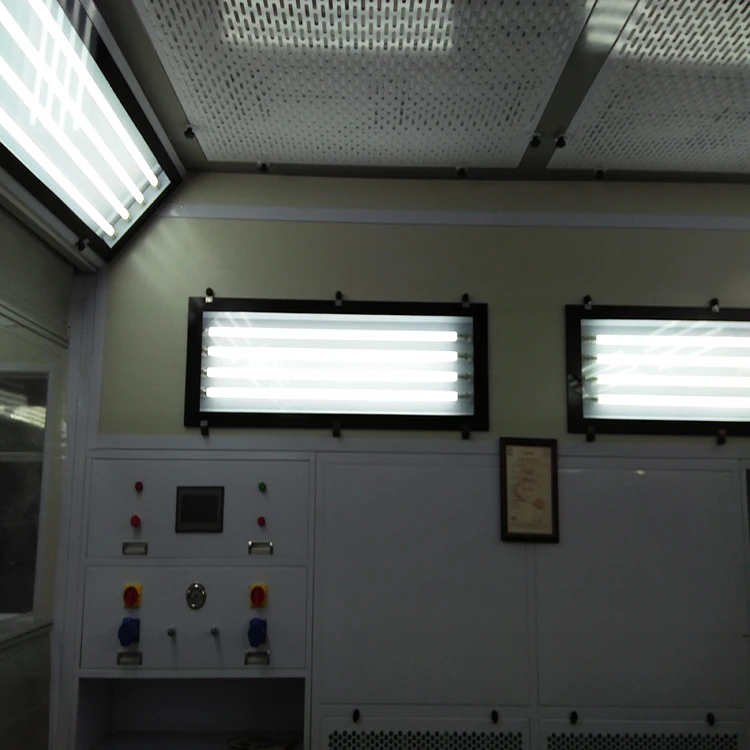

Controlling system | Integrated manual mechanical control system, Microcomputer control panel; With temperature time setting, normal temperature painting, baking paint switch, lighting switch, emergency stop switch, fault alarm, etc; | |||||||||||||

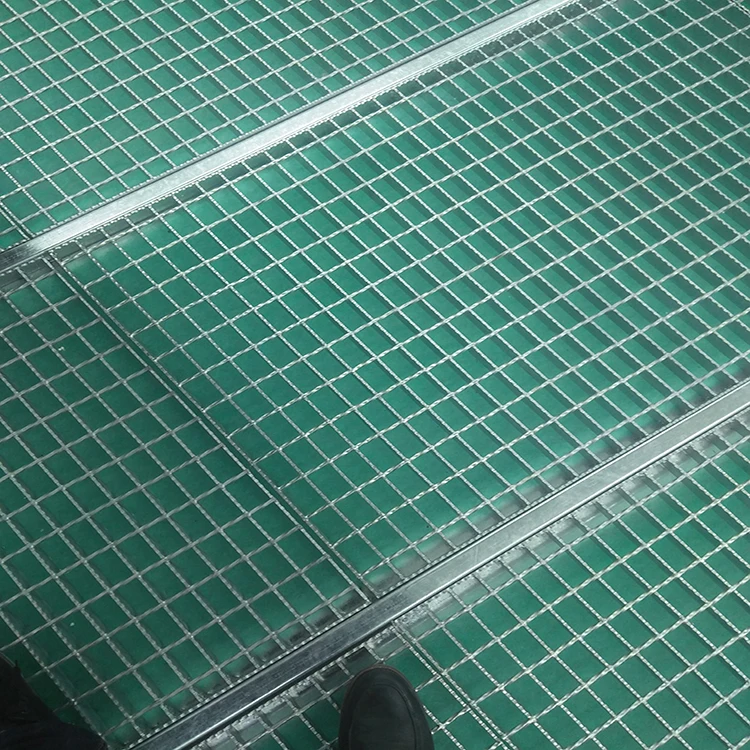

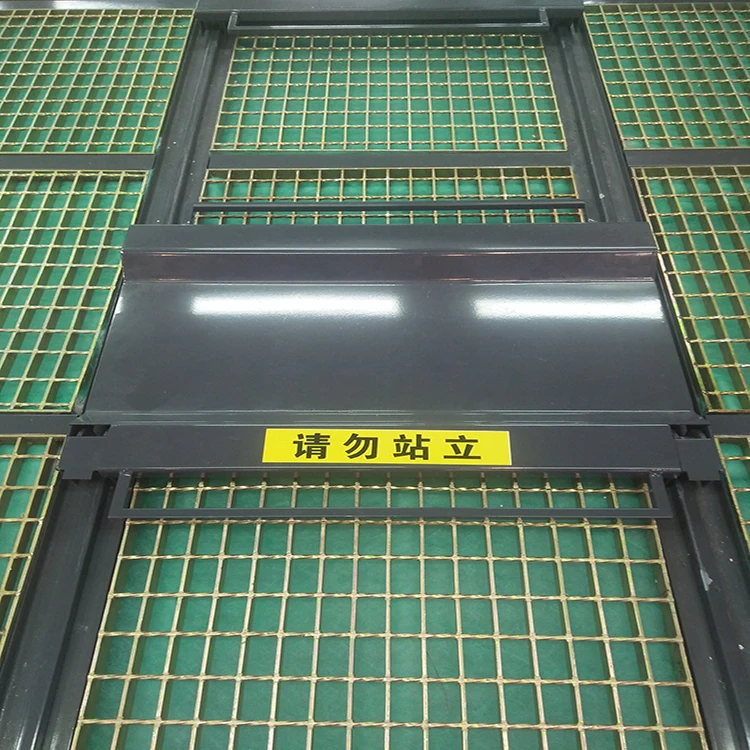

Basement System | The surrounding is made of high-quality galvanized sheet, The load-bearing bracket is 1.8mm galvanized sheet with convex steel structure welded; Steel grilles(30*5mm flat iron and 8 #threaded steel welding)*2rows and Non-slip boards(painted by the tread plate)*3rows | |||||||||||||
Environmental protection system | (Part Optional) Photooxygen waste gas treatment purification device, multi-layer filtration, effective decomposition of waste gas pollutants, the purification rate of up to 90%; (Optional) Dry type multi-filtration, effectively filtering fog particles; W filter paper +glass fiber cotton+ activated carbon and bag filter; | |||||||||||||
Waterborne paint device | (Optional) Adjustable the air shower nozzle, 2*YDW centrifugal fans to supply air independently; | |||||||||||||

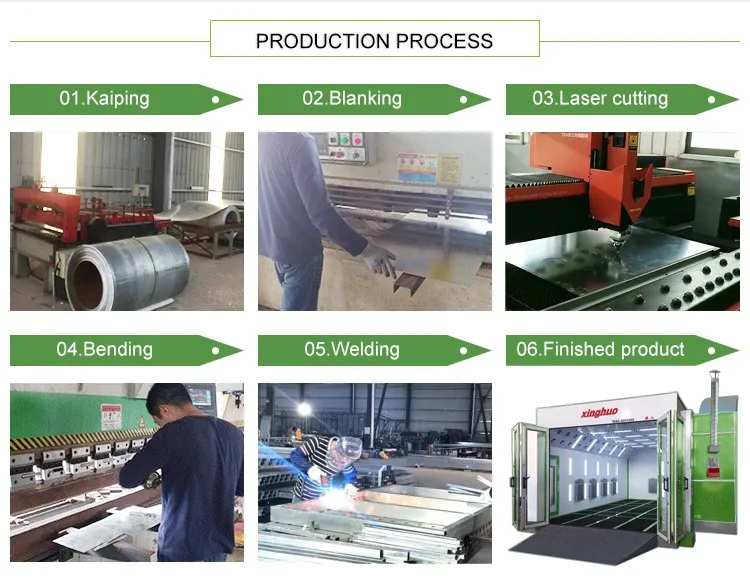

Production Process
Our Service
Our Company
Zouping spark coating equipment co., ltd. is located in zouping city, one of the top 100 economic counties in China
Approved and registered paint room and industrial environmental protection equipment production and manufacturing enterprises, for many years
specializing in spray paint room and industrial environmental protection coating equipment research and development, design, production, sales, with
independent intellectual property rights "spark" brand paint room and industrial environmental protection coating equipment.The company is committed
to the development and promotion of new products, new technologies and new processes.Strive to build the enterprise into a product research and
development, design, manufacturing, installation and debugging and consulting services as one of the high-tech enterprises.
The company connects the industrial key city zibo in the east, shandong province will be adjacent to jinan in the west, south jiqing high-speed,
north by the Yellow River, land
Location, convenient transportation.Since its inception, the company has always pursued "the brand" strategy, the products are adopted a policy of
lifetime after-sales service, the company leading product "spark" brand spray/paint room, with practical, environmental protection, low energy
consumption, high cost performance of technical characteristics, positive response from the international community advocated by low carbon,
environmental protection concept in the service industry, service to the society.In order to meet the market demand, the company has developed the
electric heating type, light oil, waste oil heating, steam heating type, infrared electric heating technology advanced spray/paint coating of
environmental protection equipment such as, the spark spraying/baking booth has been successfully applied in automobile manufacturing, car
modification, engineering machinery, mechanical processing, ceramic products, furniture manufacturing, and other areas of the multiple enterprises,
products are exported to Japan, South Korea, Vietnam, Russia, Congo and other overseas countries.
Company with a special focus on the product after-sales service, formed a technology professional services team, responsible for product after-sales
maintenance, maintenance, service outlets all over the country, the company's practice of "one year warranty, life-long maintenance" commitment to
provide free maintenance product warranty maintenance services, more than warranty period will provide non-profit permanent product maintenance
services.v
Certifications
Product packaging
Our Exhibition
FAQ
Q1:What is your terms of packing?A1:Convenient pack.
Q2:What is your terms of payment?
A1:L/C,T/T,Western Union,MoneyGram.
Q3:What is your terms of delievry?
A1:Shipping.
Q4:How about your delivery time?
A1:One week.
Q5:Do you test all you goods before delivery?
A1:Yes,we do.
Q6:Can you make the machine size and color as our request?
A1:Yes,we can make the machine size and color according to your request.
Q7:OEM is available?
A1:Yes,we can accept OEM.
Q8:What's the advantage of your company?
A1:1.Factory direct sale;2.One year warrnty;3.Advanced microcomputer control system
4.Fast infrared lamps drying system(Diesel or gas drying can be customized )installation
instruction service;5.Installation instruction service;6.Experienced in shipping;7.CE certificateQ1:What is your terms of packing?
A1:Convenient pack.
Q2:What is your terms of payment?
A1:L/C,T/T,Western Union,MoneyGram.
Q3:What is your terms of delievry?
A1:Shipping.
Q4:How about your delivery time?
A1:One week.
Q5:Do you test all you goods before delivery?
A1:Yes,we do.
Q6:Can you make the machine size and color as our request?
A1:Yes,we can make the machine size and color according to your request.
Q7:OEM is available?
A1:Yes,we can accept OEM.
Q8:What's the advantage of your company?
A1:1.Factory direct sale;2.One year warrnty;3.Advanced microcomputer control system
4.Fast infrared lamps drying system(Diesel or gas drying can be customized )installation
instruction service;5.Installation instruction service;6.Experienced in shipping;7.CE certificate
