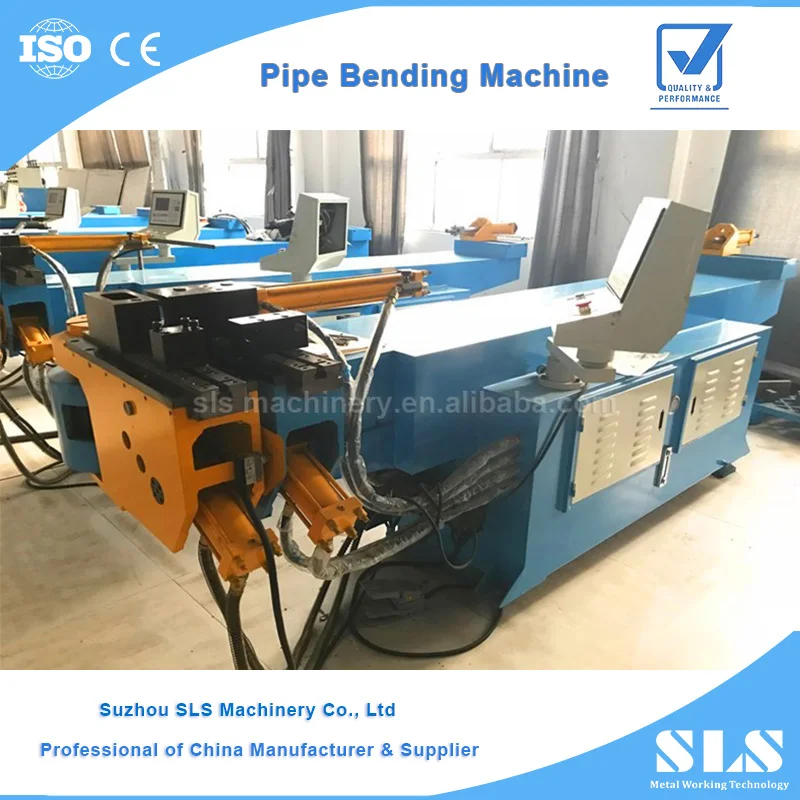

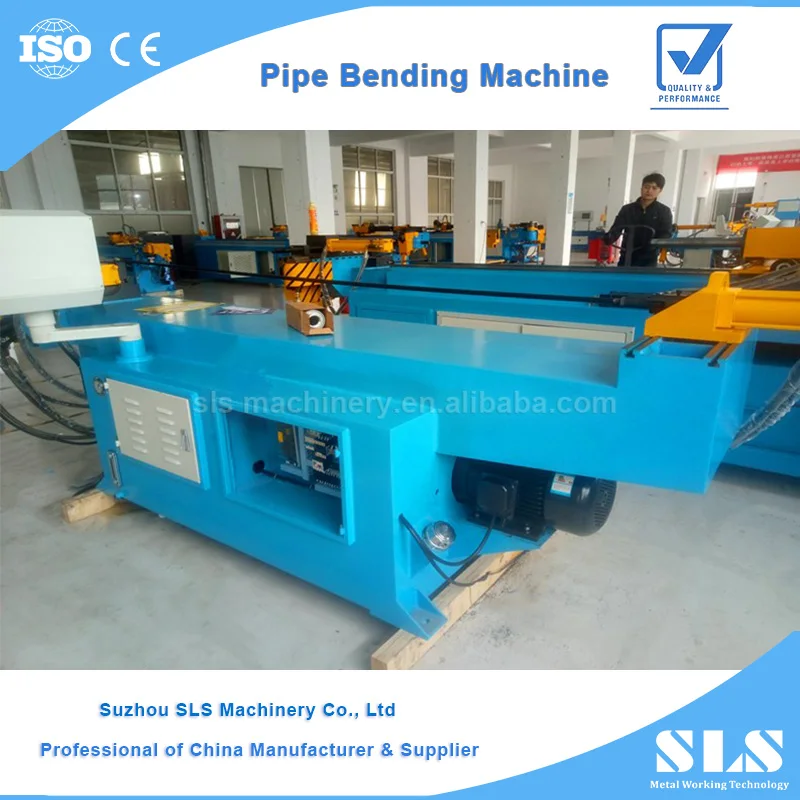

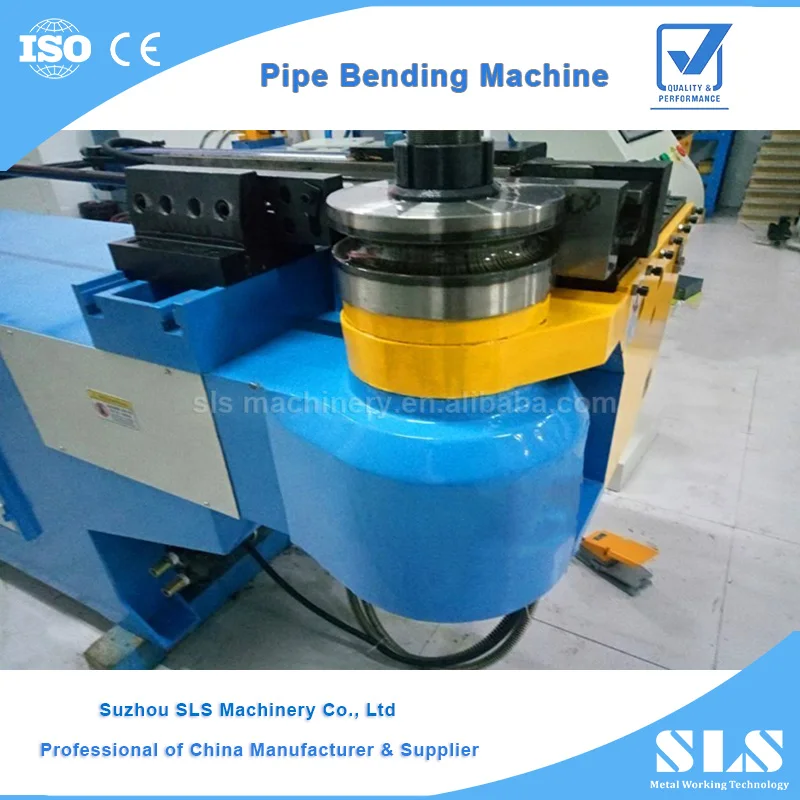

Cheap Price for Sale Manual Pipe Bending Machine, Hand Held Operated Tubing Bender
The Machine Video Introduction
For More Exciting Videos, Please Visit Our Website: www.slsmachinery.com

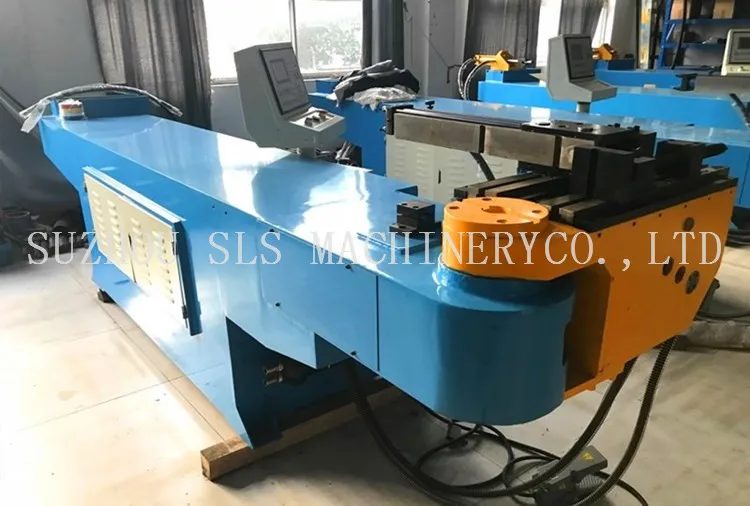

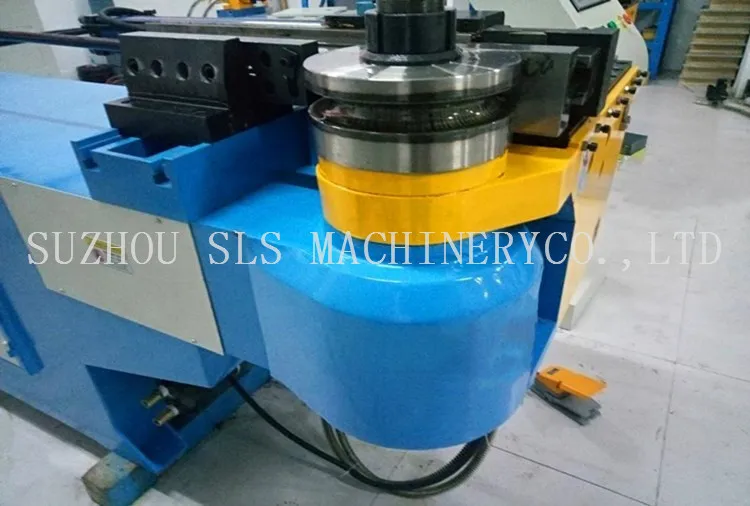

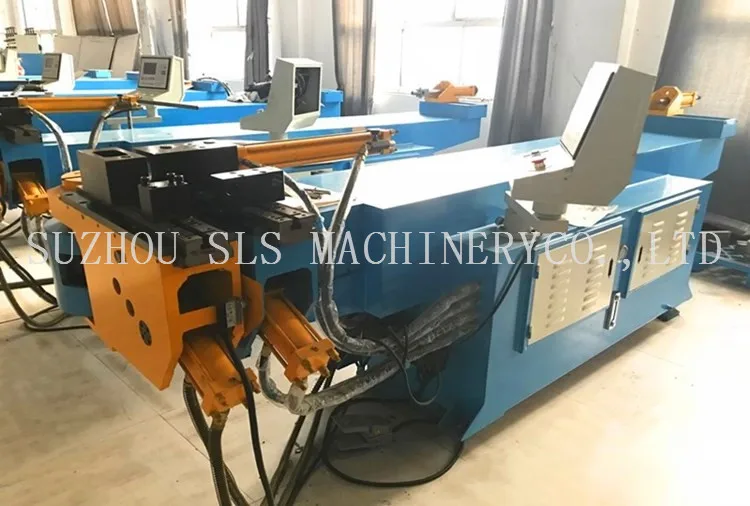

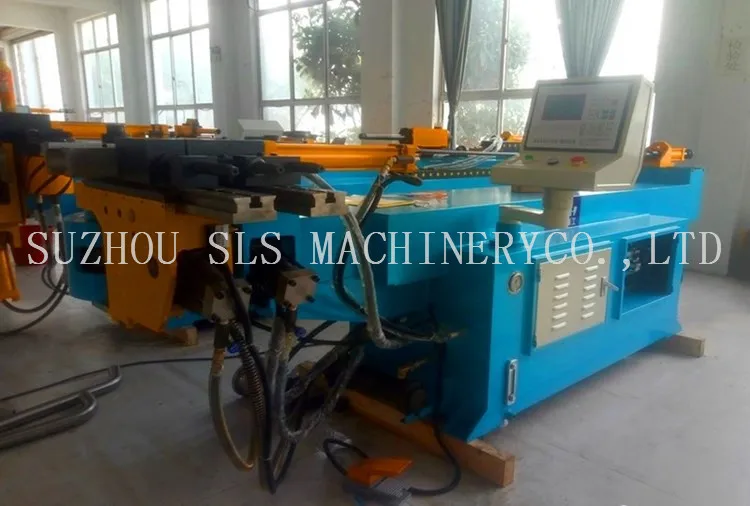

Brief Introduction on Hand Held Tubing Bender
SZ-SLS Machinery Manufacturing and Sales Hand Held Tubing Bender has an NC control unit to allow the operator to program the bend degree (C axis)-the standard memory can store up to 16 programs each with 16 sequential bends.This allows the operator to select from the memory to bend sequence they require and load the tube and start bending. The rotating and feeding (B&Y axis) are controlled manually. Other movements as die working,mandrel working are controlled by hydraulic. Pipe Bending Machine combines easy-to-use operation with high bending accuracy and cost effectiveness. It is the practical semi-automatic solution for small to medium productions.
Features on Hand Held Tubing Bender
* Bending Axis-by Hydraulic ,Feeding Axis-by Manual,Rotating Axis-by Manual.

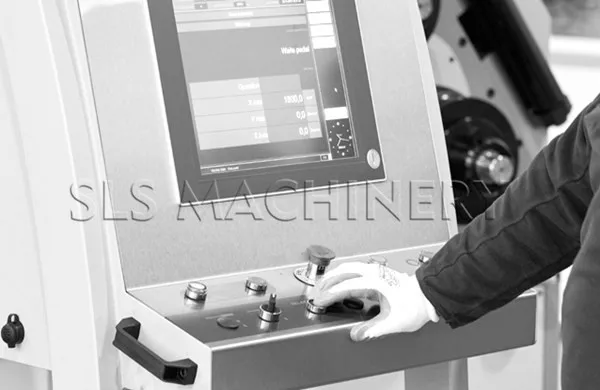

* Human Interface offers easy access to auto and manual operating modes.

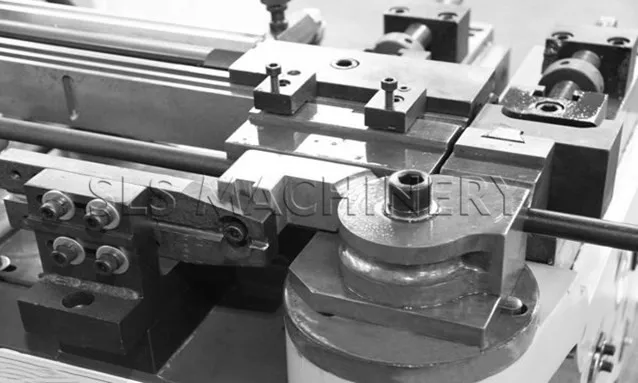

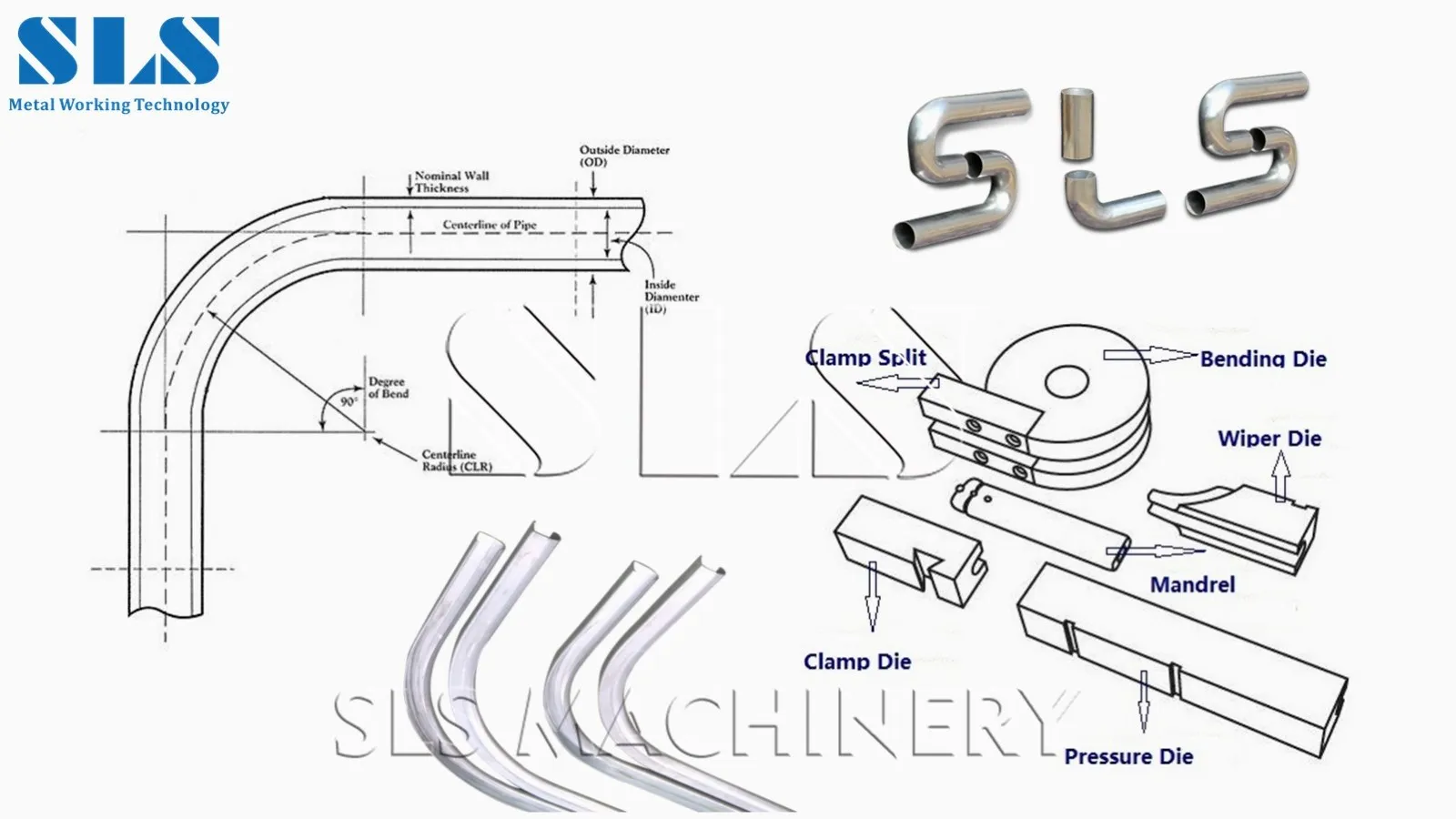

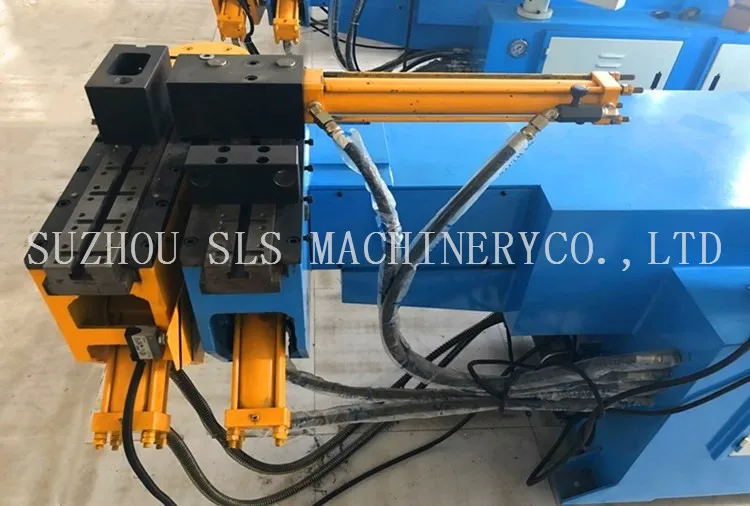

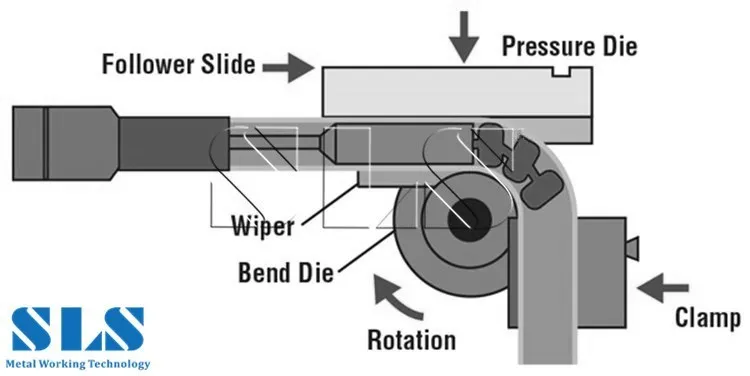

* Fully hydraulic movement on clamp die,pressure die and mandrel.

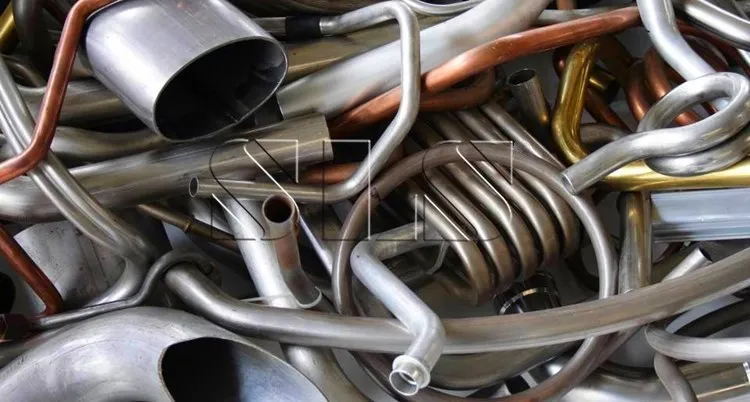

* Available pipe material: steel, stainless, aluminum, titanium and brass...

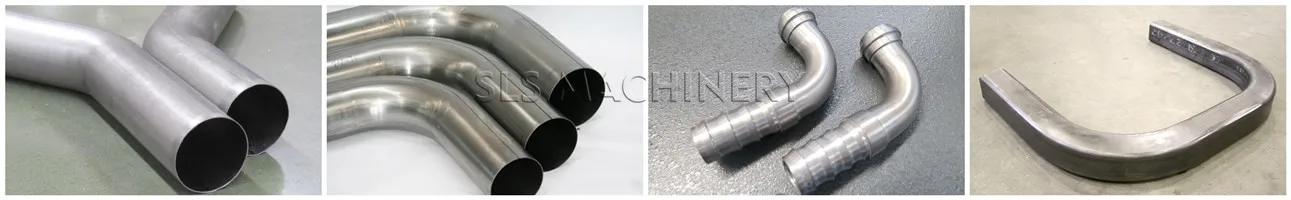

* Available pipe shape: Round,Square,Rectangle,Oval,Solid Bar,other profiles...
* Equiped with encoder ensures the accuracy and stability of bending.
* Equiped with adjustable speed valve on pressure die ensures the synchronization of bending.
* Water cooling system ensures the equipment long-time work stably under the high temperature.
* CE&ISO 9001:2000.
Model | SB-38NC | _ |
Max. Bending Capacity | ￠38.1 (1.5”)×2mm | _ |
Bending Degree | 0-190° | _ |
Bending Radius | 20-200mm (for machine) | _ |
Min Bending Radius | R≥1.5D (for pipe) | _ |
Mandrel Length | 2000mm(can be customized) | _ |
Max. Bending Speed | 90°/s | _ |
Bending Accuracy | ±0.1° | _ |
Motor Power | 4 Kw | _ |
OPTIONAL of Tube Bender:
* Automatic pipe rotating(by servo motor) or
Automatic pipe feeding(by servo motor)
* Anti-clockwise bending
* Extra mandrel length
* Pipe punching function
* Tie rod bars on bending arm
* Feeding length positioner

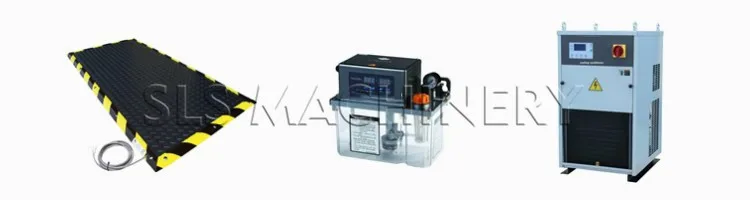

* Mandrel lubrication function
* Air cooling device
* Safety mat
* Anti-clockwise bending
* Extra mandrel length
* Pipe punching function
* Tie rod bars on bending arm
* Feeding length positioner
* Mandrel lubrication function
* Air cooling device
* Safety mat
TOOL:
* STANDARD MATERIAL: 45# STEEL
* OPTIONAL MATERIAL:
* Ampco Bronze- Mandrel&Wiper die for
* OPTIONAL MATERIAL:
* Ampco Bronze- Mandrel&Wiper die for
Stainless Steel Pipe
* Nylon- Bending die,Clampe die&Pressure
* Nylon- Bending die,Clampe die&Pressure
die for Aluminum Pipe
* Cr 12-For other pipe material
* Cr 12-For other pipe material
SLS Machinery Co.,Ltd specialized in manufacturing cost-effective pipe processing machines as pipe bending machine,cold saw machine, pipe end forming machine,pipe swaging/tapering machine,pipe embossing machine,pipe notching machine and other automated pipe processing machines range from simple to complex CNC powered ones.
1.Q: Are you a manufacturer or trading company? | A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production. |
2.Q:Where is the nearest airport to your company? | A: Wuxi Airport or Shanghai Airport. |
3.Q: How to choose the pipe/tube bending machines? | A: You have to inform us following details: - Pipe Outdiameter Range - Wall thickness range - The pipe material - Bending radius value - Bends NO. on one pipe - Bending shape in 2 or 3 dimensional - Other requirements |
4. Q: Do you have CE certificate? | A: We have CE certificate. |
5. Q:How about your service? | A: Before Sales Serive: 1. We will help our customer confirm the right model according to the offered pipe inforamtion. 2. Welcome to visit our factory to see our machine and our workshop before you place an order. After Sales Service: 1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine. 2. We provide free installation,commissioning and training at our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportation shoule be at your account. 3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours. |
