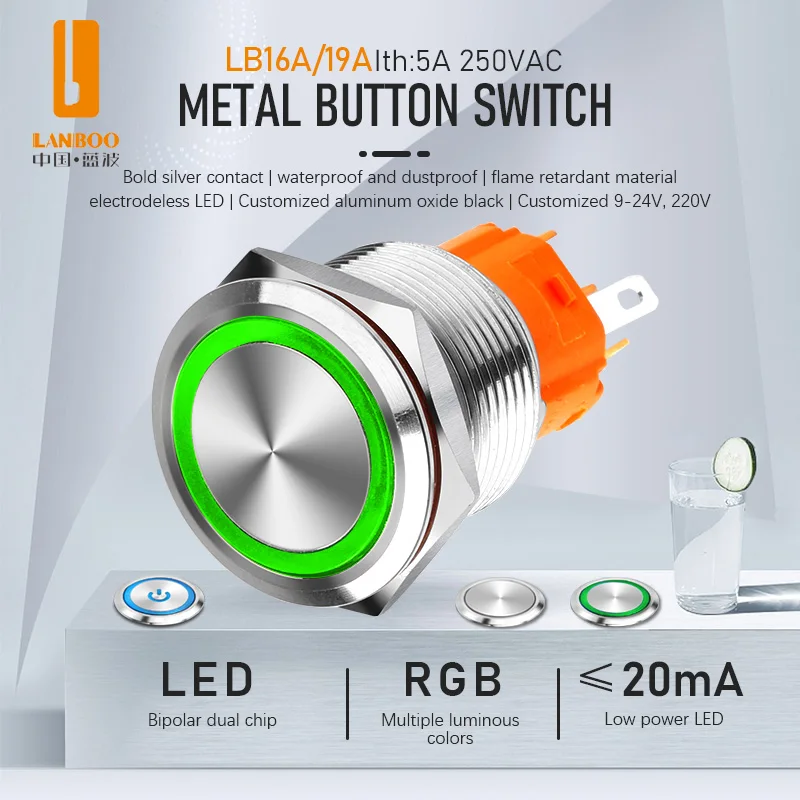

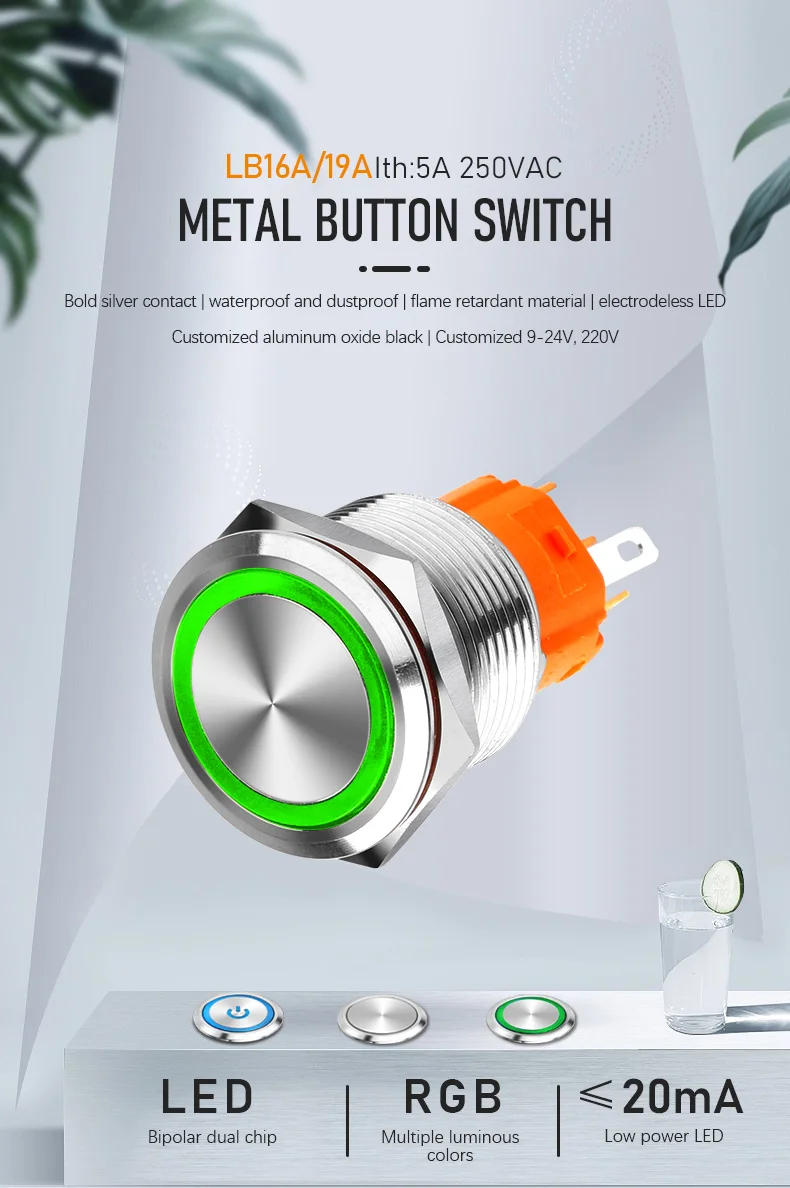

LANBOO 16/19mm 3A IP67 Waterproof Self locking or Self resetting 1NO1NC Customizable Stainless Steel Metal Push Button Switch
- Category: >>>
- Supplier: Yueqing Branch Of Guangdong Lanbo Button Manufacturing Co. Ltd.
Share on (62556118209):
Product Overview
Description

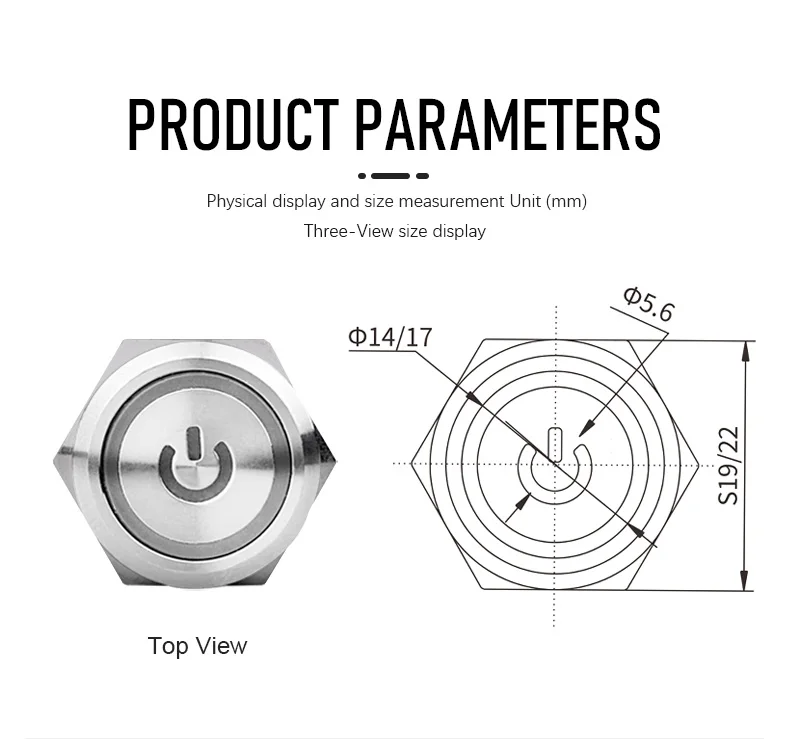

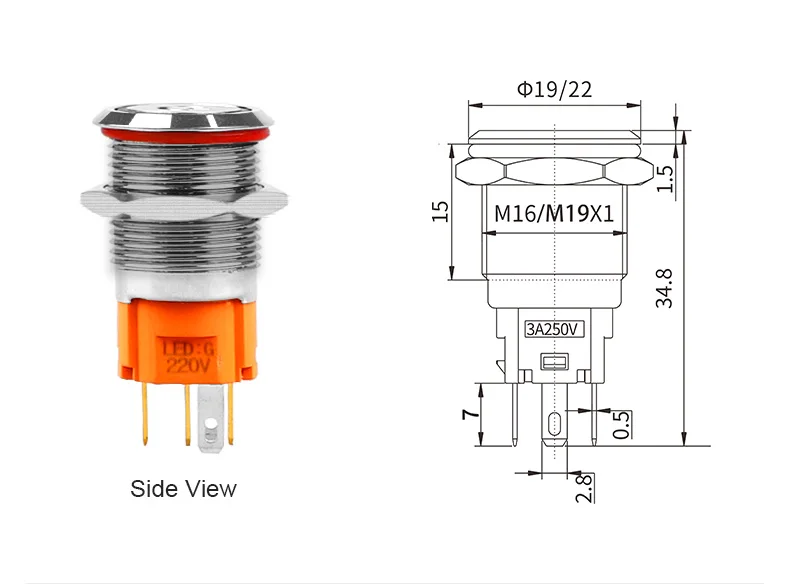

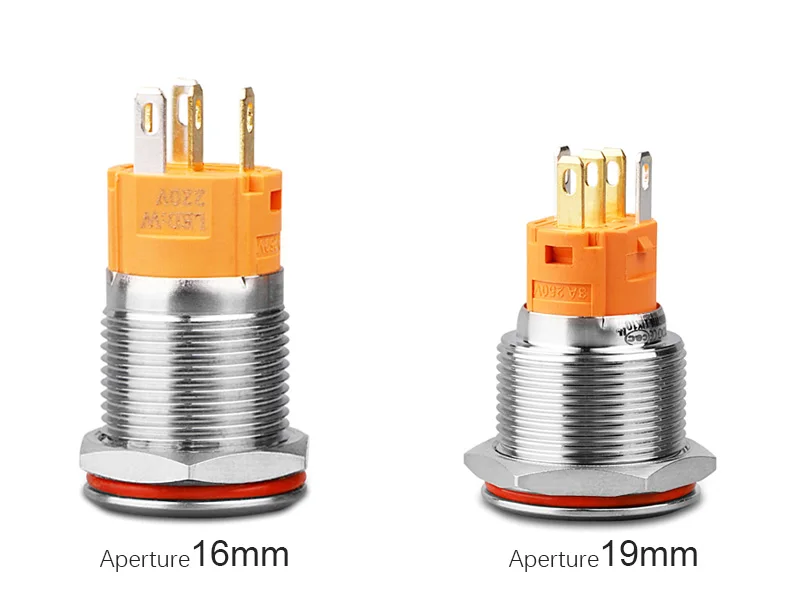

| Mounting Aperture | 16mm / 19mm |
| Serial Number | LB16A / 19A Metal push button switch |

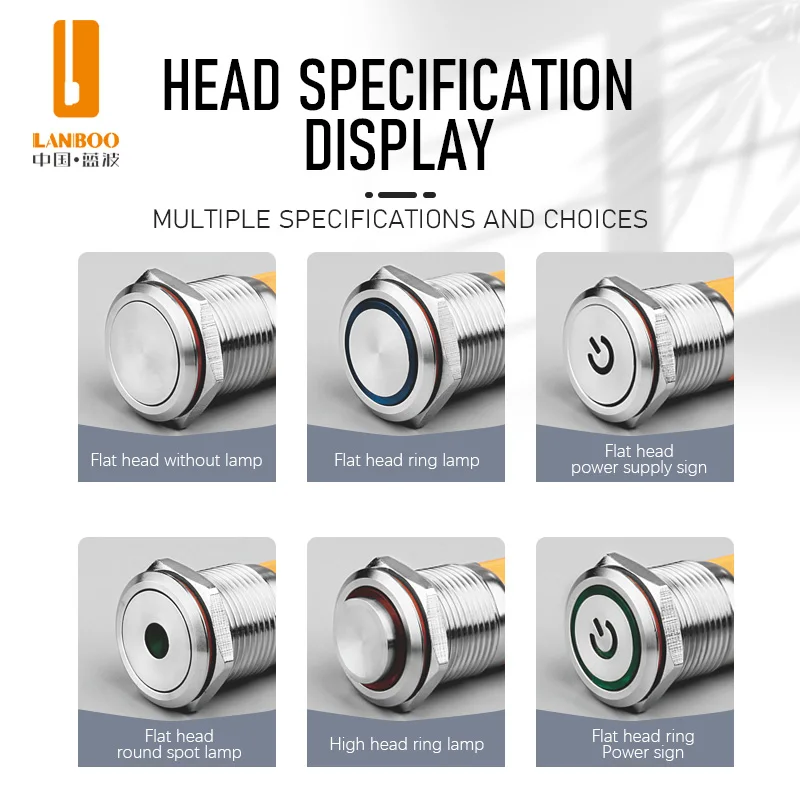

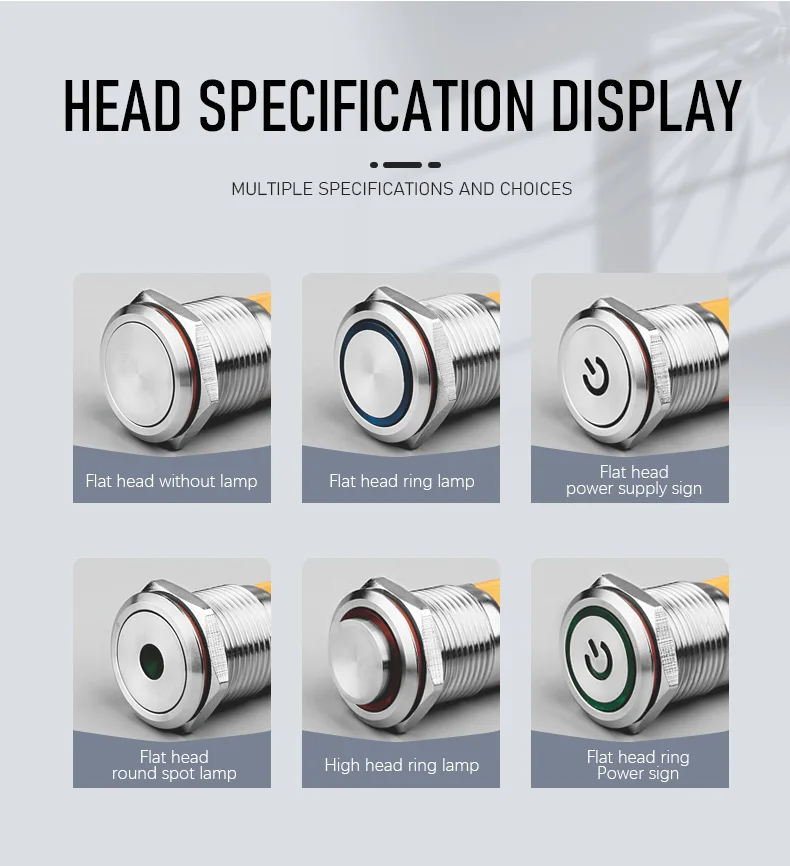

| Head shape | Flat head |

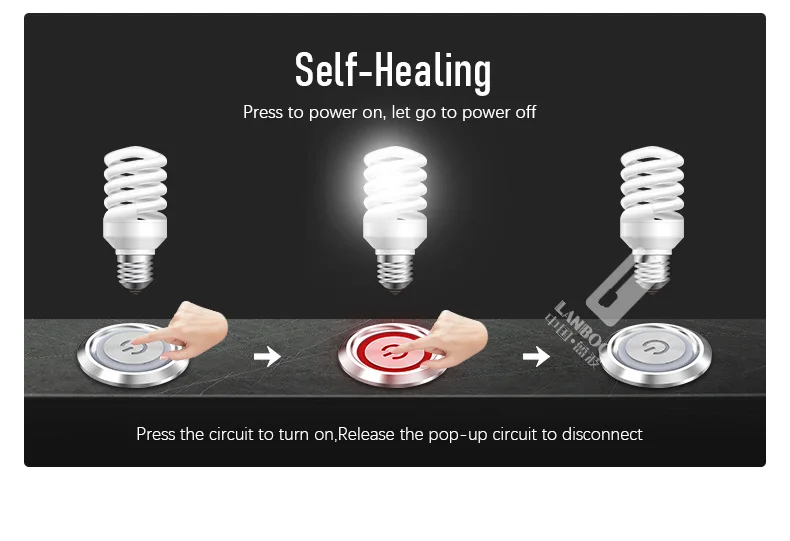

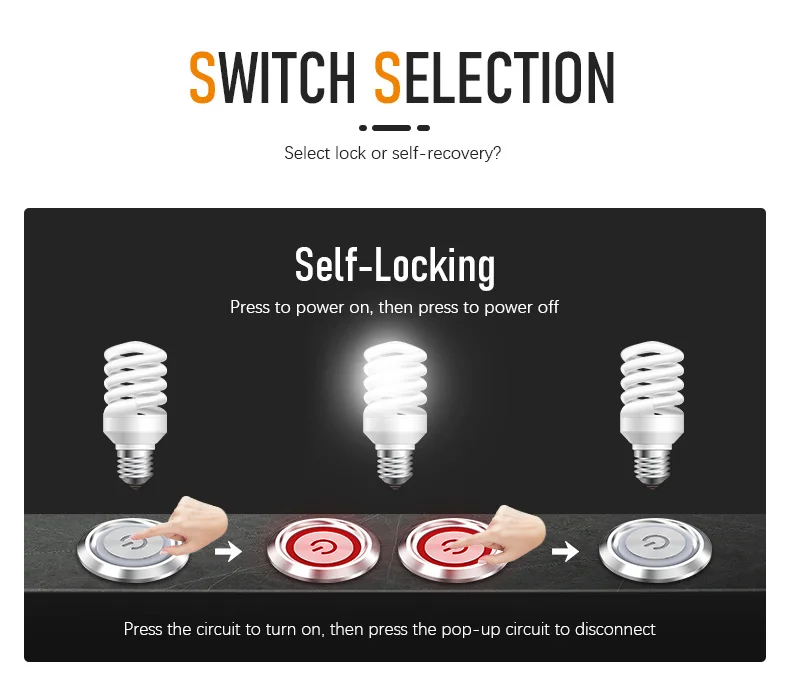

| Switch combination | Self-locking / Self-recovering |

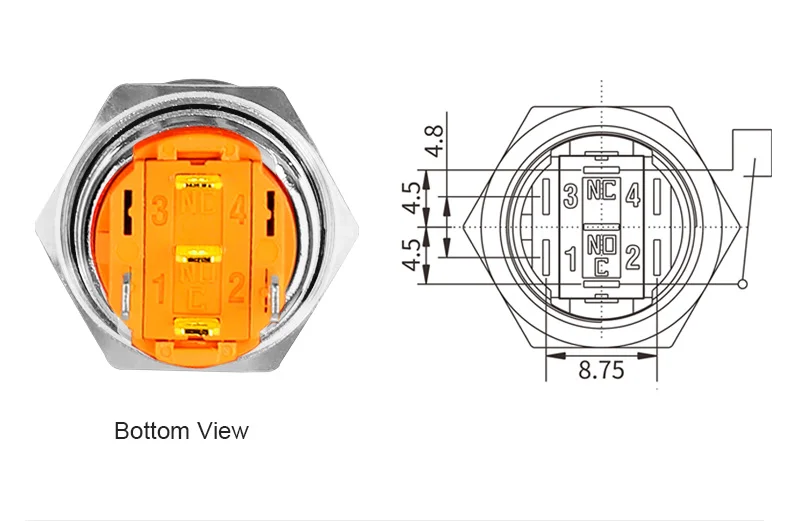

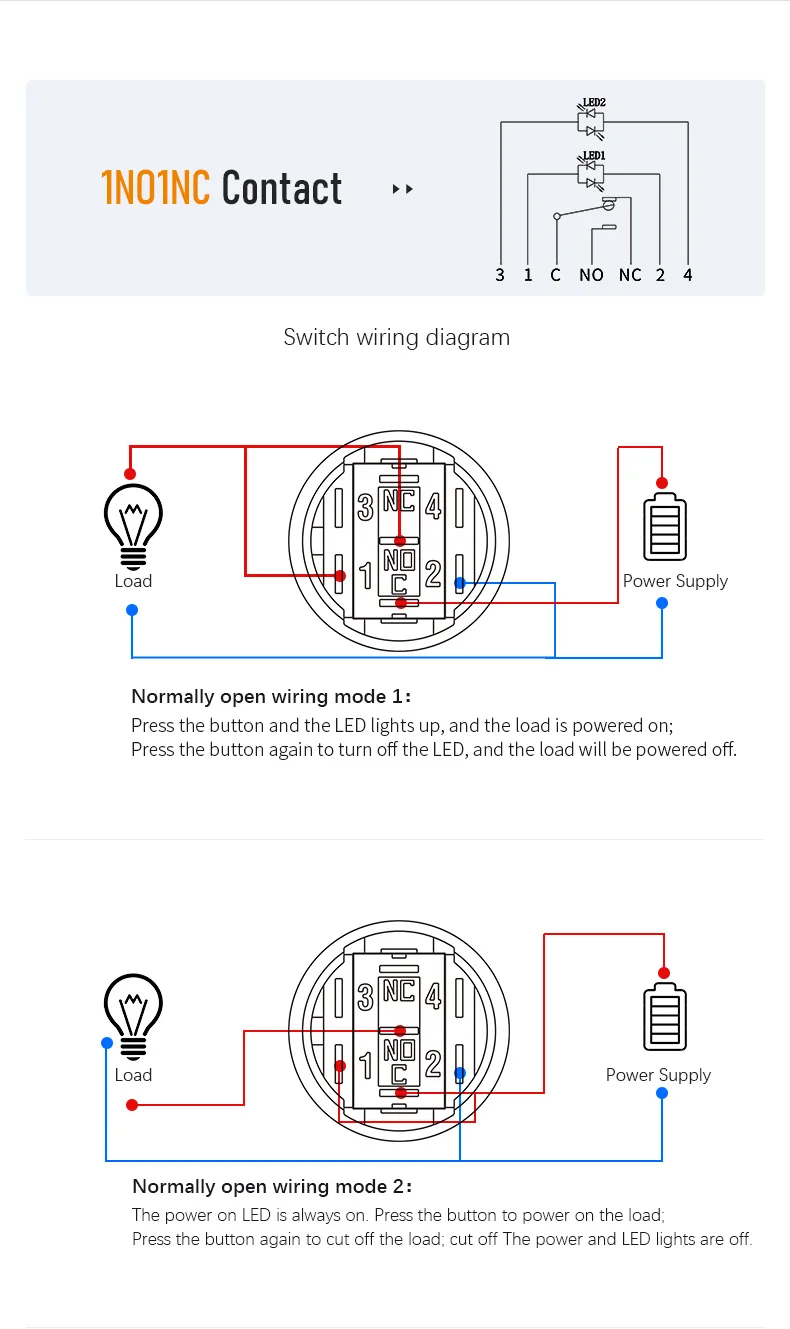

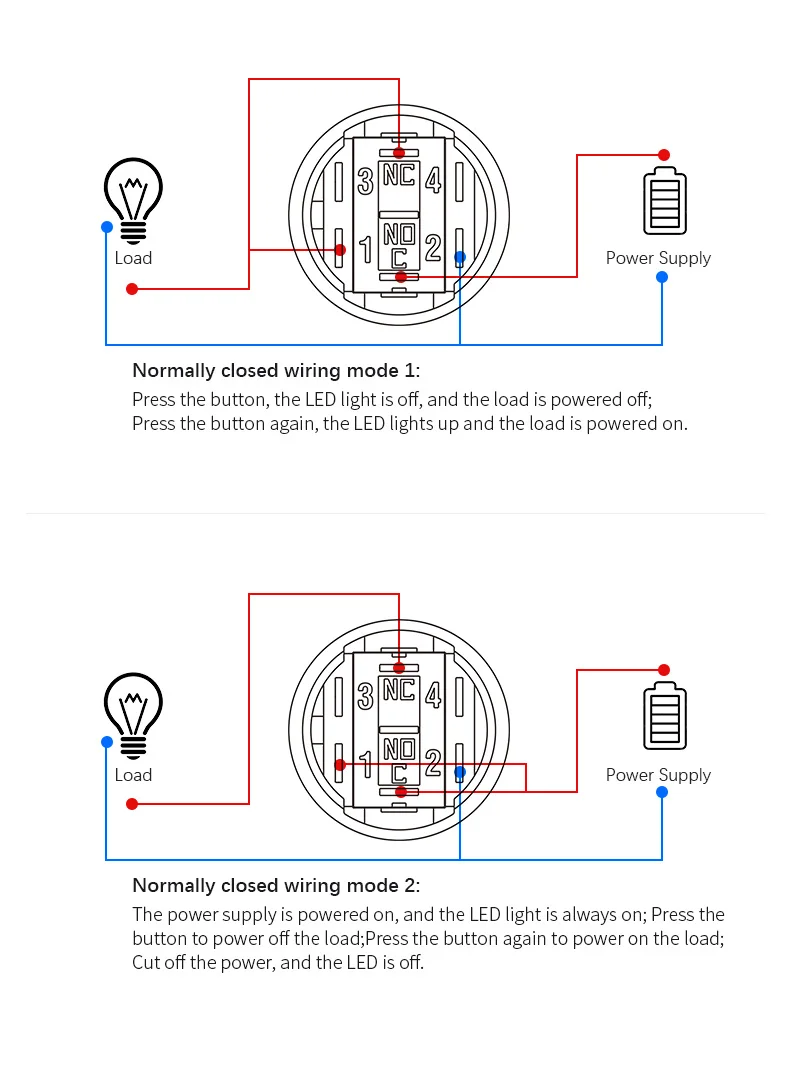

| Action form | 1NO1NC Independent Pin |

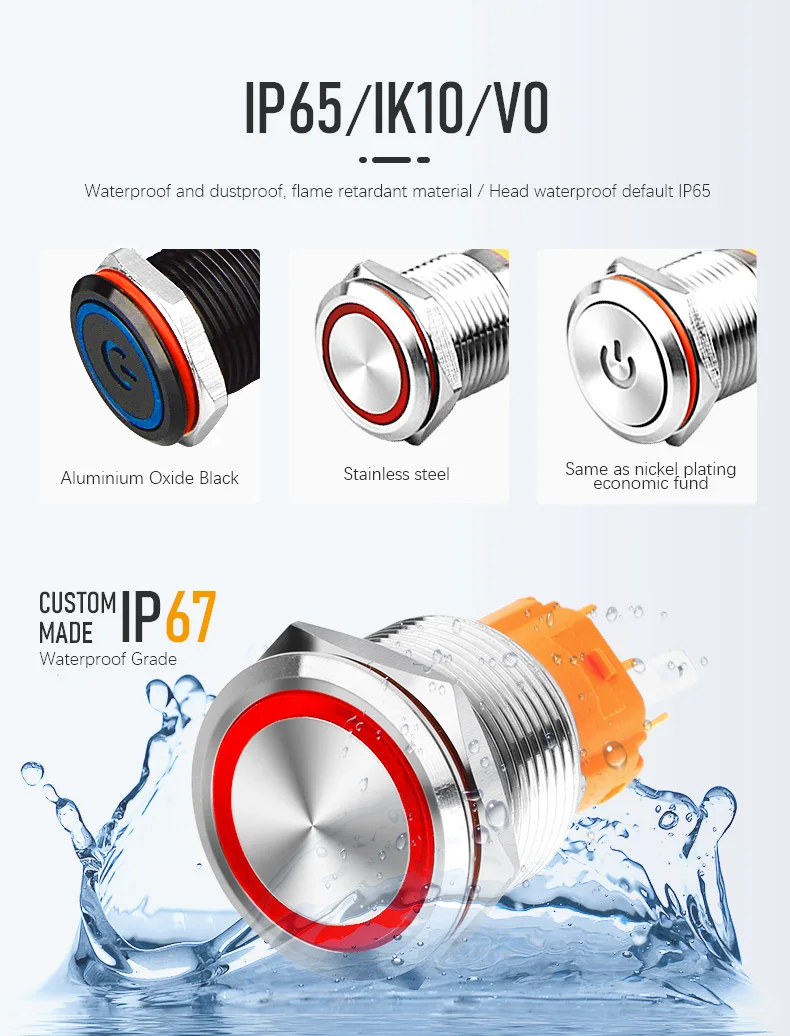

| Waterproof level | Customized IP67, anti-collision IK10 (refer to GB/T 20138) |
| Heating current | Ith: 5A, 250VAC |
| Working environment | -40°C~+85°C (non-vacuum state, without freezing) |
| Insulation resistance | ≥1000MΩ |

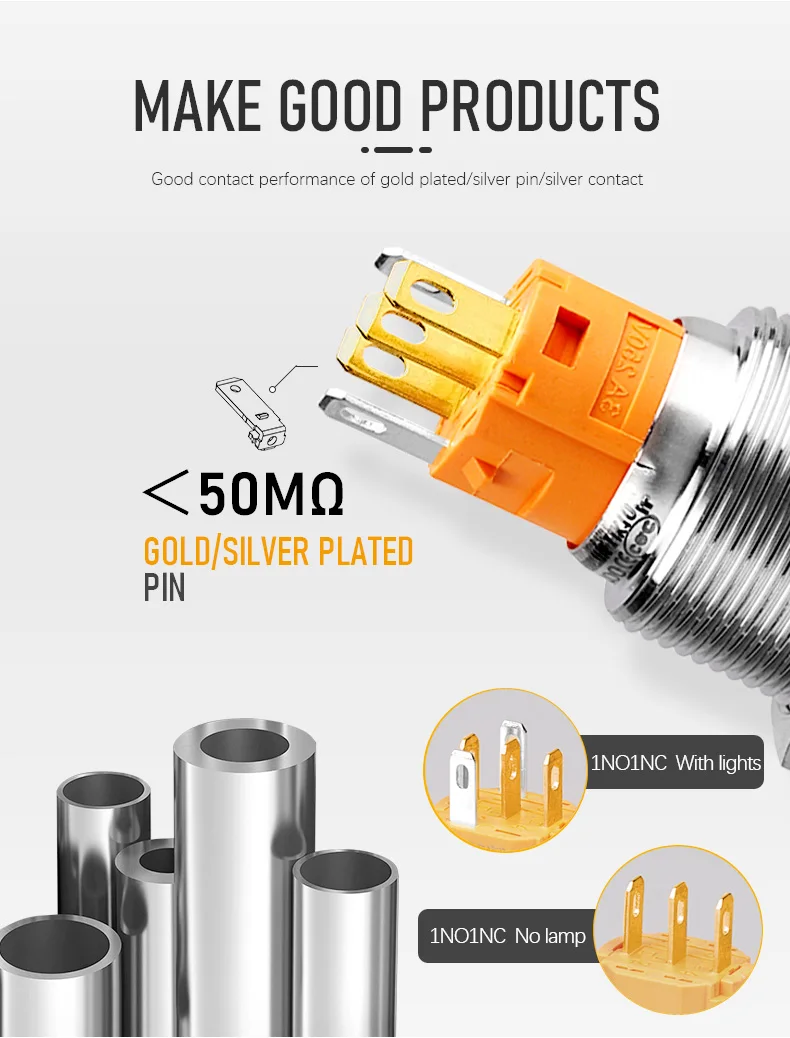

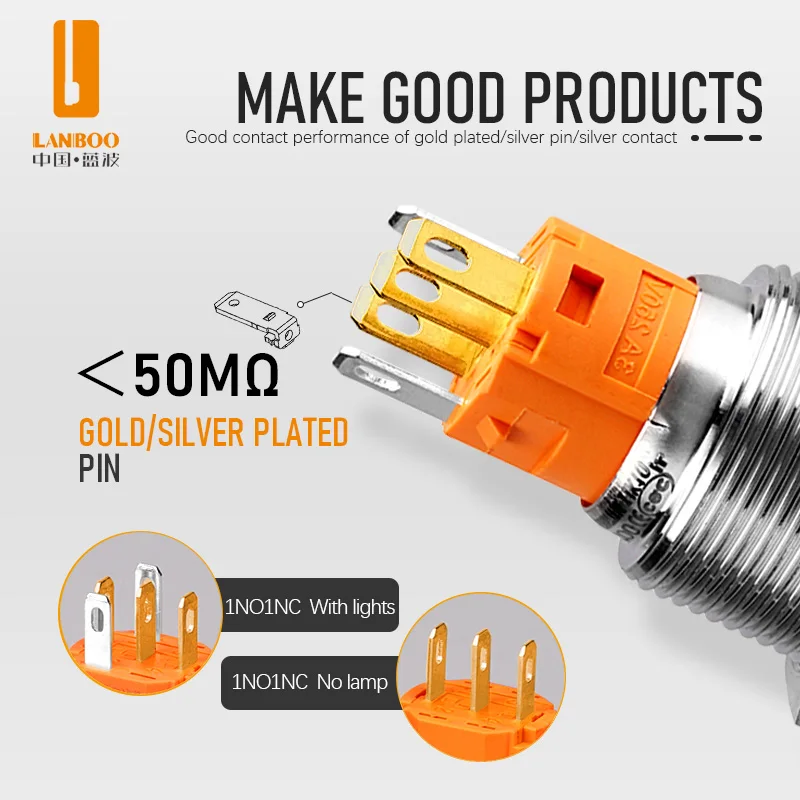

| Contact resistance | ≤50mΩ |
| LED voltage | 9-24V, 220V / Customized: 3-8V,25-48V,110V |
| Rated curren | Resistive load: AC-15: 110V:1A ,220V:0.5A / DC-13: 12V/24V: 1A |
| Inductive load | AC-15: 110V / 220V: 0.2A, DC-13: 110V: 0.2A |
| Glowing shape | Ring/Ring+Power Symbol / Customized: Custom Pattern Symbol |

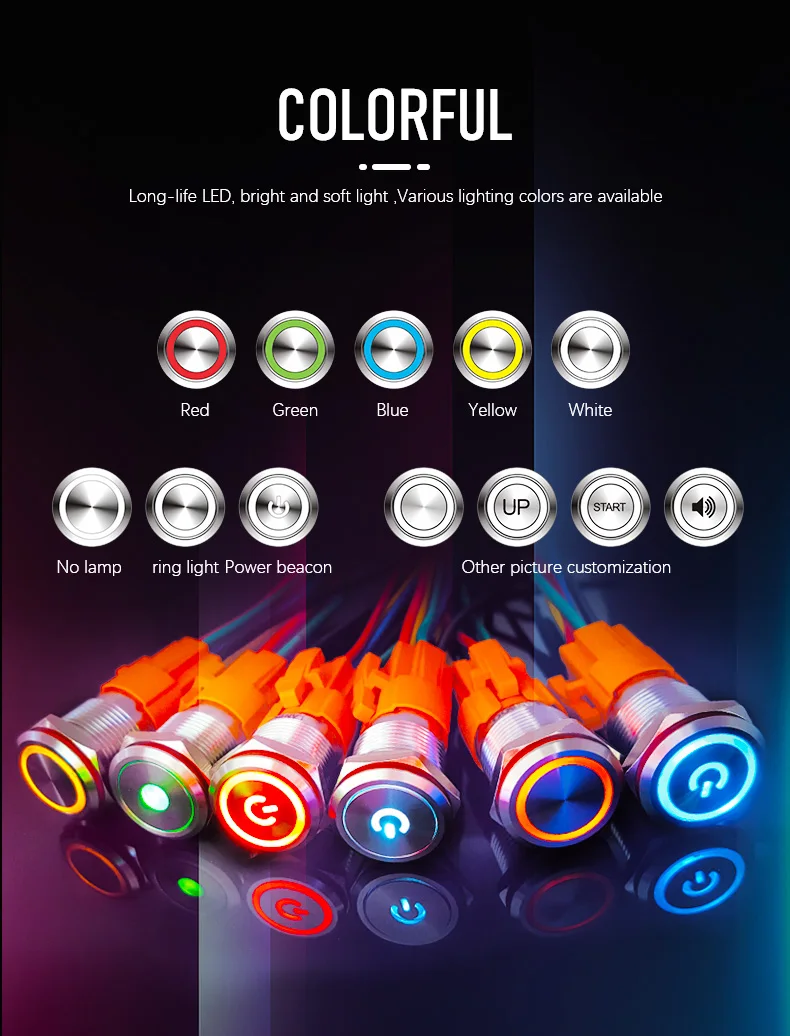

| Glow color | Red, Green, Blue / Customized: Yellow, White |
