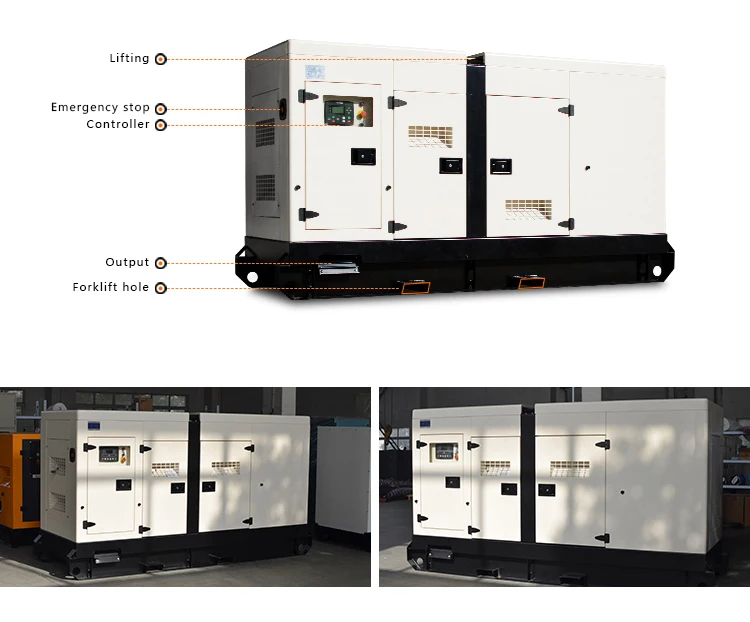

500 kw powered by Cumins engine 650 kva diesel generator with ATS and control system

Share on (62556160839):


Price:$10,000.00 - $50,000.00

Quantity:


Product Overview

Description


Product Description



500 kw powered by Cummins engine 650 kva diesel generator with ATS and control system
Engine data
ModelCummins KTA19-G8
Type6 Cylinder inline,4 cycle
Displacement18.9L
AspirationTurbocharged
Bore*Stroke159X159 mm
Governor TypeElectrical
Starting Voltage24V
Lubricant Capacity50L
Fuel Consumption206 g/kw.h
Generator Data
ModelNewtec NTG-354FS
OptionalStamford,Leroysomer,MeccAlte,Marathon
Excited TypeBrushless,Self-Excited
Power Factor0.8
Voltage Adjust range>5%
Voltage Regulation<±1%
Insulation ClassH
Protection Class IP23
Contral panel

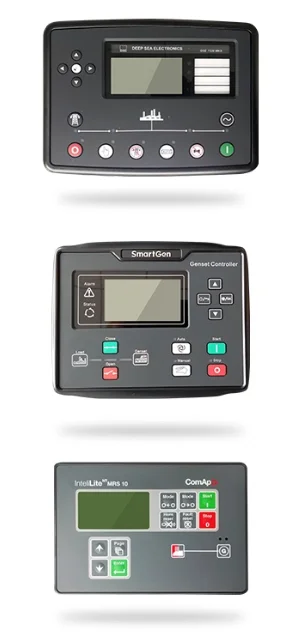

ModelSmartgen,Comap or Deepsea
Protection

High/Low Voltage,High/Low Temperaturer,High/Low Frequency,Low fuel,Low Oil,

Low coolant

FuctionAMF,Synchronizing
SupportRS232,RS485,USB

2



Packaging & Shipping

 _13

Company Information

 _05121__

Newtec Power Equipment Co.,Ltd is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Newtec's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generaotr set from Newtec Power have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.

_07

_08

FAQ



1.Q: What is your MOQ of this item?
A:1 Set

2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit

3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.

4.Q: Where is your Loading Port?
A:Shanghai or others

5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.

6.Q: What is your company's available production capacity?
A:100 Sets per month

7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
