Factory directly wholesale tungsten cemented carbide composite rod carbide welding rod

Product Description

1.Tungsten carbide composite rod is made of cemented carbide/ crushed carbide and Ni/Ag(Cu)alloy. The cemented carbide/crushed carbide with sharp edge has excellent wear resistance and cutting ability.

2.The hardness is HRA 89-91, tire body metal is Ni and copper alloy, strength can up to 690MPa, hardness HB≥160.

Product Name

Tungsten Carbide Composite Rod

Material

Tungsten Carbide Particle(70%), CuSnZn(30%)

Color

Golden

Grade

 YGN70,YGC70,YGU70,YNN70

Particle Size

 0.79mm-12.7mm

Usage

Stabilizers, Reamers, Drill Pipe Jjoints, Construction Drilling, Hydraulic-cutter, Pipe Cutter Blades, Core Bit, Scraper, Twist Drill, Milling and Grinding Shoes etc.





Specification



Item

Carbide Grain Size(inches)

Carbide Grain Size(mm)

Available rod length(mm)

1

1/32"~1/16"

0.79-1.59mm

450mm

2

1/16"~1/8"

1.59-3.175mm

3

1/8"~3/16"

3.175-4.76mm

4

3/16"~1/4"

4.76-6.35mm

5

1/4"~5/16"

6.35-7.94mm

6

5/16"~3/8"

7.94-9.53mm

7

3/8"~1/2"

9.53-12.7mm





a.       Large particles are suitable for surfacing of oil pipeline cleaning equipment

b.      The small particle is suitable for surfacing of large mixer blades

c.       Smaller particles are suitable for root tree grinding machine

Application

Composite rod welding has been acknowledged throughout oil drilling, mining and construction industry worldwide for its extra hardness and high wear resistant properties. The use is even spreading to more industries and gets greater uses. Composite rod welding has wear and cutting properties coupled by high-end weldability and low fuming, allowing the material to use in stabilizers, reamers, drill pipe joints, construction drilling, hydraulic-cutter, pipe cutter blades, core bit, scraper, twist drill, milling and grinding shoes etc.

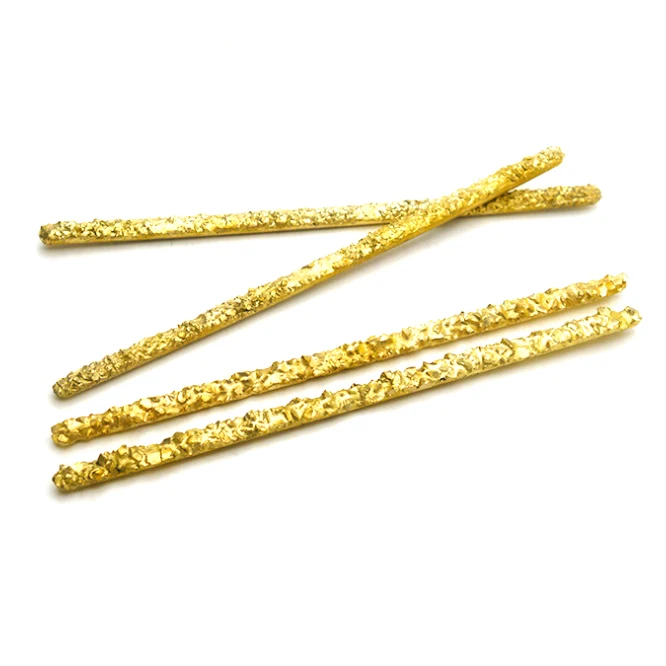

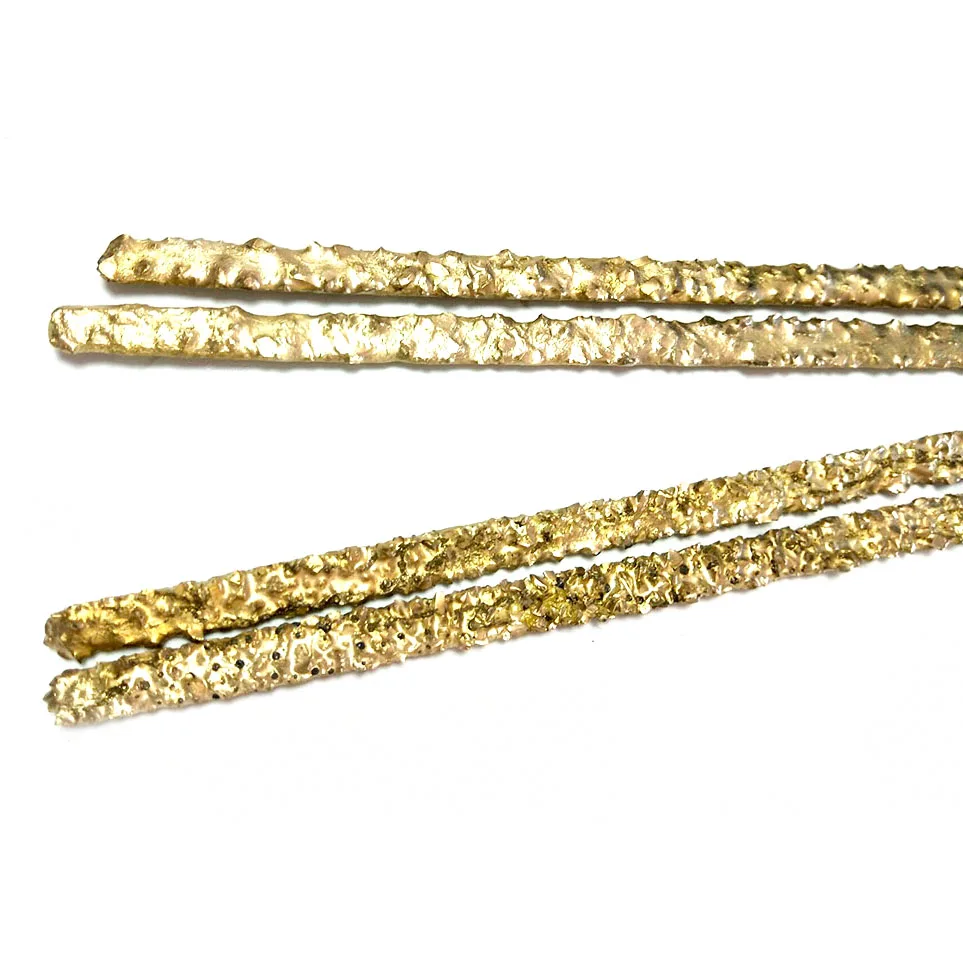

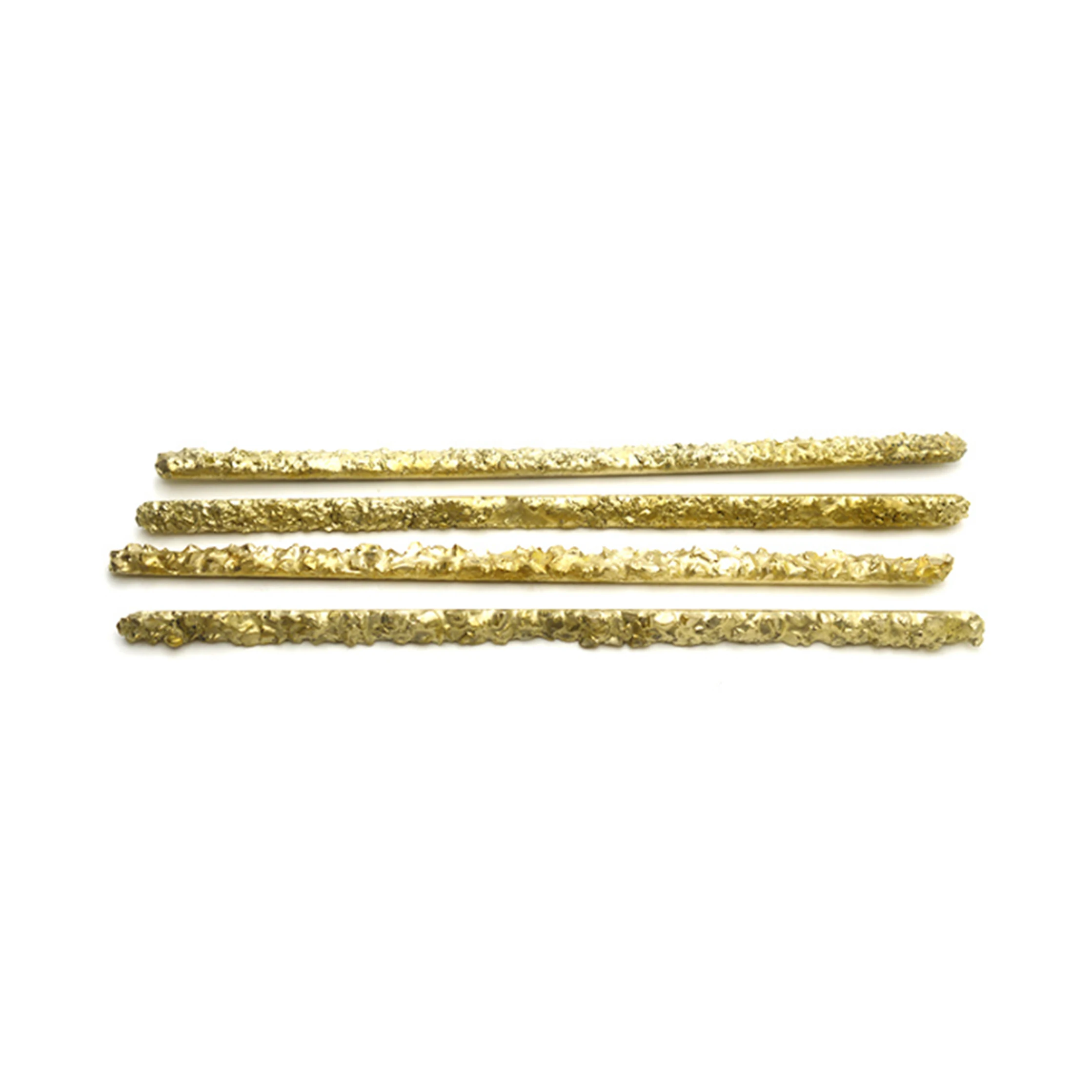

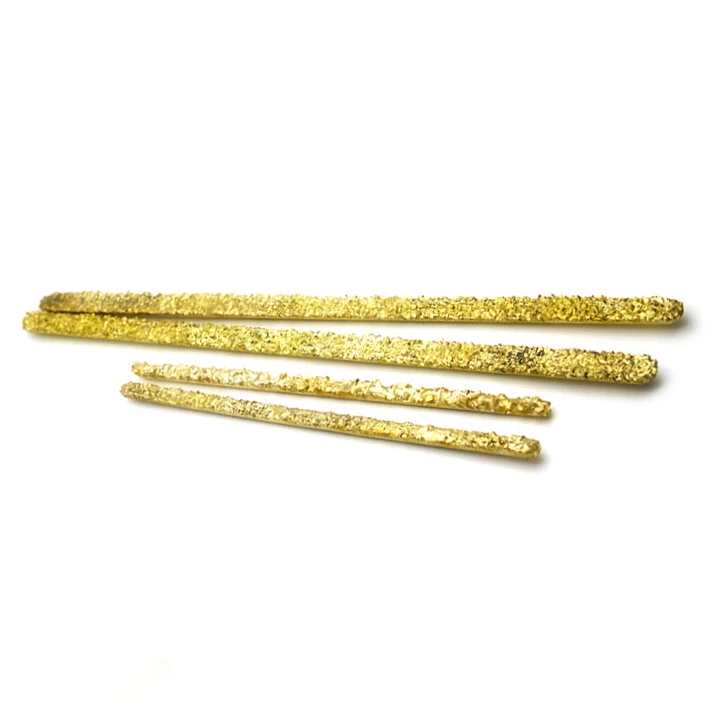

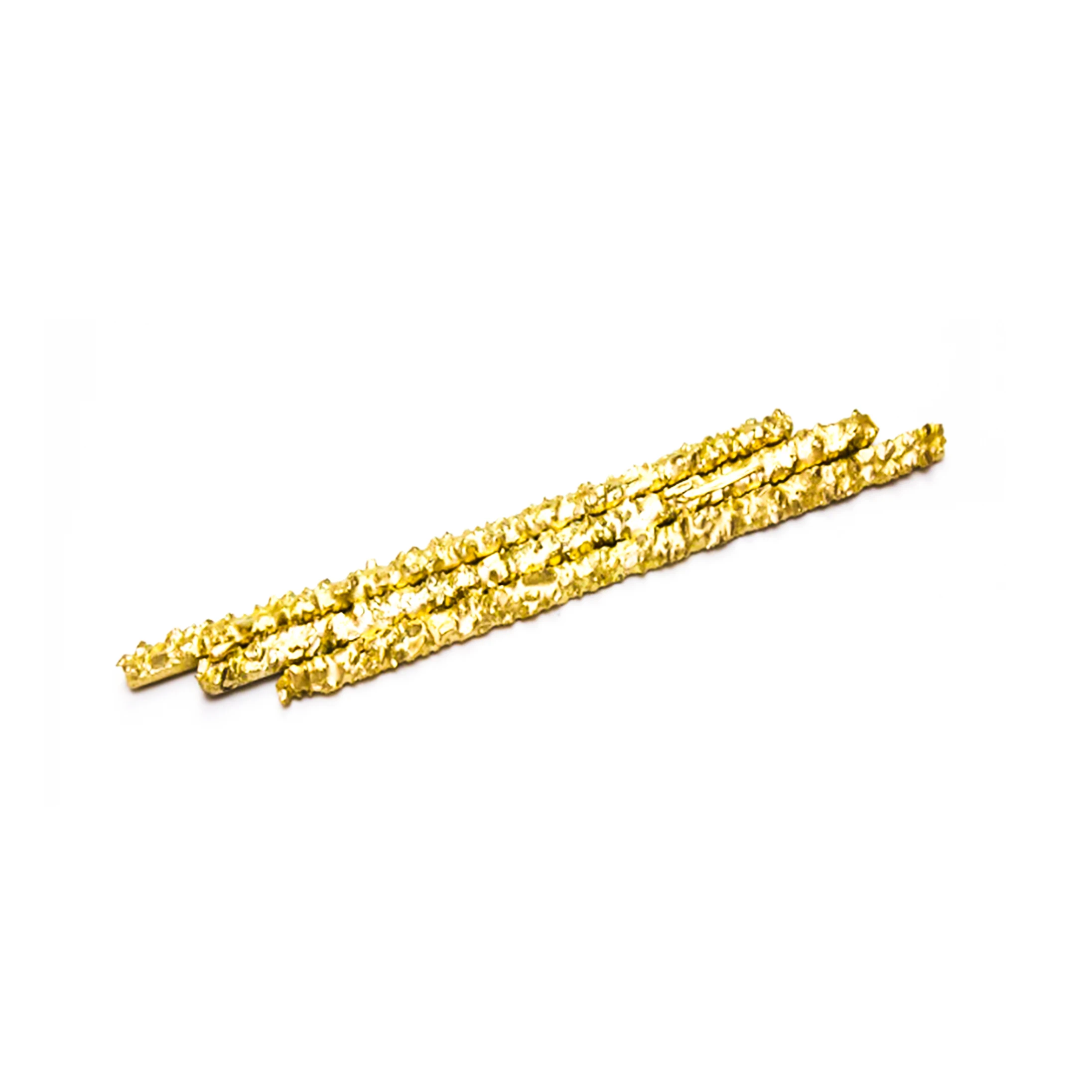

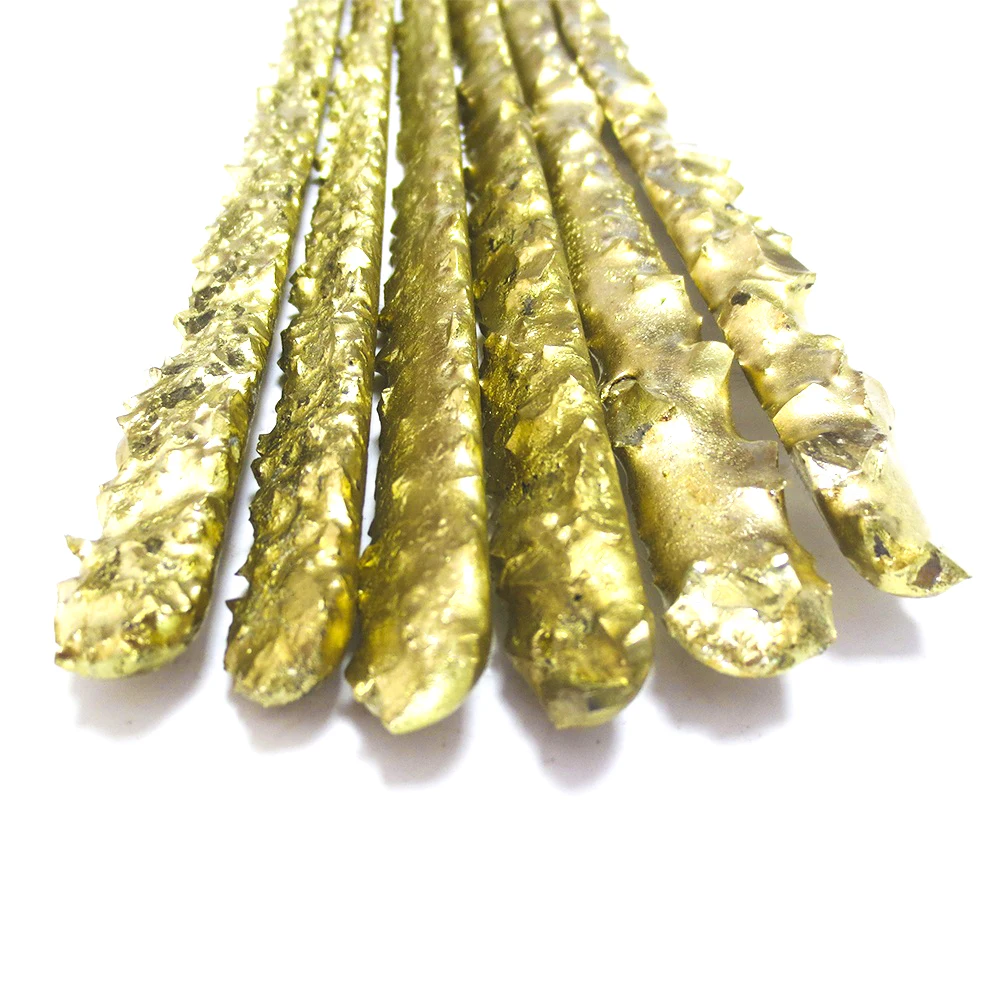

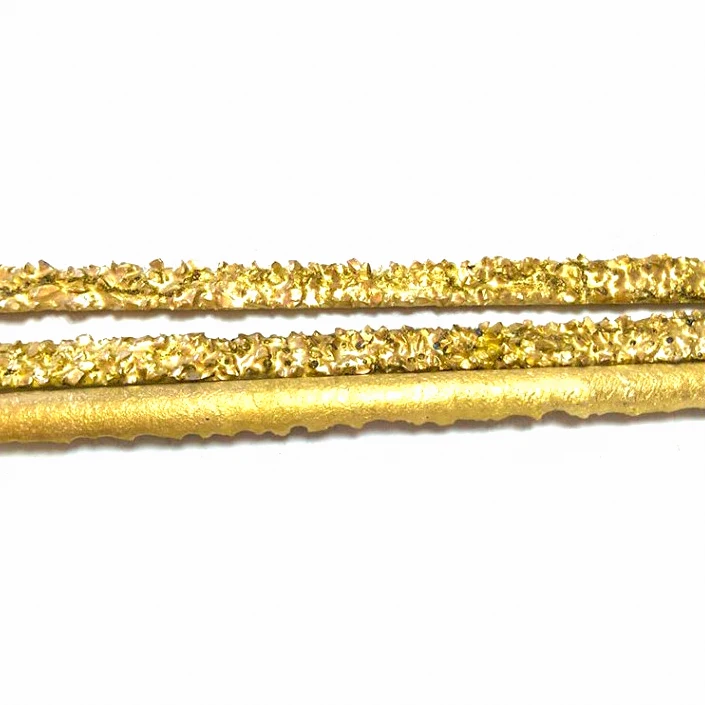

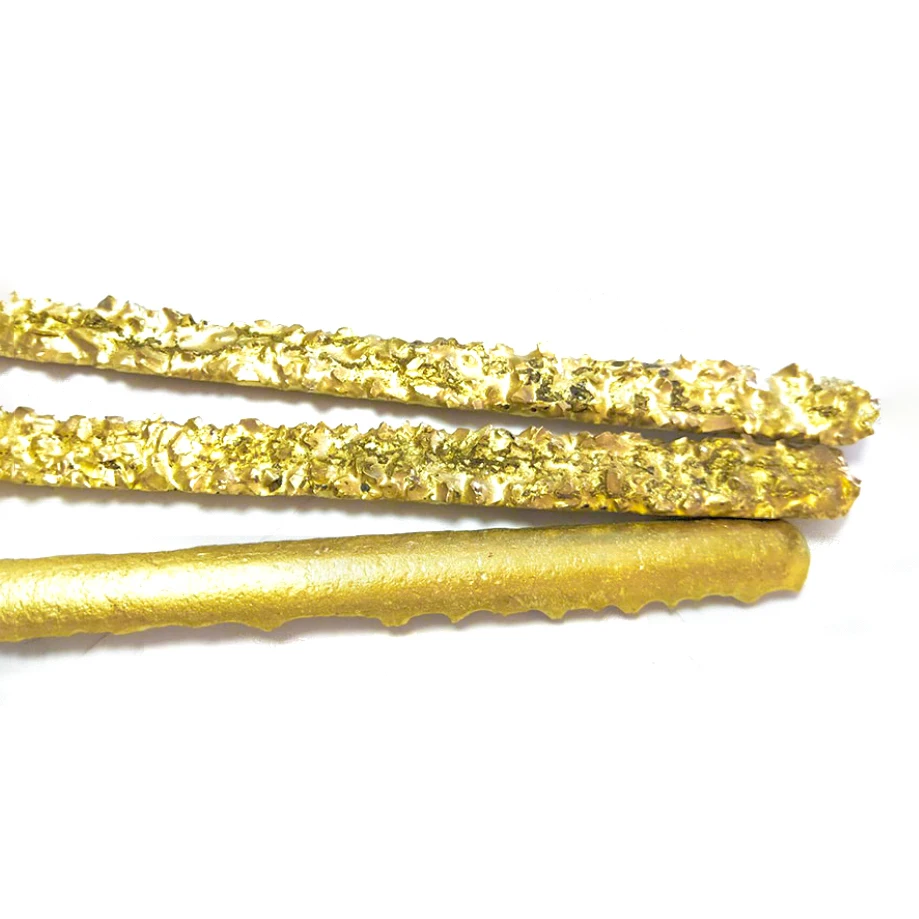

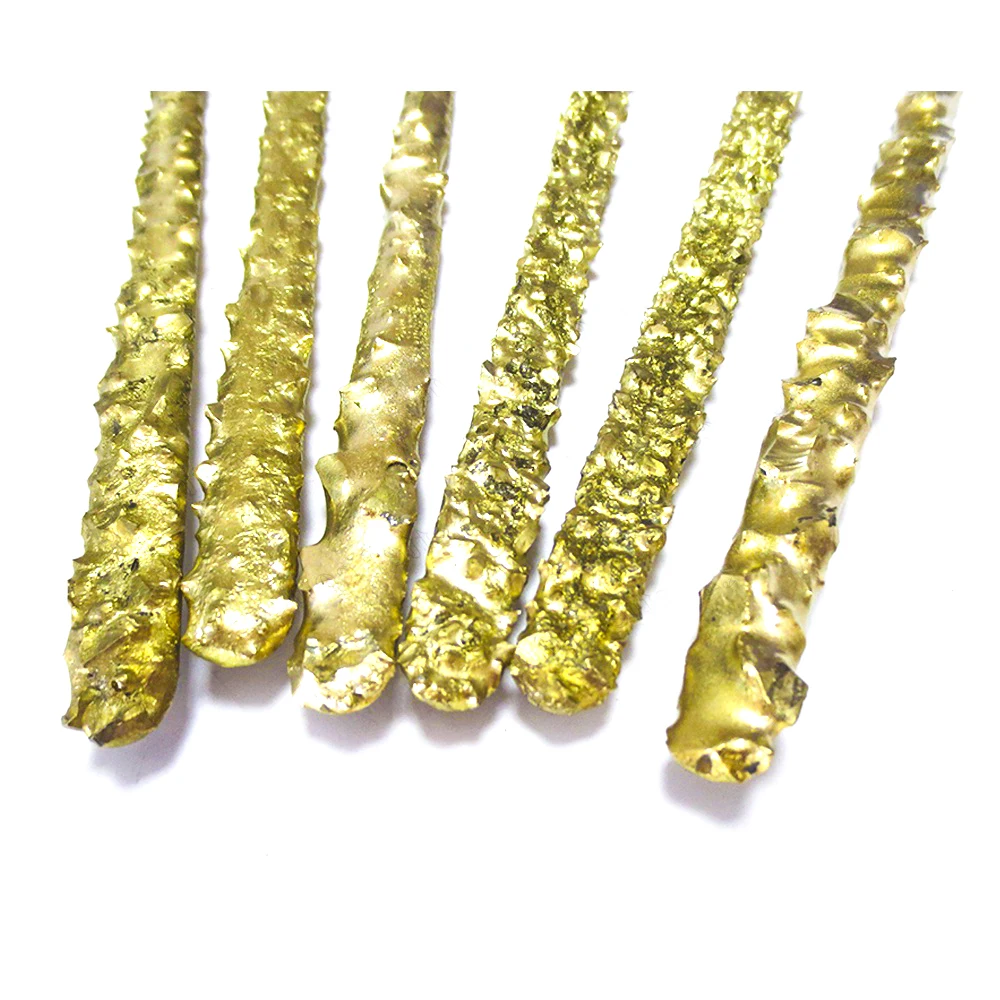

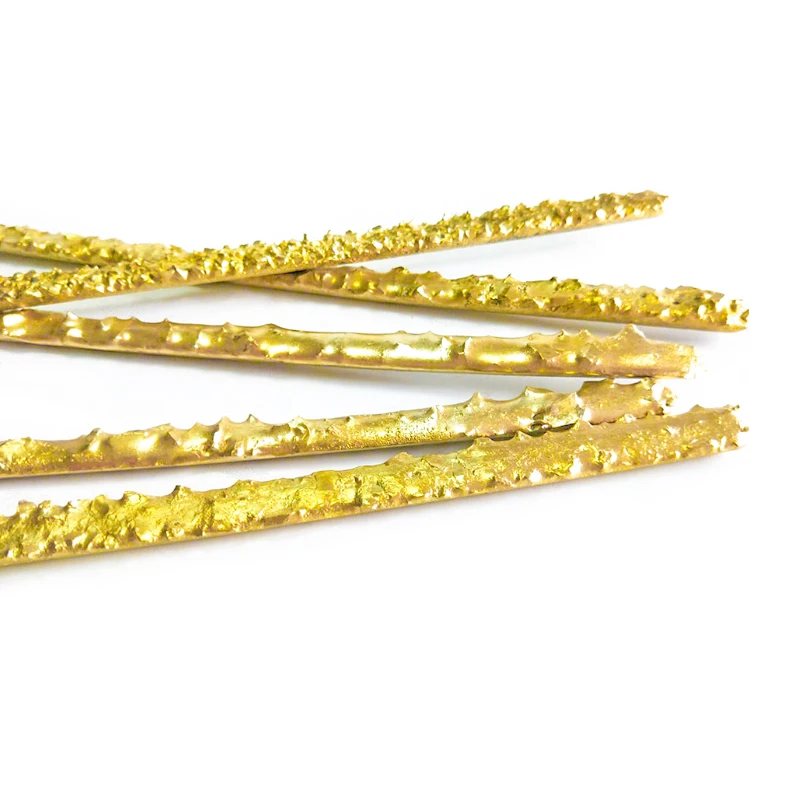

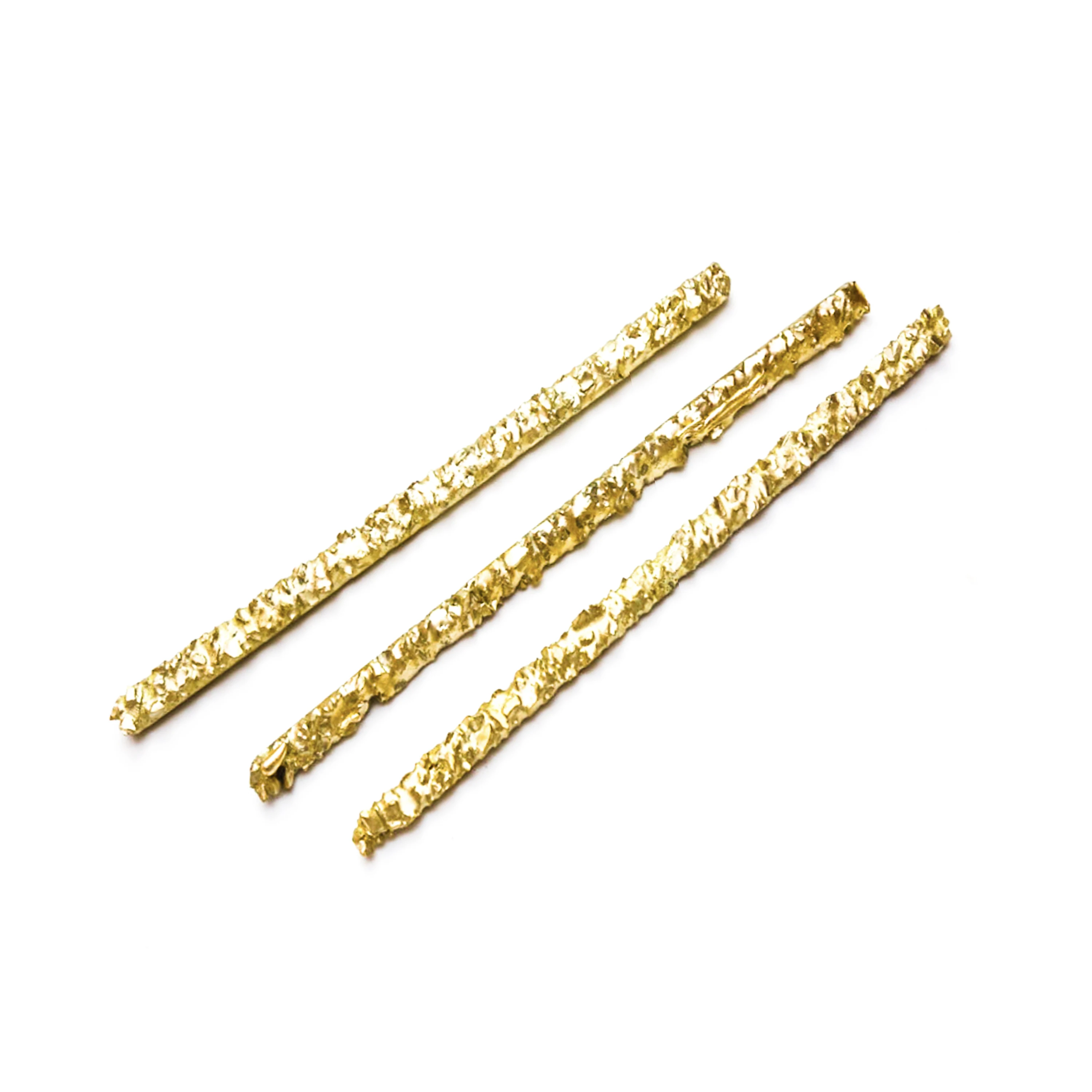

Product Photoes

 Factory directly wholesale tungsten cemented carbide composite rod carbide welding rod Factory directly wholesale tungsten cemented carbide composite rod carbide welding rod Factory directly wholesale tungsten cemented carbide composite rod carbide welding rod Factory directly wholesale tungsten cemented carbide composite rod carbide welding rod Factory directly wholesale tungsten cemented carbide composite rod carbide welding rod Factory directly wholesale tungsten cemented carbide composite rod carbide welding rod Factory directly wholesale tungsten cemented carbide composite rod carbide welding rod Factory directly wholesale tungsten cemented carbide composite rod carbide welding rod Factory directly wholesale tungsten cemented carbide composite rod carbide welding rod

Company Information



Zhuzhou HGtool Tungsten Carbide Co., Ltd. was located in Zhuzhou, Hunan province, specializing in the research and development, production, sales and technical services of new materials.





Features

1.Over 15 year’s production experience

2.Has been awarded the quality system certification of ISO9001:2008

3.The brand “HGalloytool” has been entitled Hunan’s famous trademark.

4.Professional Technicians and Strict QC system

5.Excellent team and the best technical service

6.Perfect pre-sale, sale and after-sales service.
