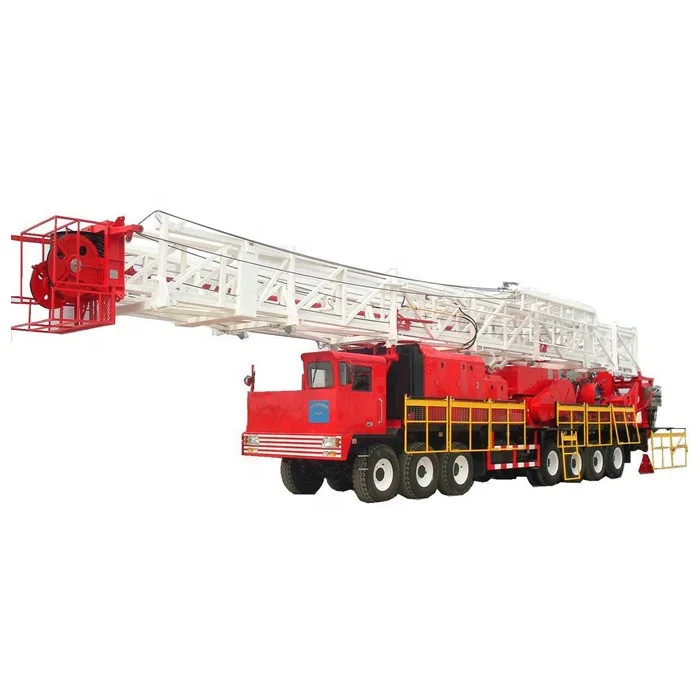

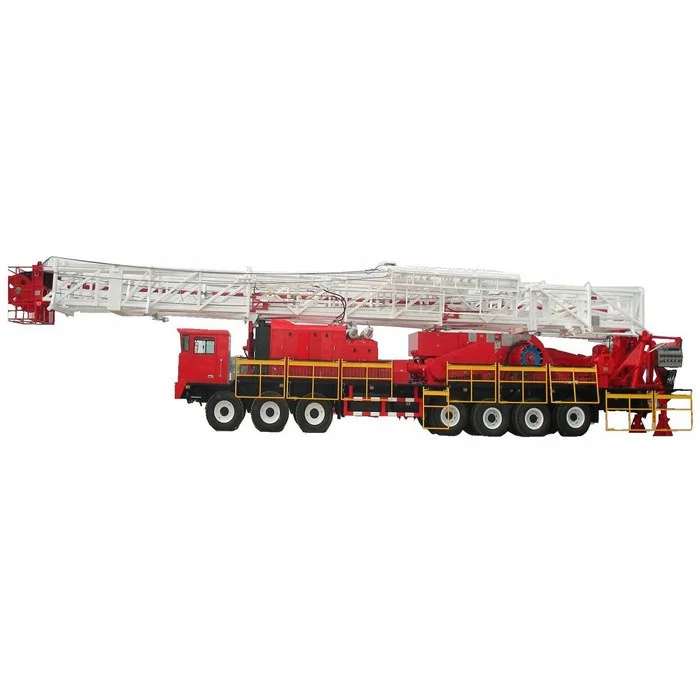

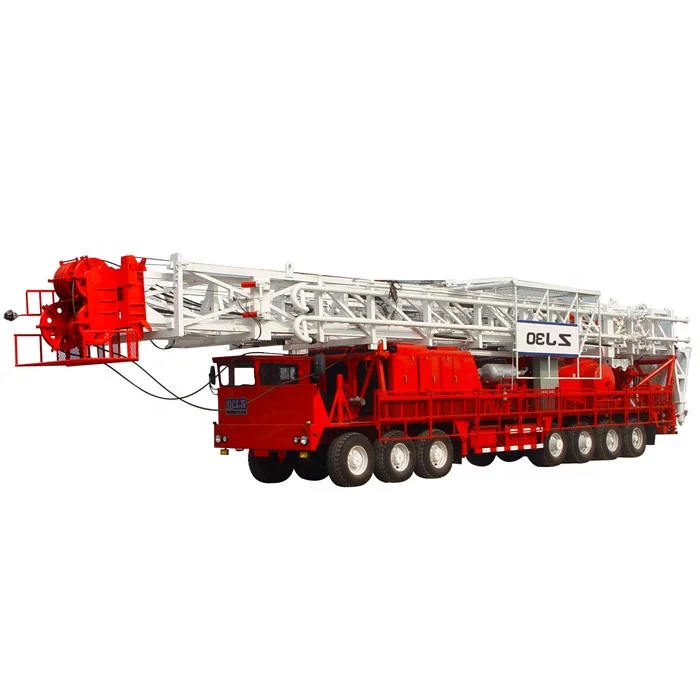

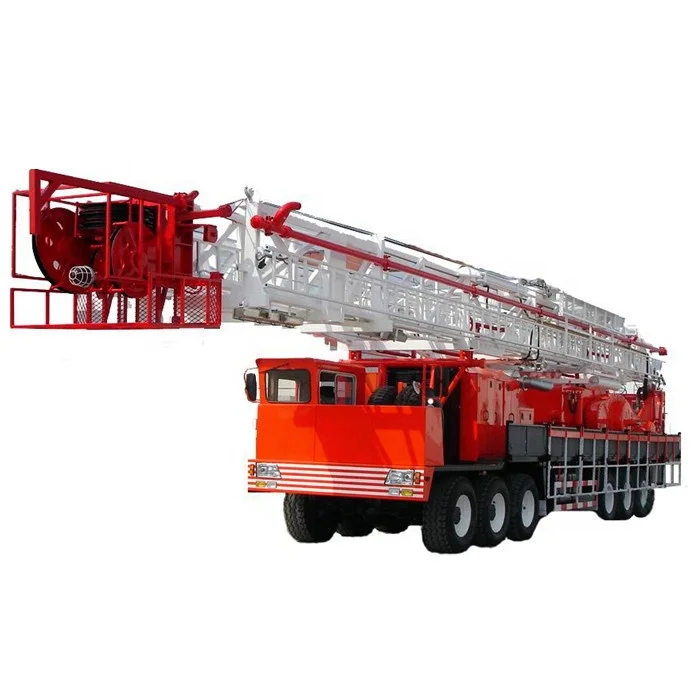

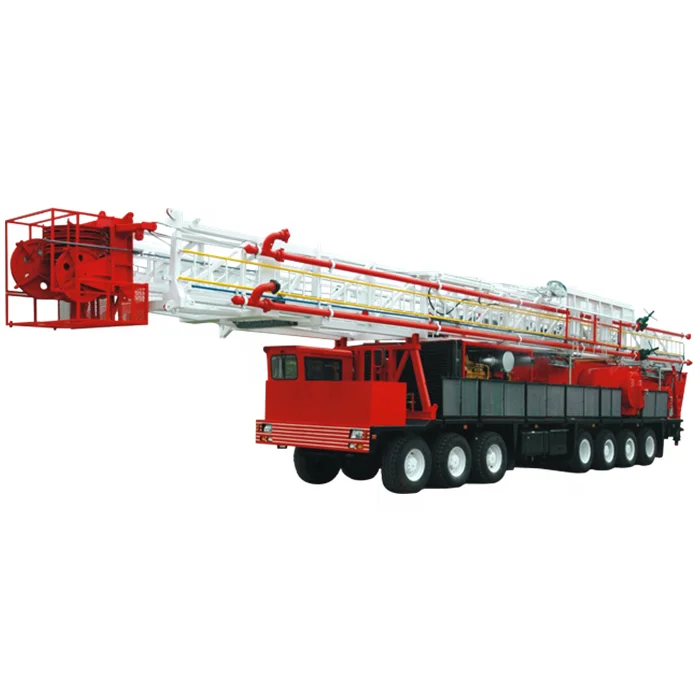

ZJ40/2250CZ truck mounted drill equipment is the largest type of truck mounted drilling rig in the world till now, which is self-developed by our company. It is suitable for drilling operation of middle and shallow wells which is within 4000m, heavy repair operations of oil and gas wells and water well drilling operations.
Application
This hydraulic drilling rig is suitable for drilling operation of middle and shallow wells which is less than 3000m, heavy repair operations of oil and gas wells and water well drilling operations. Adopting a number of patented technologies, the rig now is with the features of reasonable layout, reliable operation performance and low transportation cost, easy for on-site installation and maintenance.
Product Paramenters
Features of Truck Mounted Drilling Rig
1. Well drilling rig is suitable for drilling and work-over operations of middle and shallow wells.2. CAT/ Cummins series diesel engine can be used.
4. Equipped with 14x10 petroleum-purposed vehicle chassis, it has good cross-country ability.3. Equipped with ALLISON hydraulic transmission box.
5. The main brake for the draw-works can be band brake or disc brake, the auxiliary brake can be Eaton pneumatic water cooled disc brake or water brake.
Item
Technical specification
1
Model
ZJ40/2250CZ
2
Drilling depth (41/2’‘Drill Pipe) (m)
4000
3
Overhaul depth (31/2’‘Drill Pipe)(m)
7000
4
Max. hook load (kn)
2250
5
Hook speed (m/s)
0.2 to 1.4
6
Mast (m)
38/39
7
Mast type
A-mast
8
Engine power(kW)
2 x 470
9
Hydraulic transmission box
2xM5620AR
10
Transmission type of mechanical drill equipment
Hydraulic + Mechanical
11
Traveling system
6 x 5
12
Main rope diameter (mm)
φ32
13
Hook Block model
14
Swivel model
SL225
15
Rotary table model
ZP275
16
Chassis model
YG225
17
Approach / departure angle
26°/18°
18
Min. ground clearance(mm)
311
19
Max. Gradeability
26%
20
Min. turning diameter (m)
41
21
Overall dimension (m)
22.3 x 3.2 x 4.5
22
Main unit mass (kg)
85000
Packing&Shipping
The rig will be delivered by sea, train, truck, etc.
Company Introduction
Our products cover 12 series with over 200 kinds, including truck-mounted drilling rigs, skid-mounted drilling rigs, trailer-mounted drilling rigs, work over rigs, etc. Our 4000m truck-mounted drilling rig and 4000m trailer-mounted drilling rig is the largest self-propelled drilling equipment in the worldwide, with high-competitive in the international market, providing the advanced drilling equipment for factory drilling.
Our company is committed to study the unconventional oil and gas equipment, and oil and gas exploration equipment under special environment such as offshore, desert, shallow, rainforest and cold weather (polar region). At the same time, mechanization and intellectualization of equipment are improved and developed continuously. We developed the cold weather drilling rigs that can adapts to the 45℃ to -60℃ temperature, the series of drilling rig are exported to high-end market such as Russia and Canada. The truck-modular rigs and free-standing drilling rigs can meet the different requirements from the customer.
FAQ
1. Can you produce the drilling rig as per drawings or technical requirements? Yes, we can produce the drilling rig as per your drawings and requirements.
2. What's the payment term? 30% advance payment after signing the contract, 30% production progress payment after 1-2 month's production, 30% balance payment before delivery, remaining 10% shall be paid after installation.
3. Can we visit your company before placing order?
