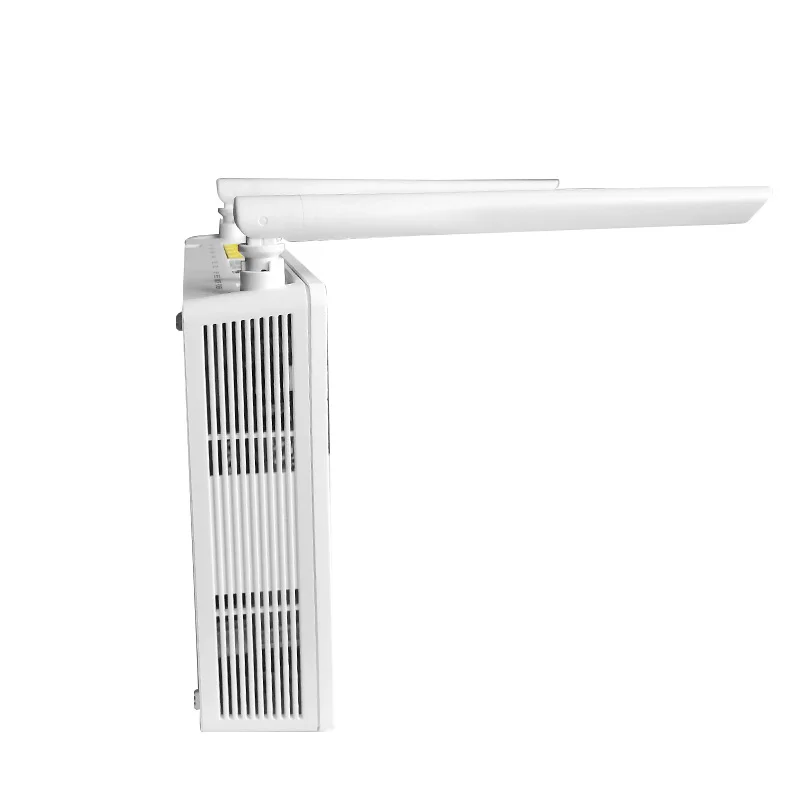

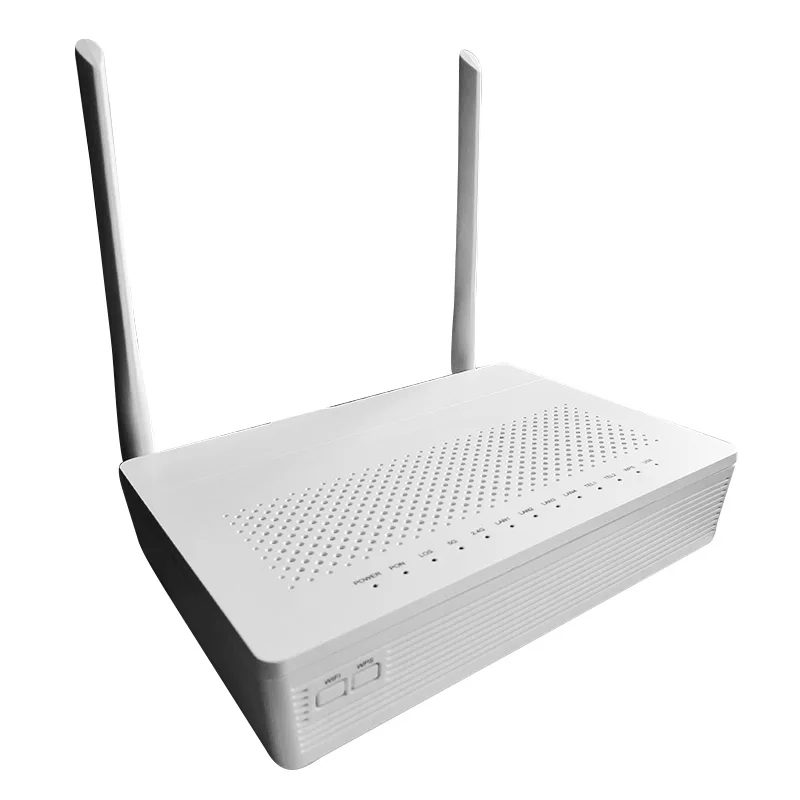

FTTH FTTB Solution Dualband 2.4GHz&5GHz wifi Router 4GE 802.11ac onu gpon ont

Hardware

Chipset

ZX279128 dual-core 800MHz ARM Cortex A9 processor.

WIFI Chip

MT7603EN+MT7612EN+LE9642+GN25L95

RAM

DDR3 128MB (supports Max 8Gb capacity)

FLASH

SPI-NAND 128MB

Protocol standard

Meet EPON,GPON Related standards

GPON&WIFI Protocol standard

ITU-T G.984.1/2/3/4.IEEE 802.11n.IEEE 802.11g.IEEE 802.11b.IEEE 802.11ac

IEEE 802.3.IEEE 802.3u

Wireless rate

1200Mpbs

Working frequency

2.4G:300Mbps&5.8G 900Mbps

RFOutput Power

Transmitting optical power: 1~+4dBm

RX Sensitivity

Receiving sensitivity: ≤-28dBm

Wifi performance

1.WIFI standard: IEEE 802.11b / g / n / ac, support 2.4GHz and 5GHz at the same time

2.Working mode: routing and bridge mode

3.Supports 8 11n MIMO (Multiple Send Multiple Receive) technology

4. Support wider RF bandwidth, up to 160MHz

5.Support 256-QAM higher order modulation method, support MIMO-OFDM encoding type

6.Support WEP / WPA / WPA2 wireless security with 64/128 bit encryption

GPON mode

2.5G GPON Access function.Down: 2.488Gbps.Up:1.244Gbps. Down:2.5Gbps/Up: 1.25Gbps

EPON Mode

1.25G EPON Access function,Up/down: 1.25Gbps

Antenna

2* 3dbi high-gain omnidirectional 2.4G / 5.8G dual-band antennas

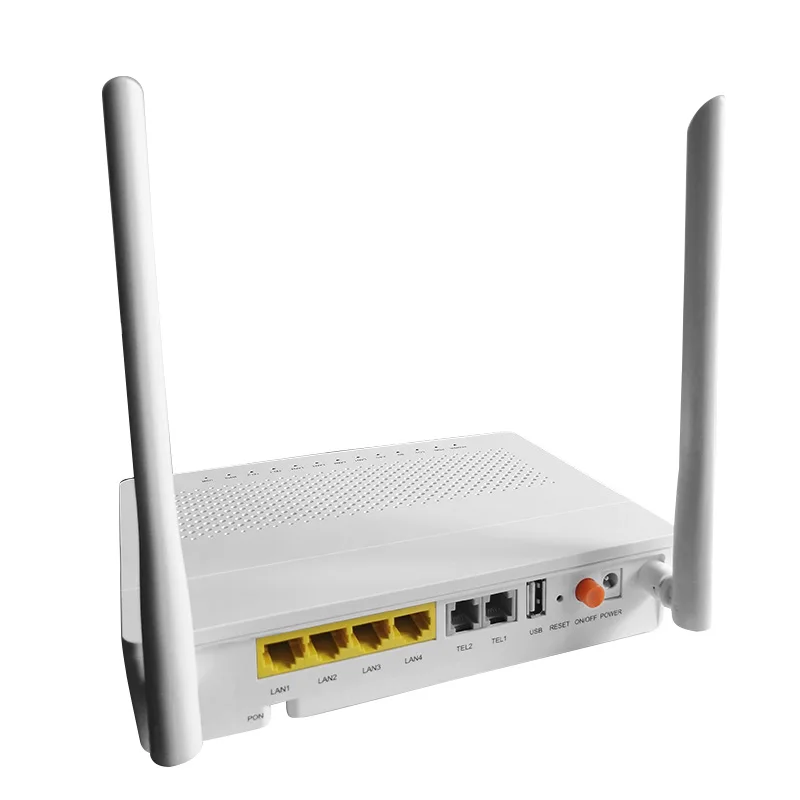

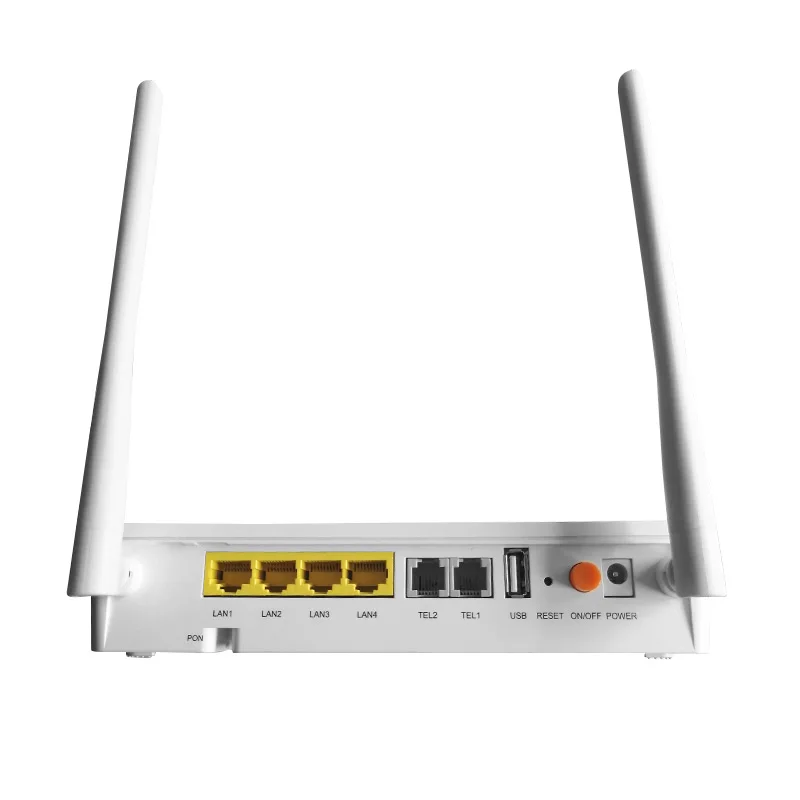

Interface

1* SC / PC GPON optical interface, downlink rate: 2.488Gbps; uplink rate: 1.244Gbps

4 *fixed 10/100 / 1000M BASE-T adaptive RJ45 interfaces, support cross direct connection adaptive, transmission distance 100 meters

2 *POTSRJ-11 voice ports

1* USB2.0 interface

1* DC interface

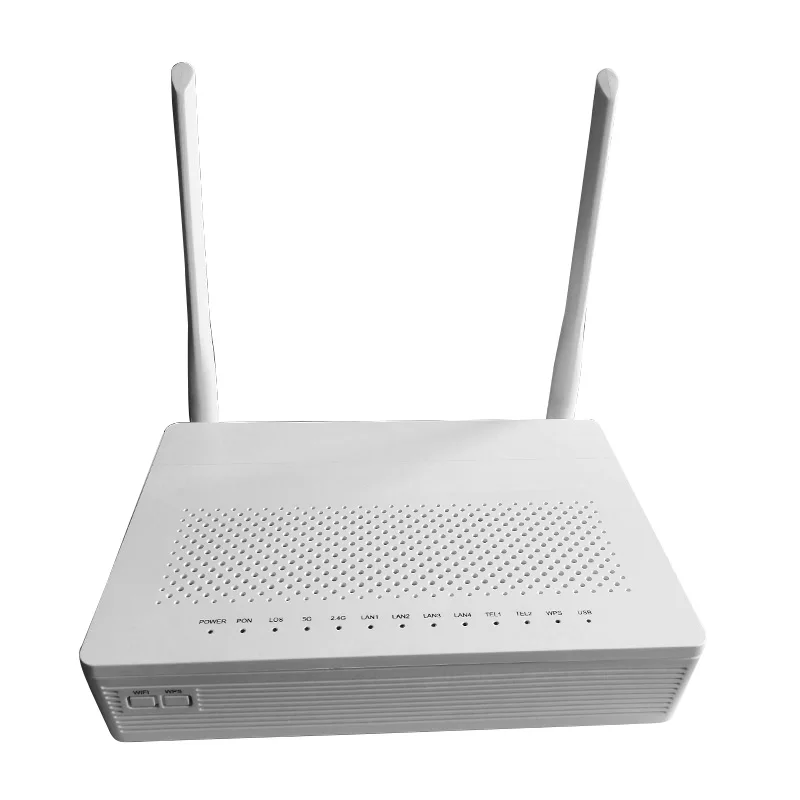

LED

PWR/PONO/LS/LAN1/LAN2/LAN3/LAN4/FXS/FXS/WIFI/WPS /USB1/USB2.0

Button

1* Reset button, 1* WPS button, 1* WIFI button

Power Adapter

Input:AC 100V~240V;Output:DC 12V 1.5A

Product maximum power consumption

<12W

Size

Product :195mm(L)×135mm(W)×37mm(H) ,0.5KG

Working environment

Operating temperature:0℃ - 50℃;
Storage temperature:-40℃- 85℃;

Working humidity:10% - 90%RH Non-condensing
Storage humidity:10% - 90%RH Non-condensing

Certification

3C,FCC,CE.

Software

Factory default settings

IP address: 192.168.1.1

User / Password: root / admin

Operating mode

Routing and bridge mode

Management style

Support OMCI management channel and web management based on G.984.4

DBA

Support

FEC

Support

Dying -Gas

Support

STP/RSTP

Support

QoS

Support

VLAN

Support

Other useful functions

Support CLI, Web, SNMP, TELNET and other management methods;

Software upgrade via TFTP and Web.
