Geo cell 3d geocell grid for driveway soil stabilization cellular confinement system

Product Overview

Description

 Geo cell 3d geocell grid for driveway soil stabilization cellular confinement system

High intensity earthwork geocell soil stabilizer for road

The history of geocells:

The Army Corp of Engineers invented 3D geocelluar grids in the 1970’s. The grid was designed for quick installation on beaches for amphibious beach assaults. It could be stored and moved in a very compact form, expanded and filled with sand, and ready at an instant for supporting vehicles, which would otherwise get stuck in the sand. The grids were also used extensively in Desert Storm. Soldiers would spread the grids out in the desert, fill cells with sand, and drive tanks and trucks on them. They would even land planes on them! The grids could easily be removed when no longer needed.
Geocells: Easy to move, quick and easy to install, and temporary, if need be.

WHY CELLS?
There is a complex science behind geocells. Simply put, materials confined by walls are compact and therefore stronger than when they are not confined.
If you are at the beach making a sand castle, imagine packing the bucket with sand. The sand is hard and compact. Turn the bucket over to dump that sand to build the castle, it stays intact, but is it strong? Is it hard? Without the walls it loses all strength. A continuous matrix of cells filled with any sort of confined aggregate makes an excellent foundation.

High intensity earthwork geocell soil stabilizer for road
Application:

♦EARTH RETENTION  High intensity earthwork geocell soil stabilizer for road
♦LOAD SUPPORT  High intensity earthwork geocell soil stabilizer for road

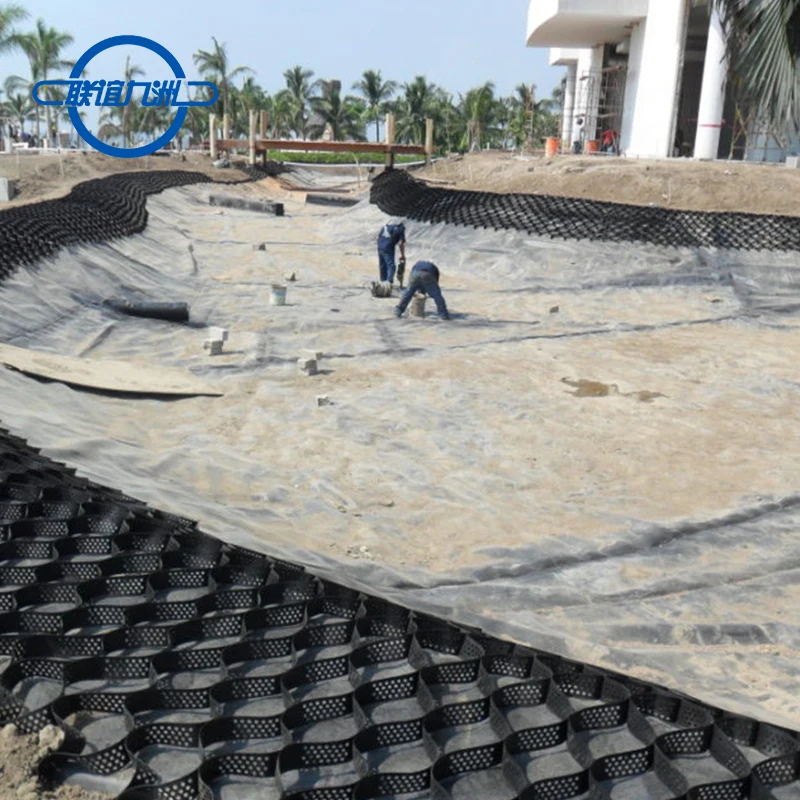

♦SLOPE PROTECTION  High intensity earthwork geocell soil stabilizer for road
♦CHANNEL PROTECTION  High intensity earthwork geocell soil stabilizer for road

Material	100% Original HDPE
Standard Color	Black  Green  Tan  White
Jointing	Ultrasonic Welding
Surface	Smooth, Textured, Perforated, Non-Perforated
Density(g/cm3)	>0.94	ASTM D792
Carbon Black Content(%)	1.5~2.0~2.5	ASTM D 1603
Sheet Thickness(mm)	≥1.25 ≥1.50 ≥1.75	ASTM D 5199
Seam Peel Strength(KN/m)	≥14.2	COE GL-86-19
Low Temperature Brittleness(℃)	<-77	ASTM D 746
Environment Stress Crack Resistance(Hours)	>4000	ASTM D 1693
