Полная линия по производству древесных плит

Product Overview

Description

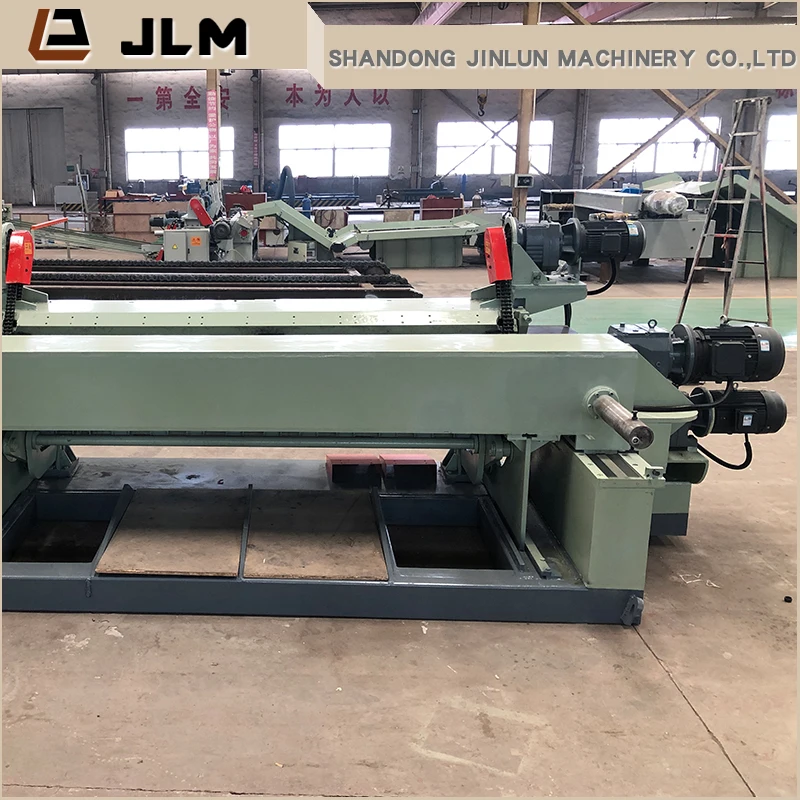

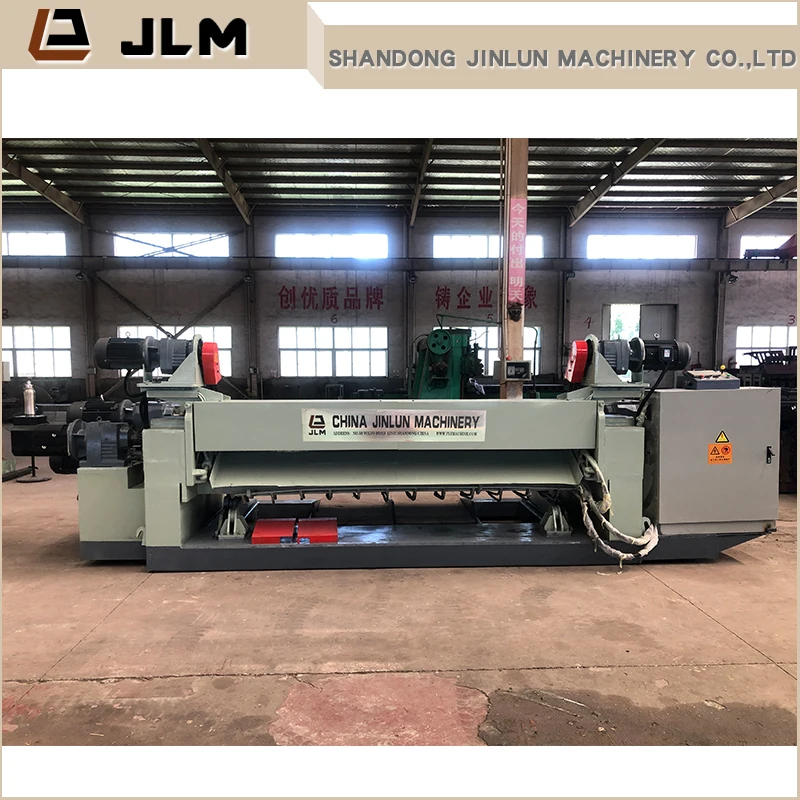

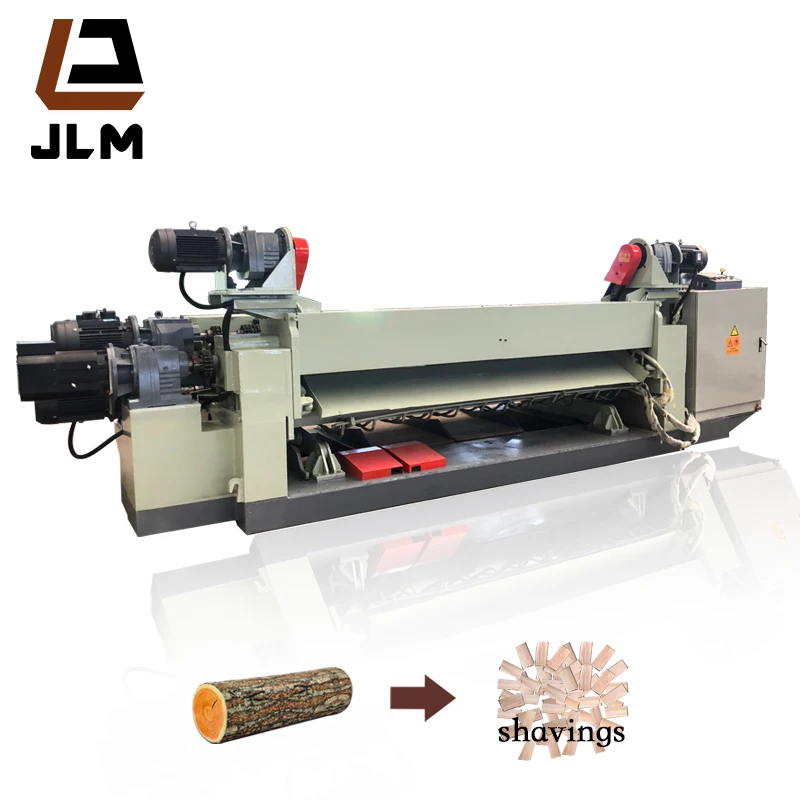

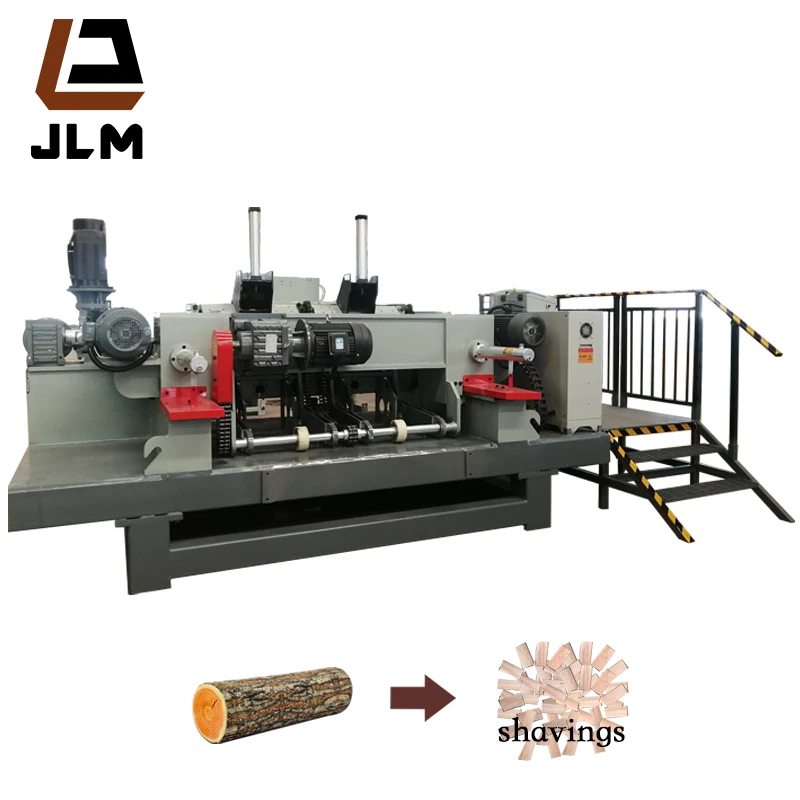

2.6 m shavings rotary cutting machine	The largest open	650mm
	Minimum wood shaft diameter	140mm
	The blade size	2750*180*16mm
	The thickness of the wood	0.5-0.7mm
	Vertical cutter spacing	120mm
	Double roller diameter	φ186mm
	Single roll diameter	φ150mm
	Speed range	30-90m/min
	Single roll motor	2*7.5kw
	Double roller motor	2*11kw
	Roller motor	7.5kw
	The feed motor	11kw
	Hydraulic station motor	4kw
	The total power	59.5kw
	The weight	12500kgs
	The whole machine size	6300*2300*1500mm
Break up machine	The maximum length	2600mm
	Break up the width	50mm
	Speed range	30-100m/min
	The motor	7.5kw
	The weight of the	500kgs
